Service Manual
Jun. 2004
42” PLASMA PDP TV
CHASSIS : SP-200N
MODEL : DPN-4274NHS
S/M NO. : TCP120BEF1
Contents
I. Parts with the exception of MODULE
1. Safety Precautions 2
2. Product Specification 3
2-1. SPECIFICATION 3
2-2. Available Input Signal 5
2-3. Remote Control Setup Code 6
3. BLOCK DIAGRAM 14
4. Description Of A/V and power 15
4-1. Block Diagram of main IC and TP 15
4-2. Overview 16
4-3. POWER PCB 24
4-4. Interface with PDP module 26
5. SERVICE MODE 27
5-1. Checking initial menu data 27
5-2. Entering SERVICE MODE 28
5-3. Description Of SERVICE MODE Items 30
6. Adjusting Method 33
6-1. Adjusting WHITE BALANCE 33
6-2. Adjusting POWER PCB 34
7. SOFTWARE UPGRADE Method 36
8. Main PCB Trouble Diagnosis 39
8-1. MAIN & SUB PCB Trouble Diagnosis 39
8-2. POWER PCB Trouble Diagnosis 46
9. TROUBLE DIAGNOSIS 47
9-1. Facts You Must Know When Diagnosing And Repairing 47
9-2. Typical Symptoms of PCB problem or bad Connection 47
9-3. Trouble Diagnosis and Repairing Method for Representative Symptoms 48
10. ASSEMBLY LIST 53
11. STRUCTURE OF PDP SET 54
12. EXPLODED VIEW 57
II. Parts of MODULE
1. Confirmation Manual
2. Repair Manual
-1-
-2-
1. Safety Precautions
I. Parts with the exception of MODULE
1. Safety Precautions
(1) When moving or laying down a PDP Set, at least two people must work together. Avoid
any impact towards the PDP Set.
(2) Do not leave a broken PDP Set on for a long time. To prevent any further damages, after
checking the condition of the broken Set, make sure to turn the power (AC) off.
(3) When opening the BACK COVER, you must turn off power (AC) to prevent any electric
shock. When PDP is operating, high voltage and high current inside the Set can cause
electric shocks.
(4) When loosening screws, check the position and type of the screw. Sort out the screws and
store them separately for reassembling. Because screws holding PCBs are working as
electric circuit GROUNDING, make sure to check if any screw is missing when
assembling/reassembling. Do not leave any screws inside the set.
(5) If you open the BACK COVER, you will see a
Panel Gas Exhaust Tube (Picture. 1-1) inside
the bracket. If this part is damaged, the entire
PDP PANEL must be replaced. Therefore,
when working with the set, be careful not to
damage this part.

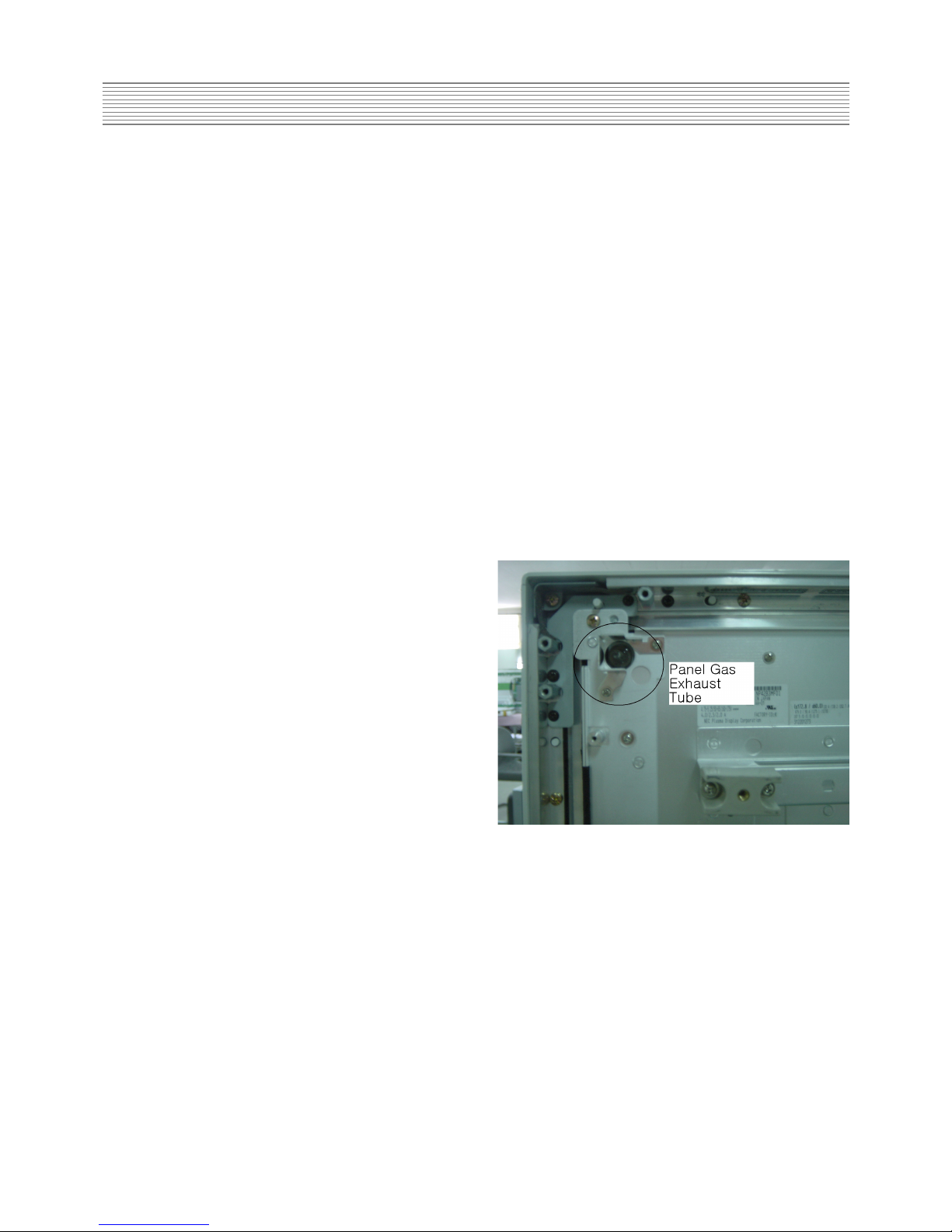

Picture 1-1. Panel Gas Exhaust Tube
(6) A PDP Set contains different kinds of
connector cables. When connecting or disconnecting cables, check the direction and
position of the cable beforehand.
(7) Connect/disconnect the connectors slowly with care especially FFC (film) cables and FPC
cables. Do not connect or disconnect connectors instantaneously with force, and handle
them carefully for reassembling.
(8) Connectors are designed so that if the number of pins or the direction does not match,
connectors will not fit. When having problem in plugging the connectors, check their kind,
position, and direction.
-3-
2. Product Specification
I T E M S P E C I F I C A T I O N REMARK
1. GENERAL
1-1. MODEL NO DPN-4274NHS
1-2. CHASSIS NO SP-200N
1-3. SCREEN SIZE 42”(16:9)
1-4. COUNTRY USA
1-5. RESOLUTION 853(H) X 480(V)
1-6. REMOCON TYPE R-53CP3
1-7. SAFETY STANDARD UL, C-UL, FCC(CLASS B)
1-8 .TUNIG METHOD FS
1-9. MEMORY CHANNEL 181CH
2. MECHANICAL
2-1. APPEARANCE
1) WITHOUT STAND WxHxD = 1044 x 631 x 89.0mm
2) WITH STAND WxHxD = 1044 x 705.9 x 310 mm
2-2. WEIGHT
1) WITHOUT STAND 30Kg
2) WITH STAND 34.5Kg
3. ELECTRICAL
3-1. VIDEO INPUT COMPOSITE(NTSC, PAL, SECAM, PAL-M/N, NTSC4.43) &
S-VHS(50/60Hz Y/C), 2 sets each
3-2. DTV/DVD INPUT 1080 i, 720P, 480P , 480i, 576P, 576i
(Y, Pb/Cb, Pr/Cr COMPONENT SIGNAL) 2 sets each
3-3. PC INPUT VGA ~ SXGA(Dot clock : 120MHz), 15 PIN D-SUB 1 set
3-4. DVI INPUT DVI-D INPUT (DVI Jack) 1 set
3-5. TV INPUT
1) COLOR STANDARD NTSC-M
2) ANTENNA IN ONE INPUT 75 Unbalanced (F-Type)
3) RECEPTION CHANNEL VHF : CH02 ~ 13
UHF : CH14 ~ 69
CATV : CH1, 14 ~ 125
4)
IF & SUBCARRIER PIF : 45.75MHz
SIF : 41.25MHz,
COLOR S/C : 3.58MHz,
SOUND S/C : 4.5MHz, 4.72MHz
3-6. SOUND INPUT VIDEO 2 sets, DTV/DVD 2 sets, PC 1 set,DVI 1 set
3-7. SPEAKER OUTPUT 10W(R) + 10W(L)
3-8. POWER REQUIREMENT AC 100V~240V, 50/60Hz
3-9. POWER CONSUMPTION 260W(Typical)
3-10. RS-232 CONTROL RS-232 Communication (FOR SERVICE UPGRADE)
2-1. SPECIFICATION
-4-
Product Specification
I T E M S P E C I F I C A T I O N REMARK
3-11. AV OUTPUT CVBS 1 set, SOUND R/L 1 set
3-12. FUNCTION
1) SCALING DVI : H/V SIZE
PC: H/V SIZE ,POSITION ,PHASE, FREQUENCY
VIDEO/DVD(480i/576i):16:9, 4:3, EnlargeLB,
EnlargeLBS, PANORAMA
DTV/DVD(480P or higher resolution) : 16:9, 4:3
2) ZOOM 20 STEP ZOOM and PANING Function
3) OSD Language Support 3 Languages (English, Spanish, French)
4) OTHERS STILL, SLEEP MODE, SOUND MODE
TIMER, PICTURE MODE, CAPTION, V-CHIP
4. OPTICAL
4-1. SCREEN SIZE 42”(106 cm) DIAGONAL
4-2. ASPECT RATIO 16 : 9
4-3. NUMBER OF PIXELS 853(H)X480(V)
4-4. DISPLAY COLOR 16.77 Million COLOR( RGB, 8BIT each)
4-5. CELL PITCH 1.08(H)X1.08(V)mm (1 Pixel = a Set of RGB Cells )
4-6. PEAK LUMINANCE 400cd/m2(WITH FILTER GLASS)
4-7. CONTRAST RATIO 1500:1 (Dark Room)
4-8. VIEWING ANGLE 160 degree(VERTICAL/HORIZONTAL)
5. USERCONTROL & ACCESSORIES
5-1 CONTROL BUTTON(SET) PUSH-PULL S/W : AC POWER BUTTON
SOFT S/W: MOVE/CH(UP, DOWN), VOLUME(LEFT, RIGHT),
MENU, INPUT SELECT
5-2. REMOTE CONTROL
(R-53CP3) POWER, Universal Selection(TV, VIDEO/DVD, CABLE, SAT),
10KEY(0~10), DISPLAY, 100, VCR /DVD KEY(F.R/SLOW,
PLAY, F.F/SLOW, REC, STOP, PAUSE, OPEN/CLOSE, PREV,
NEXT ),MENU, TV/VIDEO, MULTIMEDIA, STILL, PREV CH,
CAPTION, MUTE, CHANNEL(UP/DOWN), VOLUME(UP/DOWN),
PICTURE MODE, SCREEN SIZE, ZOOM-, ZOOM+, ADD/ERASE,
SLEEP, MTS, SOUND MODE
5-3. ACCESSORIES
REMOCON, BATTERY, USERS MANUAL, A/V CABLE, RF CABLE
5-4. OPTIONAL PARTS STAND, WALL HANGER, SPEAKER UNITS(Left, Right)
-5-
Product Specification
2-2. Available Input Signal
(1) PC & DVI
Resolution H Freq. (KHz) V Freq. (Hz) Remark DVI PC
640x400 37.861 85.080 VESA O
640x480 31.469 59.940 DOS O O
37.861 72.809 VESA O O
37.500 75.000 VESA O O
43.269 85.061 VESA O O
720x400 31.469 70.087 IBM O O
37.927 85.039 VESA O
800x600 35.156 56.250 VESA O O
37.879 60.317 VESA O O
48.077 72.188 VESA O O
46.875 75.000 VESA O O
53.674 85.061 VESA O O
1024x768 48.363 60.004 VESA O O
56.476 70.069 HP&VESA O O
60.023 75.029 VESA O O
68.677 84.997 VESA O
1152x864 67.500 75.000 VESA O O
1280x960 60.000 60.000 VESA O O
(2) DTV
-1080i/ 60 Hz
-720P / 60 Hz
-480P / 60 Hz
(3) VIDEO
-PAL, PAL-M, PAL-N
-NTSC , NTSC4.43
- SECAM
-6-
Product Specification
2-3. Remote Control Setup Code
[BRAND LIST : R-53CP3]
1. VIDEO/DVD (STANDARD : 004) LAST UPDATE : 2004.05.19
1) VIDEO
Maker (Brand) Name Code Number (3 digit) List
AKAI 022 048 050 108 109 126
AMPRO 076
ANAM 037 039 089
AUDIO DYNAMICS 018 029 044 048
BROKSONIC 041 043 110
CALIFORNIA AUDIO 201
CANON 034 037 039
CAPEHART 094
CRAIG 003 045 116
CURTIS MATHES 037 039
DAEWOO 004 012 014 017 068 069 094 096 097 098 102 103 104
DAYTRON 094
DBX 018 029 044 048
DENON 202 219 222
DISH 005
DYNATECH 057
ELECTROHOME 063
EMERSON 013 023 031 033 035 037 041 042 043 050 087 110 112 119
FISHER 003 015 016 017
GE 037 039 067 076 093 095 124 127 203 204
GO VIDEO 113 117
GOLDSTAR 018 019 026 087 092 100 107 205
HARMAN KARDON 018 049
HITACHI 011 048 067 118 130
INSTANTREPLAY 037 039
JCL 037 039
JCPENNY 018 019 021 039 045 070 087
JENSEN 048
JVC 018 037 039 048 052 054 059 064 111 130 132 206
KENWOOD 020 044 048 052 207
LOTTE 208
LXI 019 020 087
MAGIN 045
-7-
Product Specification
Maker (Brand) Name Code Number (3 digit) List
MAGNAVOX 037 039 072 209
MARANTZ 018 037 039 073
MARTA 087
MATSUI 033 036
MEI 037 039
MEMOREX 003 017 020 037 039 057 076 087 115 120
MGA 049 050 063
MINOLTA 019 026
MITSUBISHI 019 026 049 050 053 055 063 065 131 223
MULTITECH 030
NAD 210
NEC 018 029 044 048 052
NORDMENDE 048
ONKYO 215
OPTIMUS 211
OPTONICA 057 058
PANASONIC 070 074 078 086 114 125 224 225
PENTAX 019 026 037 039 067
PHILCO 037 039
PHILIPS 037 039 058 075 087
PILOT 087
PIONEER 019 027 052 212 220
PORTLAND 094
PULSAR 076
QUARTZ 002 020
QUASAR 039 070 079 125
RCA 019 026 039 066 067 093 095 124 125 127 218
REALISTIC 003 015 017 020 037 039 045 057 058 087
RICO 062
RUNCO 128 227
SALORA 020
SAMSUNG 038 045 088 090 091 093 095 098 099 101 105 106 109 231
SANSUI 028 048 052 116
SANYO 003 014 017 020 115 213
SCOTT 023 043 098 110 112
-8-
Product Specification
Maker (Brand) Name Code Number (3 digit) List
SEARS 003 015 016 017 019 020 026 037 047 077 087
SHARP 037 058 129 221 228
SHINTOM 030
SONY 003 016 037 056 060 061 062 080 081 082 129 214
STS 019
SYLVANIA 037 039 063
TANDY 017
TATUNG 044 048
TEAC 044 048
TECHNICS 037 039 226
TEKNIKA 025 037 039 087
THOMSON 203 204
TMK 013
TOSHIBA 015 019 047 051 063 085 098 112
TOTEVISION 045 087
UNITECH 045
VECTOR RESEARCH 018
VICTOR 052
VIDEO CONCEPTS 018 050
VIDEOSONIC 045
WARDS 003 019 023 030 037 039 045 057 058 112
YAMAHA 018 044 048 216 217 230
ZENITH 052 060 062 076 083 087
-9-
Product Specification
Maker (Brand) Name Code Number (3 digit) List
ANAM 358 359
AKAI 354
DAEWOO 352 360
DENON 357 361
HYUNPAZ 362
KENWOOD 356
LG 350 368 369
MAGNAVOX 355
ONKYO 365 366 367
PANASONIC 357 370
PHILIPS 355
PIONCER 353
SAMSUNG 351 363 364
THOMSON 371
TOSHIBA 355
YAMAHA 357
WILL CAN 372
