Daewoo DTB Series Manuale utente
Colour Television
Instruction Manual
Instruction Manual
P/N : 48586185E215-R3
MODEL No.
DTA- 14V1 / 20V1 / 21V1
14V1T / 20V1T / 21V1T
14V3 / 20V3 / 21V3
14V3T / 20V3T / 21V3T
14U1 / 20U1 / 21U1
14U1T / 20U1T / 21U1T
14U3 / 20U3 / 21U3
14U3T / 20U3T / 21U3T
DTB- 14D2 / 20D2 / 21D2
14D2T / 20D2T / 21D2T
14D3 / 20D3 / 21D3
14D3T / 20D3T / 21D3T
14D4 / 20D4 / 21D4
14D4T / 20D4T / 21D4T
14D6T / 20D6T / 21D6T
14D7 / 20D7 / 21D7
14D7T / 20D7T / 21D7T
14D9 / 20D9 / 21D9
14D9T / 20D9T / 21D9T
21U6 / 21U6T / 21U8 / 21U8T
21T1 / 2132 / 2132T
Contents
Important safeguards 1
Before Operation 2
Connecting external equipment 3
Identification of Controls 5
Daily use 6
Menus 8
Teletext (Option) 14
Quran function 15
Specifications 16
Troubleshooting 17
1

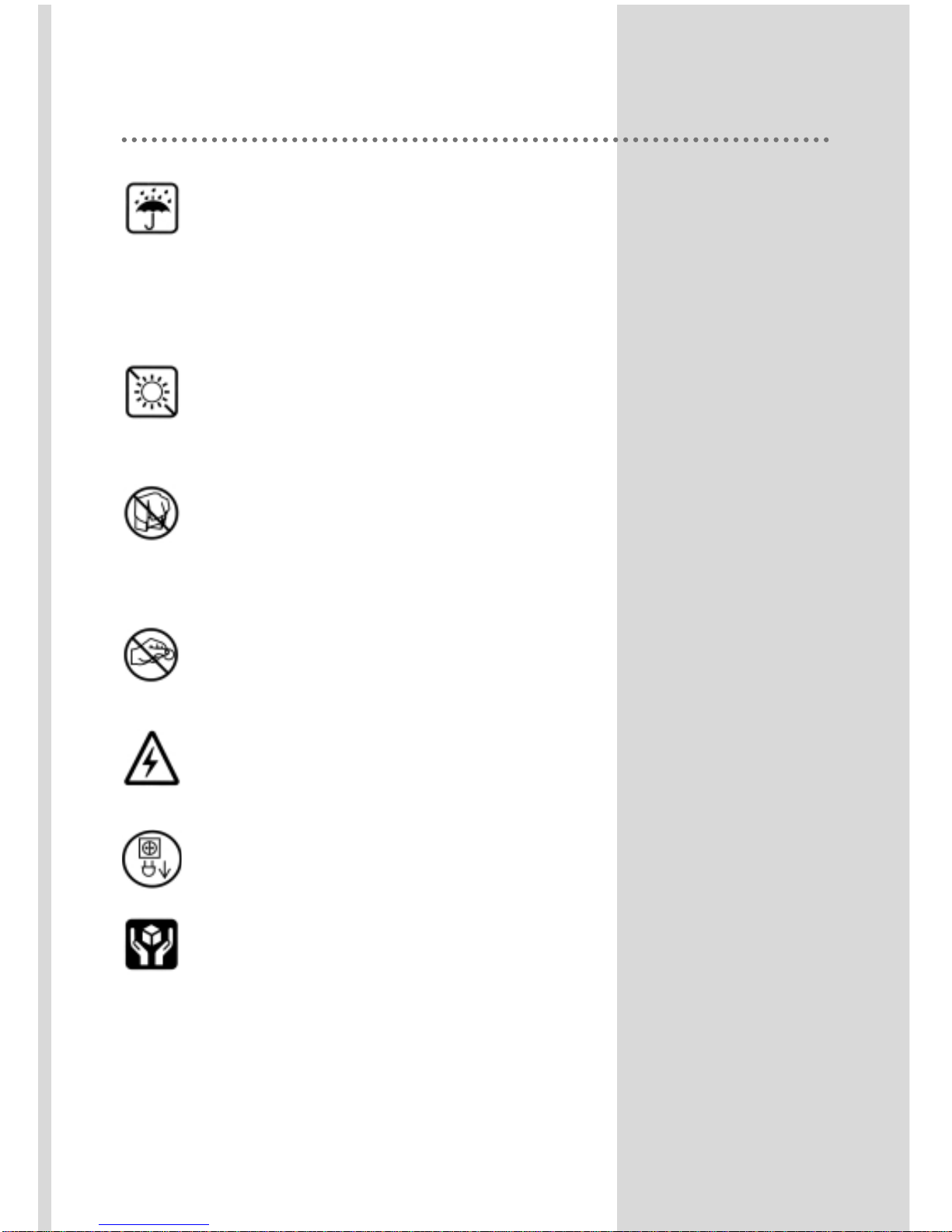

Important safeguards
WATER AND MOISTURE
Never install the set in the following places : In a wet
basement, bathroom. Do not place any container with
liquid on the set.
The apparatus shall not be exposed to dripping or
splashing water and that no objects filled with liquids, such
as vases, shall be placed on the apparatus.
HEAT
Never place the set near heat sources.
Never put a naked flame, such as a candle, on the top of
TV set.
VENTILATION
Do not cover the ventilation openings in the cabinet and
never place the set in a confined space such as a
bookcase or built-in unless proper ventilation is provided.
Leave a minimum 10cm gap all around the unit.
OBJECT ENTRY
Do not insert foreign objects, such as needles and coins,
in the ventilation openings.
LIGHTNING STRIKING
You should disconnect the set from the mains and the
aerial system during thunderstorms.
CLEANING
Unplug the set from the mains during cleaning.
AFTER MOVING THE SET
If the set is moved in a different direction, the MAIN
POWER button must be switched off for at least 15
minutes in order to take out a colour strain on the screen.
2
Before Operation
INSERTING BATTERIES INTO THE REMOTE CONTROL UNIT.(OPTION)
Insert the batteries (two 1.5V, type AAA or AA)
MAINS CONNECTION
Plug the mains cable into the power socket with 100V-250V, 50/60Hz AC.
AERIAL CONNECTION
When using an outdoor aerial, it is usually connected to the set by means
of 75 ohm.
SWITCHING ON AND OFF
Switching on
Switch the set on with the MAIN POWER button(ON/OFF), and then PR UP
button on the front of the set.
Or button or the PR UP button or one of the NUMBER buttons on the
remote control.
Switching off
Press button, on the remote control to return the set to its stand by
mode.
If you don't use the set for an extended period of time, turn it off with
MAIN POWER button on the set.
Battery options
3
TV AND A
TV AND AV
V
RCA JACK A
RCA JACK AV (BACK)
V (BACK)
Connecting external equipment
Use the TV/AV( ) button on the remote control or on the front of
the set to select one of the three options. Whenever the TV/AV
( ) button is pressed, the on-screen display will be changed as
shown: AV TV ( S-VHS is Russia only )
This is used to connect a VCR, a Camcorder, a S-VHS VCR, a PERI-TV decoder
or a video game console.
In most cases, the set changes automatically to AV when the VCR connected is in
display mode. If not, press the TV/AV
()
button on the remote control unit
or on the front of the set.
You must turn the external equipment off or press the TV/AV button to return to
the TV mode.
SCART (OPTION)
4
CAMCORDER
VIDEO GAME
LOCAL CONTROL
LOCAL CONTROL
RCA JACK A
RCA JACK AV (FRONT)
V (FRONT)
Front
MAIN
POWER
BUTTON VIDEO AUDIO HEAD
PHONE STAND-BY
INDICATOR REMOTE
SENSOR MENU
BUTTON
VOLUME
UP/DOWN
BUTTONS
PROGRAMME
UP/DOWN
BUTTONS
TV/VIDEO
AUDIOVIDEO
PR
MENU
AUDIOVIDEO
PR
MENU
OR
Connect the AV (Audio/Video) socket with an
appropriate cable to the corresponding socket
of the external equipment. Select AV mode by
pressing the TV/AV( ) button.
Press the TV/AV( ) button to return to
the TV mode.
HEADPHONE JACK
Insert the headphone plug(3,5mm) into the
headphone socket.
The sound from the speaker will be cut off.
NOTE:
NOTE: If two apparatus are connected,
one to the front AV Jack and the other to
the rear SCART Jack, you can play only
one apparatus.
one of the them must be switched off.
or ON/OFF
OR
5
Back
Identification of Controls
RCA Jack SCART (OPTION)
Aerial terminal
Aerial Terminal
REMOTE CONTROL
REMOTE CONTROL
PR
PR
MENU
SLEEP RECALL
NORMAL/OK
SKIP MOVE DELETE MODE
1
6
5
8
11
4
2
9
7
10
12
18
13
17
14
15
3
16
PR
PR
SLEEP RECALL
MOVESKIP
DELETE MODE
MENU
NORMAL/OK
123
456
78
0
9
1
2
3
5
6
7
8
9
4
10
11
13
14
16
18
17
15
12
VIDEO AUDIO
POWER
NUMBER 0-9
NORMAL/OK
AV
PR (CURSOR) UP
VOLUME UP
(CURSOR RIGHT)
MENU
PR (CURSOR) DOWN
VOLUME DOWN
(CURSOR LEFT)
MUTE
RECALL
SLEEP
MOVE
SKIP
DELETE
Not used
ON/OFF
NUMBER 0-9
INDEX
MIX
PAGE UP
SUBPAGE
MENU
PAGE DOWN
HOLD
MUTE
REVEAL
SIZE
CANCEL
Green Key
Red Key
TV/TEXT
Yellow Key
Cyan Key
two 1.5v, type AA two 1.5v, type AAA
two 1.5v, type AAA
6
PROGRAMME SELECTION
PROGRAMME SELECTION
SOUND CONTROL
SOUND CONTROL
PICTURE CONTROL
PICTURE CONTROL
Direct selection
Use remote control NUMBER 0…9 buttons.
For two digits programme numbers, press the button for
the second digit within 2.5 seconds.
Up/Down moves
Use PR UP/DOWN buttons of the remote control unit or
on the front of the set.
DAILY USE
Volume adjustment
Use VOLUME UP/DOWN buttons of the remote control
unit or on the front of the set.
Mute
Get sound off by pressing the remote control
MUTE ( ) button. Then, logo ( ) is displayed.
Sound returns by pressing the same button again.
You can choose between three picture settings, using
repeatedly remote control NORMAL/OK button :
Normal I (standard hard picture)
Normal II (standard soft picture)
Favourite (you can adjust picture setting as you
want, using Picture menu).
For other adjustments : Brightness, contrast, colour,
sharpness, see Picture menu. (page 9)
7
SLEEP FUNCTION
SLEEP FUNCTION
PROGRAMME ST
PROGRAMME STA
ATUS DISPLA
TUS DISPLAY
Y
Pressing repetitively the remote control SLEEP button,
you can enter one of the following settings :
OFF > 30 min > 60 min > 90 min > 120 min > OFF
The set will be turned off after the time you set.
The remaining time before TV turn-off is displayed on
programme status.
Accessed by the Remote Control RECALL button.
Programme number
Remaining time (minutes) before
TV set turns off only when sleep
function is activated.
Channel name
01 BBC1
11 : 11
SLEEP 60
Clock
*
NOTE
Language selection
Child lock, Clock setting and wake time setting are
available in features menu.
8

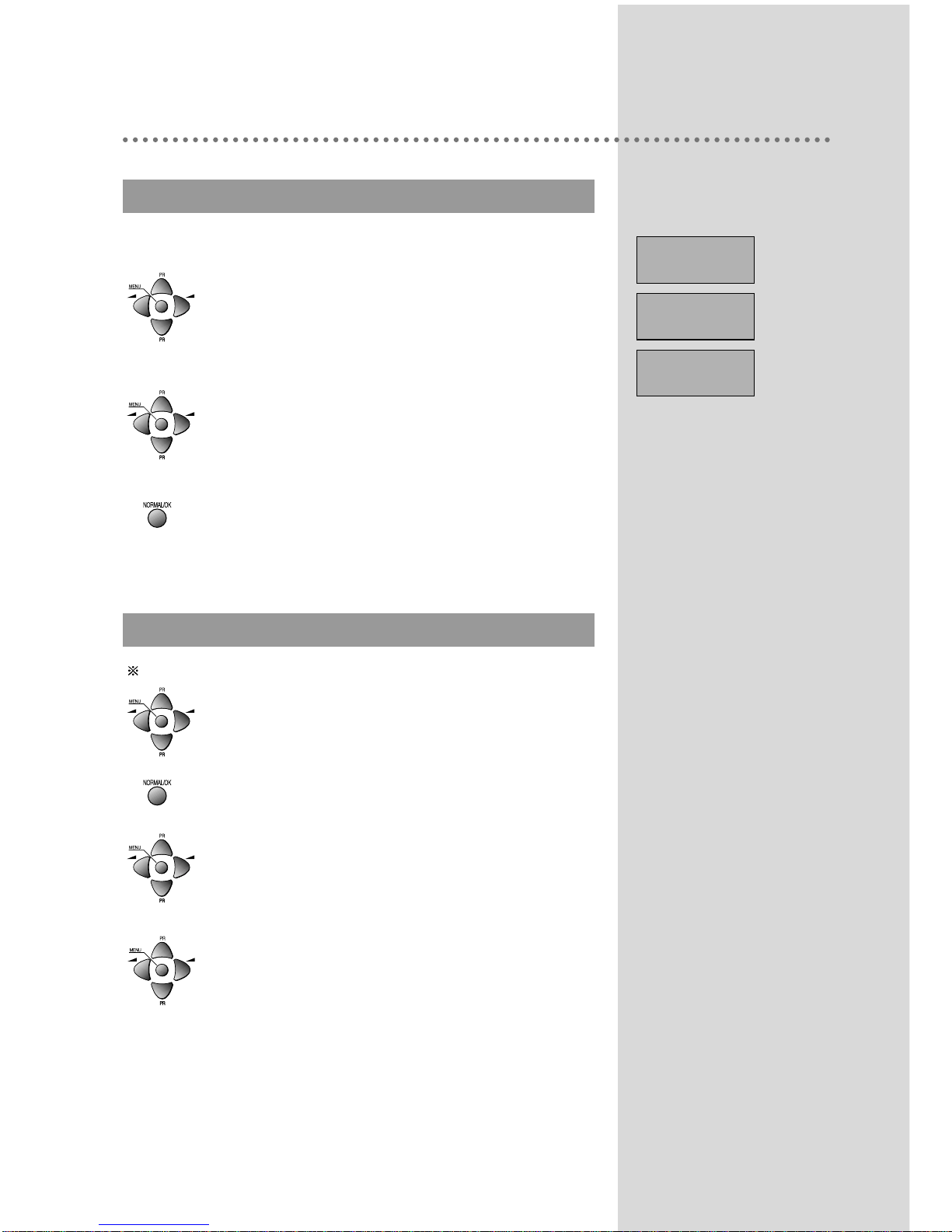

MAIN MENU
MAIN MENU
HOW T
HOW TO USE SUB MENUS
O USE SUB MENUS
All menus are removed within 25 seconds if you don’t press any button.
The following is applied to all of the sub-menus.
Menus
Direct selection
Press remote control MENU button to display main
menu.
Then, you have the choice among several sub-
menus.
If you want to cancel immediately main menu,
press MENU button once more.
To select one of the sub-menus, use remote
control CURSOR buttons UP, DOWN, LEFT,
RIGHT.
To enter the selected sub-menu, press remote
control NORMAL/OK button .
Select the function you want to change using
Remote control CURSOR UP or DOWN button.
Confirm (if needed) by pressing Remote control
NORMAL/OK button .
Adjust the function using
Remote control CURSOR LEFT or RIGHT button.
Then Return to main menu pressing MENU button .
FEATURES
INSTALL
