Daewoo HURRICANE CAT 5 Manuale utente

Hurricane CAT 5 Carpet Washer

Model No. FLR00115

User Manual

IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

Hurricane CAT 5 Carpet Washer

Model No. FLR00115

User Manual

Contents

Page No.

2 Contents

3 Reading and Storing the User Manual

3 Important Safety Instructions for Proper Use

6 Explanation of Symbols

6 Information About Your Carpet Washer

6 Before First Use of Your Carpet Washer

7 Description of Parts & Accessories

8 Assembling Your Carpet Washer

9 Filling the Solution Tank

9 Preparing Your Carpet for Cleaning

9 Cleaning Your Carpet

11 Hints & Tips to Cleaning Your Carpet

11 Using the Upholstery Tool Attachment

12 Emptying the Dirty Water Tank

13 Cleaning and Maintenance of Your Carpet Washer

13 Cleaning the Bristle Bar

13 Storing Your Carpet Washer

14 Troubleshooting Guide

14 Plug Wiring Information

14 Technical Specification

15 Recycling Information

15 Customer Support

Back Page Warranty Information

Hurricane CAT 5 Carpet Washer

Model No. FLR00115

User Manual

IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

READING AND STORING THE USER MANUAL

Before using this product, please read through this manual

carefully paying particular attention to the safety instructions.

Failure to do so may result in personal injury or damage to the

product.

Carefully save this instruction manual for future reference. Ensure the

user manual is included when passing the product on to any third

parties.

IMPORTANT SAFETY INSTRUCTIONS FOR PROPER USE

When using electrical appliances, basic safety precautions should

always be followed.

Only use the product as described in this user manual. Any other use is

considered improper and may result in damage to property or persons.

The manufacturer or vendor cannot be held liable for damages or injury

incurred through improper or incorrect use.

•Read and familiarise yourself with all operating

instructions before using this Carpet Washer.

•Before plugging your unit into the mains, visually check

that the unit is intact and has not suffered any transit

damage.

•Check that the voltage indicated on the data plate

corresponds with that of the local network before

connecting the appliance to the mains power supply.

•This appliance can be used by persons with reduced

physical, sensory or mental capabilities or lack of

experience and knowledge if they have been given

supervision or instruction concerning use of the appliance

in a safe way and understand the hazards involved.

•Children shall not play with the appliance.

•Keep the appliance and its cord out of reach of children

less than 8 years when it is energised or cooling down.

•DO NOT immerse the appliance or its cord in water or any

other liquids.

•DO NOT leave the appliance unattended during use.

•DO NOT leave the appliance unattended whilst connected

to the mains supply.

•DO NOT use this appliance outdoors.

IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

Hurricane CAT 5 Carpet Washer

Model No. FLR00115

User Manual

•It is imperative to unplug the power cord after the

appliance has been used, before it is cleaned and whilst

being repaired.

•Repairs to electrical appliances should only be performed

by qualified personnel. Improper repairs may place user at

serious risk.

•DO NOT operate this appliance with a damaged plug or

cord, after a malfunction or after being dropped or

damaged in any way.

•Regular, periodic checks should be carried out on the

mains cable to ensure no damage is evident. Should there

be any signs of damage the appliance should not be used.

•If the power cable is damaged, it should only be replaced

by qualified personnel in order to avoid a hazard.

•DO NOT allow the mains cable to hang over sharp edges

or come in contact with hot surfaces.

•DO NOT run the mains cable under carpets, rugs, etc.

•The appliance is not to be used if it has been dropped, if

there are visible signs of damage or it is leaking.

•The plug must be removed from the socket outlet before

the reservoir is filled with water or the waste water tank

emptied.

•The filling aperture must not be opened during use.

•Allow the unit to cool before storage.

•Before cleaning, disconnect the appliance from the mains

supply and allow to cool.

•This appliance is intended for household use only and

should not be used for industrial purposes.

•DO NOT use any accessories or attachments with this

appliance other than those supplied or recommended by

supplier.

•DO NOT use this appliance for anything other than its

intended use.

•DO NOT push objects into any openings as damage to the

appliance and/or electric shock may occur.

•Unplug after each use. Grasp the plug, not the cord.

Hurricane CAT 5 Carpet Washer

Model No. FLR00115

User Manual

IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

•DO NOT pull or carry the appliance by the electrical cord.

•Caution: Always wear suitable shoes when using the

Carpet Washer and when changing accessories, do not

wear slippers or open toed footwear.

•Ensure fingers and other objects are never placed in any

part of theCarpet Washer. Clothing or hair may become

trapped if the Carpet Washer is used improperly.

•Keep hair, loose clothing, jewellery, fingers and all parts of

the body away from openings and moving parts.

•Keep all air vents clear and free of dust, lint, hair and

anything else that may reduce airflow.

•Avoid directing the appliance towards naked flames as the

air discharged may extinguish gas fires or pilot lights and

may disturbashes in open fires.

•Never operate the appliance without water.

•Never fill the water tanks past the maximum level mark.

•DO NOT run the Carpet Washer over hot ashes or lit

cigarettes, etc.

•Do not use the Carpet Washer without the water tanks

fitted.

•DO NOT run the Carpet Washer over any large or broken

objects such as glass.

•DO NOT run the Carpet Washer over anything that is

burning or smoking such as cigarettes, matches or hot

ashes.

IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

Hurricane CAT 5 Carpet Washer

Model No. FLR00115

User Manual

Explanation of Symbols

The following warning symbols or words are used in this instruction manual:

Products labelled with UK Conformity Assessment identifies

products conforming to UK statutory requirements.

Products labelled with this symbol conform to applicable provisions

of the European Economic Area.

You should now recycle your waste electrical goods and in doing so

help the environment. This symbol means waste electrical products

at the end of their useful life should not be disposed of with normal

household waste and not sent to landfill. Please ensure it is taken

to a suitable facility for disposal. Check with your Local Authority or

retailer for recycling advice or visit www.recycle-more.co.uk, enter

your postcode to find out your nearest recycling site.

This symbol provides useful additional information on the use of

this product.

This symbol indicates that the supply uses an alternating current

mains supply.

This symbol indicates that the appliance is electrically double

insulated and therefore does not require an earth connection.

WARNING! This designates a hazard with moderate risk, which may result

in severe injury or damage to the product if not adhered to.

Information About Your Carpet Washer

This appliance is designed to be used for removing light levels of dirt on carpets

and for freshening up carpets, it is not suitable for use as a conventional vacuum

cleaner.

Before First Use of Your Carpet Washer

Remove all packing materials and discard responsibly.

Take care whilst opening the carton as a sharp blade may damage the product.

Ensure that all parts are present –see ‘Description of Parts & Accessories’below:

Hurricane CAT 5 Carpet Washer

Model No. FLR00115

User Manual

IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

Description of Parts & Accessories

1. Handle.

2. Solution Release Trigger.

3. Clean Water Filling Cap.

4. Solution Tank Release Catch.

5. Solution Tank.

6. Dirty Water Tank Release Catch.

7. Dirty Water Tank.

8. Wheels.

9. Scrubbing Bar.

10.Adjustable Cable Tidy.

11.Handle Release Pedal (Foot Operated).

12.On/Off Pedal (Foot Operated).

13.Mains Cable.

14.Upholstery Tool

15.Upholstery Tool Trigger

16.Handle Fixing Screws (x2 –not shown)

Front View

Rear View

IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

Hurricane CAT 5 Carpet Washer

Model No. FLR00115

User Manual

Assembling Your Carpet Washer

WARNING! Ensure that the carpet washer is

not connected to the mains supply before

assembly

Attach the Handle (1) to the Carpet Washer

as shown left with the two Handle Fixing

Screws (16) provided using a Crosshead

screwdriver (Not Supplied).

Do not overtighten the screws as this may

permanently damage the threads.

Filling the Solution Tank (5)

1.Remove the Solution Tank (5) by lifting the Solution Tank Release Catch (4)

forwards and removing the tank towards you.

2.Lift the Clean Water Filling Cap (3) up and fill

the Solution Tank (5) with warm water (max.

40⁰C) as shown right, ensuring that the water

level is not above the ‘MAX’ mark (arrowed)

on the side of the tank:

In hard water areas it is strongly

recommended that demineralised water is

used to avoid calcium build up which may

damage the carpet washer.

3.Add carpet cleaning solution to the Solution Tank (5) carefully following the

manufacturer’s instructions.

4.Only use this appliance with an appropriate (Low-Foaming) commercial carpet

cleaning solution such as Daewoo Carpet & Upholstery Shampoo which is

available by contacting Daewoo Customer Services on 0161 831 7879 or email

help@daewooelectricals.com.

5.Using incorrect solutions will cause excessive foaming which may prevent the

appliance from performing correctly and may cause permanent damage to the

appliance.

6.DO NOT use solvents or cleaners with strong acidic or alkali formulas or any

Hurricane CAT 5 Carpet Washer

Model No. FLR00115

User Manual

IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

type of cleaning solution not specifically for use in carpet cleaners.

7.DO NOT use washing up liquid or similar.

8.To replace the tank, place the bottom of the tank onto the machine first and

then push the top of the tank towards the Handle (1) until it clicks home.

9.Always ensure that the Solution Tank (5) is properly in place before using the

carpet washer.

DO NOT overfill the solution tank as this will cause a spillage/leakage.

DO NOT operate the Carpet Washer with an empty solution tank.

Preparing Your Carpet for Cleaning

WARNING! DO NOT

use this Carpet Washer as a dry vacuum cleaner as

this will damage the appliance.

1.Remove as much furniture from the room as possible. Place plastic sheets or

other protective covering under and around any furniture left in the room.

2.Thoroughly vacuum the carpet to be cleaned with a regular vacuum cleaner.

3.Dampen a white cloth and rub the cloth gently over a small test area on the

carpet and check for any colour bleeding. If the cloth remains clean, it should

be safe to clean the carpet.

WARNING!

DO NOT continue to clean the carpet if any colour is released on

the cloth as permanent damage may occur to the carpet.

Cleaning Your Carpet

Before cleaning your carpet, decide where to start from and where to stop at so

that you do not walk over areas that have already been cleaned.

Do not saturate the carpet with cleaning solution.

If the carpet is heavily soiled, use a separate solution for heavily soiled areas such

as Daewoo Carpet & Upholstery Stain Remover which is available by contacting

Daewoo Customer Services on 0161 831 7879 or email

help@daewooelectricals.com.

1.Remove the Mains Cable (13) from the back of

the Carpet Washer by rotating the Adjustable

Cable Tidy (10) upwards as shown right and

then remove the Mains Cable (13):

IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

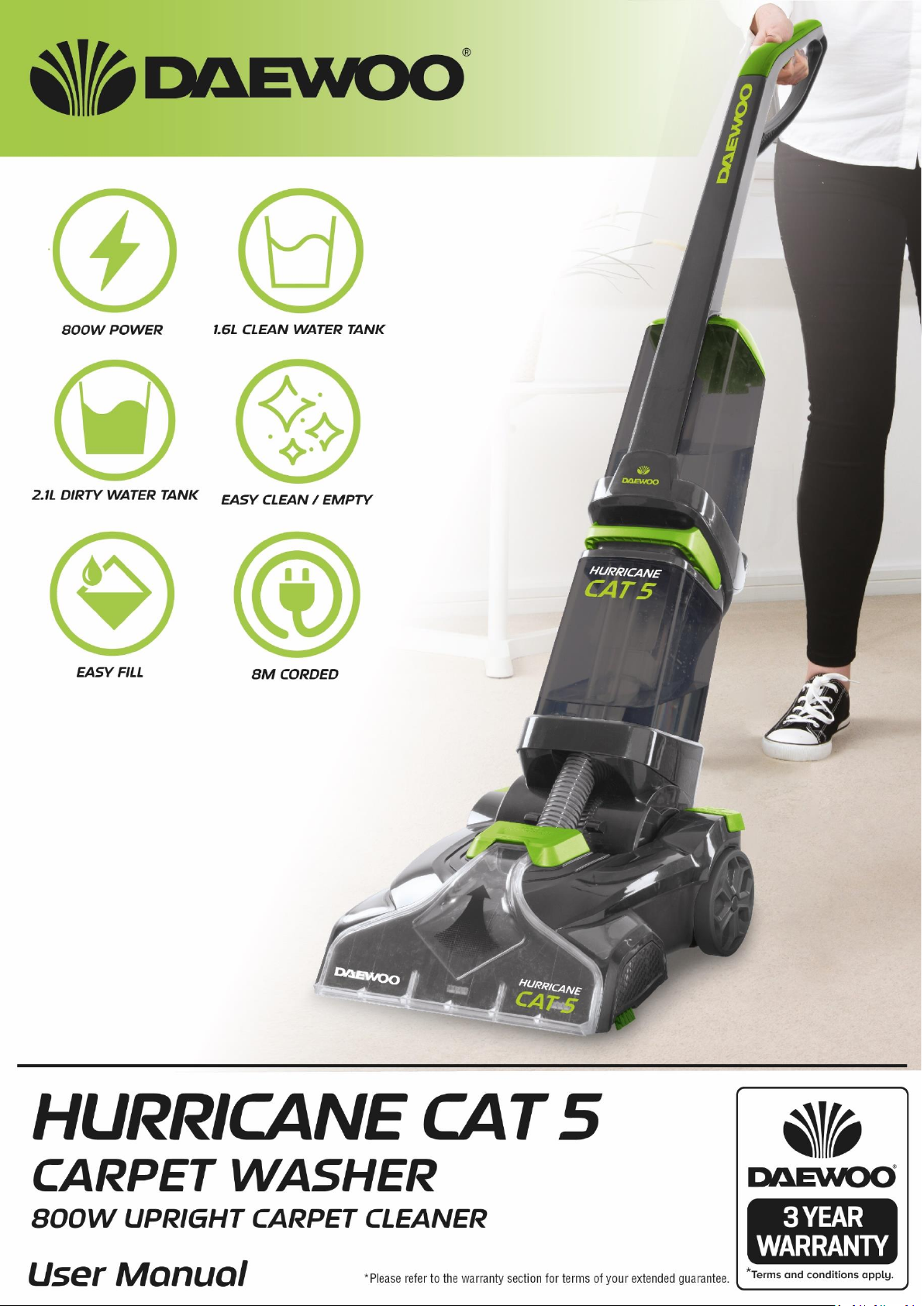

Hurricane CAT 5 Carpet Washer

Model No. FLR00115

User Manual

2.Fully unwind the Mains Cable (13) and insert the

mains plug into the nearest mains socket and switch

the socket on (if applicable).

3. Hold the Carpet Washer by the Handle (1) and

then step on the Handle Release Pedal (11)

shown left and gently lower the Handle (1)

into the cleaning position:

4.Step on the On/Off Pedal (12) to operate the Carpet

Cleaner:

5.Whilst pressing the Solution Release Trigger (2) to release the cleaning

solution then push the carpet washer forwards to allow the Scrubbing Bar (9)

to clean the carpet.

6.Once you have reached the edge of the carpet, release the Solution Release

Trigger (2) and then pull the cleaner backwards towards you along the same

path to remove the dirty cleaning solution from the carpet.

7.Repeat the above steps 3 & 4 to clean the rest of the carpet or heavily soiled

areas.

8.Once the cleaning is complete, step on the On/Off Pedal (12) to switch the

cleaner off.

9.Lift the Handle (1) up to the upright position until it locks into place.

10.To store the washer, wrap the Mains Cable (13) around the Adjustable Cable

Tidy (10) on the back of the appliance.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Daewoo Aspirapolvere

Daewoo

Daewoo RC-700 Manuale utente

Daewoo

Daewoo RC-172 Manuale utente

Daewoo

Daewoo RC900M0001 Manuale utente

Daewoo

Daewoo DAVC150 Manuale utente

Daewoo

Daewoo Cyclone Digi-Flex Manuale utente

Daewoo

Daewoo CYCLONE ESSENTIAL Manuale utente

Daewoo

Daewoo RC-1700P Manuale utente

Daewoo

Daewoo Tornado Lyte Manuale utente

Daewoo

Daewoo RC-200 Series Manuale utente

Daewoo

Daewoo RC-220 Manuale utente

Daewoo

Daewoo CYCLONE DIGI ONE Manuale utente

Daewoo

Daewoo RCC-260 Manuale utente

Daewoo

Daewoo RC-6003F Manuale utente

Daewoo

Daewoo RCG-100 Manuale utente

Daewoo

Daewoo DAVC 90-80L Manuale utente

Daewoo

Daewoo RC-220 Manuale utente

Daewoo

Daewoo RCC11CY Manuale utente

Daewoo

Daewoo RC-4008S Manuale utente

Daewoo

Daewoo RC-4085BLBA Manuale utente

Daewoo

Daewoo DAVC 90-30L Manuale utente

Daewoo

Daewoo RC-1780GA Manuale utente

Daewoo

Daewoo RC-320F Manuale utente

Daewoo

Daewoo Cyclone Freedom FLR00010 Manuale utente

Daewoo

Daewoo RC-450 Manuale utente

Manuali Aspirapolvere popolari di altre marche

Bissell

Bissell LittleGreen Proheat 1425 Series Manuale utente

Panasonic

Panasonic MC-YL637S147-AE Manuale utente

NEFF

NEFF N17XH10 0 Series Manuale utente

LG A9 Series Manuale utente

Oreck

Oreck Cordless Captura BK51700 Series Manuale utente

Kogan

Kogan KAVACROBVWA Manuale utente

Kränzle

Kränzle VENTOS 50 ID Guida utente

EVVO

EVVO Ai35 Manuale utente

DeWalt

DeWalt DWH200D Manuale utente

Pontec

Pontec Pondomatic Vacuum Cleaner Manuale utente

Cleanmaxx

Cleanmaxx PC-P007E Manuale utente

Exido

Exido 240-114 Manuale utente

RIDGID

RIDGID WD1685AU0 Manuale utente

Ezviz

Ezviz RE4P Manuale utente

STG global

STG global TANVAC HDV3000 Manuale utente

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Manuale utente

Factory

Factory M3340 Manuale utente

Shop-Vac

Shop-Vac VN92 SERIES Manuale utente
