Daewoo DWD-E115R Manuale utente

DRUM WASHING MACHINE

DEC. 2006

DWD-E115R

DWD-E113R

WDE115R001

DRUMWASHINGMACHINE

SERVICEMANUAL

1. WHAT IS DRUM?..........................................................................2

2. SPECIFICATION OF DRUM WASHING MACHINE .....................6

3. VERIFICATION OF DRUM ASSY ................................................8

4. SEQUENCE CHART OF PCB.....................................................24

5. TROUBLE SHOOTING ...............................................................34

6. WIRING DIAGRAM .....................................................................49

7. TROUBLE SHOOTING REGARDING DRAIN ............................50

8. INSTALLATION GUIDE...............................................................51

9. ATTENTION POINT WITH SERVICING......................................53

One of the famous washers in the globe which uses laundry falling energy.

1.WHATISDRUM?

1.WHATISDRUMWASHER?

❖The biggest capacity with compact size

❖Environmently friendly washer with NANO technology

• Sterilizing up to 99.9%

❖No damage and entanglement but excellent washability

❖4way savings-noise, vibration, washing times, energy

❖Self-cleaning course of Drum

❖Good washing performance with heating system

❖Condensing dry system with saving energy

❖Big door glass with easy laundry take-in/out

❖The higest spin speed - 1200rpm

❖Superior Interior Design

2.Salespointofourwasher

• DD CONTROL : DIRECT DRIVE SYSTEM

• BLDC MOTOR

3.THEDIRECTDRIVESYSTEMOFDRUMWASHINGMACHINE

TUB

DRUM

LIFTER

WASH

BLDC

DRAIN

PUMP

(MOTOR)

4.DRIVESYSTEM

3. INLET PARTS

• COLD : 3-WAY

- COLD, PREWASH, DRY

• COLD : 2-WAY

- COLD, PREWASH

5. DOOR PARTS

• DOOR LOCK S/W

: ADDING CLOTHES

• LOCK HINGE

• DOOR AS : GLASS

• GASKET

7. DRAIN PARTS

• DRAIN PUMP(MOTOR)

• VALVE HOUSING

• DRAIN HOSE I

6. DRY PARTS

• HEATER DRY : OPTION

• BLOWER FAN

• FAN MOTOR : BLDC

• THERMISTOR

• THERMOSTAT

: FUSE, BI-METAL

• CONDENSING SYSTEM

• DRY FAN DRIVE

→GENERATION OF

HEATER’S HEAT

→TEMP. SENSOR

→110°C Off 100°C On :

OPTION

DRAIN PARTS

1. CONTROLLER

• MAIN PCB

• FRONT PCB

• HARNESS

• NOISE FILTER

• POWER CORD : 15A

2. DRIVE PARTS

• BLDC MOTOR

• DRUM

• BEARING

• SPIDER/SHAFT

• TUB

• WEIGHT BALANCER

4. WASH HEATING

• WASH HEATER : OPTION

• THERMISTOR

• 40°C FIXED TEMP.

CONTROL : OPTION

• 60°C, 90°C BOIL

8. SUPPORTER

• BASE

• DAMPER AS : (Right)2(60N)/(Left)1(120N)

Spring : 4

3. CABINET F ASSY

- DOOR AS

3. CABINET F ASSY

- CABINET F AS

1. PANEL F ASSY

2. INLET BOX AS

- INLET BOX

2. INLET BOX AS

- 3-WAY INLET VALVE

- 2-WAY INLET VALVE

- 1-WAY INLET VALVE 4. CABINET AS

7. DOCT AS

-DUCT AS

7. DOCT AS

-DUCT AS

5. BASE U AS

6. TUB ASSY

- LIFTER AS 6. TUB ASSY

5.FUNCTION

8. PLATE T AS

6. TUB ASSY

- DRUM AS

5. BASE U AS

- PCB MAIN AS 6. TUB ASSY

- DRUM AS

(6-6)

(6-3)

(6-4)

(6-1)

(6-2)

(6-8)

(6-7)

(6-4)(6-5)

❋6. TUB ASSY - Parts For Driving

(6-1) BLDC ROTOR BLDC MOTOR

(6-2) BLDC STATOR

(6-3) SHAFT

(6-4) BEARING Parts For Transmitting

(6-5) SPIDER

(6-6) DRUM

(6-7) TUB

(6-8) BASE

DIMENSION(WxDxH) 630mm(W) x 755mm(D) x 950mm(H)

MACHINE WEIGHT 89 kg

WATER CONSUMPTION WASH 89 / DRY 28

WASHING CONSUMPTION 28

POWER SOURCE Option

POWER WASHING 1100W (Heating ) ~ 2400W : Option

CONSUMPTION DRY 1250W ~2400W : Option

WASHING 11 kg (Domestic)

CAPACITY SPIN 11 kg (Domestic)

DRY 6.5 kg (Domestic)

WASHING TYPE DRUM TYPE

DRY TYPE Digital condensing dry system

OPERATION WATER PRESSURE 29kPa ~ 784kPa(0.3kgf/cm2~8kgf/cm2)

1PREMIUM TYPE

2.DRUMWASHINGSPECIFICATIONOFMACHINE

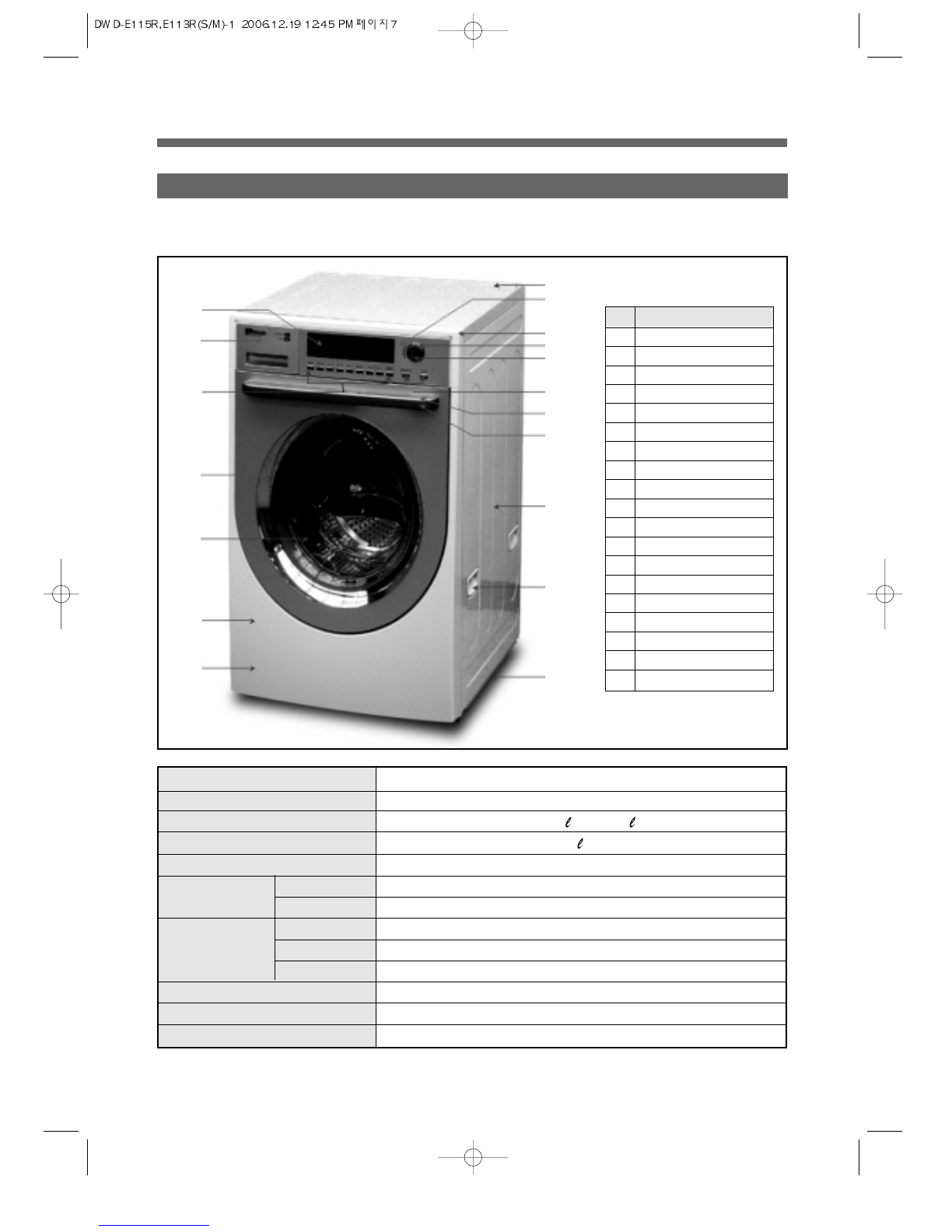

1.EXTERIORDIAGRAM

NO PARTS NAME

1 FRAME DOOR O

2 DOOR GLASS PLATE

3 DOOR GLASS BAND

4 HANDLE DOOR UPPER

5 HANDLE DOOR LOWER

6 HANDLE DOOR COVER

7 PANEL OUTER

8 PANEL INNER

9 PANEL PLATE

10 BUTTON DIAL OUT

11 BUTTON DIAL IN

12 CASE HANDLE

13 CASE HANDLE PLATE

14 CABINET F OUTER

15 COVER PUMP

16 PLATE T

17 CABINET

18 HANDLE CABINET

19 BASE UNDER

DIMENSION(WxDxH) 630mm(W) x 755mm(D) x 950mm(H)

MACHINE WEIGHT 89 kg

WATER CONSUMPTION WASH 89 / DRY 28

WASHING CONSUMPTION 28

POWER SOURCE Option

POWER WASHING 1100W (Heating ) ~ 2400W : Option

CONSUMPTION DRY 1250W ~2400W : Option

WASHING 11 kg (Domestic)

CAPACITY SPIN 11 kg (Domestic)

DRY 6.5 kg (Domestic)

WASHING TYPE DRUM TYPE

DRY TYPE Digital condensing dry system

OPERATION WATER PRESSURE 29kPa ~ 784kPa(0.3kgf/cm2~8kgf/cm2)

2LUXURY TYPE

1.EXTERIORDIAGRAM

NO PARTS NAME

1 FRAME DOOR O

2 DOOR PLATE GUIDE

3 PROTECTOR GLASS

4 HANDLE DOOR UPPER

5 HANDLE DOOR LOWER

6 PANEL OUTER

7 PANEL INNER

8 BUTTON SELECT

9 BUTTON POWER

10 BUTTON DIAL OUT

11 BUTTON DIAL IN

12 CASE HANDLE

13 WINDOW DISPLAY

14 CABINET F OUTER

15 COVER PUMP

16 PLATE T

17 CABINET

18 HANDLE CABINET

19 BASE UNDER
