Dahle 20606 C Manuale utente

20600 SERIES

OFFICE SHREDDERS

20606 C

20606 EC

20612 C

20612 EC

20614 EC

20630 EC

20634 EC

OPERATION MANUAL

20606.90.0881 - 09/2007

Congratulat ons on your purchase of a DAHLE Paper Shredder We here at

DAHLE North America are dedicated to providing rugged and dependable pro-

ducts for the large, and not so large office. We are sure your new DAHLE Paper

Shredder will meet or exceed your expectations of quality and service

If you have any questions regarding your new DAHLE paper shredder, call your

sales representative, or call DAHLE Customer Service, toll free, at (800) 995-

1379 between 8:30 am and 5:00 pm Monday through Friday, EST.

Check off the model and record the serial number for your records in the space

provided below.

Serial Number:________________________

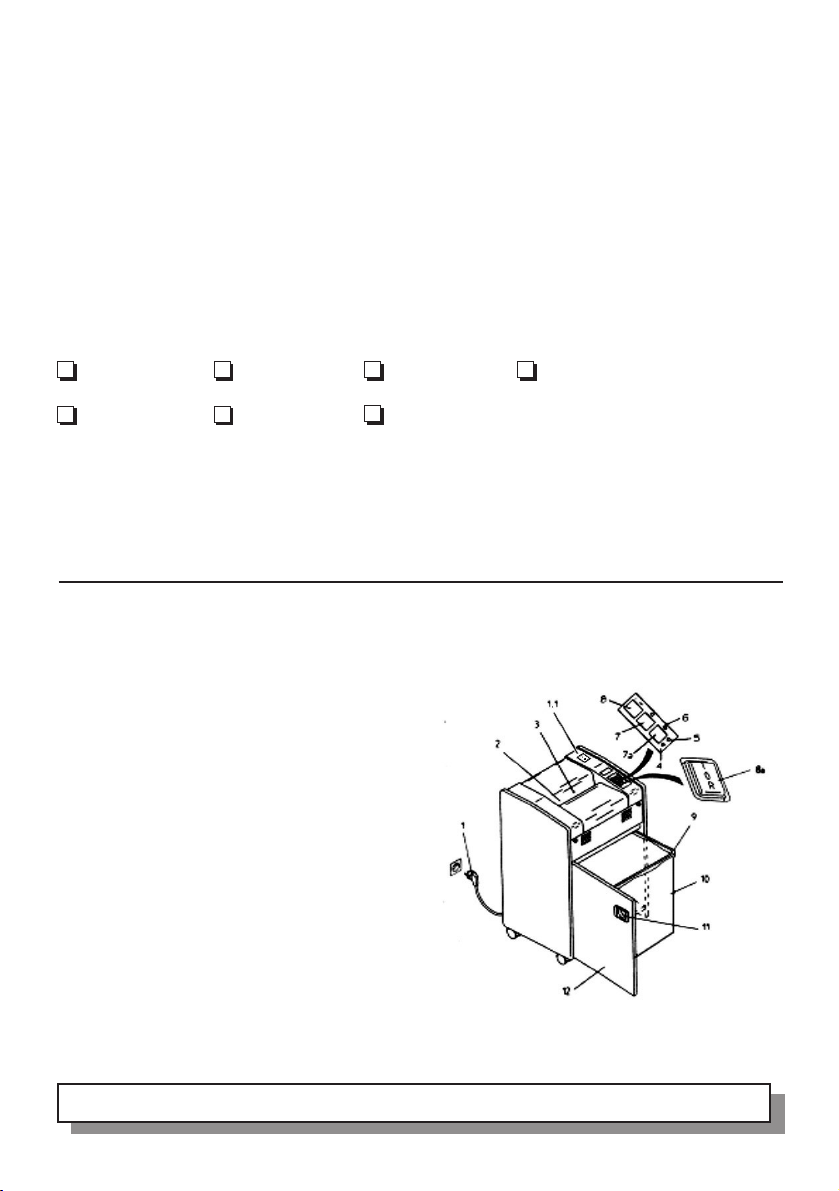

DIAGRAM KEY

1. Main Plug

1.1 Main Switch

2. Feed Opening

3. Light Barrier

4. Bag Full Indicator

5. Door Ajar Indicator

6. Paper Jam Indicator

7. Forward Switch (electronic models)

7a. Reverse Switch (electronic models)

8. Power Switch (electronic models)

8a. On/Off/Reverse (manual models)

9. Shred Bag

10. Waste Bin

11. Door Handle

12. Door

20606 C 20606 EC 20612 C 20612 EC

20614 EC 20630 EC 20634 EC

READ ALL INSTRUCTIONS BEFORE OPERATING YOUR SHREDDER

ALWAYS TURN SHREDDER OFF IF IT WILL BE UNATTENDED FOR LONG PERIODS OF TIME

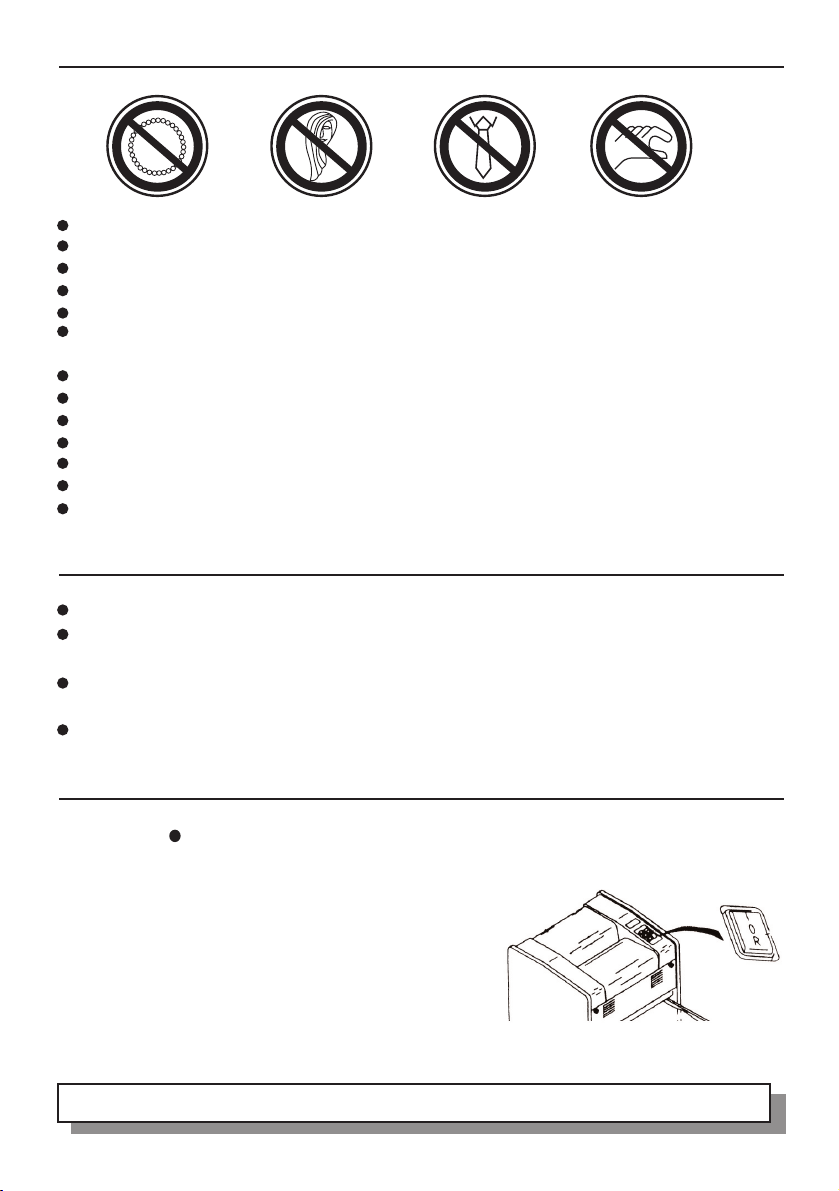

SAFETY INSTRUCTIONS

Read the operating instructions carefully before operating your shredder

Do not use in the vicinity of flammable liquids or gases.

Do not use in the vicinity of corrosive materials.

Do not expose to water or wet conditions.

Do not let children operate this, or any other, office equipment.

Do not operate the shredder for a period of more than 5 minutes in no-load

operation (operation without paper).

Keep hair clear of machine.

Keep neckties clear of machine.

Keep bracelets, or any other jewelry, clear of machine.

Power connection must be accessible at all times.

Disconnect from power supply before servicing.

The safety devices must not be disabled or removed.

Product is not intended for use by children.

BEFORE YOU SHRED

Remove Transport Bolts with wrench provided.

Record the Model and Serial Number in the space provided inside the front

cover.

Be sure the electrical outlet provides the proper power for your shredder (see

rating label on rear of shredder).

Install Shred Bag (see: “CHANGING THE SHRED BAG”).

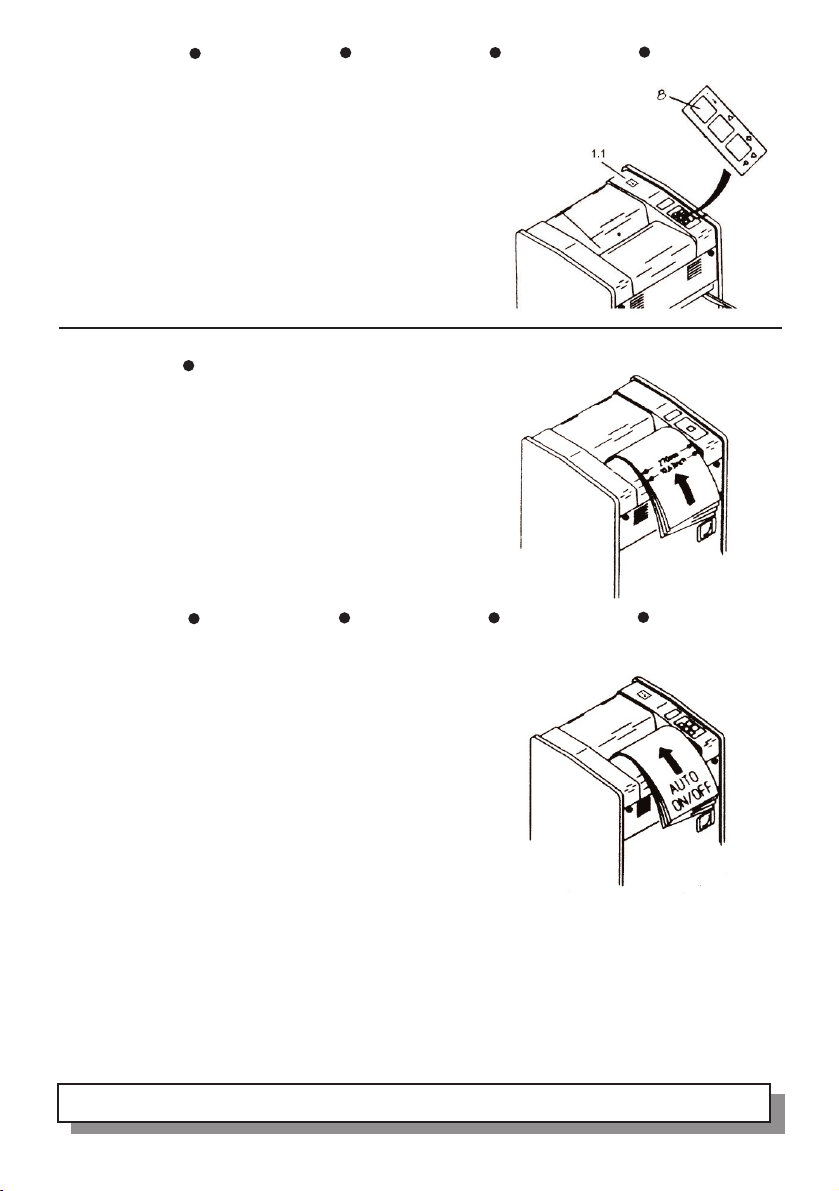

TURNING ON YOUR SHREDDER

20606 C 20612 C

1. ON, OFF and REVERSE are controlled by the black

Rocker Switch (8a) on the top of the shredder.

2. Moving the switch to the “I” (ON) position

activates the shredding mechanism.

3. Moving the switch to the center or “O” (OFF)

position turns the shredder off.

4. The REVERSE position “R” will be discussed

in “CLEARING A PAPER JAM”.

20606 EC 20612 EC 20614 EC 20630 EC 20634 EC

1. ON/OFF is controlled by the main switch (1.1) and the green

push button (8) found on top of the shredder.

2. Pressing these buttons (main switch (1.1) first) turns

the shredder on and places it in the stand-by mode.

3. Pressing these buttons again turns the

shredder off.

SHREDDING

20606 C 20612 C

Turn shredder on. Insert paper squarely into

Feed Opening (3). Continue feeding paper into

Feed Opening until the shredding mechanism

begins to draw the paper in. At this point,

allow the paper to feed into shredder on its

own. When shredding is complete, turn

shredder off.

20606 EC 20612 EC 20614 EC 20630 EC 20634 EC

Turn shredder on. Insert paper squarely into

Feed Opening (3). A light barrier will auto-

matically activate the shredding mechanism.

Continue feeding paper into the Feed Opening

until the shredding mechanism begins to

draw the paper in. At this point, allow the paper

to feed into the shredder on its own. Once the

paper has passed completely through the shredding

mechanism, the electronic controls will automatically stop the

machine.

To shred a piece of paper too small to break the light barrier, press the FOR-

WARD button (7) once to override the auto ON/OFF function. The shredder will

continue to run until the FORWARD button is pressed again.

Microfiche and transparencies can also be shredded in the same manner as

paper, however, you should shred a piece of paper after every 8 or 10 sheets of

plastic. This helps clean plastic particles out of the shredding mechanism.

REMEMBER TO LUBRICATE YOUR SHREDDER ACCORDING TO INSTRUCTIONS

IT IS NOT RECOMMENDED RUNNING SHREDDERS AT MAXIMUM CAPACITY

CAPACITY

Capacity is the number of sheets of 81/2”x” paper that can be shredded at one

time. These figures are approximate and machines may vary slightly due to various

conditions. It is not recommended that you try to run your shredder at maximum

capacity, as this increases the chance of a paper jam.

Model 20 Lb. Bond 16 Lb. Bond

20606 C 32 38

20606 EC 32 38

20612 C 14 17

20612 EC 14 17

20614 EC 20 25

20630 EC 7 9

20634 EC 6 8

CCLLEEAARRIINNGG AA PPAAPPEERR JJAAMM

If too many sheets of paper are fed into your shredder at one time, it may cause

a paper jam. Running your shredder at maximum capacity increases the chance

of a paper jam. If a paper jam occurs, it is easy to clear by following these simple

steps:

20606 C 20612 C

1. Turn shredder off using ON/OFF/REVERSE switch (8a).

2. Firmly pull on paper sticking out of Feed Opening while holding

ON/OFF/REVERSE switch in the REVERSE (R) position.

3. After paper has been removed from the Feed Opening, move the

ON/OFF/REVERSE switch back to the ON (I) position.

4. Separate some of the sheets and continue shredding.

20606 EC 20612 EC 20614 EC 20630 EC 20634 EC

The Auto-Reverse feature, built into the electronic versions of the General Office

Shredders, helps prevent paper jams. If the Auto-Reverse feature is activated an

audible alarm sounds and the Paper Jam Indicator (6) lights up. If this situation

occurs, follow these simple steps:

1. Remove paper from Feed Opening. The REVERSE button (7a) may be used

if excess paper remains in the Feed Opening. Clear shredding mechanism by

pressing the FORWARD button (7).

2. Separate some of the sheets and continue shredding.

CHANGING THE SHRED BAG

When the Shred Bag (10) is full, the shredder will automatically shut down. On the

electronic models an LED indicator will light and an audible alarm will sound.

Changing the Shred Bag is quick and easy if you follow these simple directions.

1. Turn shredder off

2. Open Door (12) using Door Handle (11) to expose Waste Bin (10) and Shred

Bag (9).

3. Pull the Waste Bin and full Shred Bag out of the shredder.

4. Dispose of full Shred Bag.

5. Install new Shred Bag in Waste Bin, draping end of Shred Bag over edge of

Waste Bin.

6. Push Waste Bin, with new Shred Bag installed, back into shredder.

7. Close Door.

8. Turn on shredder and continue shredding.

NOTE: SHREDDER WILL NOT OPERATE UNLESS DOOR IS COMPLETELY CLOSED

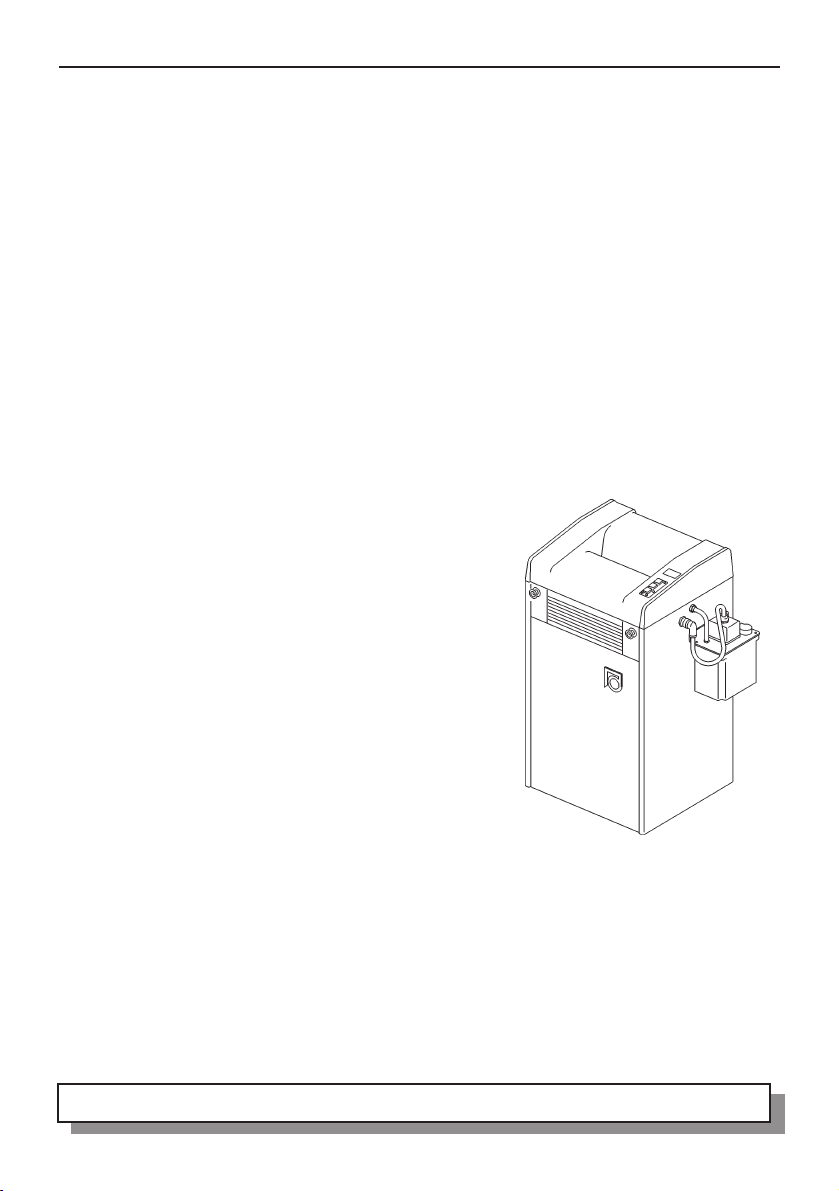

Model 20634 is prepared

for the application of the

optional automatic oiling system.

Further information can be found in the

operating instructions for the Oiler. Call your

local Dealer for more details.

Using the automatic oiler will help maintain a

permanent cutting quality and will aid in

keeping your shredder running at full capacity.

DAHLE Shredder Oil is the only lubricant you should use in your paper shredder.

It has been specially formulated so as not to leave any residue that could attract

dust and clog the shredding mechanism. You can order DAHLE Shredder Oil from

your local dealer.

Repairs on your paper shredder should only be performed by qualified technici-

ans. If you need service, contact your local dealer, or you can contact DAHLE

North America Customer Service between 8:30 am and 5:00 pm EST at (800) 995-

1379.

ALWAYS TURN SHREDDER OFF IF IT WILL BE UNATTENDED FOR LONG PERIODS OF TIME

CARING FOR YOUR SHREDDER

Clean covers with a clean dry cloth. Do not use water or solvents. Make sure you

disconnect your shredder from its power source before cleaning.

Paper shredders, like all mechanical equipment, need proper maintenance to

ensure efficient operation. Periodic lubrication of the cutting blades is important to

offset the friction generated within the cutting head. Frequency of lubrication will

vary depending on the shred size and the amount of usage. A strip-cut shredder

receiving light use (1 – 2 hours per week) will require lubrication only once or twice

a month, while the same machine used 1 – 2 hours per day will require lubrication

weekly. A cross-cut shredder should be lubricated every 1/2hour of shredding time

to maintain maximum capacity and efficiency.

The procedure for lubricating your shredder is simple, and can be performed by

any operator. The oil is packaged in a squeeze bottle and is applied directly to the

cutting blades through the feed opening (3). Run a fine stream of lubricant from

one side of the feed opening to the other. Run the shredder in REVERSE for a few

seconds to help distribute the lubricant evenly. You can now continue shredding as

usual.

READ ALL INSTRUCTIONS BEFORE OPERATING YOUR SHREDDER

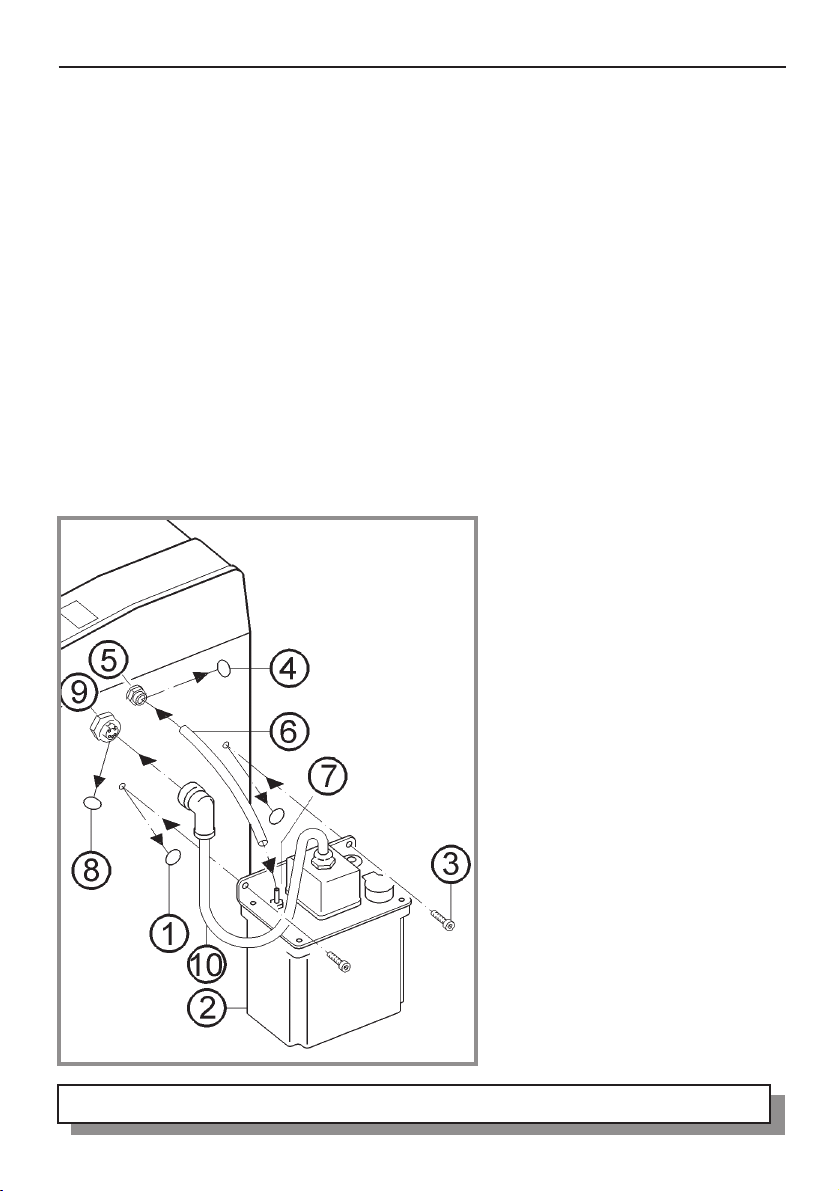

Installat on of the automat c o l ng system

1. Be certain shredder is off and unplugged.

2. Remove protective caps (1) from mounting holes and secure Automatic Oiler to shredder

using supplied screws (3).

3. Push oil suppl tube (6) full over brass hose barb (7).

4. Place white n lon hose clamp over suppl hose and position it near the bottom of

suppl tube where it covers the hose barb. Squeeze clamp to tighten.

5. Insert open end of oil suppl tube into gre hose fitting (5) being sure it is full inserted.

Gentl pull hose to check that it is seated properl . Hose can be removed b pressing

gre collar in and pulling on hose.

6. Remove red protective cover (8) from female DIN connector (9) and insert male DIN

plug (10) from the oiler. Connector is ke ed to ensure proper alignment. Secure using

screw-in flange.

7. Fill reservoir (2) with Dahle 740 Shredder Oil.

8. Prime s stem b moving silver plunger up and down until suppl tube is filled with oil.

9. Plug shredder into outlet and begin shredding.

NOTE:

WHEN OIL LEVEL DROPS BELOW

MINIMUM THE SHREDDER WILL STOP,

THE BAG-FULL INDICATOR WILL LIGHT

AND AN AUDIBLE ALARM WILL SOUND.

1. ON/OFF switches set

to wrong position

2. Unit unplugged

3. Outlet dead

4. Door not fully closed

5. Waste Bin full

1. Cutting blades dry

Move switches

to “I” (on) position

Connect to outlet

Reset circuit breaker

Close Door

Empty Waste Bin

Lubricate cutting blades

according to instructions.

IF ANY OTHER PROBLEMS OCCUR. CALL YOUR AUTHORIZED DAHLE SERVICE DEALER

BEFORE YOU CALL FOR SERVICE

DAHLE SHREDDER SUPPLIES AND ACCESSORIES

Shred Bags (100 per box)

Item No. Models

701 Personal & 20300 Series

704 20400, 20500 & 20600 Series

705 20800 Series

706 High Capacity Models

Waste B n

605 20600 Series

Shredder O l (All Models)

740 Box of 4 16oz. Bottles

740G Box of 4 1gal Bottles

Automat c O l ng System

SAO-110 1,5 Liter

SAO-120 4 Liter

SYMPTOM POSSIBLE CAUSES SOLUTION

No Power

Low capacity

NOTICES

Altri manuali per 20606 C

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Dahle Distruggidocumenti

Dahle

Dahle 30114 Manuale utente

Dahle

Dahle ShredMATIC 35120 Manuale utente

Dahle

Dahle Dahle 20100 PS Manuale utente

Dahle

Dahle Novus 2039 Series Manuale utente

Dahle

Dahle 30404 Manuale utente

Dahle

Dahle 41 Series Manuale utente

Dahle

Dahle Dahle 20304 ES Manuale utente

Dahle

Dahle DAHLE 20452 Manuale utente

Dahle

Dahle 20606 EC Manuale utente

Dahle

Dahle 40334 Manuale tecnico

Dahle

Dahle ShredMATIC 35080 Manuale utente

Dahle

Dahle Dahle 20090PSe Manuale utente

Dahle

Dahle 707 PS Manuale utente

Dahle

Dahle PaperSAFE 22080 Guida rapida

Dahle

Dahle 20020 pep Manuale utente

Dahle

Dahle 40104 Manuale utente

Dahle

Dahle Dahle 30304 Manuale utente

Dahle

Dahle 909 HS Manuale utente

Dahle

Dahle 31204 Manuale utente

Dahle

Dahle 30104 Manuale utente

Dahle

Dahle 828 HD Manuale utente

Dahle

Dahle PaperSAFE PS 60 Manuale utente

Dahle

Dahle 20404 Manuale utente

Dahle

Dahle 808 MS Manuale utente

Manuali Distruggidocumenti popolari di altre marche

Swingline

Swingline STACK-AND-SHRED200X&200XL 60X Manuale di istruzioni

GBC

GBC ShredMaster CC055 Manuale utente

UNITED OFFICE

UNITED OFFICE UAV 190 A1 Manuale utente

UNITED OFFICE

UNITED OFFICE UAV 190 A1 Manuale utente

Rexel

Rexel Optimum AutoFeed+ 45X Manuale utente

Martin Yale

Martin Yale 227284S1 Manuale utente

Bonsaii

Bonsaii DocShred C223-A Manuale utente

HSM

HSM Pure 740 max Manuale utente

TRU RED

TRU RED TR-BMC20A Manuale utente

Fellowes

Fellowes 50S Manuale utente

GBC

GBC SHREDMASTER 1236SE Manuale utente

Gude

Gude GH 2600 P Manuale utente

Ativa

Ativa DQ80M Manuale utente

Q-Connect

Q-Connect Q8CC Manuale utente

Fellowes

Fellowes POWERSHRED C-325CI Manuale utente

Olivetti

Olivetti Privacy 5000C Guida rapida

UNITED OFFICE

UNITED OFFICE UAV 190 A1 Manuale utente

Formax

Formax OnSite FD 87 Manuale utente
