Dahua Technology IPC-HFW2849S-S-IL-0280B Manuale utente

Bullet Network Camera

Quick Start Guide

V1.0.

2ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD.

Quick Start Guide

Foreword

General

This manual introduces the installation and operations of network camera. Read carefully before using

the device, and keep the manual safe for future reference.

Safety Instructions

The following signal words might appear in the manual.

Signal Words Meaning

Indicates a medium or low potential hazard which, if not avoided,

could result in slight or moderate injury.

Indicates a potential risk which, if not avoided, may result in

property damage, data loss, reductions in performance, or

unpredictable result.

Provides additional information as a supplement to the text.

Revision History

Version Revision Content Release Date

V1.0.2 Updated the information of installinng the camera. September 2022

V1.0.1 Updated "Important Safeguards and Warnings." April 2021

V1.0.0 First release. May 2019

Privacy Protection Notice

As the device user or data controller, you might collect the personal data of others such as their face,

fingerprints, and license plate number. You need to be in compliance with your local privacy protection

laws and regulations to protect the legitimate rights and interests of other people by implementing

measures which include but are not limited: Providing clear and visible identification to inform people

of the existence of the surveillance area and provide required contact information.

About the Manual

The manual is for reference only. Slight differences might be found between the manual and the

product.

We are not liable for losses incurred due to operating of the product in ways that are not in

compliance with the manual.

The manual will be updated according to the latest laws and regulations of related jurisdictions.

For detailed information, see the paper User Manual, use our CD-ROM, scan the QR code or visit

Quick Start Guide

our official website. The manual is for reference only. Slight differences might be found between

the electronic version and the paper version.

All the designs and software are subject to change without prior written notice. Product updates

might result in some differences appearing between the actual product and the manual. Please

contact customer service for the latest program and supplementary documentation.

There might be deviations in the description of the technical data, functions and operations, or

errors in the print. If there is any doubt or dispute, we reserve the right of final explanation.

Upgrade the reader software or try other mainstream reader software if the manual (in PDF

format) cannot be opened.

All trademarks, registered trademarks and the company names in the manual are the properties

of their respective owners.

Please visit our website, contact the supplier or customer service if any problems occur while

using the device.

If there is any uncertainty or controversy, we reserve the right of final explanation.

Quick Start Guide

III

Important Safeguards and Warnings

This section introduces content covering the proper handling of the device, hazard prevention, and

prevention of property damage. Read carefully before using the device, comply with the guidelines

when using it.

Transportation Requirements

Transport the device under allowed humidity and temperature conditions.

Pack the device with packaging provided by its manufacturer or packaging of the same quality

before transporting it.

Do not place heavy stress on the device, violently vibrate or immerse it in liquid during

transportation.

Storage Requirements

Store the device under allowed humidity and temperature conditions.

Do not place the device in a humid, dusty, extremely hot or cold site that has strong

electromagnetic radiation or unstable illumination.

Do not place heavy stress on the device, violently vibrate or immerse it in liquid during storage.

Installation Requirements

Strictly comply with the local electrical safety code and standards, and check whether the power

supply is correct before operating the device.

Please follow the electrical requirements to power the device.

When selecting the power adapter, the power supply must conform to the requirements of

ES1 in IEC 62368-1 standard and be no higher than PS2. Please note that the power supply

requirements are subject to the device label.

We recommend using the power adapter provided with the device.

Do not connect the device to two or more kinds of power supplies, unless otherwise specified, to

avoid damage to the device.

The device must be installed in a location that only professionals can access, to avoid the risk of

non-professionals becoming injured from accessing the area while the device is working.

Professionals must have full knowledge of the safeguards and warnings of using the device.

Quick Start Guide

Do not place heavy stress on the device, violently vibrate or immerse it in liquid during installation.

An emergency disconnect device must be installed during installation and wiring at a readily

accessible location for emergency power cut-off.

We recommend you use the device with a lightning protection device for stronger protection

against lightning. For outdoor scenarios, strictly comply with the lightning protection regulations.

Ground the function earthing portion of the device to improve its reliability (certain models

are not equipped with earthing holes). The device is a class I electrical appliance. Make sure that

the power supply of the device is connected to a power socket with protective earthing.

The dome cover is an optical component. Do not directly touch or wipe the surface of the cover

during installation.

Operation Requirements

The cover must not be opened while the device is powered on.

Do not touch the heat dissipation component of the device to avoid the risk of getting burnt.

Use the device under allowed humidity and temperature conditions.

Do not aim the device at strong light sources (such as lamplight, and sunlight) when focusing it,

to avoid reducing the lifespan of the CMOS sensor, and causing overbrightness and flickering.

When using a laser beam device, avoid exposing the device surface to laser beam radiation.

Prevent liquid from flowing into the device to avoid damage to its internal components.

Protect indoor devices from rain and dampness to avoid electric shocks and fires breaking out.

Do not block the ventilation opening near the device to avoid heat accumulation.

Protect the line cord and wires from being walked on or squeezed particularly at plugs, power

sockets, and the point where they exit from the device.

Do not directly touch the photosensitive CMOS. Use an air blower to clean the dust or dirt on the

lens.

The dome cover is an optical component. Do not directly touch or wipe the surface of the cover

when using it.

There might be a risk of electrostatic discharge on the dome cover. Power off the device when

installing the cover after the camera finishes adjustment. Do not directly touch the cover and

make sure the cover is not exposed to other equipment or human bodies

Strengthen the protection of the network, device data and personal information. All necessary

safety measures to ensure the network security of the device must be taken, such as using strong

passwords, regularly changing your password, updating firmware to the latest version, and

isolating computer networks. For the IPC firmware of some previous versions, the ONVIF

password will not be automatically synchronized after the main password of the system has been

changed. You need to update the firmware or change the password manually.

Quick Start Guide

Maintenance Requirements

Strictly follow the instructions to disassemble the device. Non-professionals dismantling the

device can result in it leaking water or producing poor quality images. For a device that is required

to be disassembled before use, make sure the seal ring is flat and in the seal groove when putting

the cover back on. When you find condensed water forming on the lens or the desiccant becomes

green after you disassembled the device, contact after-sales service to replace the desiccant.

Desiccants might not be provided depending on the actual model.

Use the accessories suggested by the manufacturer. Installation and maintenance must be

performed by qualified professionals.

Do not directly touch the photosensitive CMOS. Use an air blower to clean the dust or dirt on the

lens. When it is necessary to clean the device, slightly wet a soft cloth with alcohol, and gently

wipe away the dirt.

Clean the device body with a soft dry cloth. If there are any stubborn stains, clean them away with

a soft cloth dipped in a neutral detergent, and then wipe the surface dry. Do not use volatile

solvents such as ethyl alcohol, benzene, diluent, or abrasive detergents on the device to avoid

damaging the coating and degrading the performance of the device.

The dome cover is an optical component. When it is contaminated with dust, grease, or

fingerprints, use degreasing cotton moistened with a little ether or a clean soft cloth dipped in

water to gently wipe it clean. An air gun is useful for blowing dust away.

It is normal for a camera made of stainless steel to develop rust on its surface after being used in

a strong corrosive environment (such as the seaside, and chemical plants). Use an abrasive soft

cloth moistened with a little acid solution (vinegar is recommended) to gently wipe it away.

Afterwards, wipe it dry.

Quick Start Guide

Table of Contents

Foreword........................................................................................................................................................... I

Important Safeguards and Warnings............................................................................................................. III

1 Cable............................................................................................................................................................... 1

2 Network Configuration ................................................................................................................................. 2

Initializing the Camera ............................................................................................................................................................. 2

Changing the Device IP Address .......................................................................................................................................... 3

Logging in to the Webpage.................................................................................................................................................... 3

3 Installation..................................................................................................................................................... 4

Packing List................................................................................................................................................................................... 4

Dimensions................................................................................................................................................................................... 4

Installing the Camera................................................................................................................................................................ 5

3.3.1 Installation Methods.................................................................................................................................................... 5

3.3.2 (Optional) Installing SD Card.................................................................................................................................... 5

3.3.3 Attaching the Camera................................................................................................................................................. 6

3.3.4 (Optional) Installing Waterproof Connector....................................................................................................... 7

3.3.5 Adjusting Lens Angle .................................................................................................................................................. 8

Quick Start Guide

1Cable

Waterproof all the cable joints with insulating tape and waterproof tape to avoid water damage and

prevent short circuits from occurring. For details, see FAQ manual.

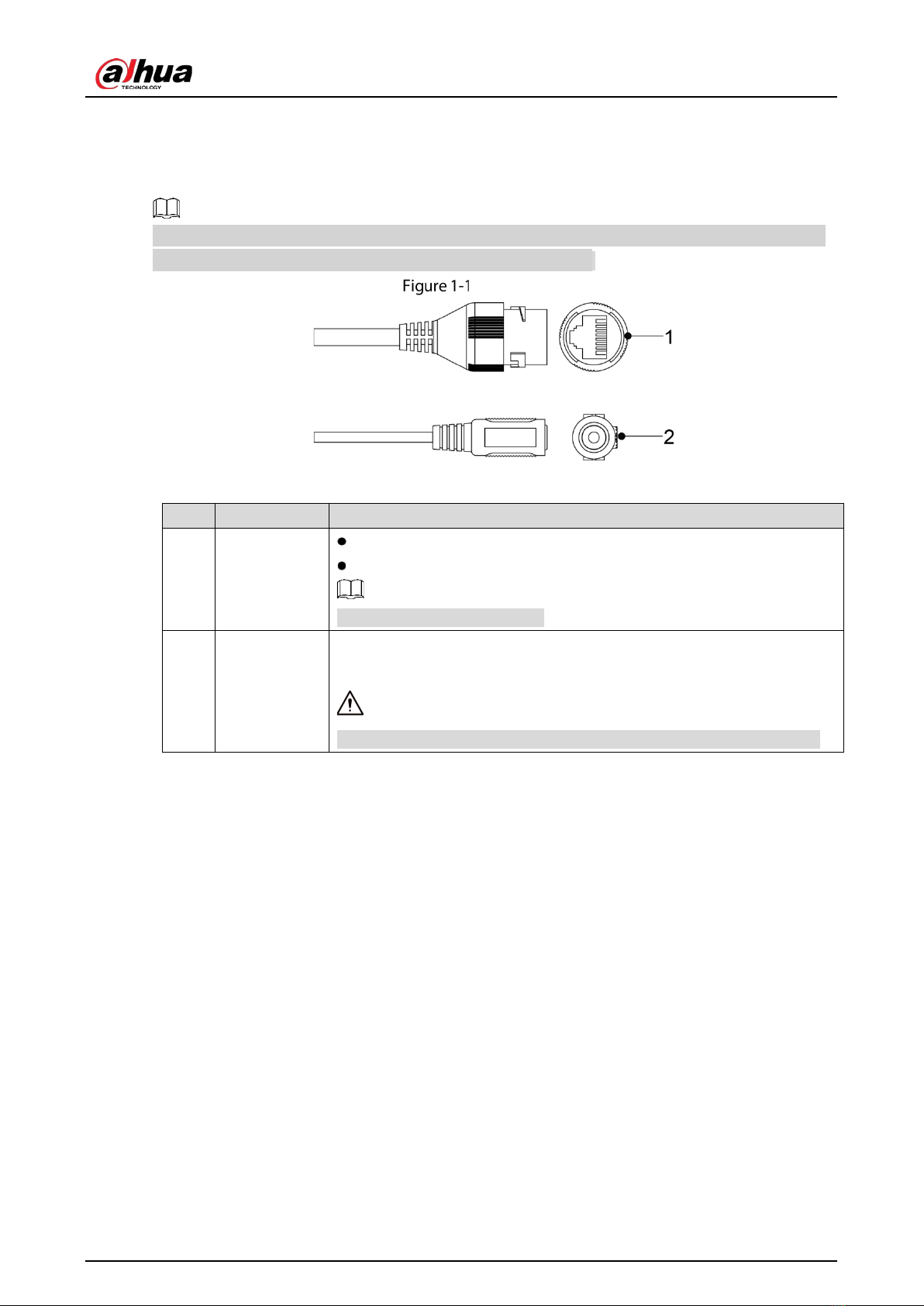

Cables

Table 1-1 Cable information

No. Port Name Description

1 Ethernet Port Connects to network with network cable.

Provides power to the device with PoE.

PoE is available on select model.

2 Power input Inputs 12 VDC power. Please be sure to supply power as instructed in the

manual.

Device abnormity or damage could occur if power is not supplied correctly.

Quick Start Guide

2Network Configuration

Device initialization and IP setting can be finished with the ConfigTool or on the webpage. For more

information, see the WEB Operation Manual.

Device initialization is available on select models, and it is required at first use and after device is

reset.

Device initialization is available only when the IP addresses of the device (192.168.1.108 by

default) and the PC stays on the same network segment.

Planning useable network segment properly for the device.

The following figures and pages are for reference only.

Initializing the Camera

Search for the device that needs to be initialized through ConfigTool.

1) Double-click ConfigTool.exe to open the tool.

2) Click Modify IP.

3) Select the searching way, and then click OK.

4) Select one or several cameras in uninitialized status, and then click Initialize.

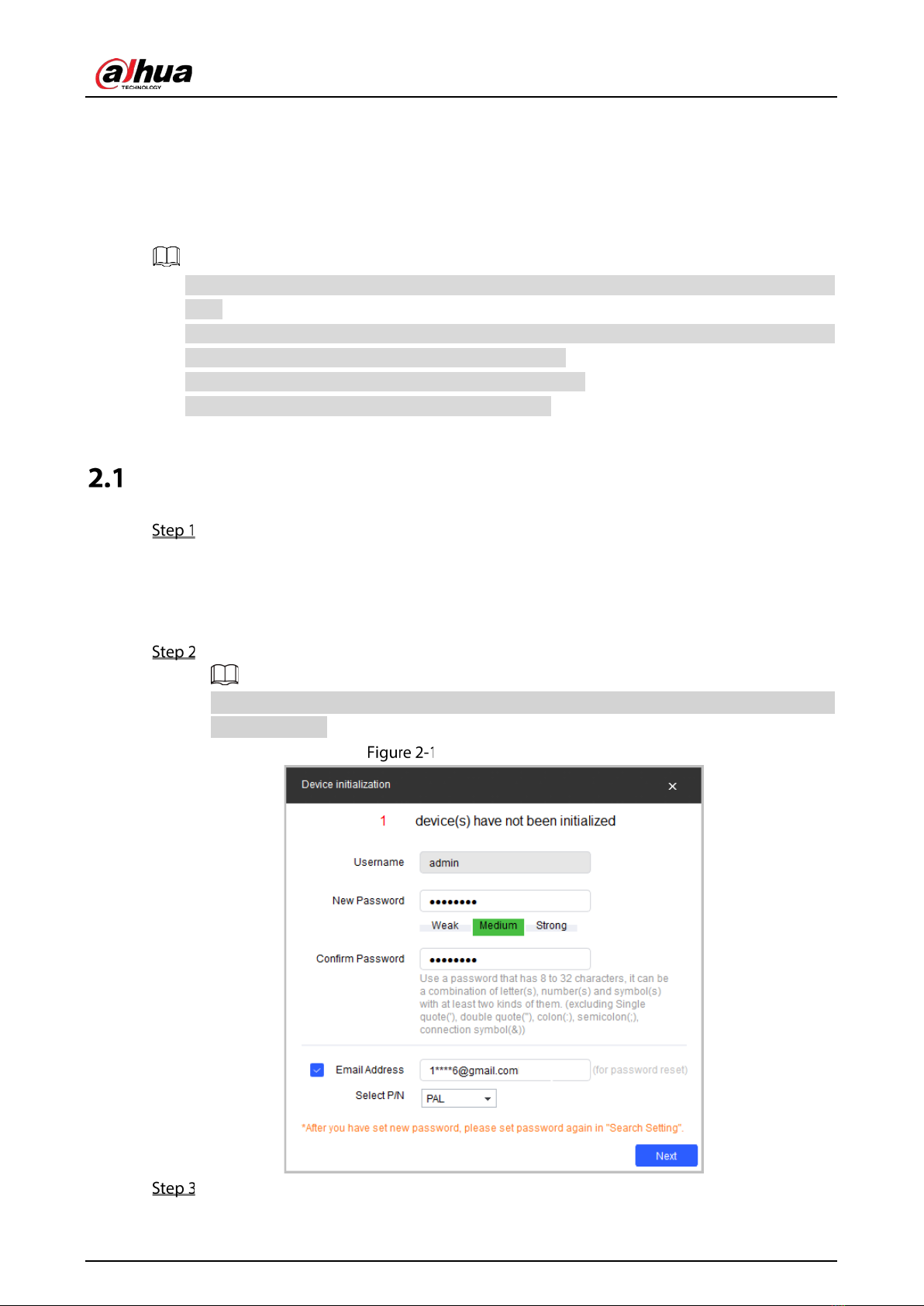

Select the devices to be initialized, and then click Initialize.

If you do not provide the email address for password reset, you can reset the password only

through XML file.

Password setting

Select Auto-check for updates as needed, and then click OK to initialize the device.

Quick Start Guide

If initialization failed, click to see more information.

Click Finish.

Changing the Device IP Address

You can change the IP address of one or more devices at a time. This section is based on changing

IP addresses in batches.

Changing IP addresses in batches is available only when the corresponding devices have the

same login password.

Search for the device whose IP address needs to be changed through ConfigTool.

1) Double-click ConfigTool.exe to open the tool.

2) Click Modify IP.

3) Select the searching way, enter the username and password, and then click OK.

The username is admin, and the password is the one you set while initializing the device.

Select the devices whose IP addresses need to be changed, and then click Modify IP.

Configure IP address.

Static mode: When you select Static, you need to enter Start IP, Subnet Mask, and

Gateway. The IP addresses of the devices will be modified successively starting from the

first IP entered.

DHCP mode: If the DHCP server is available in the network, when you select DHCP, the

IP address of devices will be automatically obtained through the DHCP server.

The same IP address will be set for multiple devices if you select the Same IP checkbox.

Click OK.

Logging in to the Webpage

Open the IE browser, enter the IP address of the device in the address bar, and then press the

Enter key.

If the setup wizard opens, follow the on-screen instructions to complete it.

Enter the username and password in the login box, and then click Login.

(Optional) For first-time login, click Click Here to Download Plugin, and then install the

plugin as instructed.

The home page opens when installation is complete.

Indice

Altri manuali Dahua Technology Telecamera di sicurezza

Dahua Technology

Dahua Technology IPC-HFW2431DG-4G Manuale utente

Dahua Technology

Dahua Technology 50430IC Manuale utente

Dahua Technology

Dahua Technology D-IPC-HFW1430DSP-SAW-0280B Manuale utente

Dahua Technology

Dahua Technology IPC-HFW1531S-0360B Manuale utente

Dahua Technology

Dahua Technology IPC-HDW2431T-AS-S2 Manuale utente

Dahua Technology

Dahua Technology IPC-HDW3549H-ZAS-PV-27135 Manuale utente

Dahua Technology

Dahua Technology IPC-HDW5231R-Z Manuale utente

Dahua Technology

Dahua Technology HFW5241E-ZE Manuale utente

Dahua Technology

Dahua Technology DH-IPC-HDBW3541FP-AS-M-0280B Manuale utente

Dahua Technology

Dahua Technology Eyeball Manuale utente

Dahua Technology

Dahua Technology IPC-HDW2241T-S-0280B Manuale utente

Dahua Technology

Dahua Technology IPC-HDW2249TM-S-IL-0280B Manuale utente

Dahua Technology

Dahua Technology IPC-HFW81230E-Z Manuale utente

Dahua Technology

Dahua Technology DH-IPC-HDW1230T1P-S4 Manuale utente

Dahua Technology

Dahua Technology DH-IPC-HFW3 Manuale utente

Dahua Technology

Dahua Technology IPC-HUM8531M-V-LED-0360B Manuale utente

Dahua Technology

Dahua Technology IR Eyeball Manuale utente

Dahua Technology

Dahua Technology N65CB5Z Manuale utente

Dahua Technology

Dahua Technology DH-IPC-HFW3849T1P-AS-PV-S3-BLK Manuale utente

Dahua Technology

Dahua Technology NAVIGATOR X1550 Manuale utente

Dahua Technology

Dahua Technology D-SDZ4032-HNR-ZB Manuale utente

Dahua Technology

Dahua Technology DH-IPC-HDW3441TP-ZS-S2 Manuale utente

Dahua Technology

Dahua Technology IPC-PDB4830-B360 Manuale utente

Dahua Technology

Dahua Technology DH-IPC-PDW3849-A180-AS-PV-ANZ Manuale utente

Manuali Telecamera di sicurezza popolari di altre marche

Okina USA

Okina USA SIR36-870VF650LP Manuale utente

Divio

Divio NDR155PA Manuale utente

Canon

Canon VB-C500D Manuale utente

Easy Access

Easy Access EasyGuard Manuale utente

Vivotek

Vivotek FD9389-EHV-v2 Manuale utente

TUYA

TUYA COSMO W2 Manuale utente

Eusso

Eusso UNC7500-IR Guida all'installazione

urmet domus

urmet domus 1096/204 Manuale utente

VC VC20 series Manuale utente

Axis

Axis Q1614 Manuale utente

ieGeek

ieGeek DD201 Manuale utente

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuale utente

Vicon

Vicon V662-D-1 Istruzioni operative

Grundig

Grundig GCH-K0274P Manuale utente

Lorex

Lorex VANTAGE LBC7032 Manuale utente

4xem

4xem WPT Manuale utente

Samsung

Samsung SCV-3082 Manuale utente

Vitek

Vitek VTC-C544 Manuale utente
