Dahua VTO5110B Manuale utente
Fast operation of Analogue Villa System
V 1.0
Contents
1 System Structure .......................................................................................................................3
2 Operation Steps.........................................................................................................................3
3 Install lock and unlock button ...................................................................................................3
3.1 VTO5x00C............................................................................................................................3
3.1.1 Install electric lock and unlock button................................................................4
3.1.2 Install Door sensor ...............................................................................................4
3.2 VTO5110B............................................................................................................................4
3.2.1 Install electric lock and unlock button................................................................4
3.2.2 Install door sensor................................................................................................5
4 Issue Card..................................................................................................................................5

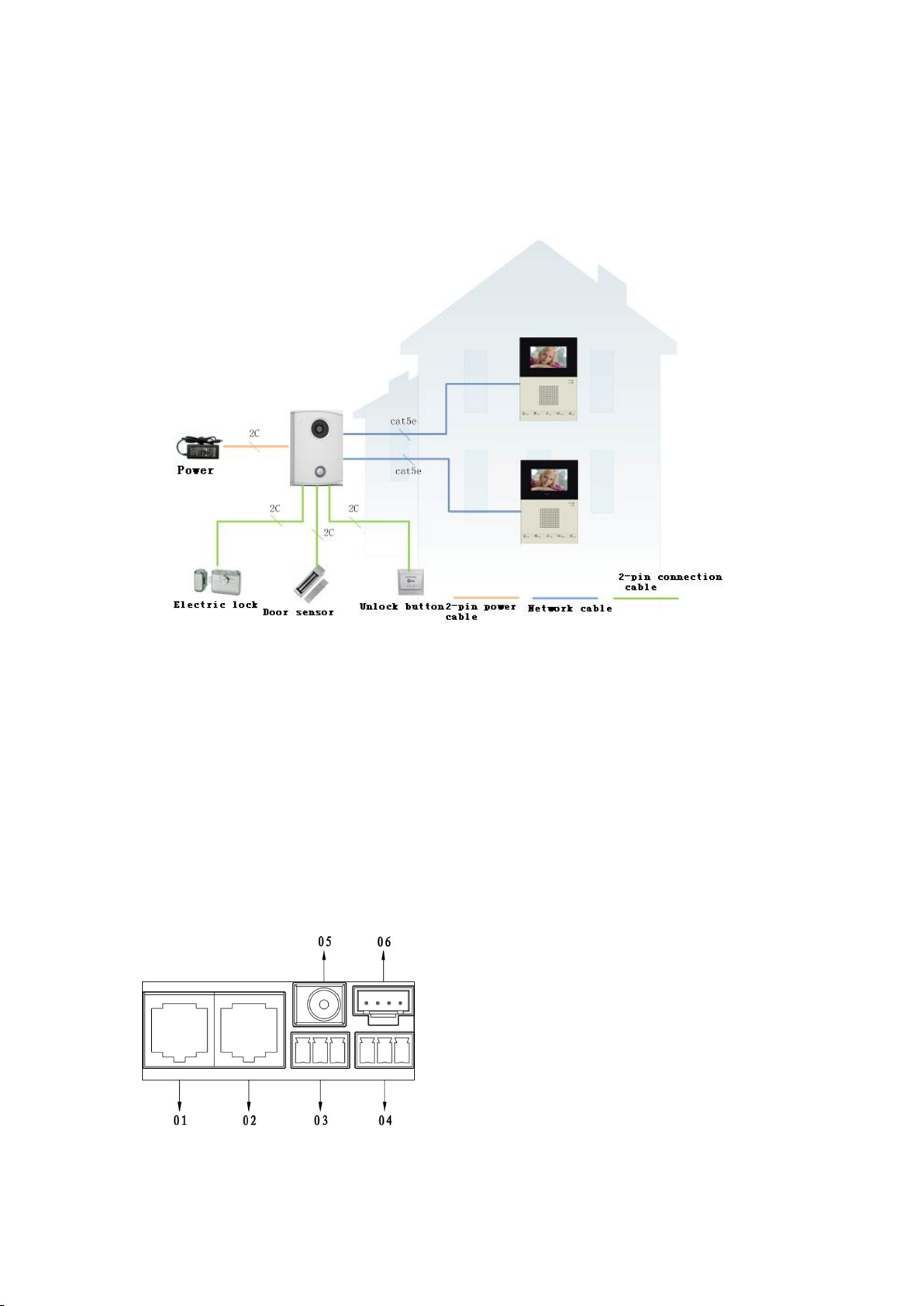

1System Structure
Power for VTO is DC24V/2.5A
Figure 1-1
2Operation Steps
Wait until system connection is complete. Plug VTO to power and wait about 1 second. VTH’s
power indicator turns on, and press monitor button on VTH. You will see scene in front of VTO
and this means test is complete. If there are more than one VTH, please test them one by one.
3Install lock and unlock button
3.1 VTO5x00C
Definition of VTO5x00C ports:
Figure 3- 1
01. Port 1: to VTH 1
02. Port 2: to VTH 2
03. 3-pin 1: to lock control end 1
04. 3-pin 2: to lock control end 2
05. Power port: to input DC+24V power
06. Test port: to test device port
See Figure4-1.
General types of lock in market are unlocking with power and unlocking without power. Here
make electric lock and Magnetic lock as example.
3.1.1 Install electric lock and unlock button
Figure 3-2
1. When connect VTO to electric lock, make
electric lock + toward VTO NO-end
(03.3-pin 1) and electric –toward VTO
COM-end (03.3-pin 3).
2. When connect VTO to unlock button,
make unlock button’s one end toward
VTO (04. 3-pin 2) ALM 2-end and unlock
button’s other end toward VTO (04.3-pin
3) GND-end.
See Figure4-2.
3.1.2 Install Door sensor
Figure 3-3
1. When connect VTO to magnetic lock,
make magnetic lock + toward VTO
(03.3-pin 2) NC-end and magnetic lock –
toward VTO (03. 3-pin 3) COM-end.
2. When VTO is connected to door sensor of
magnetic feedback, make door sensor’s
one end toward VTO (04. 3-pin 1)
ALM2-end to unlock and make door
sensor’s other end toward VTO (04. 3-pin
3) GND-end. See Figure4-3.
3.2 VTO5110B
Definition of VTO6110B ports:
VTH can be connected to any port on VTO.
Figure 3- 4
01. Power port: to input DC +24V.
02. Lock port:
03. Port 1: to VTH 1
04. Port 2: to VTH 2
See Figure4-4
3.2.1 Install electric lock and unlock button
Figure 3-5
1. When VTO connects to electric lock, make
electric lock + end toward VTO (03. 3-pin
1) NO end, and make electric lock –end
toward VTO (03. 3-pin 1) COM end.
2. When VTO connects to unlock button,
make unlock button’s one end toward
VTO (04. 3-pin 2) ALM 1 end, and make
unlock button’s other end toward VTO
(04.3-pin 2) GND end. See Figure 4-5.
3.2.2 Install door sensor
Figure 3-6
1. When connect VTO to magnetic lock,
make magnetic lock + end toward VTO
(03.3-pin 2) NC end and magnetic lock –
end toward VTO (03. 3-pin 3) COM end.
2. When VTO is connected to door sensor of
magnetic lock, make door sensor’s one
end toward VTO (04. 3-pin 1) ALM1 end to
unlock and make door sensor’s other end
toward VTO (04. 3-pin 3) GND end. See
Figure4-6.
4Issue Card
The device supports IC card with frequency 13.56MHz.
Press menu button on VTH to issue card. Press SOS button to switch menu and select to issue
card. VTH will then enter issuing card mode, and you will see prompt saying issuing card on
screen. Now swipe card at card reading area until you hear a beep which means you have
successfully issued card. Press touch button on VTO to exit.
