Dahua DHI-NVR4216-4KS2 Manuale utente
Foreword I
Foreword
General
This Quick Start Guide (hereinafter referred to be "the Manual) introduces the functions and
operations of the NVR devices (hereinafter referred to be "the Device").
Safety Instructions
The following categorized signal words with defined meaning might appear in the Manual.
Signal Words
Meaning
CAUTION
Indicates a potential risk which, if not avoided, could result in
property damage, data loss, lower performance, or unpredictable
result.
TIPS
Provides methods to help you solve a problem or save you time.
NOTE
Provides additional information as the emphasis and supplement
to the text.
Revision History
No.
Version
Revision Content
Release Time
1
V1.0.0
First release.
July 2019
Privacy Protection Notice
As the device user or data controller, you might collect personal data of others such as face,
fingerprints, car plate number, Email address, phone number, GPS and so on. You need to be
in compliance with the local privacy protection laws and regulations to protect the legitimate
rights and interests of other people by implementing measures including but not limited to:
providing clear and visible identification to inform data subject the existence of surveillance
area and providing related contact.
About the Manual
The Manual is for reference only. If there is inconsistency between the Manual and the
actual product, the actual product shall prevail.
We are not liable for any loss caused by the operations that do not comply with the Manual.
The Manual would be updated according to the latest laws and regulations of related
regions. For detailed information, see the paper manual, CD-ROM, QR code or our official
website. If there is inconsistency between paper manual and the electronic version, the
Foreword II
electronic version shall prevail.
All the designs and software are subject to change without prior written notice. The product
updates might cause some differences between the actual product and the Manual. Please
contact the customer service for the latest program and supplementary documentation.
There still might be deviation in technical data, functions and operations description, or
errors in print. If there is any doubt or dispute, please refer to our final explanation.
Upgrade the reader software or try other mainstream reader software if the Manual (in PDF
format) cannot be opened.
All trademarks, registered trademarks and the company names in the Manual are the
properties of their respective owners.
Please visit our website, contact the supplier or customer service if there is any problem
occurred when using the device.
If there is any uncertainty or controversy, please refer to our final explanation.
Important Safeguards and Warnings III
Important Safeguards and Warnings
The following description is the correct application method of the Device. Read the Manual
carefully before use to prevent danger and property loss. Strictly conform to the Manual during
application and keep it properly after reading.
Operating Requirement
Install the PoE front-end device indoors.
Do not place and install the device in an area exposed to direct sunlight or near heat
generating device.
Do not install the device in a humid, dusty or fuliginous area.
Keep its horizontal installation, or install it at stable places, and prevent it from falling.
Do not drip or splash liquids onto the device; don’t put on the device anything filled with
liquids, in order to prevent liquids from flowing into the device.
Install the device at well-ventilated places; don’t block its ventilation opening.
Use the device only within rated input and output range.
Do not dismantle the device arbitrarily.
Transport, use and store the device within allowed humidity and temperature range.
Power Requirement
Make sure to use the designated battery type. Otherwise there may be explosion risk.
Make sure to use batteries according to requirements. Otherwise, it may result in fire,
explosion or burning risks of batteries!
To replace batteries, only the same type of batteries can be used.
Make sure to dispose the exhausted batteries according to the instructions.
The product shall use electric wires (power wires) recommended by this area, which shall
be used within its rated specification.
Make sure to use standard power adapter matched with this device. Otherwise, the user
shall undertake resulting personnel injuries or device damages.
Use power supply that meets SELV (safety extra low voltage) requirements, and supply
power with rated voltage that conforms to Limited Power Source in IEC60950-1. For
specific power supply requirements, please refer to device labels.
Products with category I structure shall be connected to grid power output socket, which is
equipped with protective grounding.
Appliance coupler is a disconnecting device. During normal use, please keep an angle that
facilitates operation.
Table of Contents IV
Table of Contents
Foreword.................................................................................................................................................... I
Important Safeguards and Warnings.................................................................................................... III
1Checking the Components................................................................................................................ 1
2 Installing HDD........................................................................................................................................ 2
2.1 SMART 1U..................................................................................................................................... 2
2.2 MINI 1U, COMPACT 1U, 1U......................................................................................................... 4
3 Connection............................................................................................................................................. 6
4 GUI Operations...................................................................................................................................... 7
4.1 Booting Up..................................................................................................................................... 7
4.2 Initializing the Device..................................................................................................................... 7
4.3 Modifying IP Address................................................................................................................... 10
4.4 Registration...................................................................................................................................11
4.5 Schedule.......................................................................................................................................11
4.6 Playback...................................................................................................................................... 12
4.7 Shutdown..................................................................................................................................... 13
5Web Operations ................................................................................................................................ 14
6 P2P........................................................................................................................................................ 15
Cybersecurity Recommendations................................................................................... 17Appendix 1
Checking the Components 1
1 Checking the Components
All the installation and operations here should conform to the local electric safety rules. The
Device does not support wall mounting with the front panel facing down.
When you receive the Device, please check against the following checking list. If any of the
items are missing or damaged, contact the local retailer or after-sales engineer immediately.
Sequence
Checking items
Requirement
1
Package
Appearance
No obvious damage.
Packing materials
No broken or distorted positions that
could be caused by hit.
Accessories
No missing.
2
Labels
Labels on the Device
Device model conforms to the
purchase order.
Not torn up.
Do not tear up or throw away the
labels; otherwise the warranty
services are not ensured. You need
to provide the serial number of the
product when you call the after-sales
service.
3
Device
Appearance
No obvious damage.
Data cables, power
cables, fan cables,
mainboard
No connection loose.
If there is any loose, please contact
the company after-sales service in
time.
Installing HDD 2
2 Installing HDD
The following figures are for reference only. The actual product shall govern.
Shut off the power before you replace the HDD.

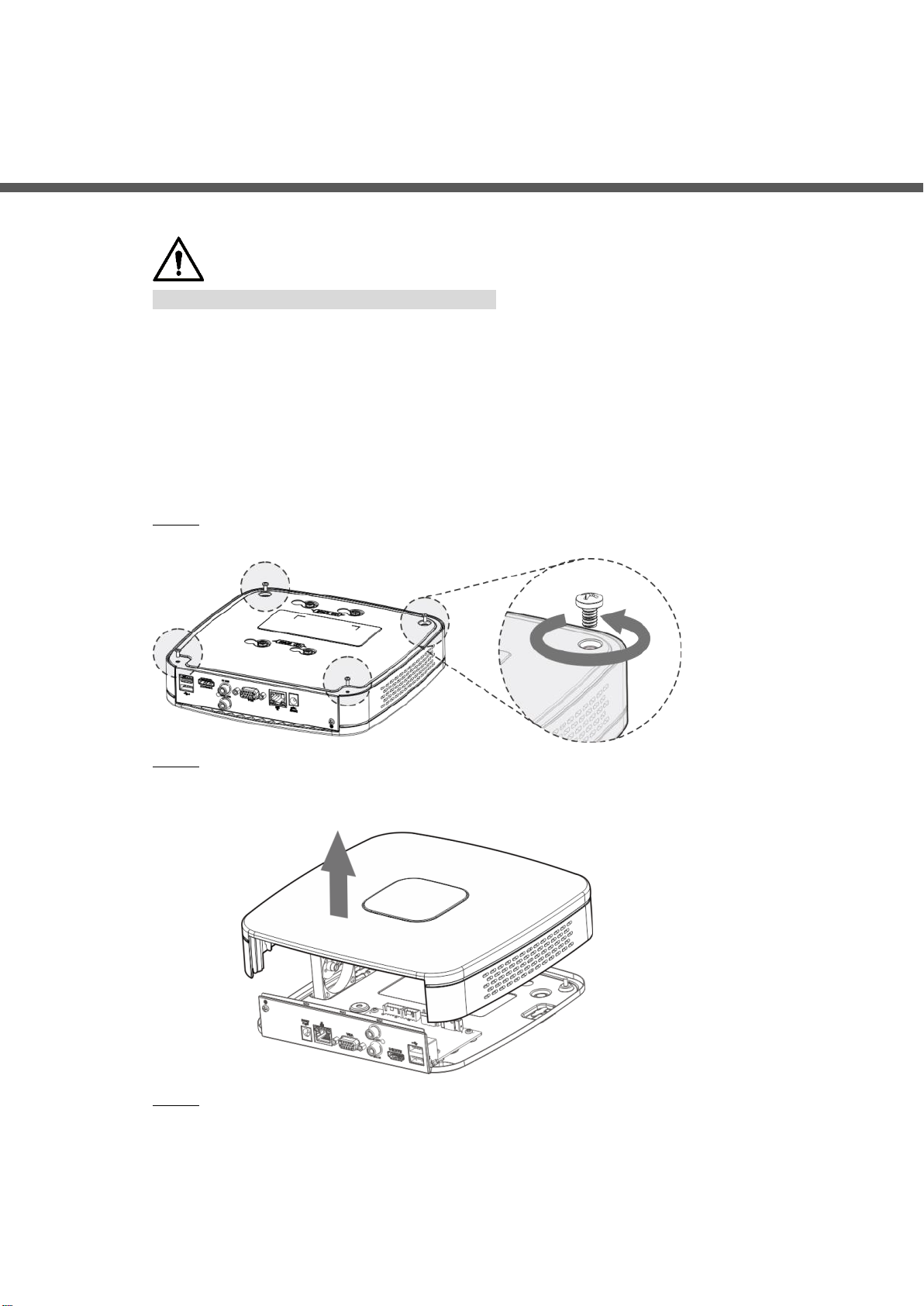

2.1 SMART 1U
For the first time installation, check whether the HDD has been installed or not. It is
recommended to use HDD of enterprise level or surveillance level. It is not recommended to
use PC HDD.
Turn over the device and remove the four fixing screws on the baseboard of the device.Step 1 Installing HDD (1)Figure 2-1
Remove the case cover along the direction shown in the following
Step 2
arrow. Installing HDD (2)
Figure 2-2

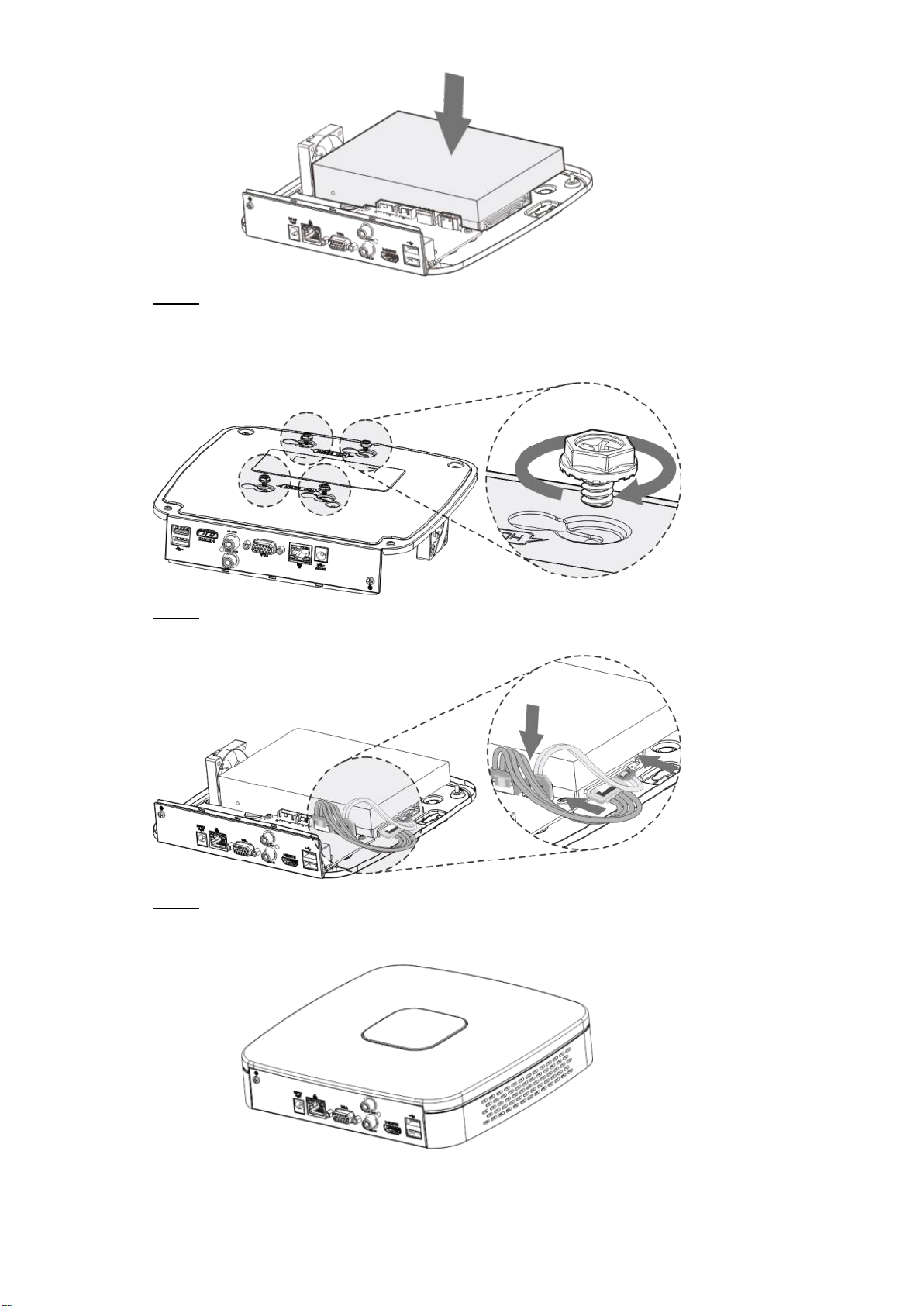

Match the four holes on the baseboard to place the HDD.
Step 3
Installing HDD (3)
Figure 2-3
Installing HDD 3
Turn the device upside down, match the screws with the holes on
Step 4
the HDD and then fasten them. The HDD is fixed to the
baseboard. Installing HDD (4)
Figure 2-4
Connect the HDD data cable and power cable to the device.
Step 5
Installing HDD (5)
Figure 2-5
Put back the cover and fasten the four screws on the baseboard
Step 6
to complete the installation.
Installing HDD (6)
Figure 2-6
Installing HDD 4

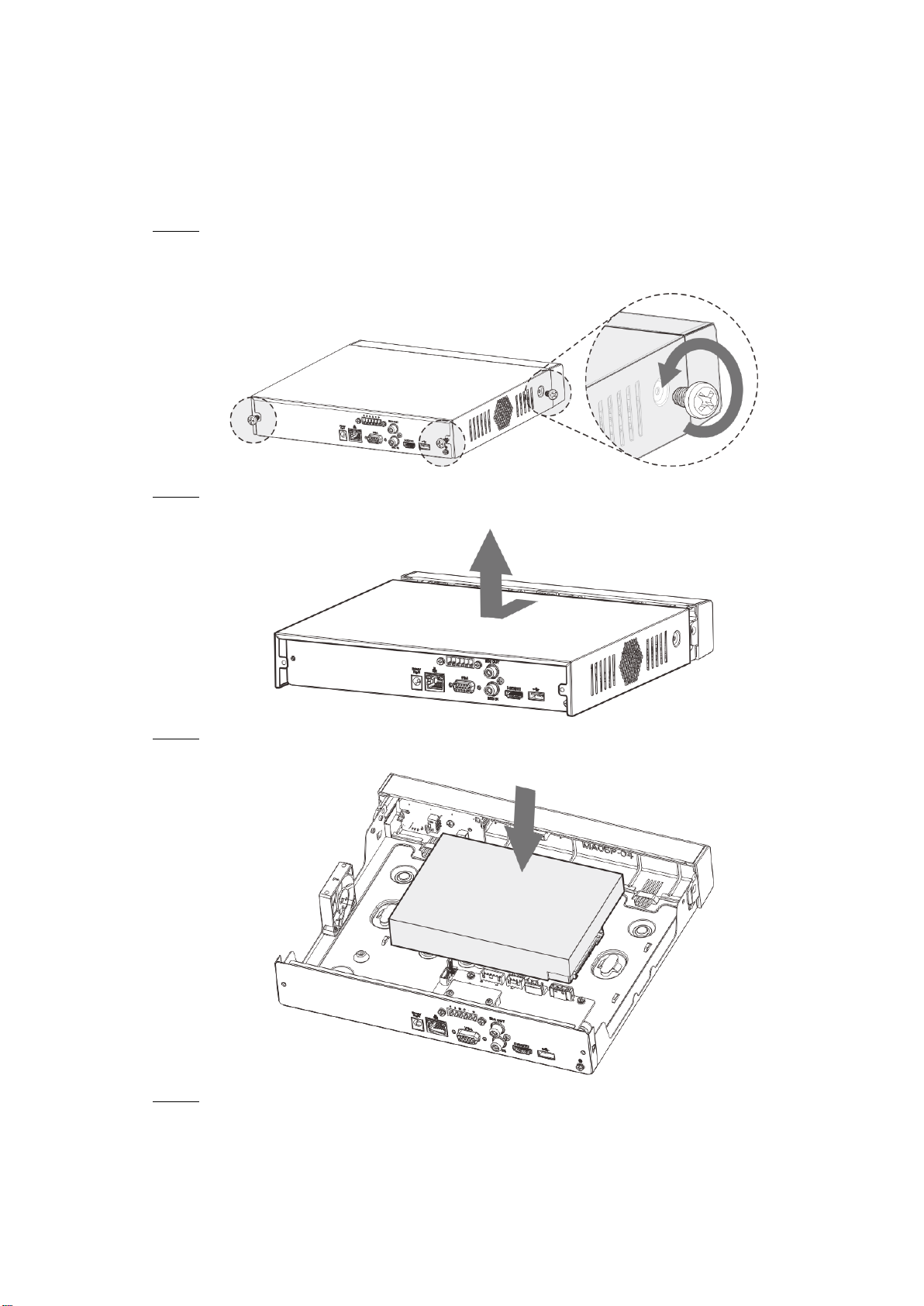

2.2 MINI 1U, COMPACT 1U, 1U
For the first time installation, make sure whether the HDD has been installed or not. It is
recommended to use HDD of enterprise level or surveillance level. It is not recommended to
use PC HDD.
Remove the fixing screws of the case cover (including the two screws on the rear panelStep 1 and two screws on the left and right panels).
Installing HDD (1)Figure 2-7
Remove the case cover along the direction shown in the following arrow.Step 2 Installing HDD (2)Figure 2-8
Match the four holes on the baseboard to place the HDD.Step 3 Installing HDD (3)Figure 2-9

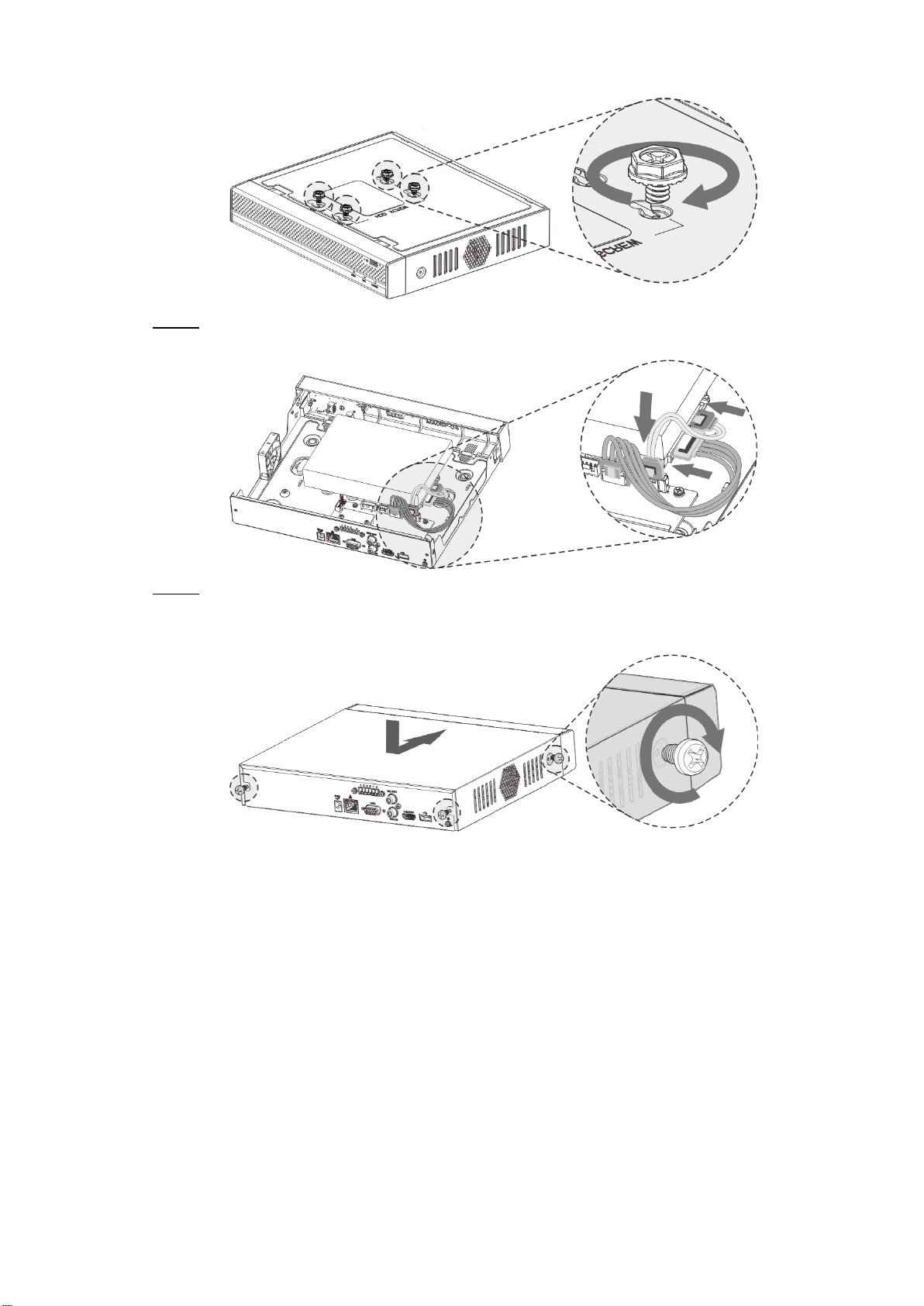

Turn the device upside down, match the screws with the holes on the HDD and thenStep 4 fasten them. The HDD is fixed to the baseboard.
Installing HDD 5
Installing HDD (4)Figure 2-10
Connect the HDD data cable and power cable to the device.Step 5 Installing HDD (5)Figure 2-11
Put back the cover and fasten the screws on the rear panel and side panels toStep 6 complete the installation. Installing HDD (6)Figure 2-12
