Technical Data

Concealed ceiling unit with high ESP

EEDEN15-100

FDQ-B

• Split - Sky Air • FDQ-B 1

• Indoor Unit • FDQ-B

TABLE OF CONTENTS

FDQ-B

1Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

2 Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

3Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

4 Dimensional drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

5 Piping diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

6 Wiring diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Wiring Diagrams - Single Phase . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

7 Sound data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Sound Power Spectrum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Sound Pressure Spectrum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

8 Fan characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

9 Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Installation Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

• Indoor Unit • FDQ-B

• Split - Sky Air • FDQ-B

1 Features

IndoorUnit Split-Sk FDQ-BConcealedc

ESP up to 250, ideal for extra large sized spaces

• High external static pressure up to 250Pa facilitates using flexible

ducts of varying lengths • Discretely concealed in the ceiling: only the suction and discharge

grilles are visible

• Up to 26.4kW in heating mode

Home leave

operation Fan only Auto cooling-

heating

changeover

Fan speed

steps Dry programme Air filter Weekly timer Wired remote

control Centralised

control

Auto-restart Self diagnosis

• Split - Sky Air • FDQ-B 3

• Indoor Unit • FDQ-B

2 Specifications

Standard Accessories : Installation and operation manual; Quantity : 1;

2-1 Technical Specifications FDQ200B FDQ250B

Power input - 50Hz Cooling Nom. kW 1,340

Heating Nom. kW 1,340

Casing Colour Unpainted

Material Galvanised steel

Dimensions Unit Height/Width/

Depth mm 450/1,400/900

Packed unit Height/Width/

Depth mm 607/1,515/1,055

Required ceiling void \> mm 450

Weight Unit kg 89.0 94.0

Packed unit kg 108.0 113.0

Heat exchanger Length mm 1,200

Rows Quantity 3

Fin pitch mm 2.00

Passes Quantity 12

Face area m² 0.634

Stages Quantity 24

Empty tubeplate

hole Quantity 0

Tube type ø8 Hi-XSS

Fin Type Non-symmetric fin

Treatment Hydrophilic

Air filter Type Resin net with mold resistance

Fan Type Sirocco fan

Quantity 2

Air flow rate Cooling Nom. m³/min 69.0 89.0

Heating Nom. m³/min 69.0 89.0

External static

pressure High Pa 250

Nom. Pa 250

Low Pa 250

Fan motor Quantity 1

Model DPC241-241NB

Drive Direct drive

Speed Steps 3 2

Output High W 650 1,000

Sound power level Cooling dBA 81 82

Heating dBA -

Sound pressure level Cooling High dBA 45.0 47.0

Heating Low dBA 45.0 47.0

Control systems Wired remote control BRC1D52 / BRC1E52A/B

Refrigerant Type R-410A

Piping connections Liquid Type/OD mm Flare connection/9.52 Flare connection/12.7

Gas Type/OD mm Braze connection/22.2

Drain 25

Heat insulation Both liquid and gas pipes

Temperature control Microprocessor thermostat for cooling and heating

Air direction control Up and downwards

Safety devices Item 01 Fan motor thermal fuse

2-2 Electrical Specifications FDQ200B FDQ250B

Power supply Name V3

Phase 1~

Frequency Hz 50

Voltage V 230

• Indoor Unit • FDQ-B

• Split - Sky Air • FDQ-B

2 Specifications

Notes

Sound values are measured in a semi-anechoic room with corrections.

The sound pressure level is measured via a microphone at 1m distance of the unit.

Sound pressure level is a relative value, depending on the distance and acoustic environment. For more details, please refer to the sound level drawings.

The sound power level is an absolute value indicating the power which a sound source generates.

For more details, please refer to wiring diagram, name plate and installation manual.

Voltage range Min. % -10

Max. % 10

Current - 50Hz Zmax List No requirements

Power supply intake Both indoor and outdoor unit

2-2 Electrical Specifications FDQ200B FDQ250B

• Split - Sky Air • FDQ-B 5

• Indoor Unit • FDQ-B

3Options

3 - 1 Options

FDQ-B

Operation control

No. Type

Item FDQ200/250B

1 Remote control

Wired BRC1D52 / BRC1E52A7 (*4) / BRC1E52B7 (*5)

Infrared H/P BRC4C65

C/O BRC4C66

26LPSOL¿HGUHPRWHFRQWUROZLWKRSHUDWLRQPRGHVHOHFWRUEXWWRQ BRC2E52C7 (*7)

36LPSOL¿HGUHPRWHFRQWUROZLWKRXWRSHUDWLRQPRGHVHOHFWRUEXWWRQ BRC3E52C7 (*7)

42SWLRQDO3&%IRUH[WHUQDOHOHFWULFKHDWHUVKXPLGL¿HUVDQGRUKRXUPHWHUV EKRP1B2A (*1) (*2) (*3)

5$GDSWHUIRUZLULQJLQWHUORFNIRUIUHVKDLULQWDNHIDQ KRP1B54 (*3)

6:LULQJDGDSWHUIRUHOHFWULFDODSSHQGLFHV KRP4A51 (*3)

75HPRWHVHQVRU KRCS01-4B

8 Central remote control DCS302C51

98QL¿HG212))FRQWUROOHU DCS301B51

10 6FKHGXOHWLPHU DST301B51

11 5HPRWH³212))´DQG³IRUFHG2))´NLW EKRORO

12 0RXQWLQJSODWHIRUDGDSWHU3&% KRP4A96

13 ,QWHUIDFHDGDSWHUIRUWKH6N\$LUVHULHV DTA112B51

14 'LJLWDOLQSXWDGDSWHU BRP7A54 (*3) (*6)

NOTES

1. (OHFWULFKHDWHUVDQGKXPLGL¿HUVDUH¿HOGVXSSOLHG'RQRWLQVWDOOWKHPLQVLGHWKHHTXLSPHQWUHIHUWRLQVWDOODWLRQPDQXDO(.53%$

2. :KHQLQVWDOOLQJHOHFWULFKHDWHUVDQRSWLRQDO3&%IRUH[WHUQDOHOHFWULFKHDWHUV(.53%$LVUHTXLUHGIRUHDFKLQGRRUXQLW

3. 7KHVHRSWLRQVUHTXLUHPRXQWLQJSODWH.53$

0D[LPDOO\RSWLRQDO3&%VFDQEHPRXQWHG

4. ,QFOXGHGODQJXDJHVDUH(QJOLVK*HUPDQ)UHQFK'XWFK6SDQLVK,WDOLDQ*UHHN3RUWXJXHVH5XVVLDQ7XUNLVKDQG3ROLVK

5. ,QFOXGHGODQJXDJHVDUH(QJOLVK*HUPDQ$OEDQLDQ%XOJDULDQ&URDWLDQ&]HFK+XQJDULDQ5RPDQLDQ6HUELDQ6ORYDNDQG6ORYHQLDQ

6. 2QO\SRVVLEOHLQFRPELQDWLRQZLWKVLPSOL¿HGUHPRWHFRQWURO%5&(&

7. ,QFOXGHGODQJXDJHVDUH

/DQJXDJHSDFN(QJOLVK*HUPDQ)UHQFK'XWFK6SDQLVK,WDOLDQDQG3RUWXJXHVH

:LWK3&FDEOH(.3&&$%LQFRPELQDWLRQZLWKWKH8SGDWHU3&VRIWZDUH\RXFDQDGGLWLRQDOO\FKDQJHWKHODQJXDJHWR

/DQJXDJHSDFN(QJOLVK%XOJDULDQ&URDWLDQ&]HFK+XQJDULDQ5RPDQLDQDQG6ORYHQLDQ

/DQJXDJHSDFN(QJOLVK*UHHN3ROLVK5XVVLDQ6HUELDQ6ORYDNDQG7XUNLVK

3TW22809-1K

• Indoor Unit • FDQ-B

• Split - Sky Air • FDQ-B

4 Dimensional drawings

4 - 1 Dimensional Drawings

• Split - Sky Air • FDQ-B 7

• Indoor Unit • FDQ-B

5 Piping diagrams

5 - 1 Piping Diagrams

• Indoor Unit • FDQ-B

• Split - Sky Air • FDQ-B

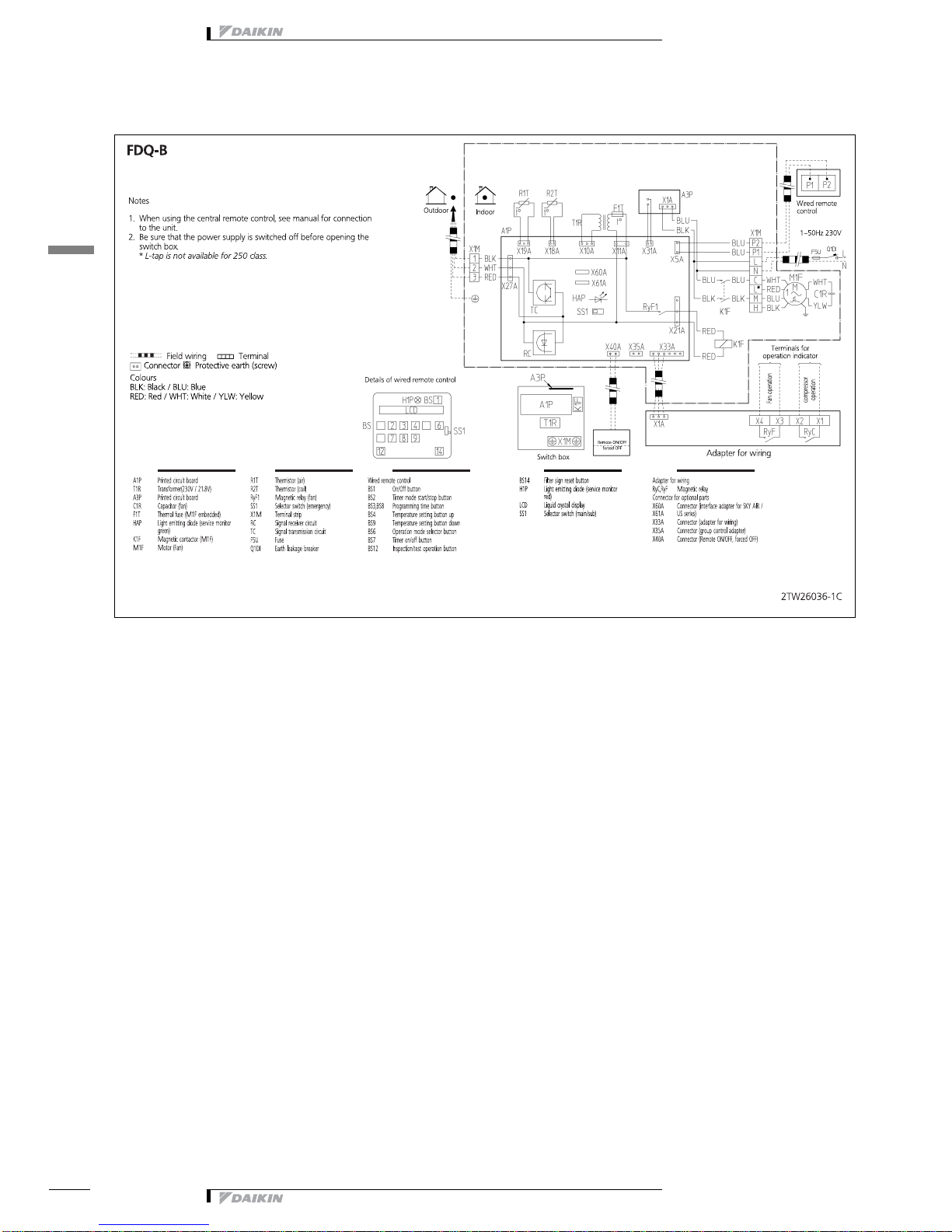

6 Wiring diagrams

6 - 1 Wiring Diagrams - Single Phase
