Daikin RE09JV2S Manuale utente
REMOVAL
PROCEDURE
SERVICE MANUAL
9000 Btu/h Class
Outdoor Unit
Non-Inverter
Pair Type
Si01-982
Service Manual
Removal Procedure
Outdoor Unit
zCooling Only
RE09JV2S
Si01-982
Removal Procedure 1
Table of Contents
1. Removal of Outer Panels ........................................................................2
2. Removal of Outdoor Fan / Fan Motor .....................................................4
3. Removal of Electrical Components .........................................................7
4. Removal of Sound Blankets..................................................................12
5. Removal of Capillary Tube....................................................................13
6. Removal of Compressor ASSY.............................................................14
Removal of Outer Panels Si01-982
2Removal Procedure

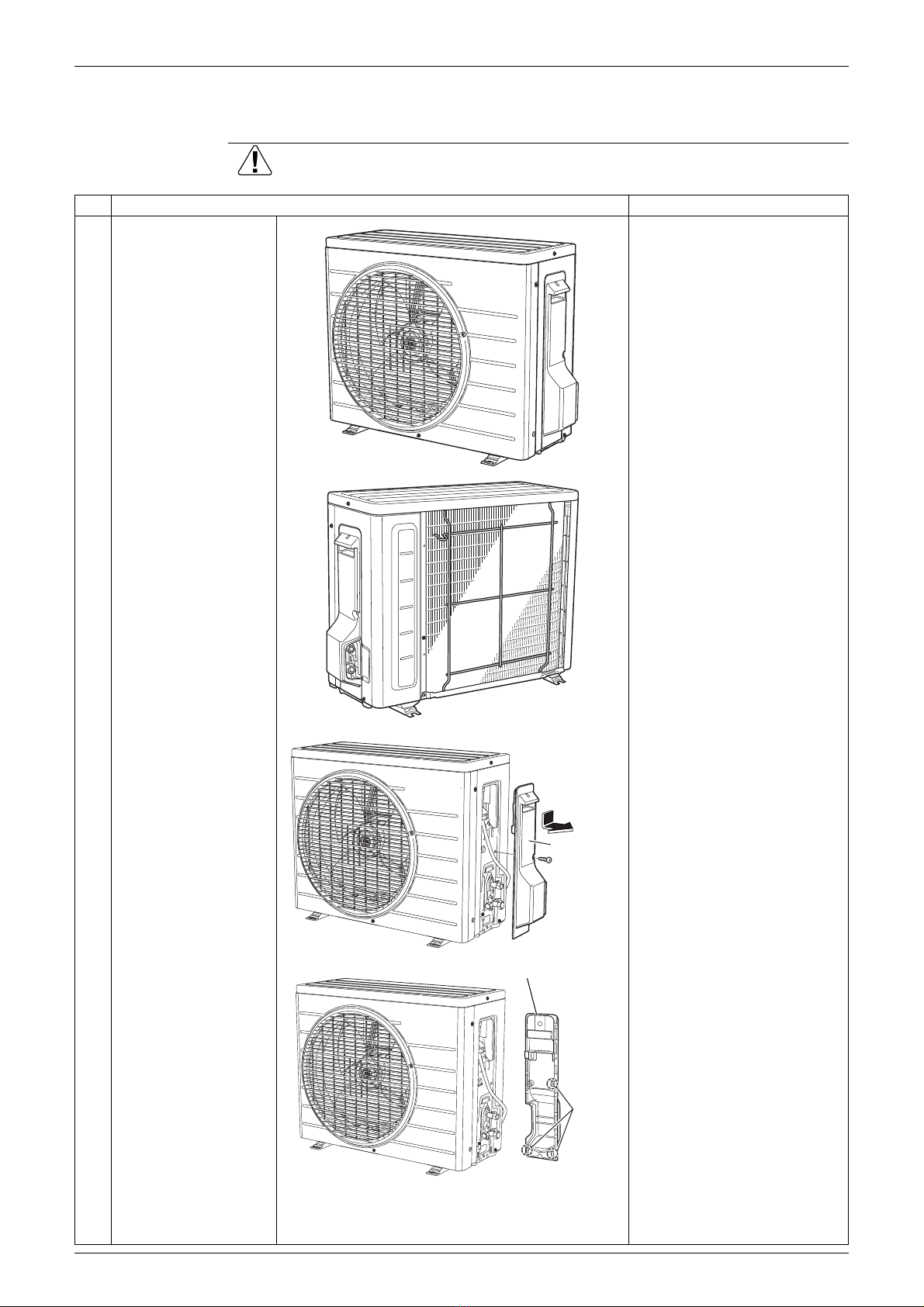

1. Removal of Outer Panels
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points
1Appearance features
Take care not to cut your
finger by the fins of the
outdoor heat exchanger.
2Remove the screw of
the stop valve cover.
Pull down and remove
the stop valve cover.
The stop valve cover is
united with the shield plate.
When reassembling, make
sure to fit the 3 hooks.
(R10742)
(R10743)
(R15456)
Stop valve
cover
(R15457)
Shield plate
Hook
Si01-982 Removal of Outer Panels
Removal Procedure 3

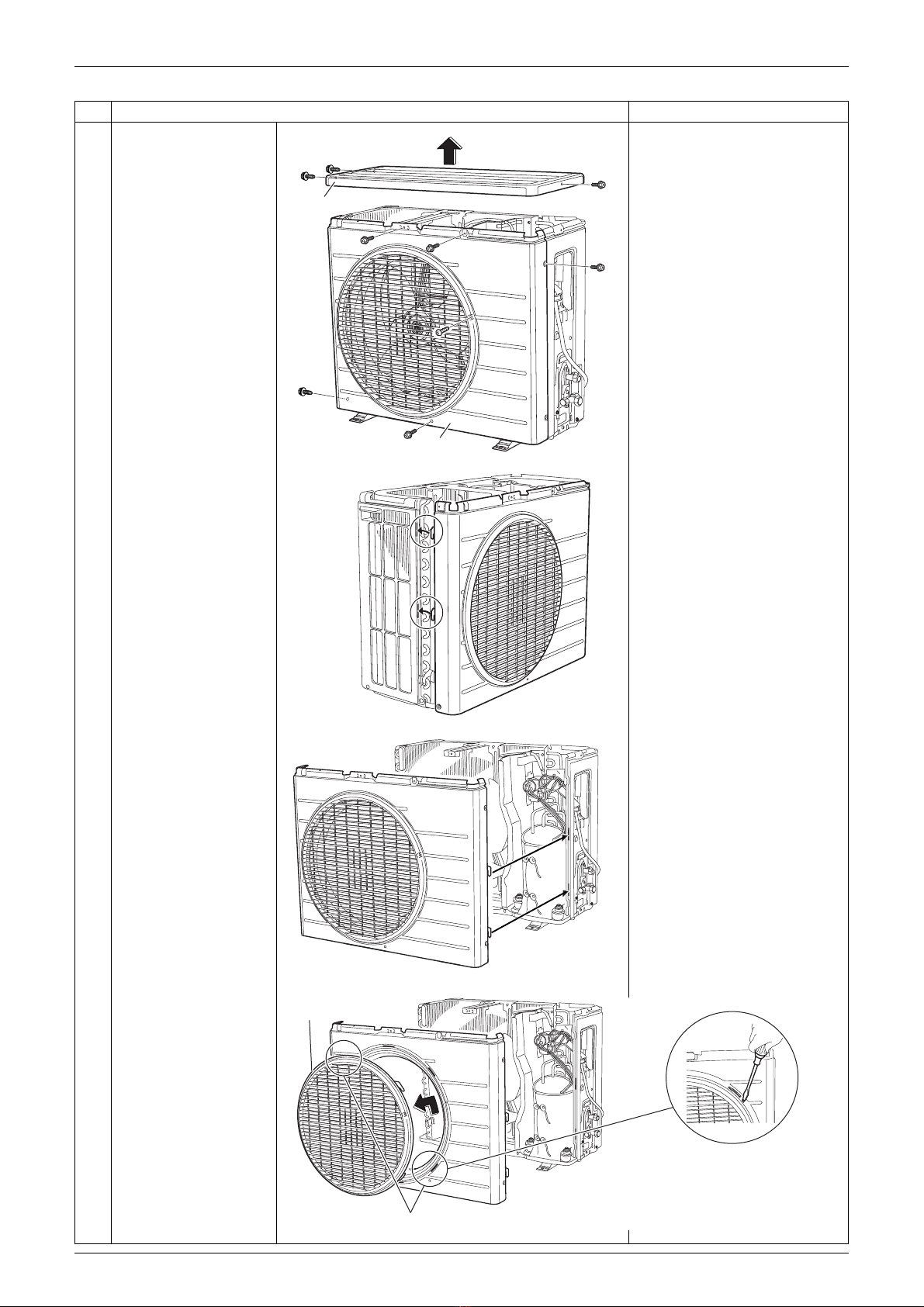

3Remove the 3 screws
(left: 2 screws, right: 1
screw) and lift the top
panel from the rear side
at first.
4Remove the 6 screws
of the front panel.
5Lift up the left side and
unfasten the hooks.
6Release the right side
hooks and remove the
front panel.
7The discharge grille has
2 projections to prevent
its rotation. Press the
projection from the rear
side and rotate the
discharge grille to
remove it.
Step Procedure Points
Top panel
Front panel
(R15458)
(R10450)
(R15216)
Projection (rear side) (R15217)
Discharge grille
Removal of Outdoor Fan / Fan Motor Si01-982
4Removal Procedure

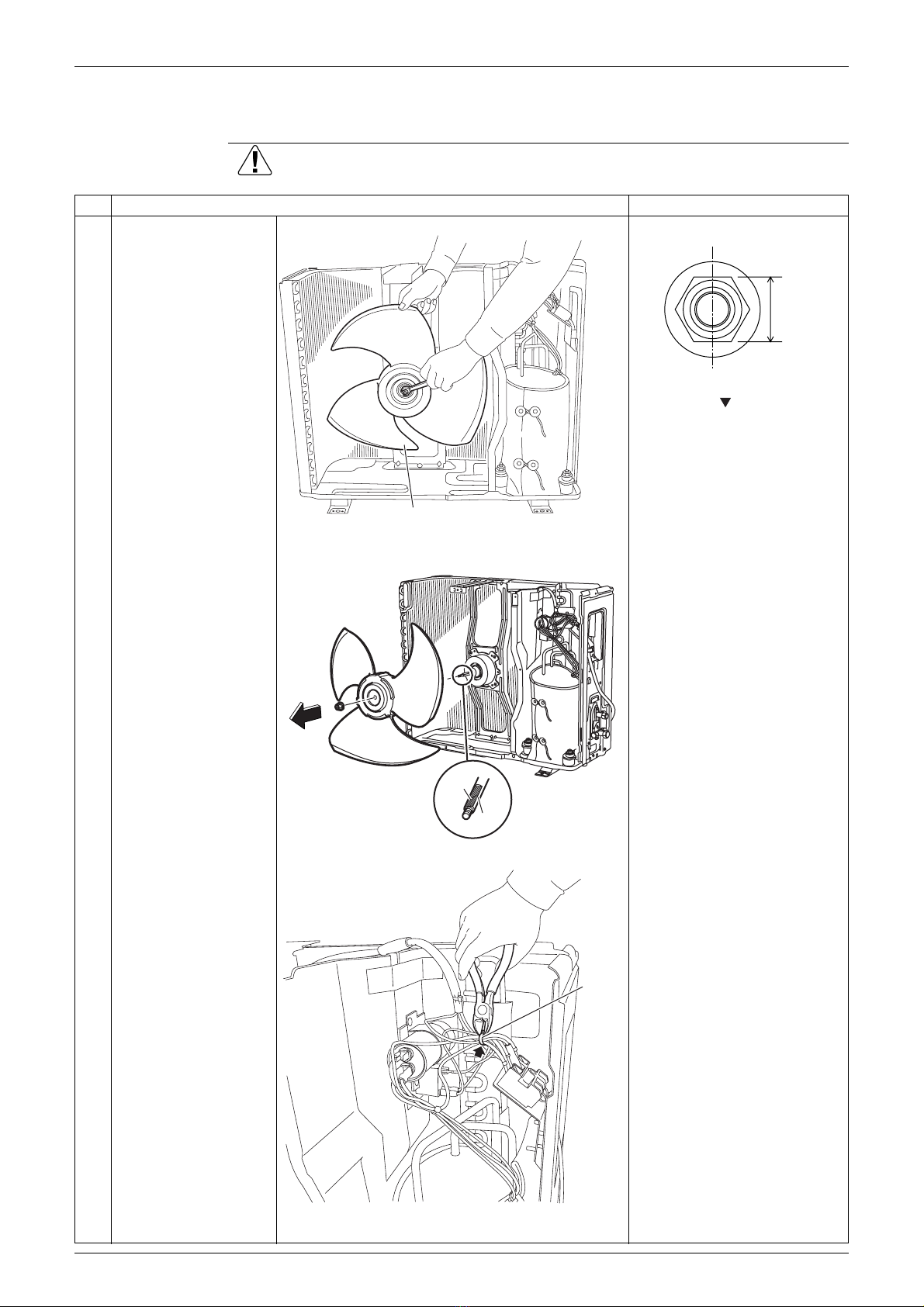

2. Removal of Outdoor Fan / Fan Motor
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points
1Remove the nut of the
outdoor fan.
Nut size: M6
Align the mark of the
outdoor fan with the D-cut
section of the motor shaft
when reassembling.
2Remove the outdoor
fan.
3Cut the clamp.
(R15202)
Outdoor fan
10 mm
(R17447)
(R15218)
D-cut
Shaft
Clamp
(R15203)
Si01-982 Removal of Outdoor Fan / Fan Motor
Removal Procedure 5

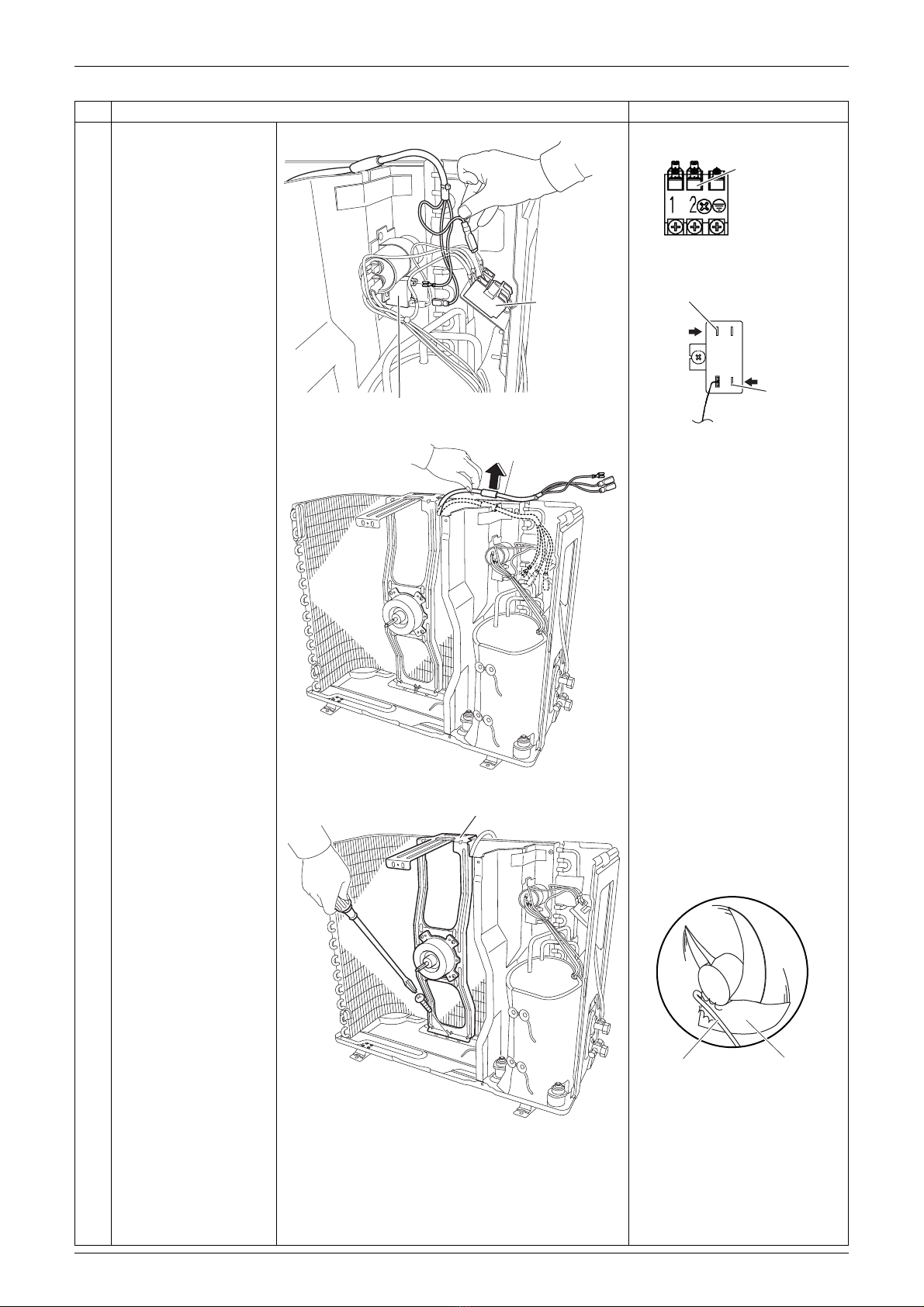

4Pull out the terminal
(black) from the
terminal board X1M (2).
Terminal board (X1M)
Fan capacitor (C2R)
5Pull out the 2 terminals
(red, white) from the fan
capacitor (C2R).
6Release the fan motor
lead wire from the
groove.
7Remove the screw to
detach the fan motor
fixing frame.
Put the fan motor lead wire
through the back of the fan
motor when reassembling so
as not to be entangled with
the outdoor fan.
Step Procedure Points
(R15223)
Terminal board
Fan capacitor
(R17184)
to fan motor
upper: black
C2R
to fan motor:
white
(R17455)
to fan motor:
red
to terminal board
X1M (1_upper): red
(R15204)
Fan motor lead wire
(R15205)
Fan motor fixing frame
(R3249)
Lead wire Outdoor fan
Removal of Outdoor Fan / Fan Motor Si01-982
6Removal Procedure

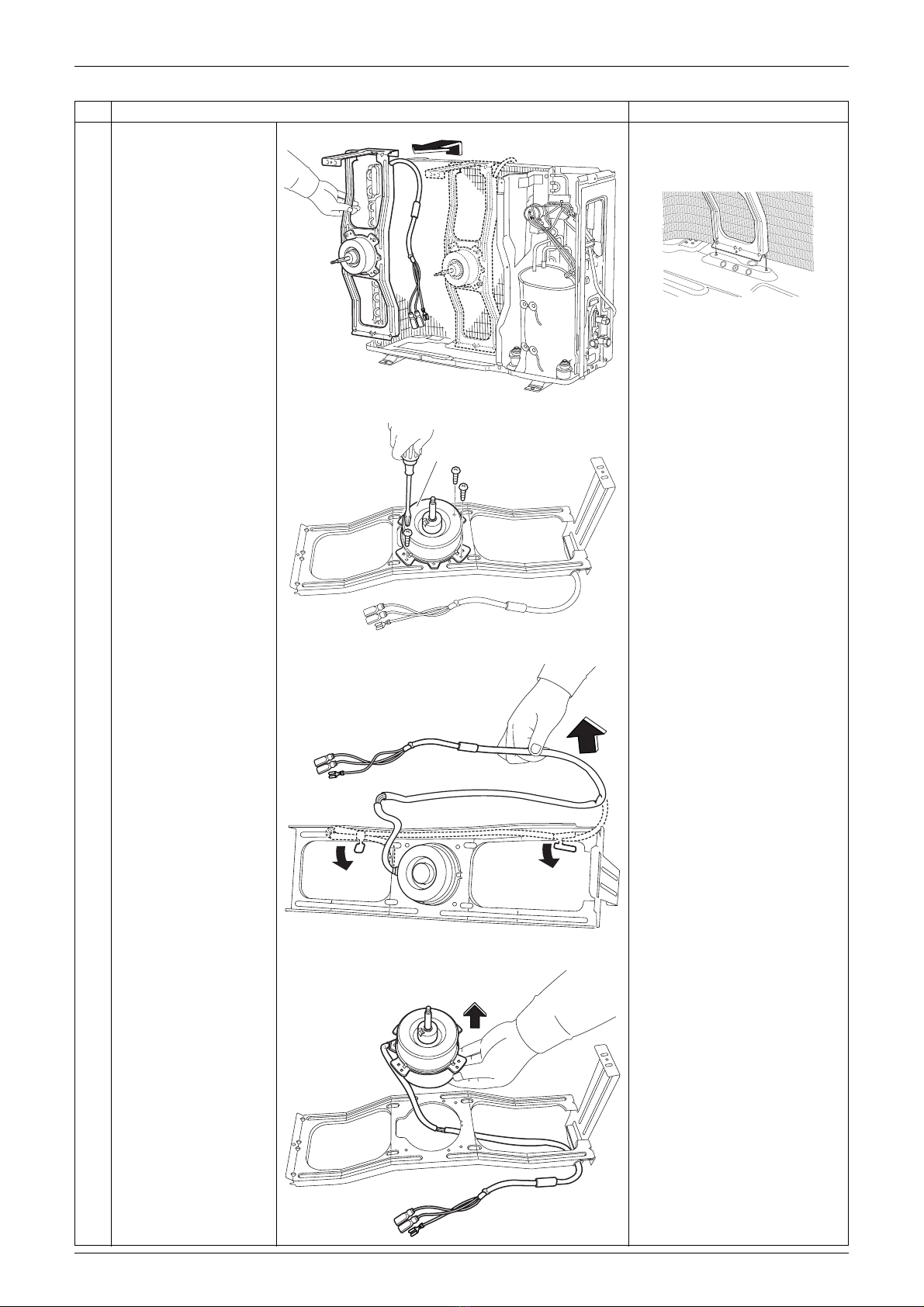

8Remove the fan motor
fixing frame.
When reassembling, fit the
lower hooks into the bottom
frame.
9Remove the 3 screws
and remove the fan
motor.
M4 × 16
10 Release the harness
from the hooks.
11 Remove the fan motor.
Step Procedure Points
(R15206)
(R10460)
(R10461)
Fan motor
(R15207)
(R15208)
Si01-982 Removal of Electrical Components
Removal Procedure 7

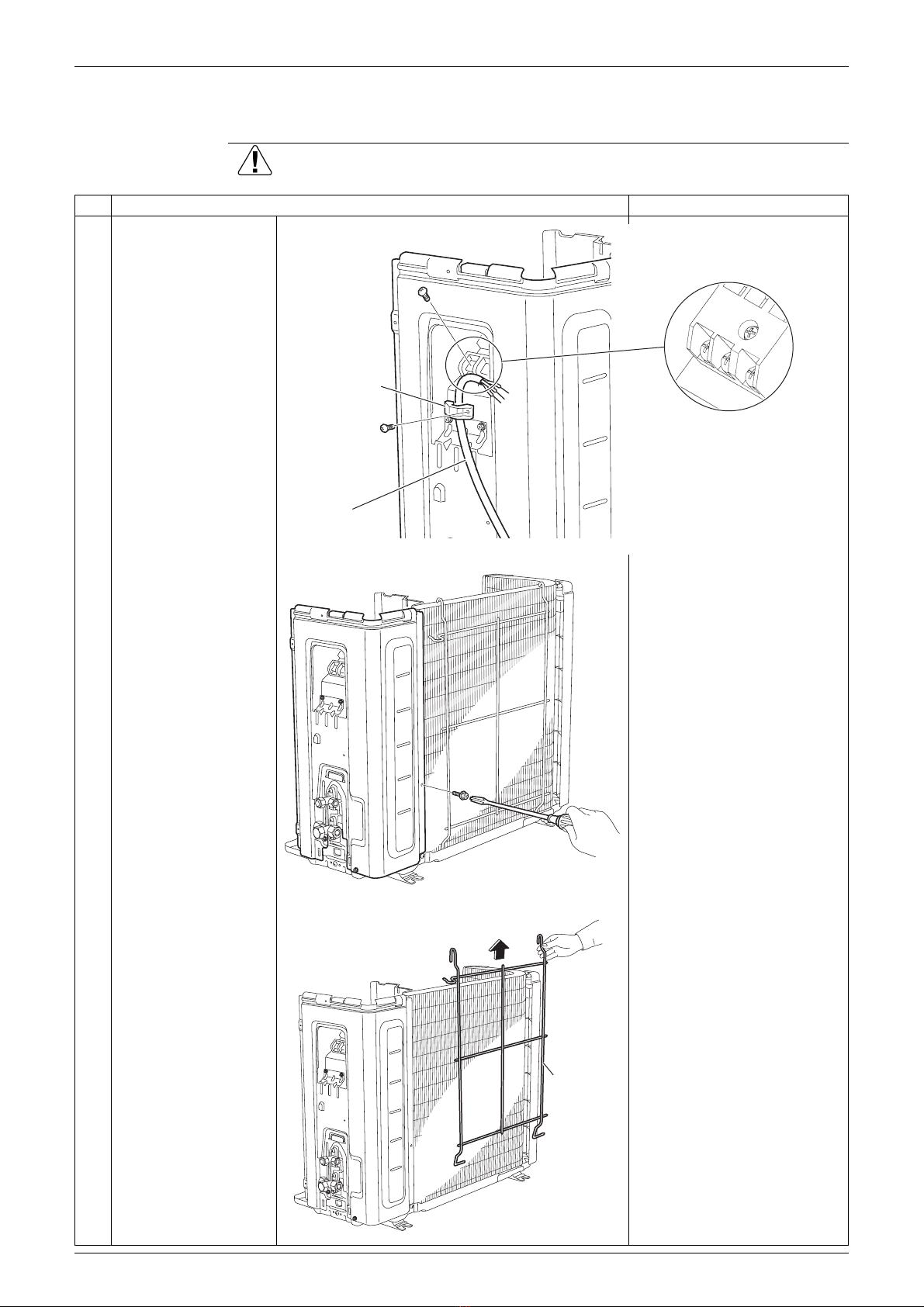

3. Removal of Electrical Components
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points
1Remove the 3 screws
and disconnect the
connecting wire.
2Remove the screw and
remove the wire clamp.
3Remove the screw on
the rear side.
4Lift up the guard net
and remove it.
(R15220)
Wire clamp
Connecting wire
(R15219)
Guard net
(R15221)
Removal of Electrical Components Si01-982
8Removal Procedure

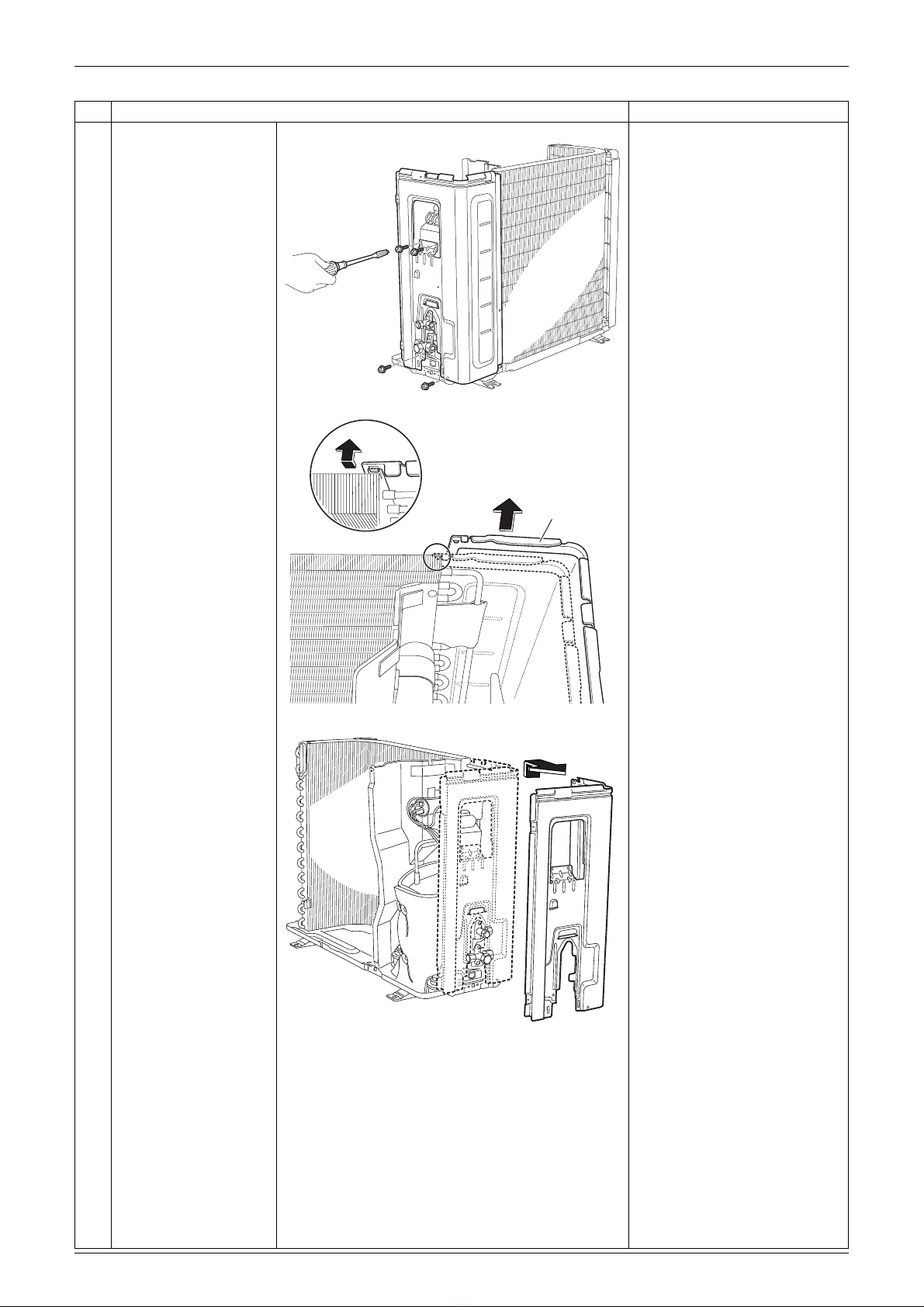

5Remove the 4 screws
on the right side.
6Unfasten the hook of
the right side panel.
When reassembling, make
sure to fit the hook.
7Remove the right side
panel.
Step Procedure Points
(R15222)
(R10467)
Right side panel
(R15209)
