Daikin 2M56GV1G Manuale utente

REMOVAL

PROCEDURE

SERVICE MANUAL

Outdoor Unit

Non-Inverter

Multi Type

5.6 kW Class

Si11-990

Service Manual

Removal Procedure

Outdoor Unit

zCooling Only

2M56GV1G

Si11-990

Removal Procedure 1

Table of Contents

1. Removal of Electrical Component ASSY ................................................2

2. Removal of Solenoid Valve Coil ASSY .................................................12

3. Removal of Fan Motor...........................................................................13

4. Removal of Sound Blankets / Compressor ...........................................14

Removal of Electrical Component ASSY Si11-990

2Removal Procedure

1. Removal of Electrical Component ASSY

Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies

before disassembling work.

Step Procedure Points

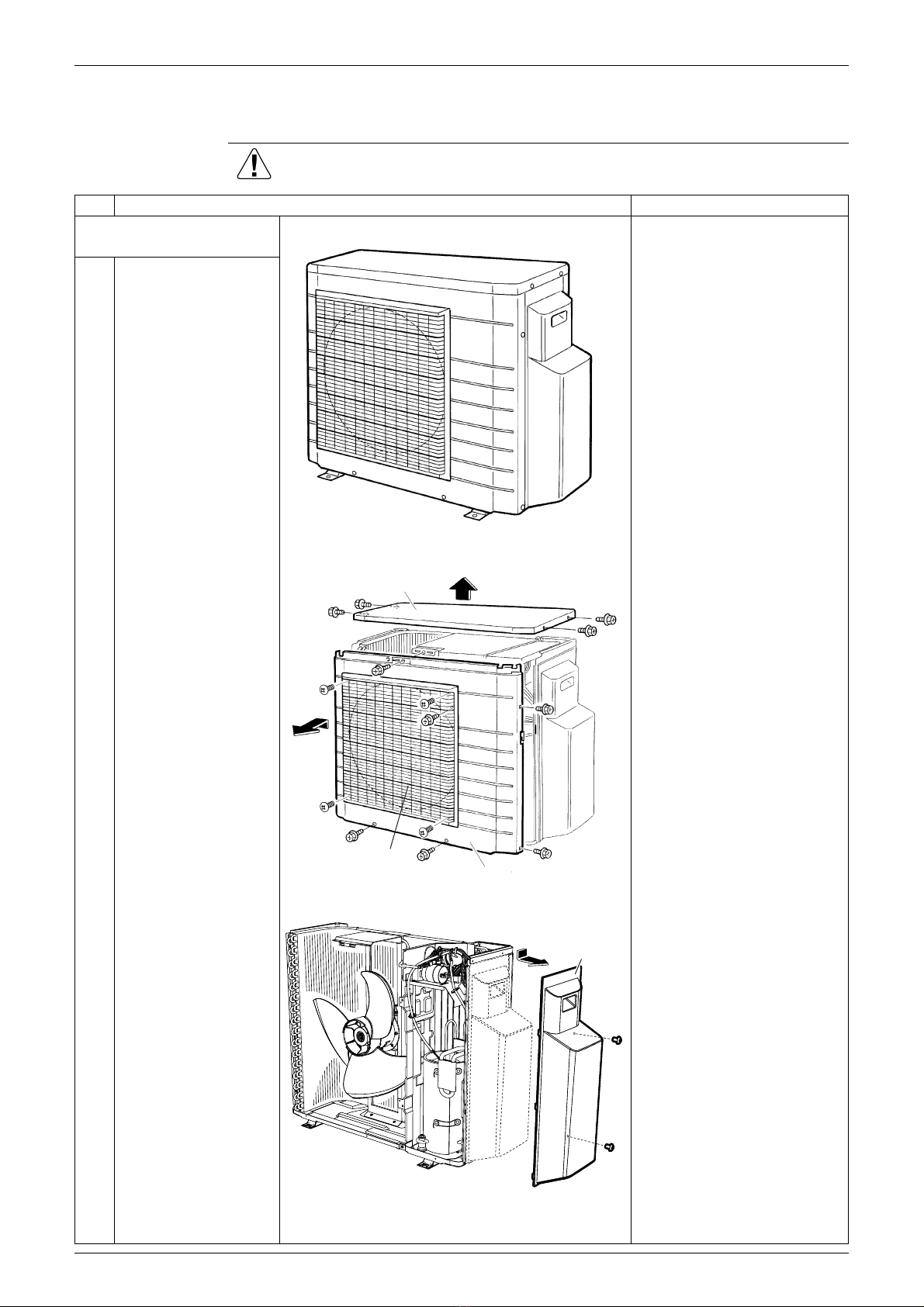

1. Removal of the outer

panels

1External appearance

2Remove the 4 screws

of the top panel, and

the 6 screws of the front

panel. Remove the 4

screws of the discharge

grille.

3Remove the 2 screws

of the stop valve cover.

(R10764)

(R10765)

Front panel

Discharge grille

Top panel

Stop valve cover

(R10766)

Si11-990 Removal of Electrical Component ASSY

Removal Procedure 3

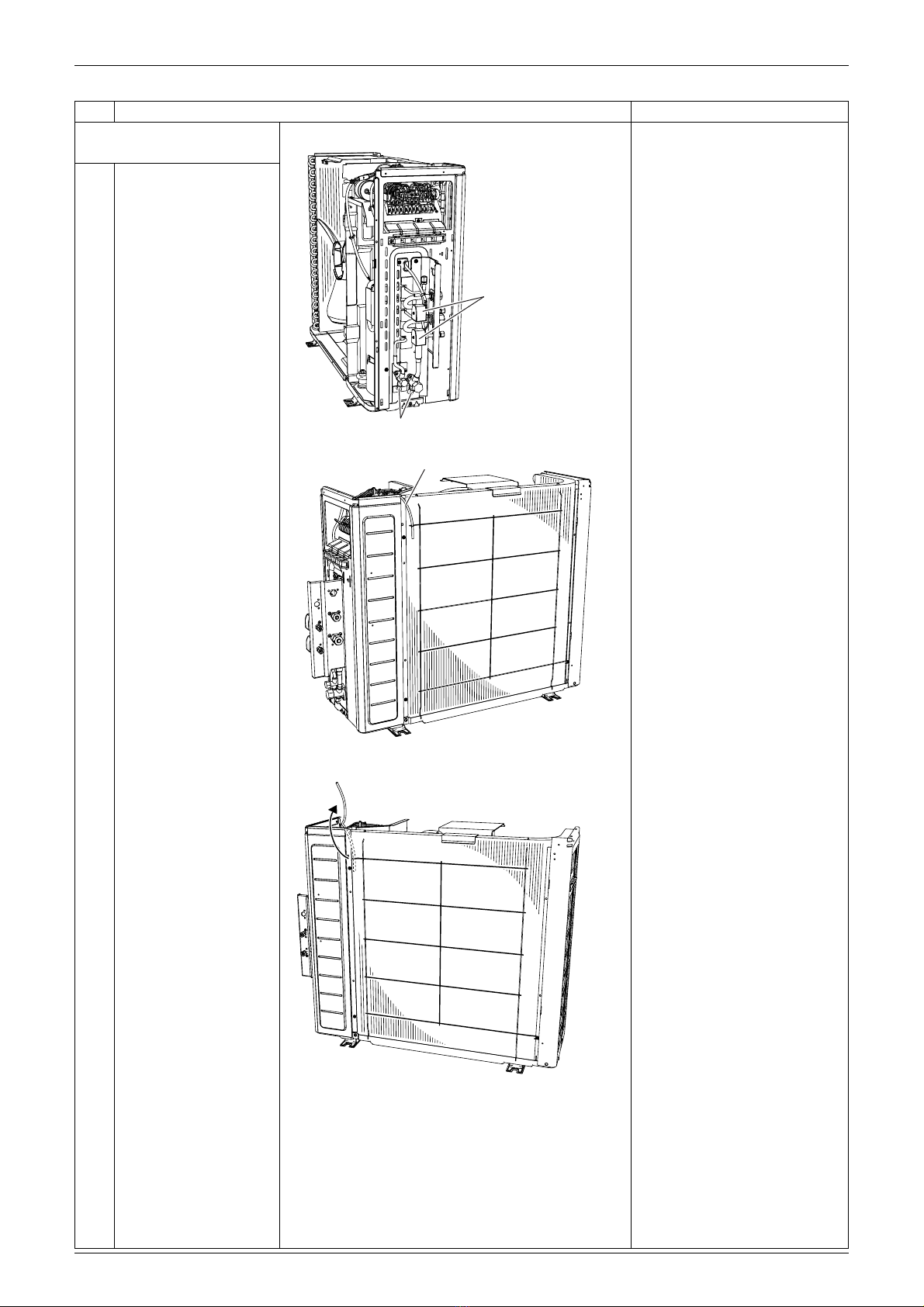

2. Removal of the electrical

component ASSY.

1Internal appearance

2Release the outdoor

temperature thermistor

from the hook.

Step Procedure Points

Solenoid valve

Service port (R10767)

Outdoor temperature thermistor

(R10768)

(R10769)

Removal of Electrical Component ASSY Si11-990

4Removal Procedure

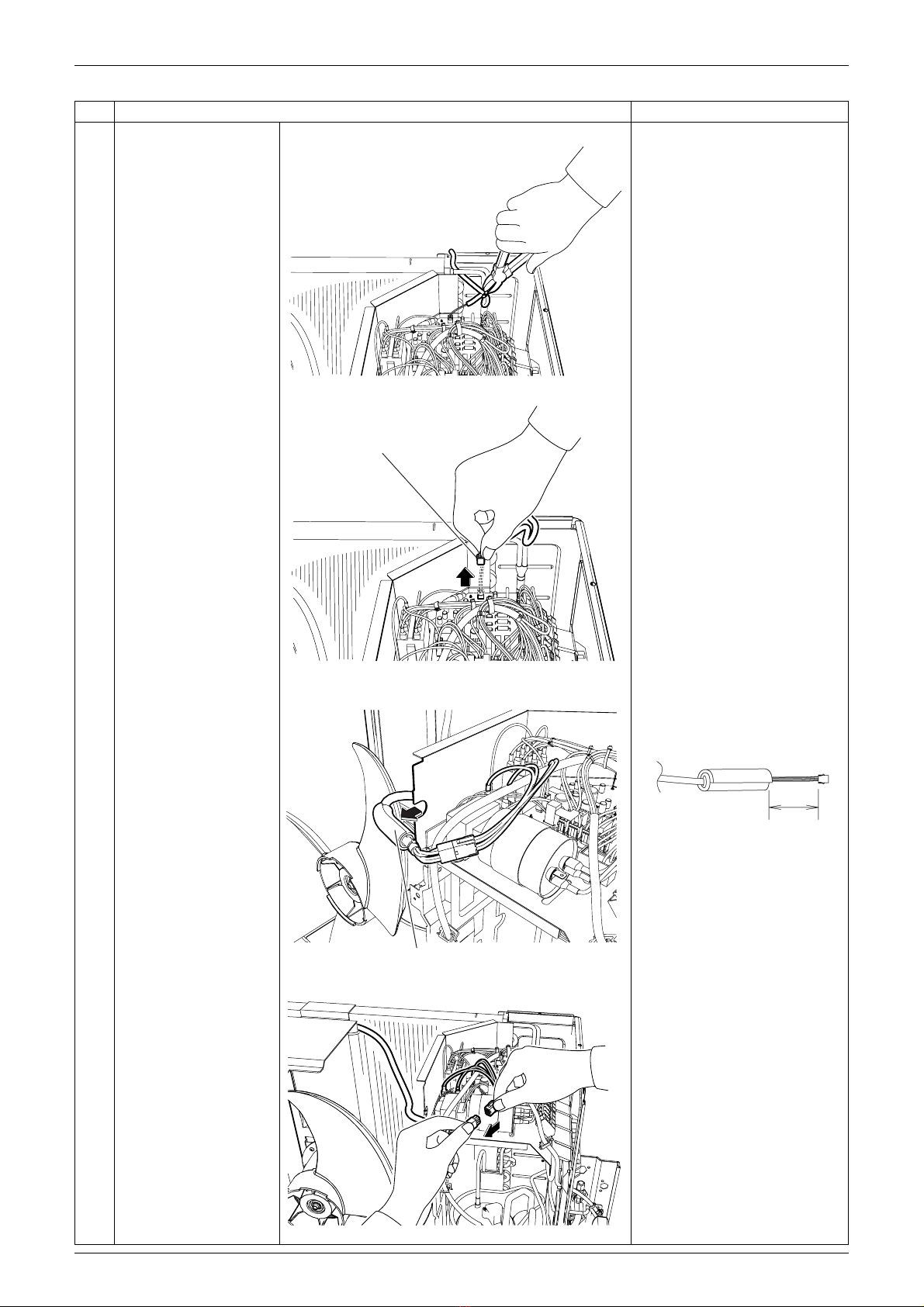

3Cut the clamp.

4Disconnect the

connector for the

outdoor temperature

thermistor [S7] from the

PCB.

5Unhook the sealing

material of the fan

motor lead wire from

the hook.

The sealing material should

be mounted as below.

6Disconnect the relay

connector for the fan

motor.

Step Procedure Points

(R10770)

[S7]

(R10771)

Sealing material (R11167)

Sealing material

40±5

(R11166)

(R10772)

Si11-990 Removal of Electrical Component ASSY

Removal Procedure 5

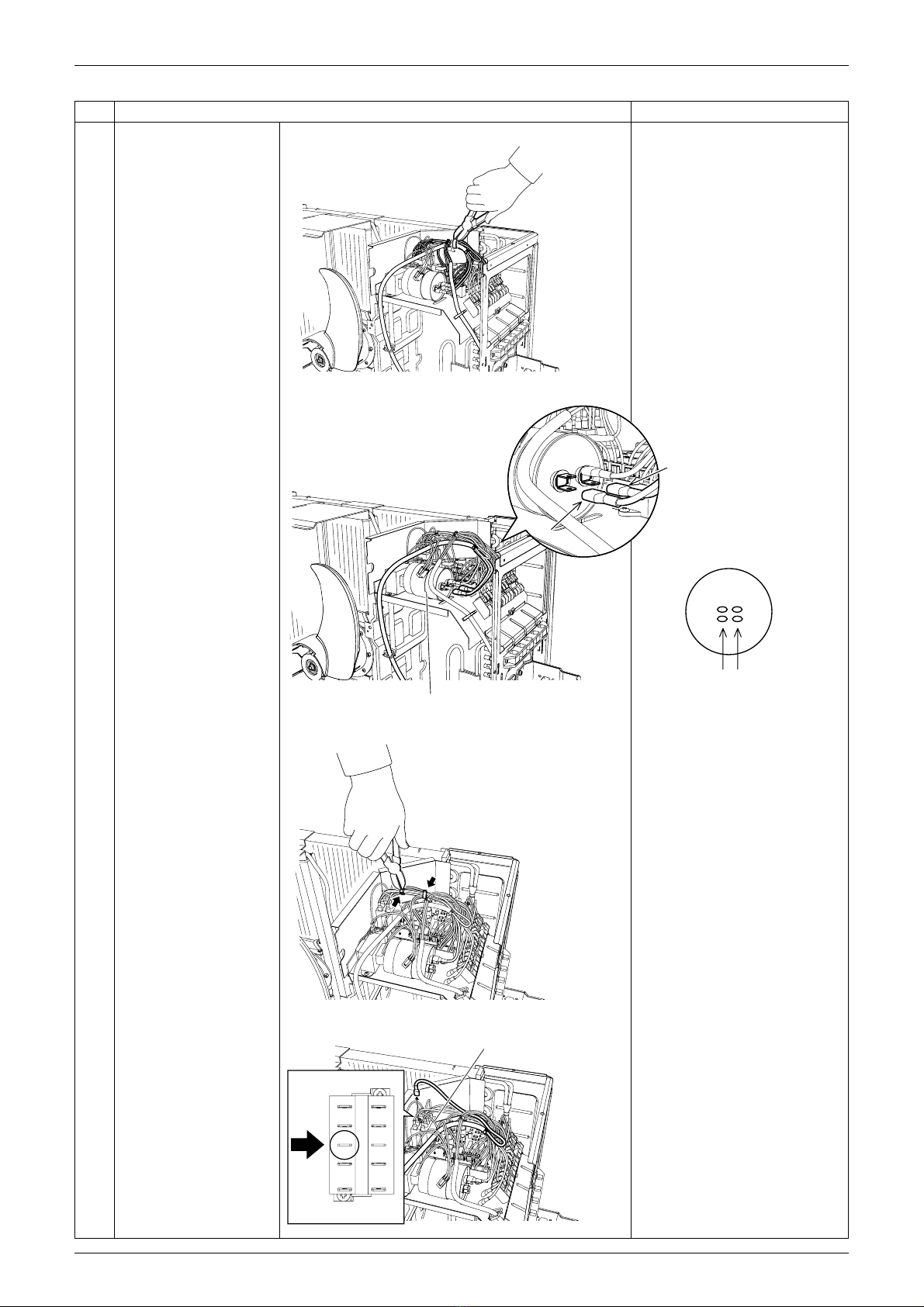

7Cut the clamp.

8Disconnect the 2 lower

harness of the

compressor motor

capacitor.

9Cut the 2 clamps.

10 Disconnect the harness

[6] from the magnetic

contactor.

Step Procedure Points

(R10773)

Compressor motor capacitor (R10774)

(R10775)

(R10776)

Two lower harness

Magnetic contactor

(R10777)

Removal of Electrical Component ASSY Si11-990

6Removal Procedure

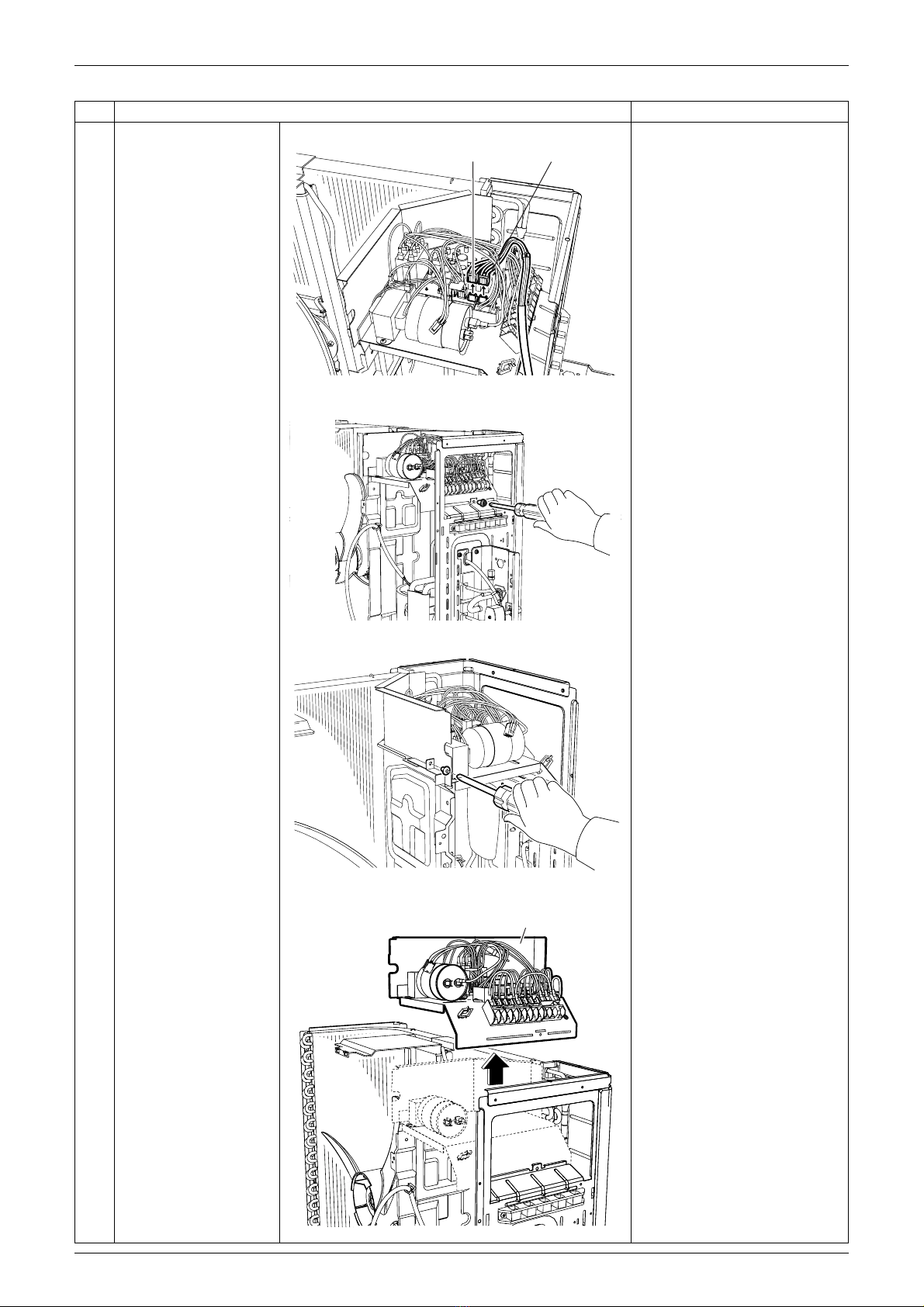

11 Disconnect the

connectors [SA] and

[SB].

[SA]: white

[SB]: red

12 Remove the fixing

screw of the electrical

component ASSY (on

the right side).

13 Remove the fixing

screw of the electrical

component ASSY (in

the front side).

14 Lift up and remove the

electrical component

ASSY.

Step Procedure Points

[SB] [SA]

(R10778)

(R10779)

(R10780)

Electrical component ASSY

(R10781)

Si11-990 Removal of Electrical Component ASSY

Removal Procedure 7

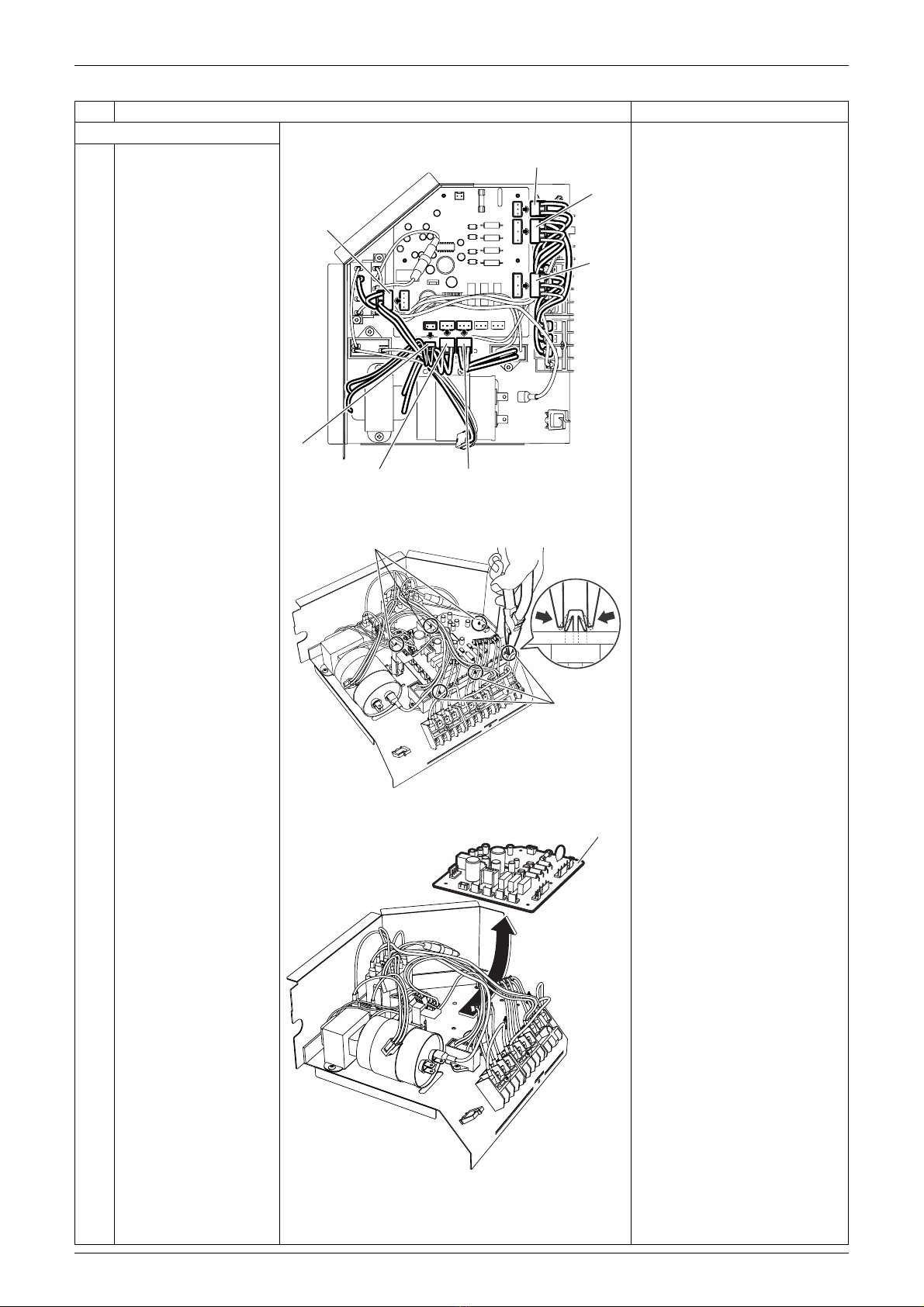

3. Removal of the PCB [S1]: power supply

[S2], [S3]: high frequency

transformer

[S4], [S5]: indoor unit (room A,

room B)

[S6]: fan motor

[S8]: rectifier unit

1Disconnect the

connectors [S6], [S3],

[S2], [S8], [S5], [S4],

[S1].

2Release the 6 PCB

spacer.

3Lift up and remove the

PCB from the electrical

component ASSY.

Step Procedure Points

[S6]

[S1]

[S4]

[S5]

[S8]

[S2]

[S3]

(R10782)

PCB spacer

(R10783)

Electrical component ASSY

(R10784)

Removal of Electrical Component ASSY Si11-990

8Removal Procedure

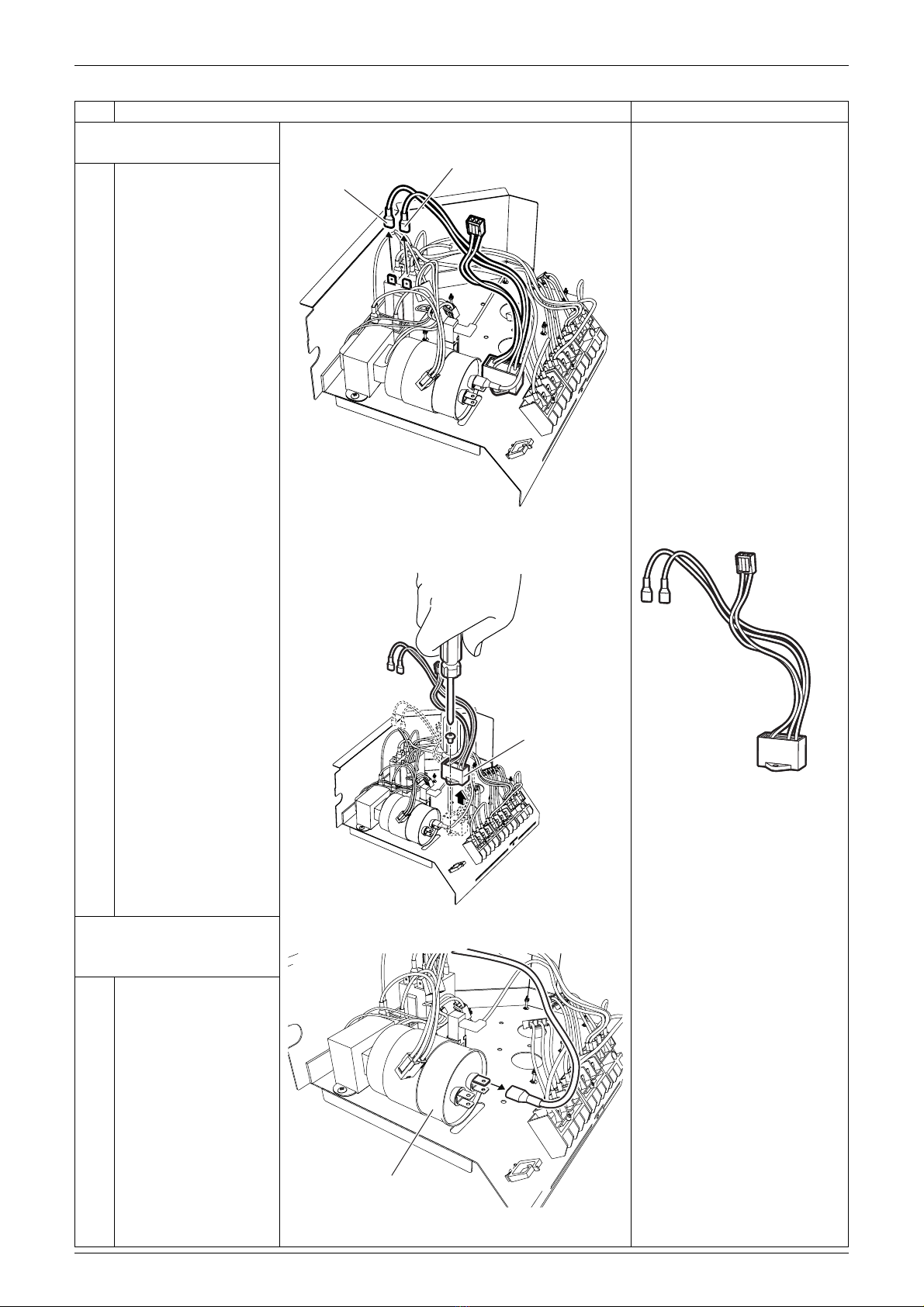

4. Removal of the rectifier

unit

1Disconnect the harness

[A1], [A2] from the

magnetic contactor.

2Remove the screw.

Remove the rectifier

unit.

5. Removal of the

compressor motor

capacitor

1Disconnect the harness

from the compressor

motor capacitor.

Step Procedure Points

[A2]

[A1]

(R10785)

Rectifier unit

(R10786)

(R10818)

Compressor motor capacitor

(R10787)
