Daktronics Galaxy GS6 Manuale utente

Galaxy GS6 Display Internal Connection

Conversion Quick Guide

1 May 2017

DD3497847

Rev 02

201 Daktronics Drive Brookings, SD 57006

www.daktronics.com/support

800.325.8766

Page 1 of 2

Use this procedure to convert the external J-box

and quick-connect plates on

a Galaxy®GS6 display to

internal locations. Complete

these steps when mounting

GS6 displays ush on a

building or structure or when

two displays are mounted

back-to-back in a closer

conguration than the

standard back-to-back

mounting kit allows.

Required Tools

• Hex Head Wrench

• Channel Lock or 7/16″

socket

• Phillips Head Screw Driver

Moving the Quick

Connect Plates

1. Remove two bottom-left modules to access

the Primary display input quick-connect plate.

2. Remove two bottom-right modules to access

the mirror input/output quick-connect plate.

3. Remove the three screws that hold the quick-

connect plate to display backsheet. Save the

screws for reuse.

4. Remove the black grommet from the quick-

connect plate.

.438" Required

For Hardware x 2

Standard Back-To-Back

Configuration

Converted Back-To-Back

Configuration

Converted Flush Mount

Configuration

Cabinet

Face-to-Face

Dimension = 14"

Cabinet

Face-to-Face

Dimension >= 11"

Figure 1: Primary Input

Quick-Connect Plate

Figure 2: Mirror Input/

Output Quick-Connect

Plate

5. Rotate the quick-connect plate on the

backsheet so the quick connects are located

inside the cabinet.

6. Secure the plate

with the screws

removed in Step 3.

7. Thread the cables

through grommet

and into cabinet.

8. Snap the grommet in

place on outside of

display’s backsheet.

Figure 3: Input Quick-

Connect Plate Inside

Cabinet

Figure 4: Mirror Input/

Output Quick-Connect

Plate Inside Cabinet

Galaxy GS6 Display Internal Connection

Conversion Quick Guide

1 May 2017

DD3497847

Rev 02

201 Daktronics Drive Brookings, SD 57006

www.daktronics.com/support

800.325.8766

Page 2 of 2

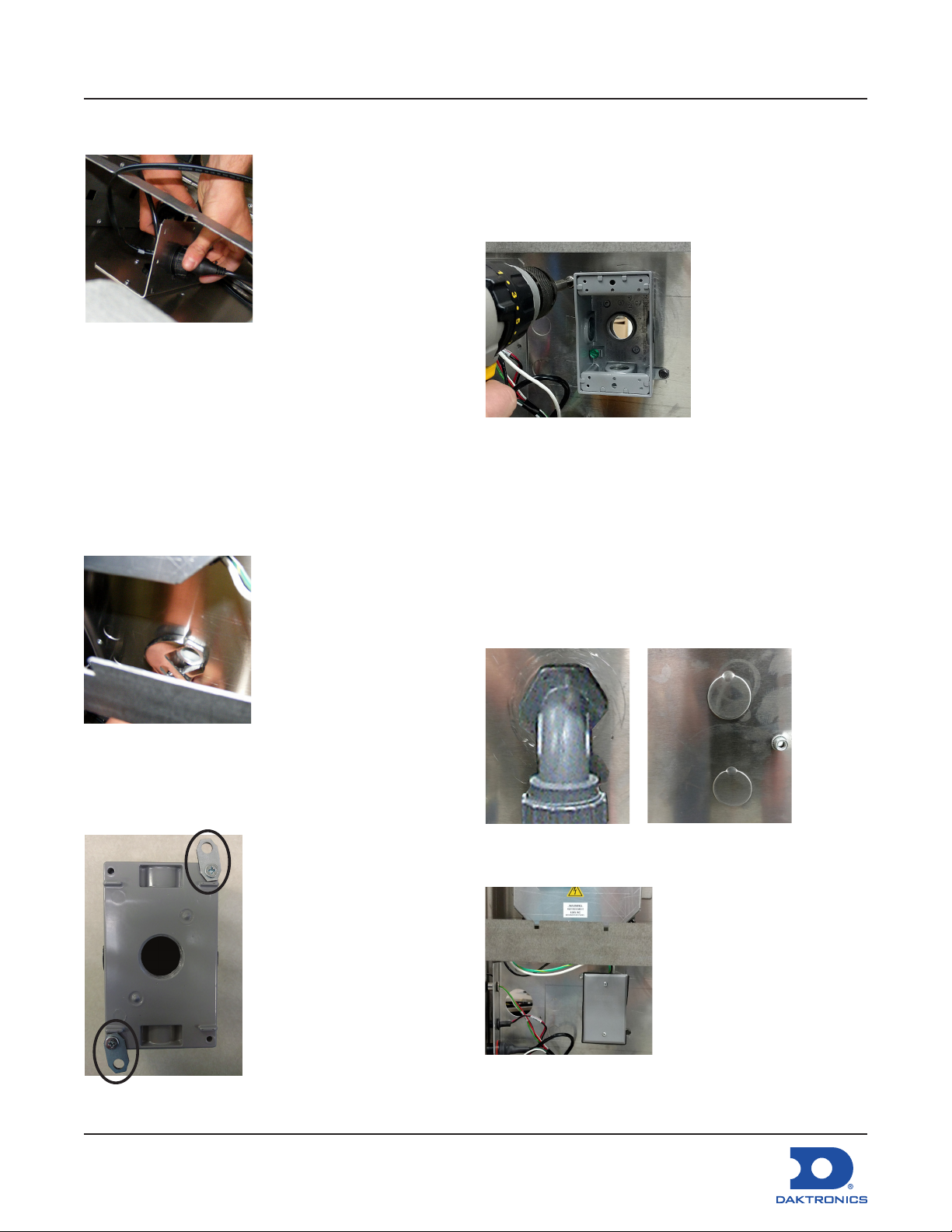

9. Connect the cables to the jacks on the quick-

connect plate.

Reinstall Modules

Move the J-Box to Display’s Interior

1. Remove two bottom-left modules to access

the J-box location.

2. Pull wires from J-box into display cabinet.

3. Use a channel lock or socket wrench to loosen

the nut holding the J-box in place.

4. Attach the metal tabs found inside the J-box

to the corners of the J-box. Find the screws

needed to attach the tabs also inside the

J-box.

5. Place the J-box inside the display making sure

to align it with the existing J-box hole on the

display’s backsheet.

6. Use 1/4″ Tek screws (screws not provided) to

secure the J-box inside the display on the

backsheet.

7. Route electrical wires from the term panel to

the J-box.

8. Attach 3/4″ conduit to the back of the J-box.

9. Or seal the hole using on of the plugs found on

the J-box so no water can enter the J-box and

attach 1/2″ conduit to one of the knockouts on

the back of the display. Inside the cabinet,

route wires from the knockout into the J-box for

termination.

10. Attach J-box cover.

Reinstall Modules
