Dancing Wings Hobby X11 Manuale utente

Fokker-DRI INSTRUCTION MANUAL

工具 Tools Needed

Wingspan:400mm

Length:330mm

(X11)

Pls take down the parts from the board by knife,and assemble them

as per the procedures as below,we suggest you to shape with 502

glue,and firm with white latex.

用刀从板上取下每个部件，然后进行组装，建议用502胶水定型，用白

乳胶加固。

材质 Material:

1. 椴木 Basswood

2. 轻木 Balsawood

3. 桐木 Paulownia

4. 玻纤 Fiberglass and others

F-3F-2 F-5 F-4

F-7

F-8

F-10

F-9

F-6

F-13

F-1

注意：F-1安装时，雕花的一面朝外。

F-14

F-2-1

F-5-1

F-15

F-12

F-11

F-17

F-19

F-20

F-23

F-24

F-18

F-17-1

F-16

W-8x2

W-9

W-24x2

W-23

W-25

W-12

W-10

W-11

W-14

W-13

W-14-1

注意：W-14-1粘贴后打磨平滑

Note: Polish the W-14-1 after pasting.

W-17

W-16

W-15x2

W-26

碳杆

Carbon rod

59mm

碳杆

Carbon rod

74mm

W-1

W-6

W-7

W-26

W-5x2

W-4

W-3

W-1

W-2

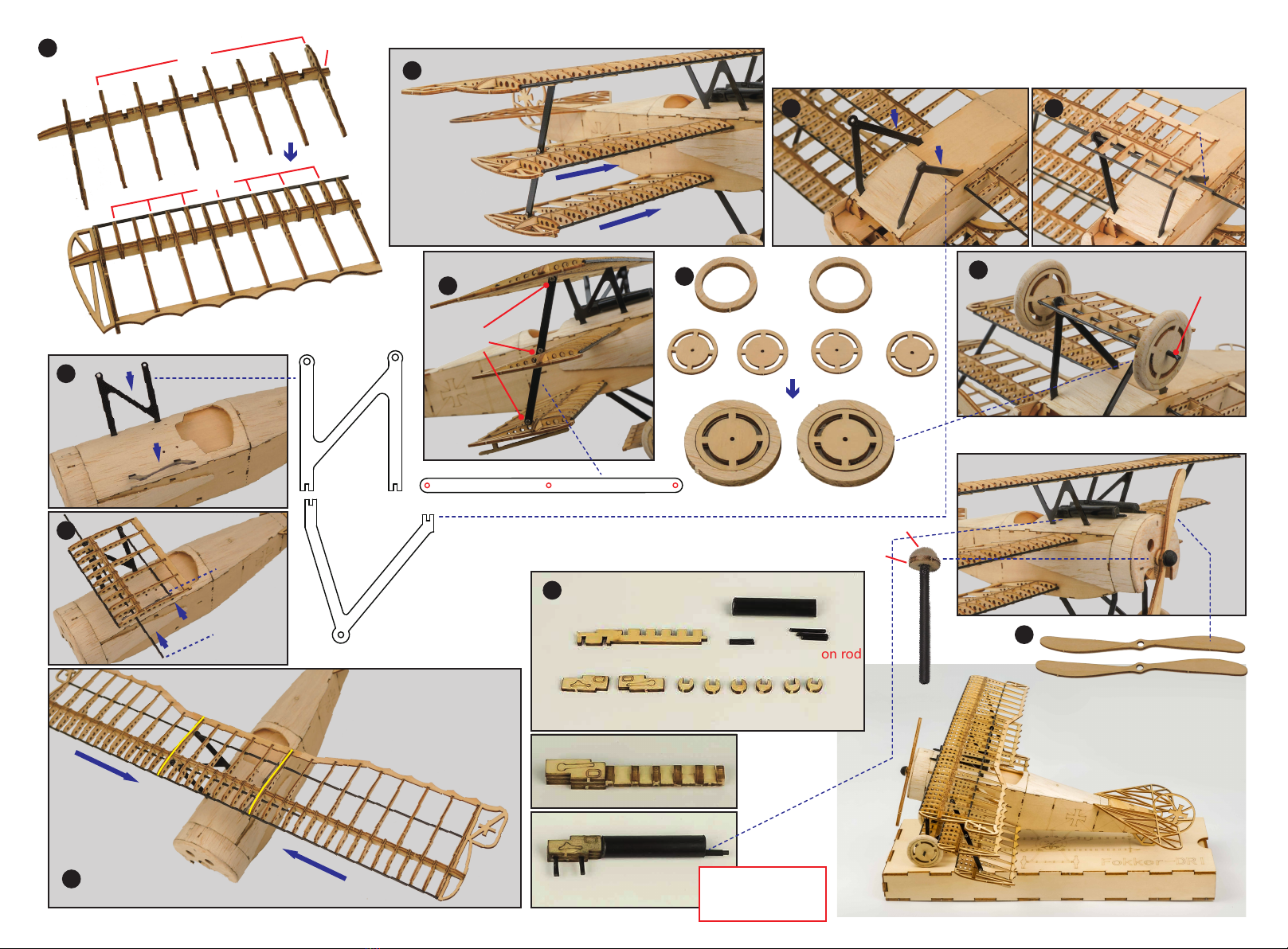

2.机翼组装 Assemble the wing

上机翼 upper wing

中机翼

middle wing

上机翼中 upper wing (middle)

起落架机翼

wing for the landing gear

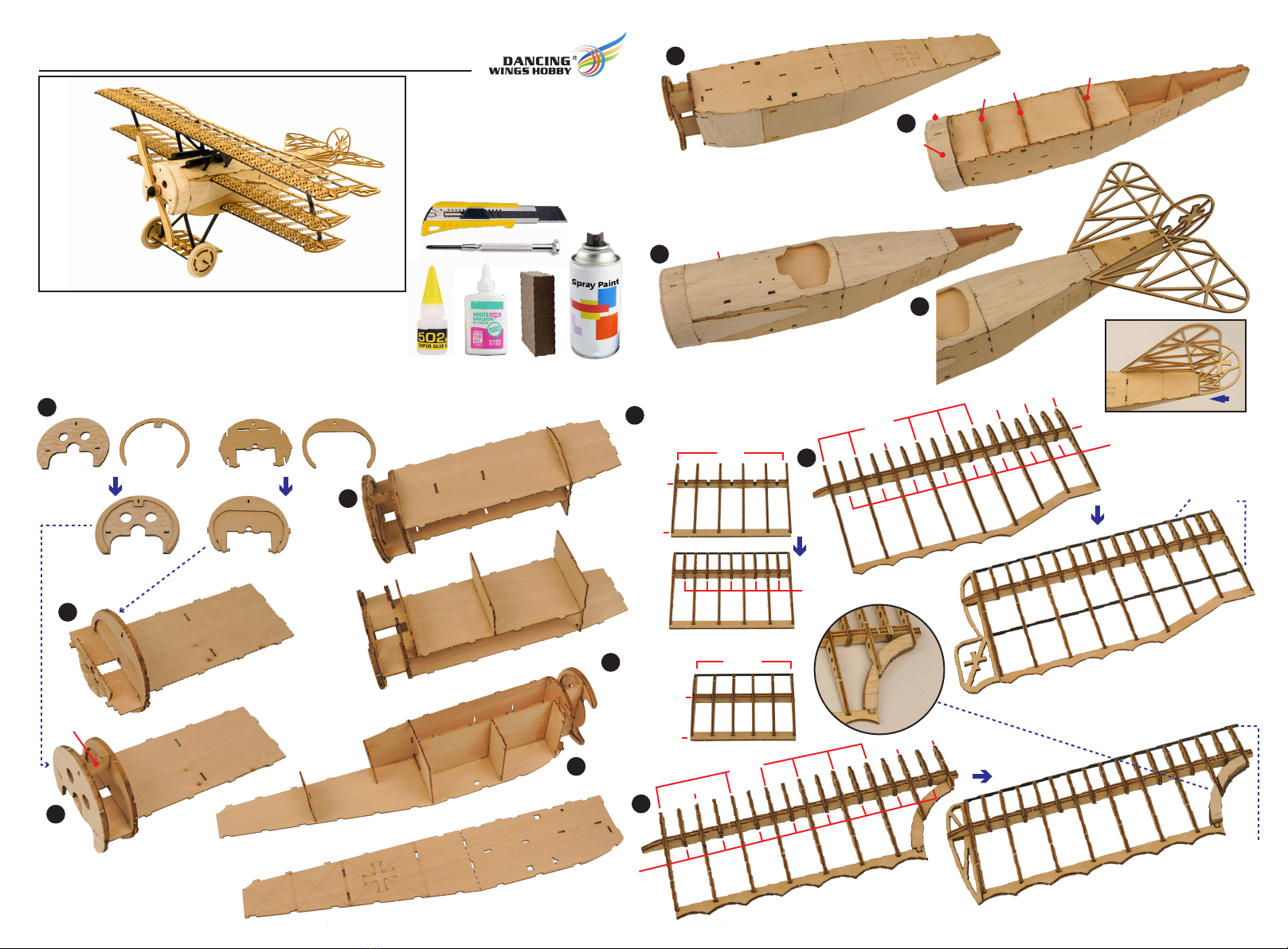

1.机身组装 Assemble the fuselage

注意：F17 F19 F20弯曲粘贴轻木蒙板时，用少量

水稍加湿润后再进行弯曲粘贴，防止轻木板折断。

Note: Put the carved board

outward when assemble the F-1.

Note: Moisturize the balsawood cover board

F17,F19 and F20,then bend,cover and paste,in

case of breaking.

碳杆

Carbon rod

123mm

碳杆

Carbon rod

130mm

W-21

W-22

W20x2

W18

W26

W19

碳杆

自攻螺丝

self-tapping screws

F-26

F-25

F-27

F-27-1 F-27-2

碳管 Carbon tube

碳棒 Carbon rod

Assemble the Machine Gun and propeller

5.像真机枪及螺旋桨组装

Assemble the landing gear and wheel

4.起落架及机轮组装

3.各部件组装 Assemble the components

热缩套管 Heat-shrinkable Tube

热缩套管

Heat-shrinkable Tube

下机翼

lower wing

F-21-2

F-21

F-21-1

Carbon rod

53mm

碳杆

F-22

组装完成后喷黑漆

Paint black once

finish the assembly

碳杆

Carbon rod

114mm

碳杆

Carbon rod

136mm

碳杆

Carbon rod

74mm

粘贴

paste

粘贴

paste

碳杆

Carbon rod

87mm
