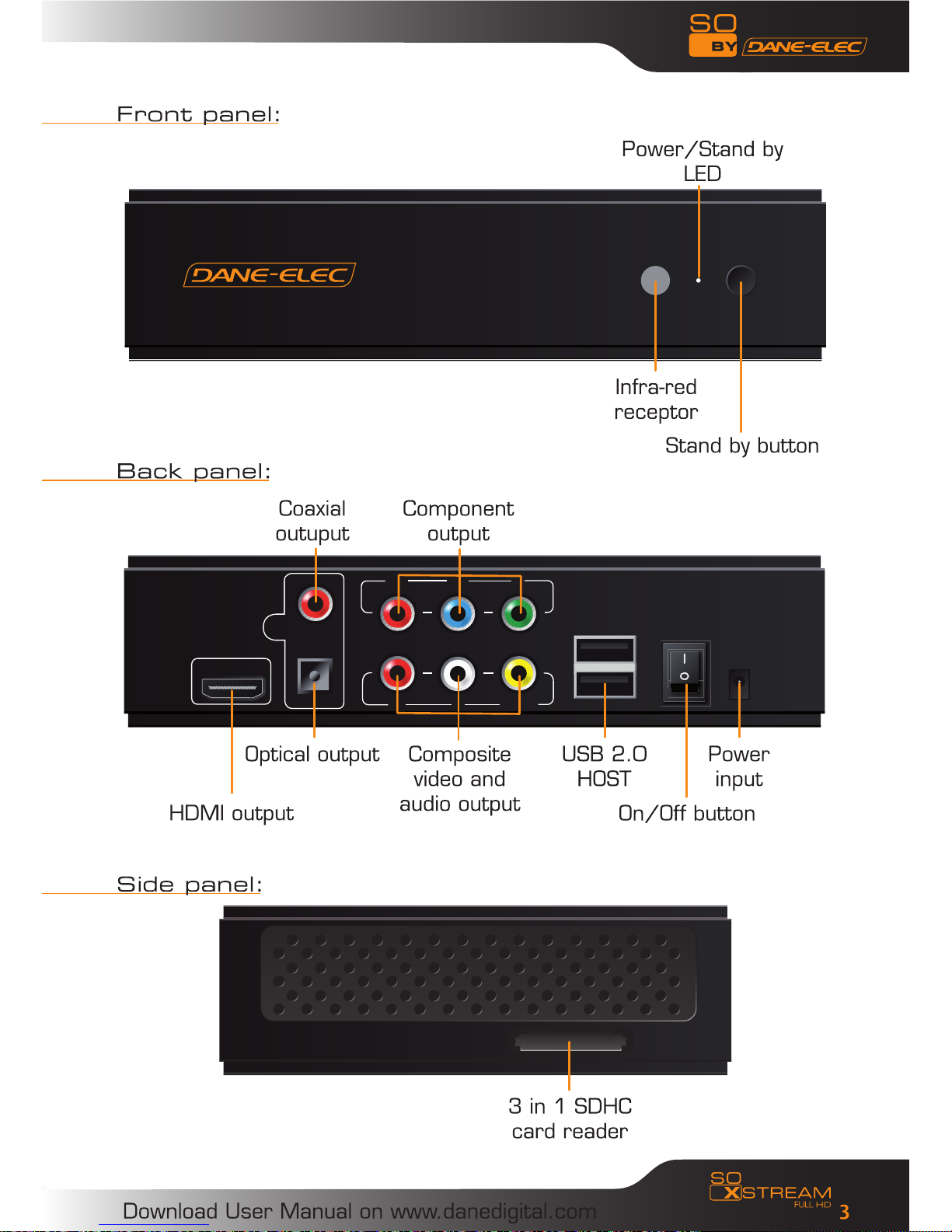

3
(for UK only)
HDMI
OPTICAL
COAXIAL
Pr Pb Y
USB HOST 1
USB HOST 2
RLCVBS
SW
DC Input
5.6V=2A
Remote control’s functions:
Button Function
Power Turns the device On / Off
Mute Plays / Mutes the sound

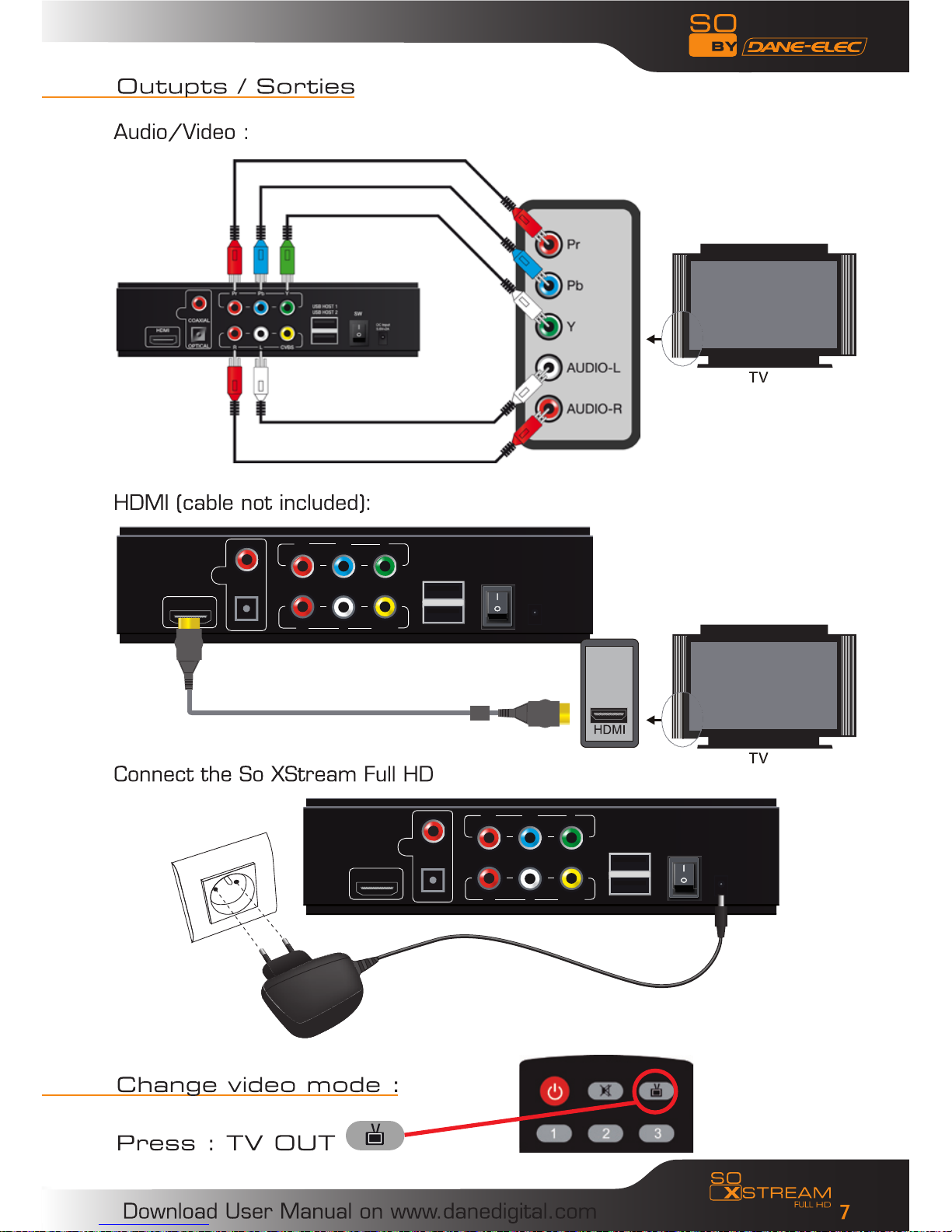

Tv Out
Selects TV Video output
480i, 480p, 720p, 1080i by NTSC TV Type
576i, 576p, 720p,1080i by PAL TV Type
Keypad
Choose a media file
Zoom Zoom in/out selected photo
Audio Change R / L audio Channels
Title Show Playlist for ISO files or video_TS files
Subtitle Subtitle On or Off
Display
a. When playing music and movie files, press
“Display” to show “Previous chapter”, “Next
chapter”. Press once more for “Off”
b. Press “Display” to show copy, paste,
delete, rename, new folder, properties, cancel
functions.
Menu Go to Menu
Navigation
button
Select item up, down, left or right
Press “OK”to confirm
Increase or decrease the volume
Page up / down
Play/pause Begin playback / confirm selection / pause
playback
REV Rewind
FWD Fast forward
STOP/
RETURN
Stop playing, Return to previous step
Rotate Rotate selected photo
COPY One-key copy the files to the target destination
between external memories devices.
Slideshow
1. Press the button to directly play the pictures
and music in the hard disk’s music and picture
root directory menu.
2. a) Press the “slideshow” and “OK” or “Play/
Pause” button to play pictures and background
music in the root directory file menu
b) Press the “slideshow” button to select the
background music, then press “OK” to play the
pictures from the File menu.
Set up Enter the OSD Setup menu
Movie
Press the button to enter the Movie menu.
All movie files are shown in the directory
structure
Music
Press the button to enter the Music menu.
All music files are shown in the directory
structure
Press the button to enter the Picture menu.
All picture files are shown in the directory
structure
File Press the button to enter File menu. All the
Files are shown in the directory structure
GO TO Time search
16:9/4:3
Choose the video mode : Screen mode, Subtitle
mode, movie mode, wide screen mode, keep
ratio mode.

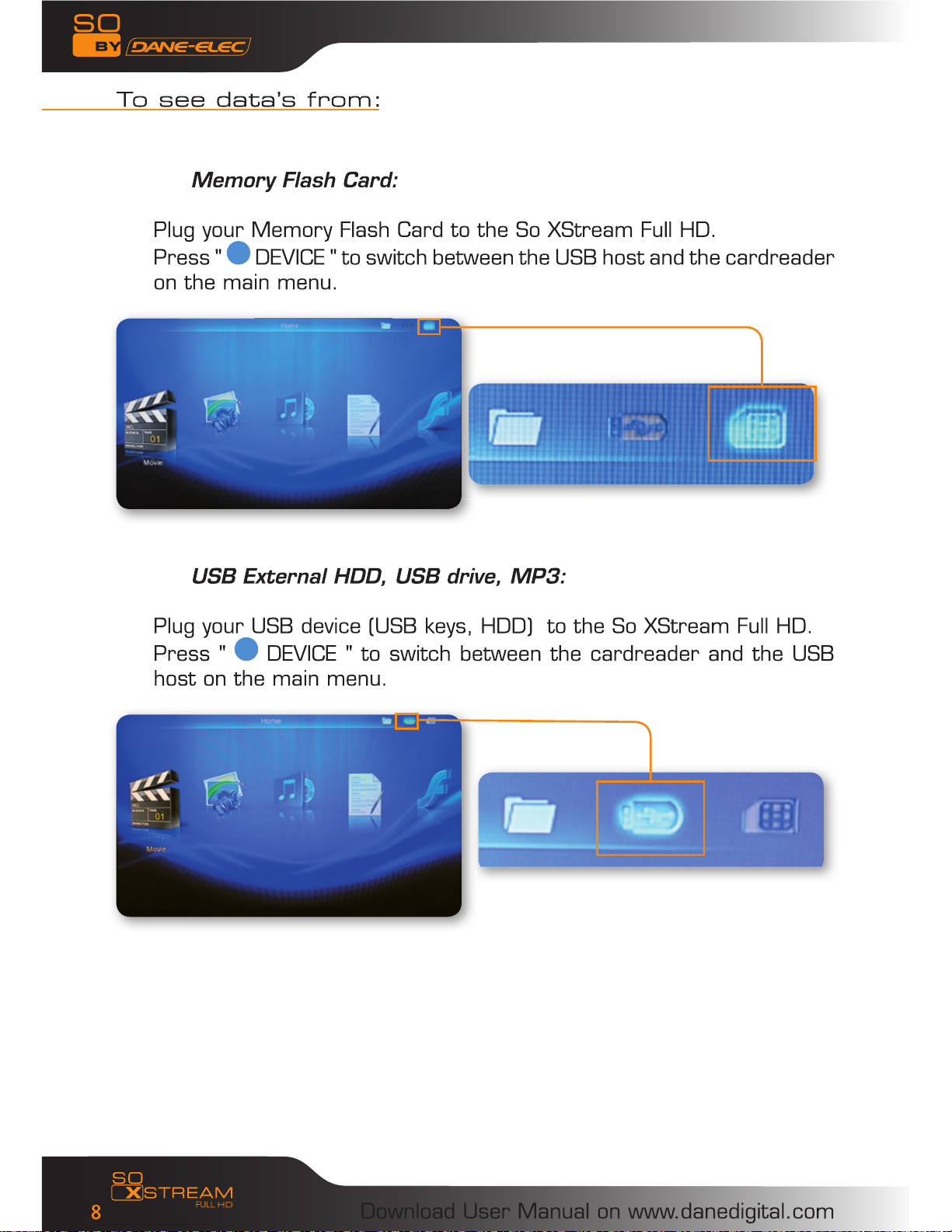

DEVICE Press to switch between the USB host and the
card reader.
HDMI
OPTICAL
COAXIAL
Pr Pb Y
USB HOST 1
USB HOST 2
RLCVBS
SW
DC Input
5.6V=2A
AUDIO-L
CVBS
AUDIO-R
HDMI
OPTICAL
COAXIAL
Pr Pb Y
USB HOST 1
USB HOST 2
RLCVBS
SW
DC Input
5.6V=2A
HDMI
OPTICAL
COAXIAL
Pr Pb Y
USB HOST 1
USB HOST 2
RLCVBS
SW
DC Input
5.6V=2A

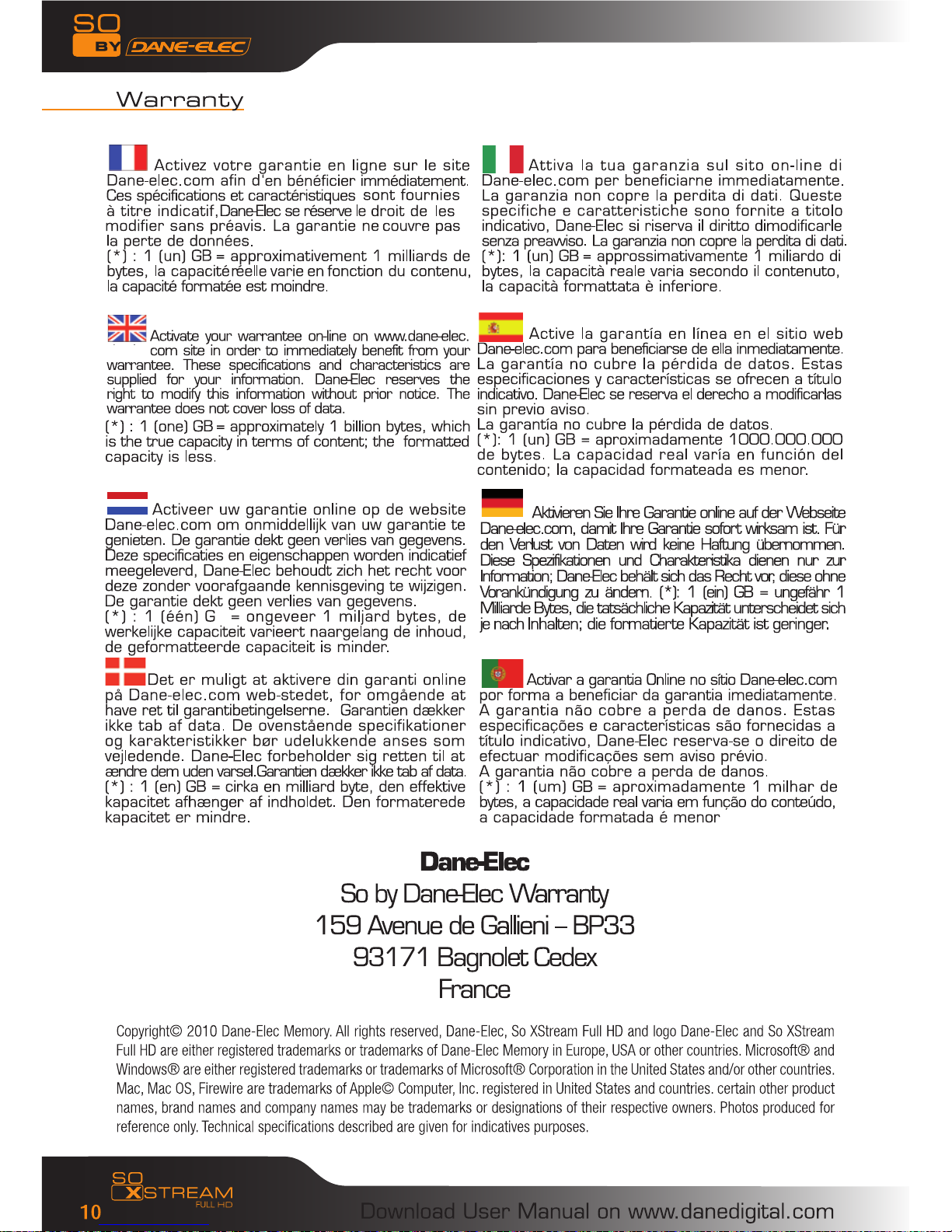

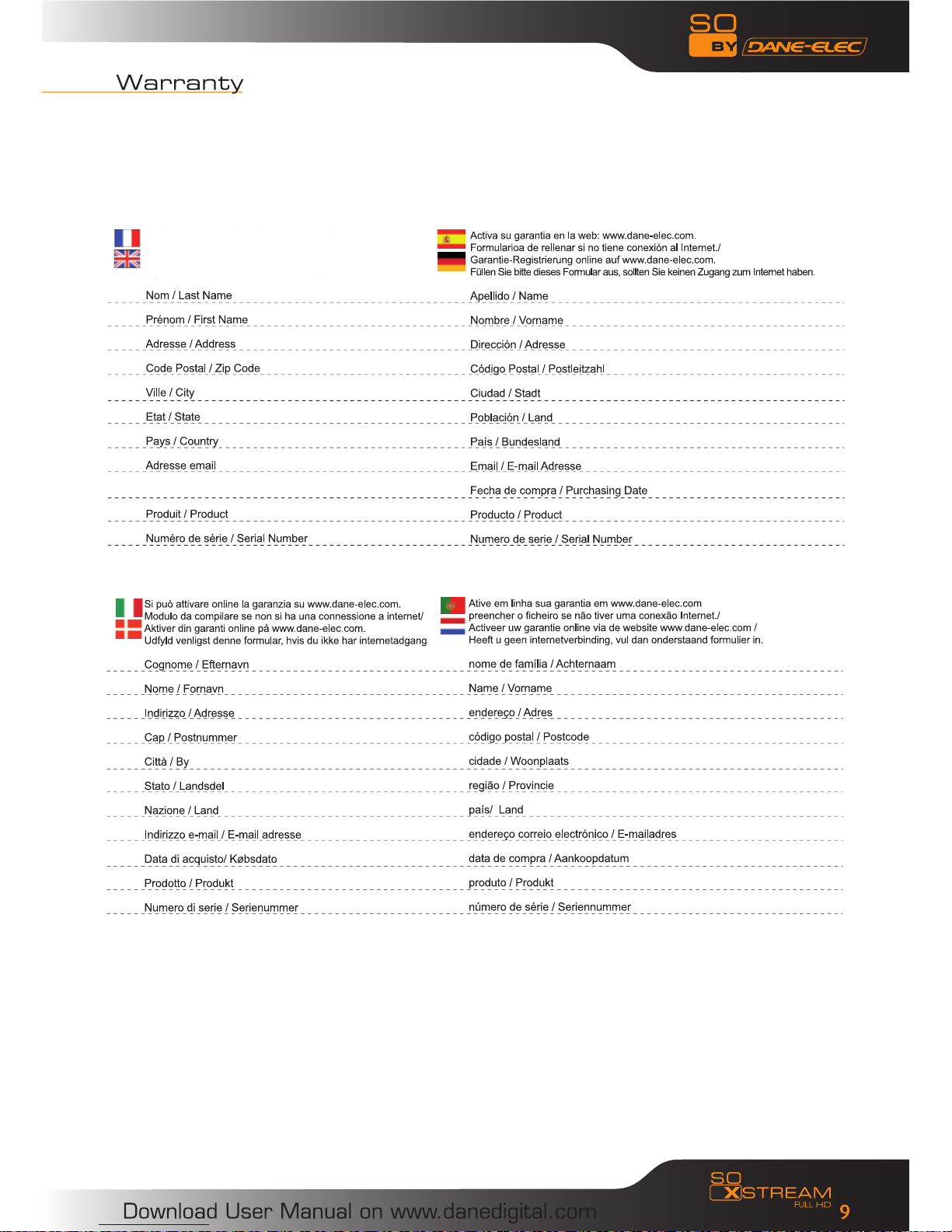

Activez votre garantie en ligne sur www.dane-elec.com
Formulaire à remplir si vous ne possédez pas de connexion internet.
Activate your warrante on-line at www.dane-elec.com
If you don’t have any internet connexion, please ll this form in.
Date d’achat / Date of purchase
