Danfoss CLX Series Manuale utente
Danfoss CLX Series
Quick Guide
CLX GM
MAKING MODERN LIVING POSSIBLE
SOLAR INVERTERS
Contents
1. Important Instructions 2
About this Quick Guide 2
Symbols 2
Safety Instructions 2
2. Product Overview 4
Product Description 4
System Requirements 4
Intended Use 4
3. Technical Description 6
Technical Description 6
Display 7
4. Installation 8
Installation 8
Mounting 8
Signalling of Grid Management 9
5. Configuration 10
Configuration 10
Configuring the Network 10
Configuration of CLX GM and Inverters with a DHCP Server (Router) – Dynamic
IP 10
Configuration of CLX GM and Inverters without a DHCP Server (Router) – Static
IP 10
Configuring Grid Management (Active and Reactive Power) 11
Configuring Reactive Power Control – Percent of Q (TLX Pro+ only) 13
Configuring Reactive Power Control – Power Factor (TLX Pro+ only) 14
Configuring Fallback Values 15
6. Technical Data 17
Contents
L00410637-01_02 1
1. Important Instructions
1.1. About this Quick Guide
This manual contains detailed product information and instructions for using the Danfoss CLX
GM equipment.
This document relates to the current version at the time of printing. Danfoss reserves the right
to make changes due to the introduction of new functions and improvements. The names of
products and companies mentioned in this document may be registered trademarks of their re-
spective owners.
This Quick Guide contains information about:
• Safety
• Product overview, system requirements
• Technical descriptions
• Installation, grid management, and inverter connection
• Getting started
• Technical data
1.2. Symbols
This manual contains important information accompanied by the following symbols:
The Attention symbol draws attention to a risk of damage to components or
danger to persons if the information provided is not observed. This type of infor-
mation must be observed at all times.
Note:
The Note symbol marks supplementary information for improving operating processes as
well as user tips.
1.3. Safety Instructions
The reader must be familiar with the rules and regulations for electrical equipment and connec-
tion to the mains power network. Pay particular attention to general safety regulations for
working with electrical systems.
Observe the safety instructions below to prevent injury to persons and damage to connected
equipment.
Contact with electrically conductive parts after disconnection from the mains supply can be dan-
gerous. Do not connect the equipment to the mains supply before installation.
1. Important Instructions
2 L00410637-01_02
1
Equipment must be installed only in protected/dry environments.
Do not use metallic/pointed/sharp instruments to access the enclosure.
Prevent cables and terminals from being exposed.
The power plug must be accessible at all times.
Qualified personnel only must perform service.
Equipment must only be operated at the rated supply voltages (12–24 VDC, cor-
rect polarity). A suitable power supply unit is included in the scope of delivery.
Note:
Observe the manufacturer's instructions regarding the handling of power supply units (espe-
cially switching units).
Observe the manufacturer's instructions regarding the handling of inverters.
1. Important Instructions
L00410637-01_02 3
1
2. Product Overview
2.1. Product Description
Grid management of PV plants with TLX Pro or TLX Pro+ inverters is handled by the CLX GM
and the master functionality of the TLX Pro and TLX Pro+ inverters.
The CLX GM is connected directly to the output of a radio ripple control receiver. The receiver
has 4 digital outputs K1-K4, which are used by the grid operators for signalling either power
reduction or reactive power setpoint commands.
The CLX GM reads the current relay state and via its Ethernet connection to the inverter net-
work it broadcasts a message to the master inverter. Therefore all configuration of how to react
upon a certain relay state is performed directly in the master inverter itself. The CLX GM is con-
nected to the receiver and the inverter network and requires no additional configuration.
Illustration 2.1: Grid Management for Solar Power Plant
Legend
1 Radio ripple control receiver
2 CLX GM
3 Master inverter
4 Follower inverters
The equipment is supplied with the following items:
1 CLX GM
2 Mounting bracket with screws
3 Accessories (power supply, network cable standard RJ-45 TP10/100 cat 5e)
4 Packaging
5 Instructions
Table 2.1: Product Overview
2.2. System Requirements
2.2.1. Intended Use
The CLX GM is intended solely for use with TLX Pro and TLX Pro+ inverters.
Drilling holes in the equipment or mechanical modifications will damage the equip-
ment and invalidate the warranty.
2. Product Overview
4 L00410637-01_02
2
2.2.2. System Requirements
The CLX GM has a built-in web interface, for display of simple status information and configura-
tion.
The following web browsers are recommended:
Internet Explorer® Version 6 or later
Firefox® Version 2 or later
Note:
The grid management behaviour is configured directly via the web interface of the TLX Pro
or TLX Pro+ master inverter. For configuration, a PC and a crossed network cable are there-
fore needed and must be available at commissioning.
2. Product Overview
L00410637-01_02 5
2
3. Technical Description
3.1. Technical Description
1 2 3 4 5 6
150AA012.10
Illustration 3.1: CLX GM Connectors (Bottom)
Legend
1 Power supply with circular connector (12–30 VDC, 1 W)
2 Ethernet port for LAN
3 Not used
4 Input terminals, 12 lines:
2 x voltage (+)
6 x relay input (S01, S02, S03, S04, S05*), S06*))
4 x analog input 20 mA (A1+, A1-, A2+, A2-)*)
5 & 6 Not used
*) Not used.
7
150AA013.10
Illustration 3.2: CLX GM Connectors (Top)
Legend
7 Micro SD slot: not used
3. Technical Description
6 L00410637-01_02
3
3.2. Display
1 2 3 4
150AA014.10
ESC
Illustration 3.3: Front View
Legend
1 Cancel/Back
2 Down
3 Up
4 Confirm
3. Technical Description
L00410637-01_02 7
3
4. Installation
4.1. Installation
The CLX GM is connected to the master inverter of the inverter network via LAN interface, con-
sisting of an Ethernet network between the inverters and the CLX GM. Use a standard patch
cable (network cable cat5e or better with RJ-45 connectors).
Note:
On all units, remember to use the Ethernet (LAN) RJ-45 connectors and not the RS-485 in-
terface.
The CLX GM and the inverters can work in networks with or without a DHCP server (router),
supporting both static and dynamic IP addressing.
Configuration of the CLX GM depending on whether there is a DHCP server (router) in the net-
work or not.
Refer to Chapter 5,
Configuration
, for further information on how to proceed.
4.2. Mounting
The CLX GM must be installed indoors or in an electrical enclosure. It can be mounted either
horizontally or vertically (connectors facing downwards) on a mounting rail system or on a wall
using the supplied wall bracket.
Illustration 4.1: Wall Bracket
Fit the CLX GM to the bracket by clipping the screws on the back of the unit into the bracket.
When mounting the equipment, ensure free access for cable connections from below. Use cable
anchors for strain relief.
4. Installation
8 L00410637-01_02
4
Like all electronic equipment, all products in the CLX GM must be protected from
humidity, in particular condensation.

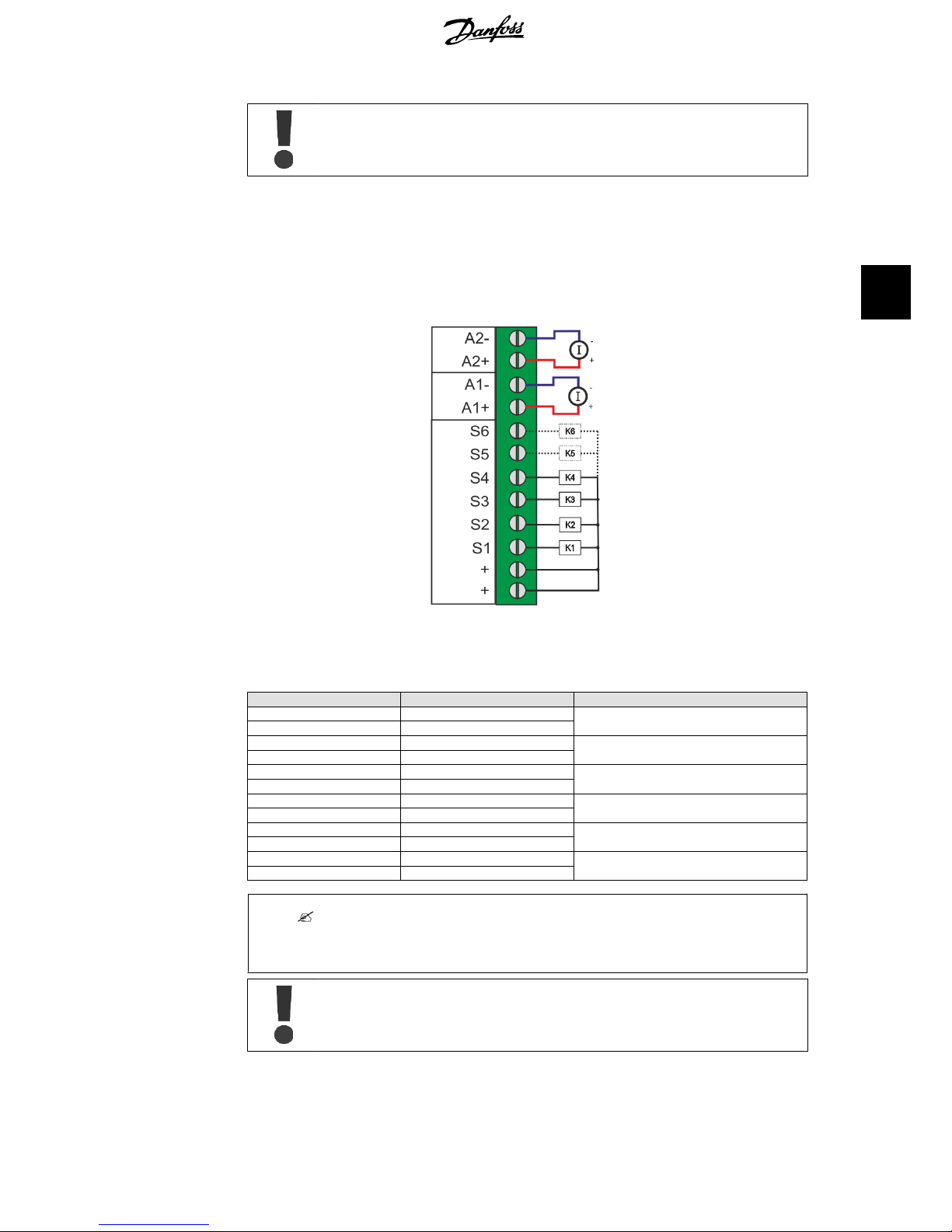

4.3. Signalling of Grid Management
Signalling of grid management is handled by the ripple control receiver of the DNO. The con-
nection between the ripple control receiver and the CLX GM is type-dependent. It is described
here using a Landis+Gyr® receiver as an example.
Illustration 4.2: Grid Management - Connections
The ripple control receiver is connected as follows:
Input Terminal Strip Function Ripple Control Receiver Connector (K)
+S 12-30 VDC K1
-S1 Relay input 1
+S 12-30 VDC K2
-S2 Relay input 2
+S 12-30 VDC K3
-S3 Relay input 3
+S 12-30 VDC K4
-S4 Relay input 4
A2- N/A (0)4 .. 20 mA
A2+ N/A
A1- N/A (0)4 .. 20 mA
A1+ N/A
Note:
Detailed configuration of grid management is done via the grid management menu of the
master inverter.
To avoid damage to the CLX GM unit and the ripple control receiver, only an au-
thorised and suitably trained electrician must set up the connection.
4. Installation
L00410637-01_02 9
4
