Danfoss CP715 Si Istruzioni di montaggio

CP715 Si Electronic, 2-channel

common timebase

programmer for heating

& hot water

Installation & User Instructions

(Including 24V models)

Installation Instructions

Product speciﬁcation and Installation 3

Installation and Wiring 4

DIL switch settings 5

Advanced Programming Options 5

Copy Functions 6-7

Service Interval Timer 7

Wiring Conversion 8-15

User Instructions

Your programmer 17

Preset programmes 17

Resetting the unit 18

24hr or AM/PM display 18

Setting the Date, Time and Day 18-19

Accepting the preset programmes 19

Changing the preset programmes 20

Programming heating and hot water - 5/2 day 21-22

Programming heating and hot water - 7 day 23-24

Programming heating and hot water - 24 hour 25

Running the programme 26

Temporary overrides 27

Holiday Programme 28

Changing clocks forward/back 29

Service Interval Timer 30

Fully Resetting the Unit 31

Troubleshooting 32

Contact details 36

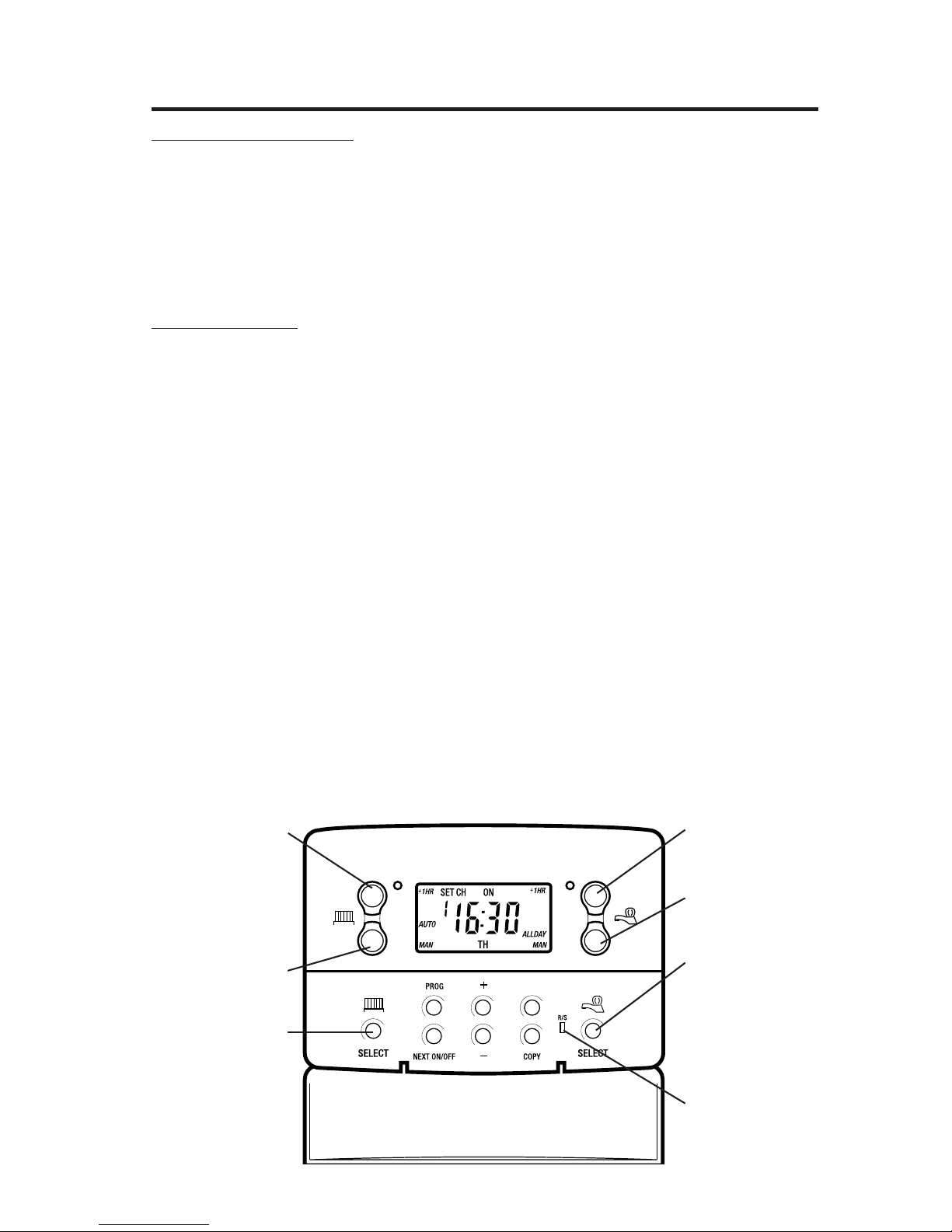

DAY/HOL

Central Heating

1HR override

Central Heating

MAN override

RESET

Central Heating

Mode SELECT

+1HR

MAN

+1HR

MAN

Hot Water

1HR override

Hot Water

MAN override

Hot Water

Mode SELECT

Index

Installation & Speciﬁcation

Please Note: This product should only be installed by a

qualiﬁed electrician or competent heating installer, and

should be in accordance with the current edition of the

IEEE wiring regulations.

Product speciﬁcation

Installation Instructions

Installation

Remove wallplate from unit by unscrewing the two screws

on the bottom edge of the unit.

From the top left hand corner of the wallplate, there must

be clearances of at least 140 mm to the right, 15mm to the

left, 30mm above and 100mm below in order to mount the

plug-on module.

Speciﬁcation 230V model 24V model

Power supply 230 Vac,

±15%,

50/60 Hz

24 Vac,

±15%,

50/60 Hz

Switching action

2 x SPDT internally linked,

Type 1B

Unit switch rating 230 Vac,

3(1)A

24Vac,

3(1)A

Battery back-up 24 hours minimum

Programme resolution ± 1 minute

Dimensions, mm (W, H, D) 135 x 88 x 32

Design standard EN 60730-2-7

Control Pollution Situation Degree 2

Rated Impulse Voltage 2.5 kV

Ball Pressure Test 75°C

CP715 FP715 (3028 12/01)

230V

Fused 3A

The wallplate must be securely mounted either directly to

the wall using suitable wood screws or to a ﬂush mounted

1-gang electrical accessory box using M3.5 screws.

Cable access can either be from behind for concealed

cabling, or from below for surface cabling. If surface cable

is used, cut out cable access slot on plug-on module prior

to mounting the module.

For wiring connections refer to diagram below.

CP715 Si models are double insulated and do not require

an earth connection, however a parking terminal is

provided on the wallplate. This is clearly marked with an

Earth symbol.

Prior to mounting the plug-on module, DIL switches on the

rear of the plug-on module must be set. See diagram on

page 5 for available options.

Mount plug-on module to wallplate by locating tabs on top

of wallplate in apertures on rear of module, hinge down

and press ﬁrmly to wallplate before tightening securing

screws on bottom of wallplate.

Installation and Wiring

Wiring (For Wiring Conversion tables see - pages 8-15)

Always switch oﬀ mains ﬁrst and never ﬁt programmer

to a live wallplate.

Please Note:

On 24 volt models

power supply must

be wired to A & B

on wallplate.

DIL switch settings and Advanced Programming Options

Tick the INSTALLER SETTING box

on the inside ﬂap label to notify

user in which mode their unit is

set (24hr, 5/2 day or 7 day).

DIL Switch Settings

Before mounting the unit, ensure the

4 DIL switches on the rear have been

moved to the required settings.

!INSTALLER SETTING

24 Hour

5+2 Day

7 Day

Advanced Programming Options

To enter advanced programming press PROG, +and DAY/HOL

together and hold for 5 seconds.

Option 1 - (3 or 2 On/Oﬀ’s per day)

Use +or - to change between 3 or 2 on/oﬀ’s each day.

Option 2 - (Disable or enable auto time change)

Press NEXT, then use + or - to change between auto time

change enabled to auto time change disabled.

Option 8 - (Advanced Copy Functions)

Press NEXT, then +or -to change between the following copy

options:

(0) Standard copy in 7 day and 5+2 day.

(1) Enhanced copy in 7 day and 5+2 day

(2) Enhanced copy in 7 day and AB copy in 5+2 day.

For an explanation of the copy features and how to use them

please see page 6.

Press PROG to return to RUN.

3 on/oﬀ’s each day (Factory setting) 2 on/oﬀ’s each day

Auto time change enabled (Factory setting) Auto time change disabled

2 ON/OFFs

PUMPED

7 DAY or 24 HOUR

24 HOUR

3 ON/OFFs

GRAVITY

5/2 DAY

7 DAY

SW.1

SW.2

SW.3

SW.4

Copy Functions Explained

There are 3 possible copy functions available. These are;

Standard Copy, Enhanced Copy, and AB copy. Copy functions

are enabled/disabled in the Advanced Programming Options

(page 5).

Standard Copy: Pressing copy will copy the previous days

events into the displayed day. The unit will then display the 1st

event for the new day. This copy function is present only if the

unit is set to run in 5+2 or 7 day mode.

Enhanced Copy: The enhanced copy function is available in 7

day mode only. This allows any day to be copied to any other

day, or days. To use the enhanced copy function go into the

event programming using the PROG button, then:

Use the1. DAY button to ﬁnd the day to be copied from.

Press the2. COPY button to select the day to be copied from.

When selected, the day should begin to ﬂash.

Use the3. DAY button to ﬁnd the day to be copied to.

Press4. COPY button to copy the selected day.

Repeat steps 3 and 4 to select and copy other days.5.

To stop copying, use the6. DAY button to go back to the

ﬂashing day and press the COPY button. The previously

ﬂashing day will stop ﬂashing to indicate it has been de-

selected.

NOTE: When a day has been copied to, it will remain visible and

not ﬂashing when the DAY button is used to select other days.

AB Copy: The AB copy function is available in 5+2 mode only

and only if activated in the Advanced Programming setting.

A and B days, when selected, can be any group of days e.g. 5+2,

4+3 etc. The days do not have to run in sequence. For example,

to operate in a 5+2 day mode the days can be set as follows:

Copy Functions

Service Interval Timer

The CP715 Si is ﬁtted with an installer setback service interval

timer. If this feature is required please contact our technical

department. Setting instructions for this gas safety feature are

only available to bona ﬁde heating installers.

To use the AB copy function – press the PROG button:

This will show the“A” days, with all the days selected.1.

Use the2. DAY button to highlight a day.

Subsequent presses of the3. DAY button will increment

through the days.

Press the4. +button to select a speciﬁc day as an “A” day, or

press the –button to specify a day as a“B” day.

Once the day has been selected as an “A” or “B” day the5.

programme will automatically jump to the next day.

When the last day of the week is active, pressing6. +, -, or DAY

will move back to the “A” days displayed with no selected

(ﬂashing) days (see image below).

Repeat 2 to 6 until all selections have been made.7.

When selections are completed, press the8. PROG button to

move to event programming.

Event Programming in AB mode

Programme“A”day events using the1. +(time advance), - (time

decrease), and NEXT (next period) buttons.

Press the2. DAY button to change to programme the “B” days

Programme“B”day events using the3. +(time advance), -(time

decrease), and NEXT (next period) buttons.

A Days B Days

Mon Tues Thurs Fri Sat Wed Sun

Copy Functions and Service Interval Timer

Wiring Conversions, (applies only to 230 volt models)

Wiring conversions can be used when replacing the following

programmers with the CP715 Si. Some time controls are

connected diﬀerently depending on the type of system

they are controlling. Consult the column headed “NOTE This

conversion ...” to determine whether Table A (pages 8-11) or

Table A

DANFOSS RANDALL

FP715, CP715

(PUMPED)

MAINS DHW

OFF

HTG

OFF

DHW

NL1 2 3

DANFOSS RANDALL 922/972 N L 1 4 3

DANFOSS RANDALL 4033 7 6 5 3 4

DANFOSS RANDALL SET 5 N L 3 6 1

HORSTMANN 423, AMETHYST 7 & 10 2,3 1 4 6 5

HORSTMANN 424 GEM 2,3 1,10 6 9 4

HORSTMANN LEUCITE 423 & 424 2 1 4 8 3

HORSTMANN 425 DIADEM N L 3 6 1

HORSTMANN 525 & 527 N L 3 6 1

HONEYWELL ST669 N L 7 4 6

HONEYWELL ST6300 & ST6400 N L 1 2 3

PEGLER SUNVIC SP50/SP100 N L 1 4 2

POTTERTON EP2000, EP3000 N L 1 2 3

RANDALL TSR3+3 3,6 7 2 5 1

RANDALL 3033 1,7 6 5 3 4

RANDALL 702 N L 4 2 3

SANGAMO FORM 1 410 & 414 4,5 6 2 7 1

SANGAMO S409/1 N,1,3 L - - 2

Wiring Conversions

Table B (pages 12-15) should be used. If in any doubt, contact

our Technical Services Department before proceeding with the

replacement. *Any wires connected to switch COMMONS which

are linked LIVE on existing wallplates must be transferred to the

LIVE terminal on the new wallplate.

HTG

Wires other

than links in

these terms

go to LIVE

NOTE

This conversion applies

only if....

An additional terminal

block may be required

where these discon-

nected leads (or pairs)

should be terminated

4LL

ABCD

625 Programmed

selectors UNLINKED

21-

425

7-- 8

7 5 8 Terminals 5,8 & 10 are LINKED

6 5 7 Terminals 5 & 7 are LINKED

425 Programme

selectors UNLINKED

425 Programme

selectors UNLINKED

385

4--

53- SS

4-5 Programme

selectors UNLINKED ABCD

4--

2--

165

83-

5--

Wiring Conversions

Table A cont..

DANFOSS RANDALL

FP715, CP715

(PUMPED)

MAINS DHW

OFF

HTG

OFF

NL12 3

SANGAMO S409/3 3,6 7 4 2 5

SATCHWELL LIBRA & DHP 2201 1 2 8 5 6

SATCHWELL ET 1401 & 1451 1 2 8 5 7

SMITHS IND. CENTROLLER 90 1 2 - - 5

SMITHS IND. CENTROLLER 1000 N L 1 2 3

SWITCHMASTER 800 & 805 N L 4 2 3

SWITCHMASTER 900 & 9000 N L 4 2 3

SWITCHMASTER SONATA N L 3 6 1

VENNER CHC/W2 (WITH STAT) N,2,4 L - - 1

VENNER CHC/W2 (AIR STAT LINKED) N,2,4 L - - 1

VENNER VENOTROL 80M & 80PM

(WITH AIR STAT) N,3 L 1 4 2

VENNER VENOTROL 80M & 80PM

(AIR STAT LINKED) N,3 L 1 4 2

Wiring Conversions

Altri manuali per CP715 Si

Indice

Altri manuali Danfoss Regolatori di temperatura

Danfoss

Danfoss Link RS Manuale utente

Danfoss

Danfoss AVQ PN16 Manuale utente

Danfoss

Danfoss Optyma Plus OP-MPS Manuale utente

Danfoss

Danfoss ECL Comfort 210 Manuale utente

Danfoss

Danfoss ECL Comfort 110 Manuale utente

Danfoss

Danfoss ECL Comfort 110 Manuale di istruzioni

Danfoss

Danfoss Optyma AK-RC 251 Manuale utente

Danfoss

Danfoss ECL Comfort 310 Manuale di istruzioni per l'installazione

Danfoss

Danfoss ECL Comfort 310 Manuale utente

Danfoss

Danfoss ECL Comfort 110 Manuale utente

Danfoss

Danfoss FP735Si Manuale utente

Danfoss

Danfoss ECL Comfort 100M Manuale di istruzioni

Danfoss

Danfoss ECL Comfort 210 Manuale utente

Danfoss

Danfoss 102 Istruzioni di montaggio

Danfoss

Danfoss EKC 319A Manuale utente

Danfoss

Danfoss ECL Comfort 210 Manuale utente

Danfoss

Danfoss ECL Comfort 300 Manuale utente

Danfoss

Danfoss EKC 101 Manuale utente

Danfoss

Danfoss ECL Comfort 296 Manuale utente

Danfoss

Danfoss ECL Comfort 210 Manuale utente

Danfoss

Danfoss ECL Comfort 310 Manuale utente

Danfoss

Danfoss RX1 Manuale utente

Danfoss

Danfoss FHV-A Manuale utente

Danfoss

Danfoss EKC 361 Manuale utente

Manuali Regolatori di temperatura popolari di altre marche

Swegon

Swegon LUNAd MB Manuale utente

Lucky Reptile

Lucky Reptile Thermo Control II Manuale utente

SENSORMETRIX

SENSORMETRIX Argon 100 Manuale utente

Fuji Electric

Fuji Electric PXE4 Manuale utente

Yuyao gongyi

Yuyao gongyi XMT-808 series Manuale utente

Selec

Selec TC544C Manuale utente

P.W. KEY

P.W. KEY rt-208gt Manuale utente

Future Design

Future Design FDC-9200 Manuale utente

BH Thermal

BH Thermal BriskONE Manuale utente

Omron

Omron E5EX-H Manuale utente

West Control Solutions

West Control Solutions KS 45 Guida rapida

MCS

MCS RITC-15B Manuale utente

SMC Networks

SMC Networks Thermo-con INR-244-639 Manuale utente

eltherm

eltherm Ex-TC It Series Manuale utente

Omron

Omron C200H-TV Series Manuale utente

industrie technik

industrie technik CA1 Manuale utente

KRAL

KRAL EET 32 Manuale utente

dixell

dixell XR420C Schema elettrico
