DAPAudio D141473 Manuale utente

COM-54

ORDERCODE D141473 740-752Mhz

ORDERCODE D141482 822-846MHz

Congratulations!

You have bought a great, innovative product from DAP Audio.

The DAP Audio COM-54 brings excitement to any venue.

You can rely on DAP Audio, for more excellent audio products.

We design and manufacture professional audio equipment for the entertainment industry.

New products are being launched regularly. We work hard to keep you, our customer, satisfied.

For more information: iwant@dap-audio.info

You can get some of the best quality, best priced products on the market from DAP Audio.

So next time, turn to DAP Audio for more great audio equipment.

Always get the best -- with DAP Audio !

Thank you!

DAP Audio

DAP Audio COM-54™Product Guide

Warning..…...................................................................................………………………………………………………….

Safety-instructions………………………………………………………………………………………………………......

Operating Determinations.……………………………………………………………………………………………......

Return Procedure……………………………………………………………………………...........................................

Claims……………………………………………………………………………..............................................................

Description..…............................................................................……….…………………………….…………………….

Features………………………………………………………………………………….……………………………………

Overview ..…………………………………………………………………………………….………....................…..…..

Frontview………………………………………………………………………….………....…………………………….....

Rearview………………………………………………………………………….………....…………………………..……

Installation...............................................................................…...……………………………………………..…….……

Set Up and Operation.....................................................................……..……………………….……………….………

Menu Options…............................................................................……….…………………………………….………….

Sensitivity Adjustment Menu (SQUELCH).……………………………………………….……………………...………

Signal Channel solution Menu.……………………………………………….………....…………………….………….

Frequency Set Menu.….……………………………………………………….………....……………………….…..…..

System Lock Menu…………………………………………………….………....…………………………………………

Microphone............................................………………………………….........….…………….......................................

Microphone Charger.......................................………………………………….........……………………………...........

Approval...................................………………………………….........….………………………………………………......

Declaration of Conformity......................………………………………….........….…………………………………........

Connection Cables..............................….......................................………..………….…….……………………………

Maintenance………..............................….......................................………..………….…….……………………...……

Troubleshooting………..............................…................................………..………….…….…………………….….……

Product Specifications.................................................................……………….…….……………………………….....

WARNING

Unpacking Instructions

Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure

that all parts are present, and have been received in good condition. Notify the dealer immediately and

retain packing material for inspection if any parts appear damaged from shipping or the carton itself

shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be

returned to the factory, it is important that the fixture be returned in the original factory box and packing.

Your shipment includes:

• 1x DAP COM-54 receiver

• 4x DAP COM-54 wireless microphone

• 4X DAP COM-54 Battery charger for 2 microphones

• 1x AC-adapter DC12V/2A for receiver

• 2x AC-adapter DC5V/1A for battery charger

• 8x rechargeable battery 1.2V/1800mAh for microphone

• 4x XLR cable 100cm

• 1x mono jack cable 80cm

• User manual

SAFETY INSTRUCTIONS

Every person involved with the installation, operation and maintenance of this device has to:

-be qualified

-follow the instructions of this manual

Before your initial start-up, please make sure that there is no damage caused by transportation. Should

there be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to

follow the safety instructions and warning notes written in this manual.

Please consider that damages caused by manual modifications to the device are not subject to

warranty.

This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

CAUTION!

Keep this device away from rain and moisture!

CAUTION! Be careful with your operations.

With a dangerous voltage you can suffer

a dangerous electric shock when touching the wires!

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOUR INITIAL START-UP!

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-

observance of this manual or any unauthorized modification to the device.

Never remove warning or informative labels from the unit.

Never leave any cables lying around.

Do not open the device and do not modify the device.

Do not connect this device to a dimmerpack.

Do not switch the system on and off in short intervals, as this would reduce the system’s life.

Only use device indoor, avoid contact with water or other liquids.

Avoid flames and do not put close to flammable liquids or gases.

Always disconnect power from the mains, when device is not used or before cleaning! Only

handle the adapter by the plug. Never pull out the adaptor by tugging the cord.

Make sure you don’t use the wrong kind of cables or defective cables.

Make sure that the available voltage is not higher than stated on the rear panel.

Make sure that the power-cord is never crimped or damaged. Check the system and the power-

cord from time to time.

Please turn off the power of all equipment before making connections to other devices.

If system is dropped or struck, disconnect the power adaptor immediately. Have a qualified

engineer inspect for safety before operating.

If the system has been exposed to drastic temperature fluctuation (e.g. after transportation), do

not switch it on immediately. The arising condensation water might damage your system. Leave

the system switched off until it has reached room temperature.

If your Dap Audio device fails to work properly, discontinue use immediately. Pack the unit

securely (preferably in the original packing material), and return it to your Dap Audio dealer for

service.

Repairs, servicing and electric connection must be carried out by a qualified technician.

For replacement use fuses of same type and rating only.

OPERATING DETERMINATIONS

If this system is operated in any other way, than the one described in this manual, the product may suffer

damages and the warranty becomes void.

Any other operation may lead to dangers like short-circuit, burns, electric shock, etc.

You endanger your own safety and the safety of others!

Improper installation can cause serious damage to people and property !

Return Procedure

Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.

Package must be clearly labelled with a Return Authorization Number (RMA number). Products returned

without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.

Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture.

Be prepared to provide the model number, serial number and a brief description of the cause for the

return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the

customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace

product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.

Note: If you are given an RMA number, please include the following information on a piece of paper

inside the box:

1) Your name

2) Your address

3) Your phone number

4) A brief description of the symptoms

Claims

The client has the obligation to check the delivered goods immediately upon delivery for any short-

comings and/or visible defects, or perform this check after our announcement that the goods are at their

disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be

reported to the carrier upon receipt of merchandise.

It is the customer's responsibility to notify and submit claims with the shipper in the event that a fixture is

damaged due to shipping. Transportation damage has to be reported to us within one day after receipt

of the delivery.

Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with

a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless

otherwise agreed in writing.

Complaints against us must be made known in writing or by fax within 10 working days after receipt of the

invoice. After this period complaints will not be handled anymore.

Complaints will only then be considered if the client has so far complied with all parts of the agreement,

regardless of the agreement of which the obligation is resulting.

Description of the device

Features

The Com-54 is a 4 channel Wireless Microphone Set from Dap Audio.

• 2 Frequency ranges available: 740-752 MHz: ordernr: D141473

822-846 MHz: ordernr: D141482

• 4 channel wireless microphone system

• True diversity receiver

• Included 4 dynamic hand-held microphones

• 32MHz Phase locked loop (PLL) circuit technology

• LCD display

• Easy operation with clear and pure sound

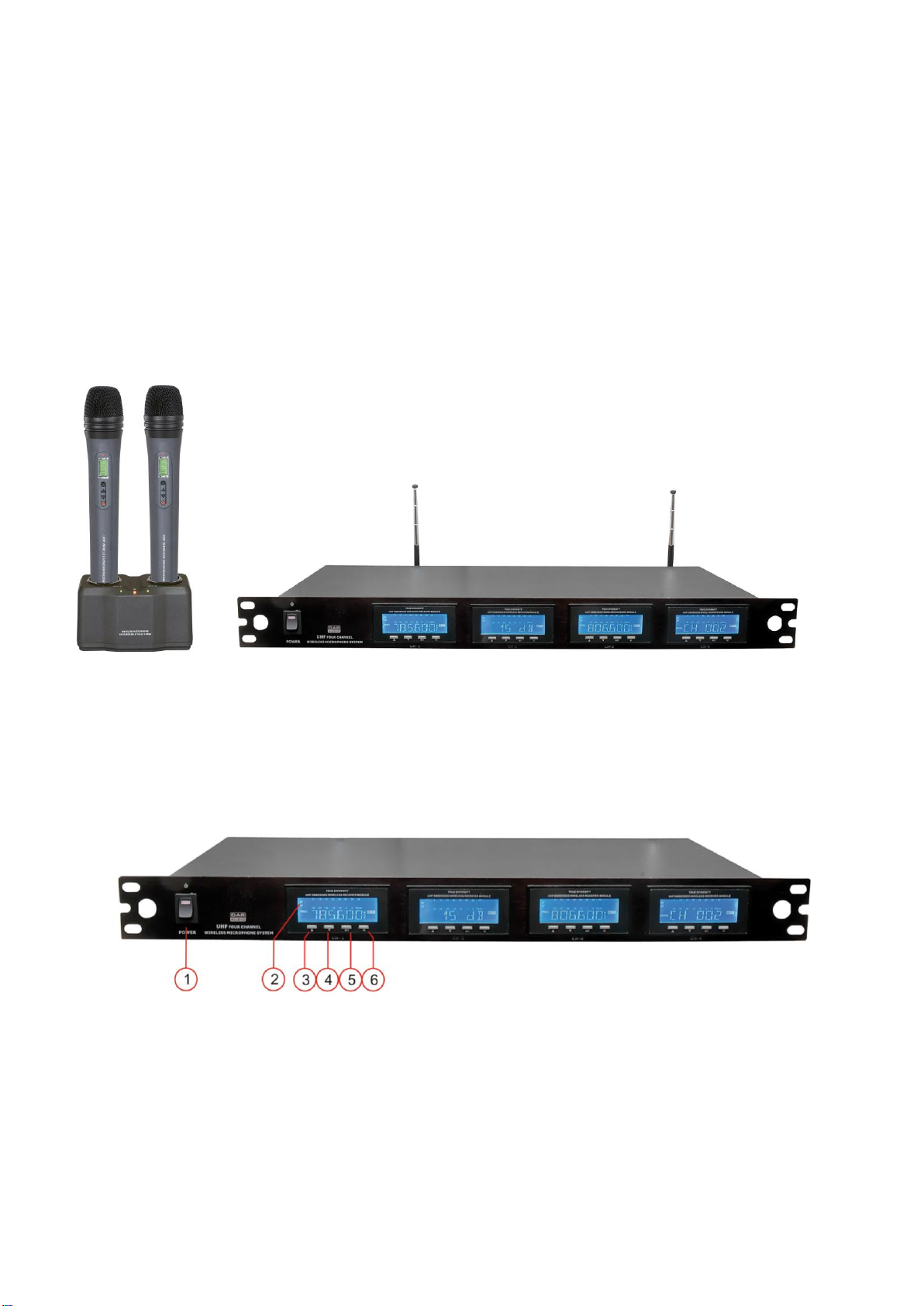

Overview

Fig. 1

Frontview

Fig. 2

1) Power ON/OFF

2) LCD display

3) Up button

4) Down button

5) Set button

6) Channel ON/ Off

Rearview

Fig. 3

7) Antenna B

8) Channel 4 balanced out

9) Channel 3 balanced out

10) Channel 3 balanced out

11) Channel 1 balanced out

12)Mix balanced out:

Balanced XLR connector mixes all four channels into a single output

13)Mix unbalanced out:

Unbalanced 1/4” jack plug connector mixes all four channels into a single output

14)Antenna A

15)Power Input Connector 12V 600mA

16)Fan

Installation

Remove all packing materials from the Com-54. Check that all foam and plastic padding is removed. Put

the 2 antennas into socket A and B at the backside in a vertical angle. Remove the rubber protection

caps at the underside of the microphones that covers the recharge inputs (See Fig 4).

Fig. 4

When connecting the power supplies, assure yourself that the right supplies are connected to the right

devices. Look at the red/green sticker at the bottom of the microphone.

Always disconnect from electric mains power supply before cleaning or servicing.

Damages caused by non-observance are not subject to warranty.

Set Up and Operation

Before plugging the unit in, always make sure that the power supply matches the product specification

voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.

Press the powerswitch to turn the COM-54 on. Turn volume down, by pressing SET. The display shows AF

out, then the display shows VR1. Adjust the Functions to the desired position.

Fig. 4

17)RF Indicator

18)Audio Frequency Indicator

19)Signal Channel Indicator

20)Antenna A Receiving Indicator

21)Antenna B Receiving Indicator

22)MUTE Indicator

MENU Options

1. SQUELCH 0-40 dB, in 5 dB steps

2. DISPLAY FREQU / CHANNL

3. TUNE 785.100 –811.000, in steps of 0.025 Hz

4. LOCK LOC OFF / LOC ON

Sensitivity Adjustment Menu (SQUELCH)

Scroll through the menu by using the SET button, until the LCD shows:

after a second the display shows:

This menu is for adjusting the sensitivity (Mute Control). It is used to strengthen the system’s capacity of

preventing disturbing: The range is from 0 –40 dB. The greater the value, the lower the sensitivity is, the

smaller the receiving distance, the stronger capacity of preventing disturbance. On the other hand, a

lower value (Minimum 15dB), provides a higher sensitivity and increases the receiving distance, the

capacity of preventing disturbance however will reduce. Usually, the normal setup is 20 dB (Factory is

15dB).

Press UP/DOWN to change the settings. After changing the settings, please press the SET button to

confirm. Otherwise it won’t effect and the system will remain in the precious state.

When you have selected a new channel or frequency and you haven’t pressed SET, the LCD will flash to

remind you. When you press SET, the LCD stops flashing.

Signal Channel solution Menu

Scroll through the menu by using the SET button, until the LCD shows:

after 3 seconds the display shows:

Note: Which screen is shown, depends on the previous setup.

When you press UP / DOWN, the LCD indicates 2 modes, either Channel or Frequency. If you select

channel, CHANNL is shown as numerical value. If you select FREQU, it is shown as actual working

frequency. After selecting, you must press SET. Otherwise, your setting is not stored.

After you change and you don’t confirm, the LCD flashes as a reminder. Press SET and the LCD will stop

flashing.

Frequency Set Menu

Scroll through the menu by using the SET button, until the LCD shows:

after a second the display shows:

You can now change the frequency with the UP / DOWN buttons (steps of 0.025 Hz to change the

frequency). To confirm you have to press SET. If you don’t press SET, the LCD display will keep flashing.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali DAPAudio Sistema microfonico

DAPAudio

DAPAudio COM-42 Manuale utente

DAPAudio

DAPAudio COM-31 Vocal Manuale utente

DAPAudio

DAPAudio IEM-100 Beltpack Manuale utente

DAPAudio

DAPAudio COM41 HANDHELD Manuale utente

DAPAudio

DAPAudio D1425 Manuale utente

DAPAudio

DAPAudio EDGE EBS-1 V2 Manuale utente

DAPAudio

DAPAudio COM-52 Manuale utente

DAPAudio

DAPAudio EDGE EHS-2 Manuale utente

DAPAudio

DAPAudio COM-2.4 Manuale utente

DAPAudio

DAPAudio COM-54 Manuale utente

DAPAudio

DAPAudio COM-31 Guitarist Manuale utente

DAPAudio

DAPAudio EDGE EBS-2 V2 Manuale utente

DAPAudio

DAPAudio COM-42 Manuale utente

DAPAudio

DAPAudio EDGE EHS-1 Manuale utente

DAPAudio

DAPAudio EB-16 Manuale utente

DAPAudio

DAPAudio DM-25 Manuale utente

DAPAudio

DAPAudio Beltpack set for COM-51/52 Manuale utente

Manuali Sistema microfonico popolari di altre marche

Paso

Paso R824 Manuale utente

Naxa

Naxa NAM-982 Manuale utente

Motorola

Motorola PMNN4461 Manuale utente

Xvive

Xvive U3 Manuale utente

Tekon

Tekon DUOS Manuale utente

Heyuan Intelligence

Heyuan Intelligence IOT-G2S-01 Manuale utente

Devine

Devine WMD-IE Manuale utente

LG LF-D7150 Manuale utente

GE S768DAV Manuale utente

LD U305 HBH 2 Manuale utente

Chainway

Chainway URA8 Manuale utente

ORATOR

ORATOR D860TD Manuale utente

Sennheiser

Sennheiser Evolution Wireless Digital EW-DX EM 2 Manuale utente

Alpha Technologies

Alpha Technologies RBMS Manuale utente

SWIT Electronics Co.,LTD.

SWIT Electronics Co.,LTD. CW-S150 Manuale utente

Shure

Shure UA844 Manuale utente

Panasonic

Panasonic SHFX70 - DVD HOME THEATER WIRELESS SYSTEM Manuale utente

Pyle

Pyle PDWM5000 Manuale utente
