Data Modul AG easyTOUCH Manuale utente
QUICK START GUIDE
easyTOUCH Display
eMotion board*
OSD board
DVI/HDMI cable
LVDS cable
LED cable
*Connector numberings (CN) can be found on the front of the eMotion board.
Connector descriptions can be found on the back of the eMotion board.
OSD cable
USB cable
+12V power supply
Power cord (EU)
Power cord (US)
easyANALYZER software (USB stick)
SCOPE OF DELIVERY
INTRO
THANK YOU for choosing
our easyTOUCH STARTERKIT!
This kit provides you with all the necessary components to bring our touch-display solution to full
operation. The components can be assembled together in just a few steps using our guidelines!
The perfect combination of our in-house developed easyTOUCH Display and eMotion board enable
you to evaluate our PCAP and display performance. Further PCAP tuning and debugging is possible
using the easyANALYZER software developed by our engineers for our easyTOUCH solutions.
If you have any questions or challenges, do not hesitate to contact us!
Do you need more details or do you need support for a special project?

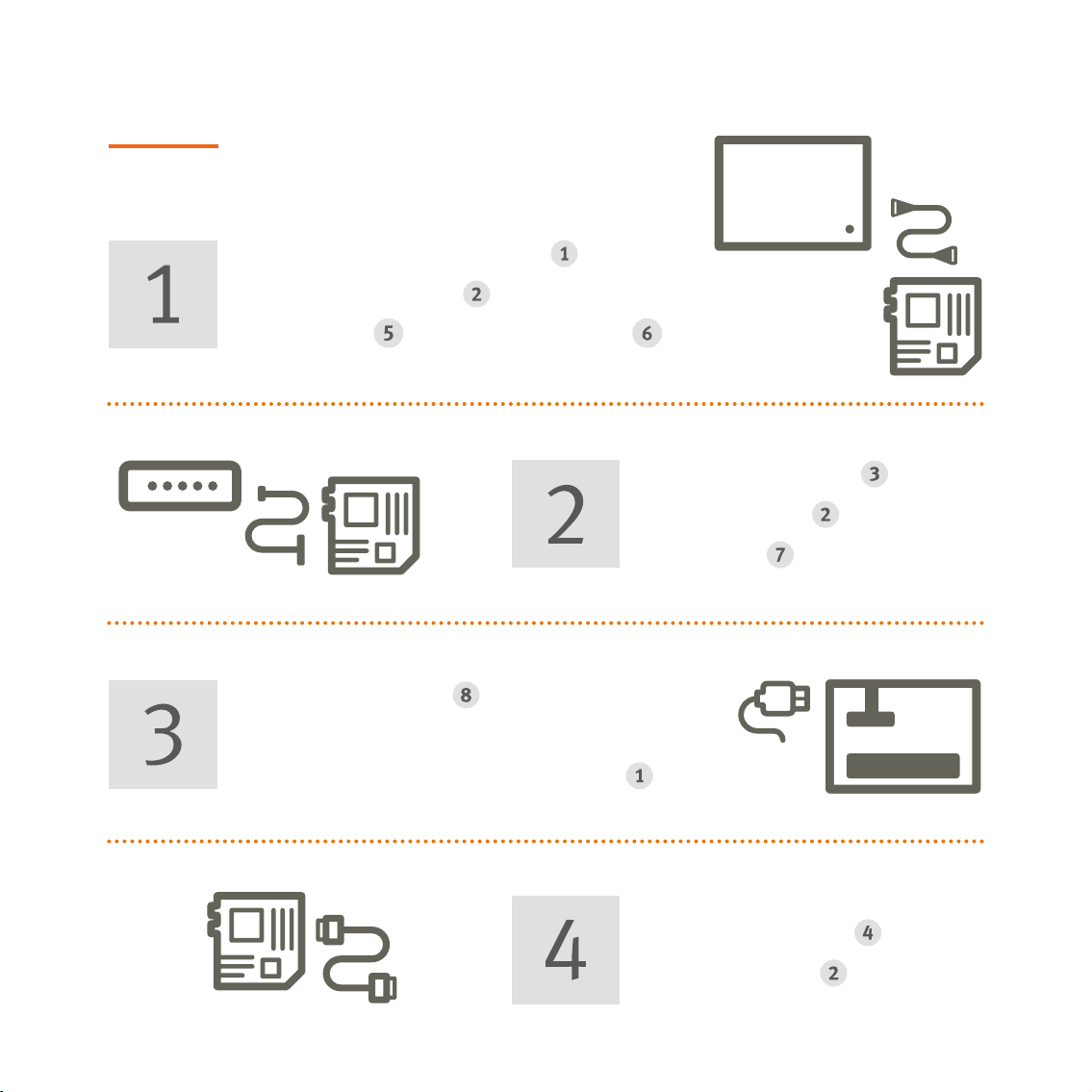

Connect easyTOUCH Display
with eMotion board by using
LVDS cable (CN105) and LED cable (CN108)
Connect OSD board with
eMotion board by using
OSD cable (CN112)
Connect USB cable with
USB touch controller board on the
back side of the easyTOUCH Display
Connect DVI cable with
eMotion board (CN100)
INSTALL GUIDE

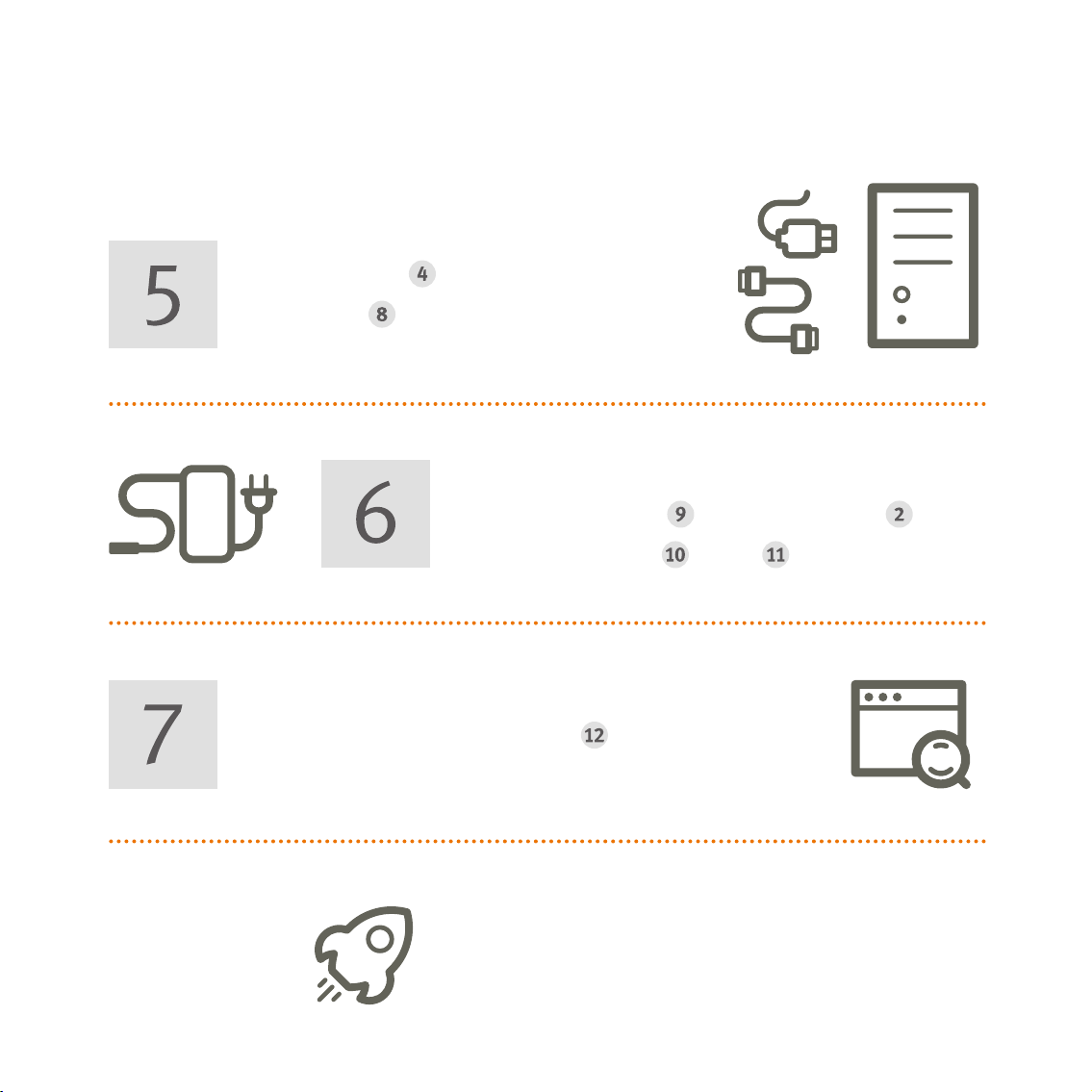

Connect HDMI and
USB cable to your host system
After ALL other connections have been made,
supply +12V power to eMotion board .
Plug in power cord (EU) / (US)
Optional:
Install easyANALYZER software
on your host system (for Windows and Linux)
12V
Let´s start!
DATA MODUL AG I www.data-modul.com
Landsberger Str. 322 I DE-80687 Munich I Phone: +49 89 56017 0
