7" TFT LCD Monitor

TLM-700HD

Instruction Manual

Rev 150310

www.datavideo-tek.com

Table of Contents

Warnings and Precautions................................................ 3

Warranty........................................................................... 5

Standard Warranty........................................................ 5

Two Year Warranty ....................................................... 5

Disposal............................................................................ 6

Packing List ...................................................................... 6

Introduction....................................................................... 6

Features ........................................................................... 7

Supported Formats........................................................... 7

Connections & Controls.................................................... 8

Front Panel ................................................................... 8

Rear Panel.................................................................. 10

Menu Options ................................................................. 11

1. Picture..................................................................... 11

2. Audio....................................................................... 11

3. Func........................................................................ 11

4. Setup ...................................................................... 12

5. Advance.................................................................. 13

Calibrating Datavideo Monitors....................................... 13

Specifications ................................................................. 14

Service & Support........................................................... 15

Warnings and Precautions

1. Read all of these warnings and save them for later reference.

2. Follow all warnings and instructions marked on this unit.

3. Unplug this unit from the wall outlet before cleaning. Do not use

liquid or aerosol cleaners. Use a damp cloth for cleaning.

4. Do not use this unit in or near water.

5. Do not place this unit on an unstable cart, stand, or table. The unit

may fall, causing serious damage.

6. Slots and openings on the cabinet top, back, and bottom are

provided for ventilation. To ensure safe and reliable operation of this

unit, and to protect it from overheating, do not block or cover these

openings. Do not place this unit on a bed, sofa, rug, or similar

surface, as the ventilation openings on the bottom of the cabinet will

be blocked. This unit should never be placed near or over a heat

installation unless proper ventilation is provided.

7. This product should only be operated from the type of power source

indicated on the marking label of the AC adapter. If you are not sure

of the type of power available, consult your Datavideo dealer or your

local power company.

8. Do not allow anything to rest on the power cord. Do not locate this

unit where the power cord will be walked on, rolled over, or

otherwise stressed.

9. If an extension cord must be used with this unit, make sure that the

total of the ampere ratings on the products plugged into the

extension cord do not exceed the extension cord’s rating.

10. Make sure that the total amperes of all the units that are plugged

into a single wall outlet do not exceed 15 amperes.

11. Never push objects of any kind into this unit through the cabinet

ventilation slots, as they may touch dangerous voltage points or

short out parts that could result in risk of fire or electric shock. Never

spill liquid of any kind onto or into this unit.

12. Except as specifically explained elsewhere in this manual, do not

attempt to service this product yourself. Opening or removing covers

that are marked “Do Not Remove” may expose you to dangerous

voltage points or other risks, and will void your warranty. Refer all

service issues to qualified service personnel.

13. Unplug this product from the wall outlet and refer to qualified service

personnel under the following conditions:

a. When the power cord is damaged or frayed;

b. When liquid has spilled into the unit;

c. When the product has been exposed to rain or water;

d. When the product does not operate normally under normal

operating conditions. Adjust only those controls that are

covered by the operating instructions in this manual; improper

adjustment of other controls may result in damage to the unit

and may often require extensive work by a qualified technician

to restore the unit to normal operation;

e. When the product has been dropped or the cabinet has been

damaged;

f. When the product exhibits a distinct change in performance,

indicating a need for service.

Warranty

Standard Warranty

Datavideo equipment is guaranteed against any manufacturing

defects for one year from the date of purchase.

The original purchase invoice or other documentary evidence

should be supplied at the time of any request for repair under

warranty.

Damage caused by accident, misuse, unauthorized repairs,

sand, grit or water is not covered by this warranty.

All mail or transportation costs including insurance are at the

expense of the owner.

All other claims of any nature are not covered.

Cables & batteries are not covered under warranty.

Warranty only valid within the country or region of purchase.

Your statutory rights are not affected.



Two Year Warranty

All Datavideo products purchased after 01-Oct.-2008 qualify for a

free one year extension to the standard Warranty, providing the

product is registered with Datavideo within 30 days of purchase.

For information on how to register please visit

www.datavideo-tek.com

or contact your local Datavideo office or authorized Distributors

Certain parts with limited lifetime expectancy such as LCD Panels,

DVD Drives, Hard Drives are only covered for the first 10,000

hours, or 1 year (whichever comes first).

Any second year warranty claims must be made to your local

Datavideo office or one of its authorized Distributors before the

extended warranty expires.

Disposal For EU Customers only - WEEE Marking

This symbol on the product indicates that it should

not be treated as household waste. It must be

handed over to the applicable take-back scheme for

the recycling of waste electrical and electronic

equipment. For more detailed information about the

recycling of this product, please contact your local

Datavideo office.

Packing List

Items Description Q’ty

1 TLM-700HD 1

2 Sunshield 1

3 Switching Adaptor DC 12V/1.5A 1

4 Instruction Manual 1

Introduction

The Datavideo TLM-700HD is a 7 Inch monitor designed for HD users

who work outdoors in the field or in a studio. The TLM-700HD can be

powered from a standard V-Mount battery connection or mains power.

This enables you to power the monitor using an existing camera battery

from a range of manufacturers. Its case design is both rugged and easy

to carry with a variety of features and connections that make it perfect for

set up tests and field or studio monitoring.

Features

7" 16:9 Wide Screen Panel

Resolution: 800 x 480 dots

View Angle (V)+60/-40°, (H)+60/-60°

HD/SD-SDI, YUV, HD-YUV, HDMI & CV Input

Internal colour bar

Blue only function

Audio indicator for SDI, HDMI

Safe Area indicator

VITC time code display

Dual colour tally light indicator

Brightness, Contrast, Colour, Tint Adjustable

Colour Temp* adjustable

Audio Level indicators

NTSC / PAL Auto Switching

4:3 / 15:9 / 16:9 switchable

* can be set to 9300, 7500, 6500, 5400 or USER RGB values.

Supported Formats

• HDMI YUV

- 720 x 576i x 50 Hz

- 720 x 480i x 60 Hz

- 1280 x 720p x 50 Hz

- 1280 x 720p x 60 Hz

- 1920 x 1080i x 50 Hz

- 1920 x 1080i x 60 Hz

• HDMI RGB

- 720 x 576i x 50 Hz

- 720 x 480i x 60 Hz

- 1280 x 720p x 50 Hz

- 1280 x 720p x 60 Hz

- 1920 x 1080i x 50 Hz

- 1920 x 1080i x 60 Hz

• SDI

- 720 x 576i / 50 Hz

- 720 x 480i / 60 Hz

- 1280 x 720p / 60 Hz

- 1280 x 720p / 50 Hz

- 1920 x 1080i / 50 Hz

- 1920 x 1080i / 60 Hz

• YUV

- 720 x 576i x 50 Hz

- 720 x 480i x 60 Hz

- 1280 x 720p x 50 Hz

- 1280 x 720p x 60 Hz

- 1920 x 1080i x 50 Hz

- 1920 x 1080i x 60 Hz

• CV

- 720 x 576i (PAL)

- 720 x 480i (NTSC)

Connections & Controls

Front Panel

Power Switch

Switches the power On / Off.

Stereo Headphone Mini Jack socket

The level is adjusted by headphone volume control.

Listen to embedded audio from HDMI or SDI sources.

Headphone Volume Control

Allow you to adjust the headphone volume.

Source Button

Select Input source between SDI, YPbPr, CVBS, and HDMI.

Aspect Ratio Button

Sets the LCD aspect ratio to 4.3, 15:9, or 16:9

PATTERN

The PATTERN button will generate colour bars on the

screen. Press the PATTERN button again to return normal

output.

BLUE

Press this button to eliminate the red and green component

of input signals. Only the blue component of an input is

displayed on the screen. This allows adjustments of chroma

and phase.

(Phase adjustment is effective with NTSC signals).

Calls up the on-screen adjustment menu (See Menu

Options for more details).

UP / DOWN

Navigate the on-screen menu and set the functions & levels.

ENTER

Confirms the new settings or return to the default state.

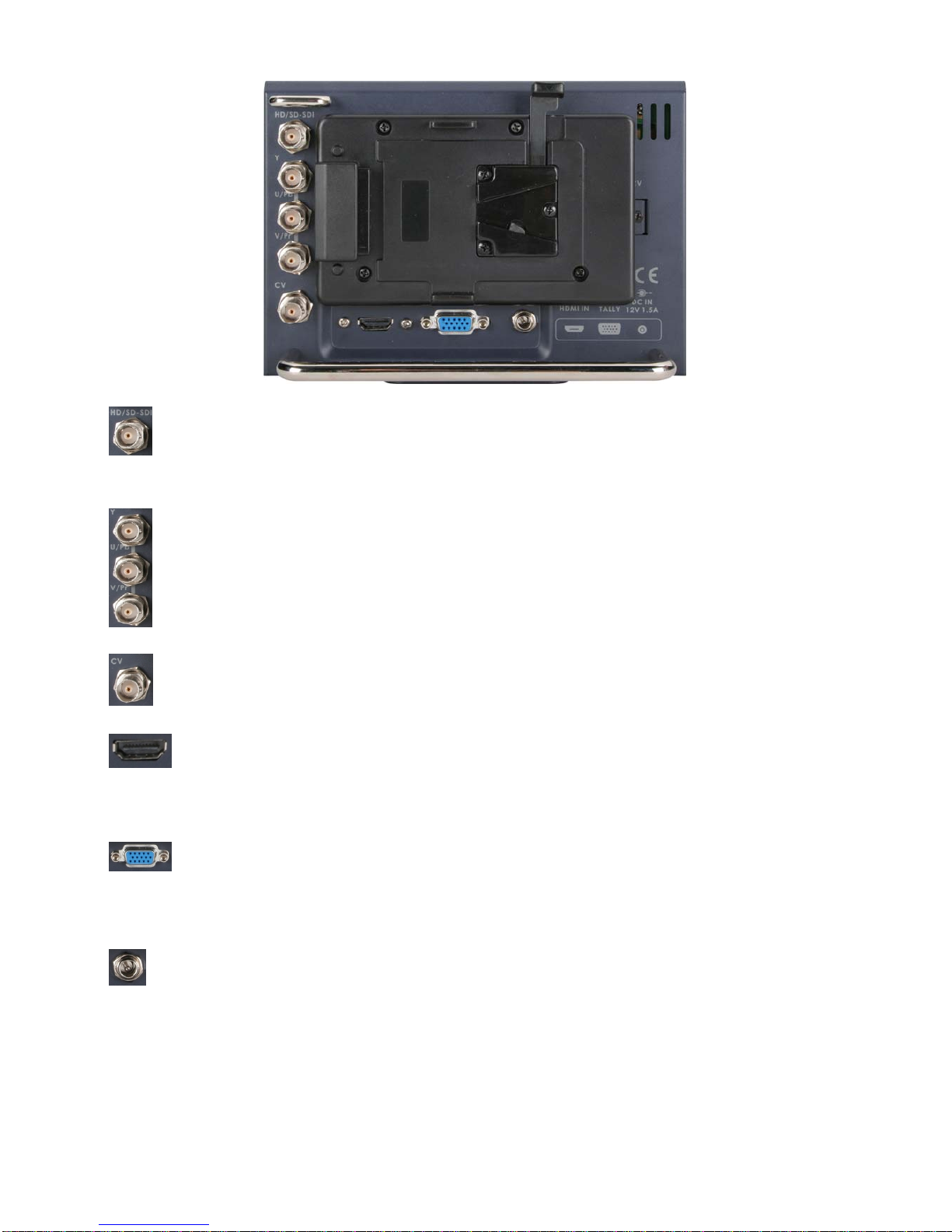

Rear Panel

HD/SD - SDI input

BNC connector for SDI Input.

YUV input

BNC connectors for analogue (Component) video inputs.

Composite video input

BNC connectors for analog (Composite) video inputs.

HDMI in interface

HDMI digital signal input connecter.

Supports HDMI 1.1

Tally In

Send in red and yellow colour tally signal to tally LED. Red

means on-air, yellow means standby.

DC in socket

Connect the supplied 12V 1.5A PSU to this socket. The

connection can be secured by screwing the outer fastening

ring of the DC In plug to the socket.
