Data Video PTC-140W Manuale utente

PTC-140

Table of Contents

TABLE OF CONTENTS.......................................................................................... 2

FCC COMPLIANCE STATEMENT........................................................................... 4

WARNINGS AND PRECAUTIONS ......................................................................... 4

WARRANTY ........................................................................................................ 5

STANDARD WARRANTY ......................................................................................... 5

THREE YEAR WARRANTY ....................................................................................... 6

DISPOSAL ........................................................................................................... 6

1. PRODUCT OVERVIEW................................................................................. 8

FEATURES.......................................................................................................... 8

2. LOCATION AND FUNCTION OF PARTS ........................................................ 9

3. BASIC SETUP ............................................................................................ 13

3.1 POWER-ON INITIALIZATION ..................................................................... 13

3.2 VIDEO OUTPUT .................................................................................... 13

Ethernet Port............................................................................................ 13

HDMI Video Output .................................................................................. 14

3G-SDI Video Output................................................................................. 14

4. REMOTE CONTROL AND ON-SCREEN MENU............................................. 15

4.1 REMOTE CONTROL FUNCTIONS ................................................................ 15

4.2 ON-SCREEN MENU ............................................................................... 20

4.3 PROFESSIONAL JARGON EXPLANATIONS OF THE OSD MENU............................ 29

5. INSTALLATION INSTRUCTIONS ................................................................. 30

6. NETWORK CONNECTION.......................................................................... 34

6.1 DHCP MODE ...................................................................................... 35

6.2 STATIC IP............................................................................................ 37

6.3 DVIP................................................................................................. 37

7. WEB USER INTERFACE.............................................................................. 41

7.1 PREVIEW ............................................................................................ 41

Control Functions...................................................................................... 43

Preset....................................................................................................... 44

7.2 CONFIGURATION................................................................................... 46

Audio Configure........................................................................................ 46

Video Configure........................................................................................ 48

Network Configure.................................................................................. 100

System Configure.................................................................................... 103

8. REMOTE CONTROL PORT PINOUTS ........................................................ 107

9. FIRMWARE UPDATE............................................................................... 109

REQUIREMENTS .............................................................................................. 109

PROCEDURE ................................................................................................... 109

10. FREQUENTLY-ASKED QUESTIONS....................................................... 110

11. DIMENSIONS...................................................................................... 112

12. SPECIFICATIONS................................................................................. 113

SERVICE & SUPPORT....................................................................................... 116

Disclaimer of Product and Services

The information offered in this instruction manual is intended as a guide only. At

all times, Datavideo Technologies will try to give correct, complete and suitable

information. However, Datavideo Technologies cannot exclude that some

information in this manual, from time to time, may not be correct or may be

incomplete. This manual may contain typing errors, omissions or incorrect

information. Datavideo Technologies always recommend that you double check

the information in this document for accuracy before making any purchase

decision or using the product. Datavideo Technologies is not responsible for any

omissions or errors, or for any subsequent loss or damage caused by using the

information contained within this manual. Further advice on the content of this

manual or on the product can be obtained by contacting your local Datavideo

Office or dealer.

FCC Compliance Statement

This device complies with part 15 of the FCC rules. Operation is subject to the

following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference

that may cause undesired operation.

Warnings and Precautions

1. Read all of these warnings and save them for later reference.

2. Follow all warnings and instructions marked on this unit.

3. Unplug this unit from the wall outlet before cleaning. Do not use liquid or

aerosol cleaners. Use a damp cloth for cleaning.

4. Do not use this unit in or near water.

5. Do not place this unit on an unstable cart, stand, or table. The unit may fall,

causing serious damage.

6. Slots and openings on the cabinet top, back, and bottom are provided for

ventilation. To ensure safe and reliable operation of this unit, and to protect

it from overheating, do not block or cover these openings. Do not place this

unit on a bed, sofa, rug, or similar surface, as the ventilation openings on the

bottom of the cabinet will be blocked. This unit should never be placed near

or over a heat register or radiator. This unit should not be placed in a built-in

installation unless proper ventilation is provided.

7. This product should only be operated from the type of power source

indicated on the marking label of the AC adapter. If you are not sure of the

type of power available, consult your Datavideo dealer or your local power

company.

8. Do not allow anything to rest on the power cord. Do not locate this unit

where the power cord will be walked on, rolled over, or otherwise stressed.

9. If an extension cord must be used with this unit, make sure that the total of

the ampere ratings on the products plugged into the extension cord do not

exceed the extension cord’s rating.

10. Make sure that the total amperes of all the units that are plugged into a

single wall outlet do not exceed 15 amperes.

11. Never push objects of any kind into this unit through the cabinet ventilation

slots, as they may touch dangerous voltage points or short out parts that

could result in risk of fire or electric shock. Never spill liquid of any kind onto

or into this unit.

12. Except as specifically explained elsewhere in this manual, do not attempt to

service this product yourself. Opening or removing covers that are marked

“Do Not Remove” may expose you to dangerous voltage points or other risks,

and will void your warranty. Refer all service issues to qualified service

personnel.

13. Unplug this product from the wall outlet and refer to qualified service

personnel under the following conditions:

a. When the power cord is damaged or frayed;

b. When liquid has spilled into the unit;

c. When the product has been exposed to rain or water;

d. When the product does not operate normally under normal operating

conditions. Adjust only those controls that are covered by the operating

instructions in this manual; improper adjustment of other controls may

result in damage to the unit and may often require extensive work by a

qualified technician to restore the unit to normal operation;

e. When the product has been dropped or the cabinet has been damaged;

f. When the product exhibits a distinct change in performance, indicating a

need for service.

Warranty

Standard Warranty

Datavideo equipment are guaranteed against any manufacturing defects for

one year from the date of purchase.

The original purchase invoice or other documentary evidence should be

supplied at the time of any request for repair under warranty.

The product warranty period begins on the purchase date. If the purchase

date is unknown, the product warranty period begins on the thirtieth day

after shipment from a Datavideo office.

All non-Datavideo manufactured products (product without Datavideo logo)

have only one year warranty from the date of purchase.

Damage caused by accident, misuse, unauthorized repairs, sand, grit or

water is not covered under warranty.

Viruses and malware infections on the computer systems are not covered

under warranty.

Any errors that are caused by unauthorized third-party software installations,

which are not required by our computer systems, are not covered under

warranty.

All mail or transportation costs including insurance are at the expense of the

owner.

All other claims of any nature are not covered.

All accessories including headphones, cables, and batteries are not covered

under warranty.

Warranty only valid in the country or region of purchase.

Your statutory rights are not affected.

Three Year Warranty

All Datavideo products purchased after July 1st, 2017

are qualified for a free two years extension to the

standard warranty, providing the product is registered

with Datavideo within 30 days of purchase.

Certain parts with limited lifetime expectancy such as LCD panels, DVD drives,

Hard Drive, Solid State Drive, SD Card, USB Thumb Drive, Lighting, Camera

module, PCIe Card are covered for 1 year.

The three-year warranty must be registered on Datavideo's official website

or with your local Datavideo office or one of its authorized distributors within

30 days of purchase.

Disposal

For EU Customers only - WEEE Marking

This symbol on the product or on its packaging indicates that this

product must not be disposed of with your other household

waste. Instead, it is your responsibility to dispose of your waste

equipment by handing it over to a designated collection point for

the recycling of waste electrical and electronic equipment. The separate

collection and recycling of your waste equipment at the time of disposal will help

to conserve natural resources and ensure that it is recycled in a manner that

protects human health and the environment. For more information about where

you can drop off your waste equipment for recycling, please contact your local

city office, your household waste disposal service or the shop where you

purchased the product.

CE Marking is the symbol as shown on the left of this page. The

letters "CE" are the abbreviation of French phrase "Conformité

Européene" which literally means "European Conformity". The

term initially used was "EC Mark" and it was officially replaced

by "CE Marking" in the Directive 93/68/EEC in 1993. "CE Marking" is now used in

all EU official documents.

1. Product Overview

The PTC-140 is a low-cost SDI/HDMI PTZ camera featuring 20x optical zoom and

10x digital zoom.

The PTC-140 is also an IP camera supporting H.264 /H.265 video compression and

dual stream outputs.

Features

1/2.8 inch CMOS sensor. Resolution is up to 1920x1080 with frame rate up to

60fps.

Low Noise CMOS effectively ensures high SNR of camera video. Advanced

2D/3D noise reduction technology is also used to further reduce the noise,

while ensuring image sharpness.

Audio Input Interface

Supports AAC, MP3 and G.711A audio coding with sampling frequencies of

16000, 32000, 44100 and 48000.

Supports H.264/H.265 video compressions of resolution up to 1920x1080

with frame rate up to 60fps as well as AAC, MP3 and G.711A audio

compressions.

Supports multiple network protocols such as RTSP and RTMP allowing you to

easily link to any streaming media servers.

2. Location and Function of Parts

Front of Camera

Lens

Built-in 1/2.8” 2.07M Pixel CMOS HD color camera with white balance

control, backlight compensation, automatic gain and etc.

Tally LED

Tally lamp will be turned ON upon receiving the ON signal.

Sensor for Remote Control

Remote control IR receiver

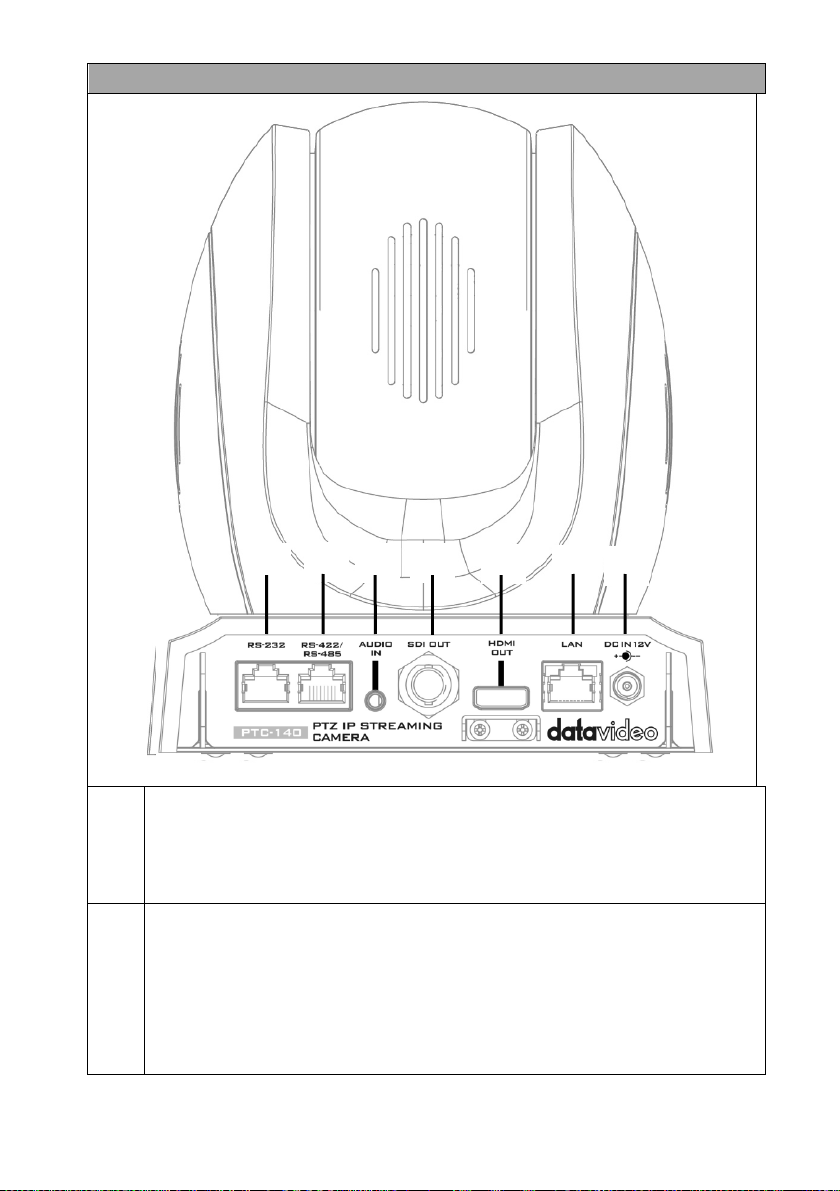

Rear of Camera

Power Input

DC in socket connects the supplied 12V PSU. The connection can be

secured by screwing the outer fastening ring of the DC In plug to the

socket.

LAN Port

This port allows you to establish network connection with the camera.

Connect an Ethernet cable from this port to the LAN port of a PC in order

to monitor the camera video from the web user interface. The LAN port

also allows you to stream the camera video using various streaming

protocols.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Data Video Telecamera di sicurezza

Data Video

Data Video PTC-140 Manuale utente

Data Video

Data Video PTC-200W Manuale utente

Data Video

Data Video PTC-140NDIW Manuale utente

Data Video

Data Video PTC-285W Manuale utente

Data Video

Data Video PTC-150 Manuale utente

Data Video

Data Video PTC-150W Manuale utente

Data Video

Data Video PTC-120 Manuale utente

Data Video

Data Video PTC-305T Manuale utente

Data Video

Data Video PTC-150 Manuale utente

Data Video

Data Video PTC-140T Manuale utente

Data Video

Data Video PTC-280 Manuale utente

Data Video

Data Video PTC-300 Manuale utente

Data Video

Data Video PTC-285 Manuale utente

Data Video

Data Video PTC-280NDI Manuale utente

Data Video

Data Video PTC-305NDI Manuale utente

Data Video

Data Video PTC-150TL Manuale utente

Data Video

Data Video PTC-285T Manuale utente

Data Video

Data Video PTC-150 Manuale utente

Data Video

Data Video PTC-140NDI Manuale utente

Data Video

Data Video PTC-200T Manuale utente

Data Video

Data Video PTC-120 Manuale utente

Data Video

Data Video PTC-280NDIW Manuale utente

Data Video

Data Video PTC-150T Manuale utente

Data Video

Data Video PTC-300NDI Manuale utente

Manuali Telecamera di sicurezza popolari di altre marche

Okina USA

Okina USA SIR36-870VF650LP Manuale utente

Divio

Divio NDR155PA Manuale utente

Canon

Canon VB-C500D Manuale utente

Easy Access

Easy Access EasyGuard Manuale utente

Vivotek

Vivotek FD9389-EHV-v2 Manuale utente

TUYA

TUYA COSMO W2 Manuale utente

Eusso

Eusso UNC7500-IR Guida all'installazione

urmet domus

urmet domus 1096/204 Manuale utente

VC VC20 series Manuale utente

Axis

Axis Q1614 Manuale utente

ieGeek

ieGeek DD201 Manuale utente

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuale utente

Vicon

Vicon V662-D-1 Istruzioni operative

Grundig

Grundig GCH-K0274P Manuale utente

Lorex

Lorex VANTAGE LBC7032 Manuale utente

4xem

4xem WPT Manuale utente

Samsung

Samsung SCV-3082 Manuale utente

Vitek

Vitek VTC-C544 Manuale utente
