Datalux TM110 Manuale utente

EN-1

TM110

Page 2

Table of Contents

BEFORE YOU START......................................................................................4

PACKAGE CONTENTS.....................................................................................4

PRODUCT OVERVIEW ....................................................................................5

Front View ............................................................................................................. 5

Back View.............................................................................................................. 6

Bottom View .......................................................................................................... 7

Left View ............................................................................................................... 7

Right View ............................................................................................................. 8

STATUS INDICATORS.....................................................................................8

GETTING STARTED .................................................................. 9

INSTALLING THE BATTERY ...............................................................................9

Charging the Battery............................................................................................... 9

When to replace the Battery Pack ........................................................................... 10

Removing the Battery ........................................................................................... 10

CONNECTING THE POWER ............................................................................. 11

Connecting the AC Adapter .................................................................................... 11

Using Battery Power.............................................................................................. 11

STARTING YOUR TABLET PC .......................................................................... 12

Turning On Your Device......................................................................................... 12

Turning Off Your Device......................................................................................... 12

OPERATINGYOURTABLETPC.................................................... 13

USING THE QUICK MENU.............................................................................. 13

Quick Menu Overview............................................................................................ 13

Configuring the SETUP Menu Settings ..................................................................... 16

MAKING CONNECTIONS ........................................................ 21

INSTALLING THE MEMORY CARD ..................................................................... 21

INSTALLING THE SIM CARD ..........................................................................22

CONNECTING THE MICROPHONE/HEADSET ................................................................. 22

CONNECTING USB DEVICES ......................................................................... 23

CONNECTING TO WIRELESS CONNECTIONS......................................................... 24

USING THE BIOS SETUP UTILITY.......................................... 28

BIOS SETUP MENU ................................................................................... 28

MAIN MENU............................................................................................. 30

ADVANCED MENU ...................................................................................... 31

BOOT MENU ............................................................................................ 32

Page 3

SECURITY MENU........................................................................................ 33

SAVE &EXIT MENU.................................................................................... 34

APPENDIX ............................................................................. 35

REGULATORY STATEMENT.............................................................................. 35

Federal Communications Commission Statement...................................................... 35

Declaration of Conformity ...................................................................................... 35

RF exposure warning............................................................................................. 36

Canada, Industry Canada (IC) Notices..................................................................... 36

Battery Disposal ................................................................................................... 37

CLASS 1LASER PRODUCT ..................................................................................... 37

SAFETY INSTRUCTIONS ................................................................................ 39

Before You Start

Page 4

Before You Start

Congratulations on your purchase of this tablet PC.

This rugged tablet PC is portable and provides users with maximum mobile

computing experience in a wide range of working environments. Before you

begin using your tablet PC, read this chapter to familiarize yourself with the main

components installed in the system.

Package Contents

If any of following items is damaged, please contact your retailer.

Tablet PC AC adapter Power cord

NOTE

•The pictures are for reference only, actual items may slightly differ.

Battery

Before You Start

Page 5

Product Overview

Front View

No. Item Description

1 Program button Tap to enter the chosen program. (user definition)

2 Front camera Use for video conference.

3 Ambient light sensor Use to detect the current level of visible light in the

surrounding environment.

4 Microphone Record the surrounding sound.

5 Function button The button functionality can be assigned via Quick

Menu.

•Scanner button: Press to trigger the Barcode

scan function if the barcode scanner is enabled.

•Camera button: Press to take a picture.

6 Home key Tap to return to the Start screen (Windows 8 only).

Before You Start

Page 6

Back View

No. Item Description

1 Barcode scanner Scan barcodes. (OPTIONAL)

2 Camera LED flash Provide additional lighting when taking pictures

under low light environment.

3 Rear camera Use to take pictures.

4 Battery compartment Contain the battery.

5 Battery latch release

button Press and hold the button to slide the battery

latch to the unlock position.

6 Speaker Emit sound.

Before You Start

Page 7

Right View

No. Item Description

1Audio Combo jack Connect a headphone or an external speakers or

microphone.

2 USB 3.0 ports (x2) Connect USB 3.0 peripheral devices.

3 Memory card slot Use to insert memory cards to transfer pictures,

music, and data between your Tablet PC and flash

compatible devices. The card reader supports SD

(Secure Digital), SDXC, SDHC, Mini-SD (with

adapter), Micro-SD (with adapter).

4 SIM card slot Use to insert a SIM card for WWAN, Gobi 3000, or

LTE module connection.

Left View

No. Item Description

1Power button Press to turn your tablet PC on or off.

2 Brightness buttons Press "+" or "-" to adjust the LCD backlight.

3 Kensington lock slot Connect a Kensington-compatible tablet PC

security lock.

Before You Start

Page 8

Bottom View

No. Item Description

1Docking connector Connect the tablet PC to a docking station.

2 DC-in jack Connect the power adapter.

Status Indicators

The status indicators in the upper side of the tablet PC light up when a particular

function of the tablet PC is active.

Icon Item Description

Power The LED always lights on (green) when the system is

running. When the system is in sleep mode, the LED

blinks.

RF Indicate the status of RF (WLAN, WWAN, GPS, or

Bluetooth) communication. The LED always lights on

(blue) when the function is enabled.

Battery Indicate the battery status:

•Green: when battery is fully charged (95% or above)

•Orange: when battery is charging

•Flashing orange: charging error

•Red: when battery capacity is lower than 10%

•Off: when discharged

NOTE

•On Windows 8.1 OS, you need to install the Quick Menu application in order to

verify the RF signal status.

Getting Started

Page 9

Getting Started

This chapter will help you get started using the device.

Installing the Battery

To install the battery, follow the steps below:

1. Align and insert the battery to the

battery compartment.

2. Push completely until the battery locks

into place.

3. Slide the battery latch to the lock

position to secure the battery.

Charging the Battery

The Lithium-ion battery is not fully-charged upon purchase.

To charge the battery, follow the steps below:

1. Install the battery to your tablet PC. See procedures above.

2. Connect the AC adapter to the DC-in jack of your tablet PC.

3. Connect the AC adapter to the power cord.

4. Plug the power cord to an electrical outlet.

Getting Started

Page 10

When to replace the Battery Pack

The battery performance gradually decreases over time and usage. We recommend

you to replace your battery pack after 18 to 24 months of usage.

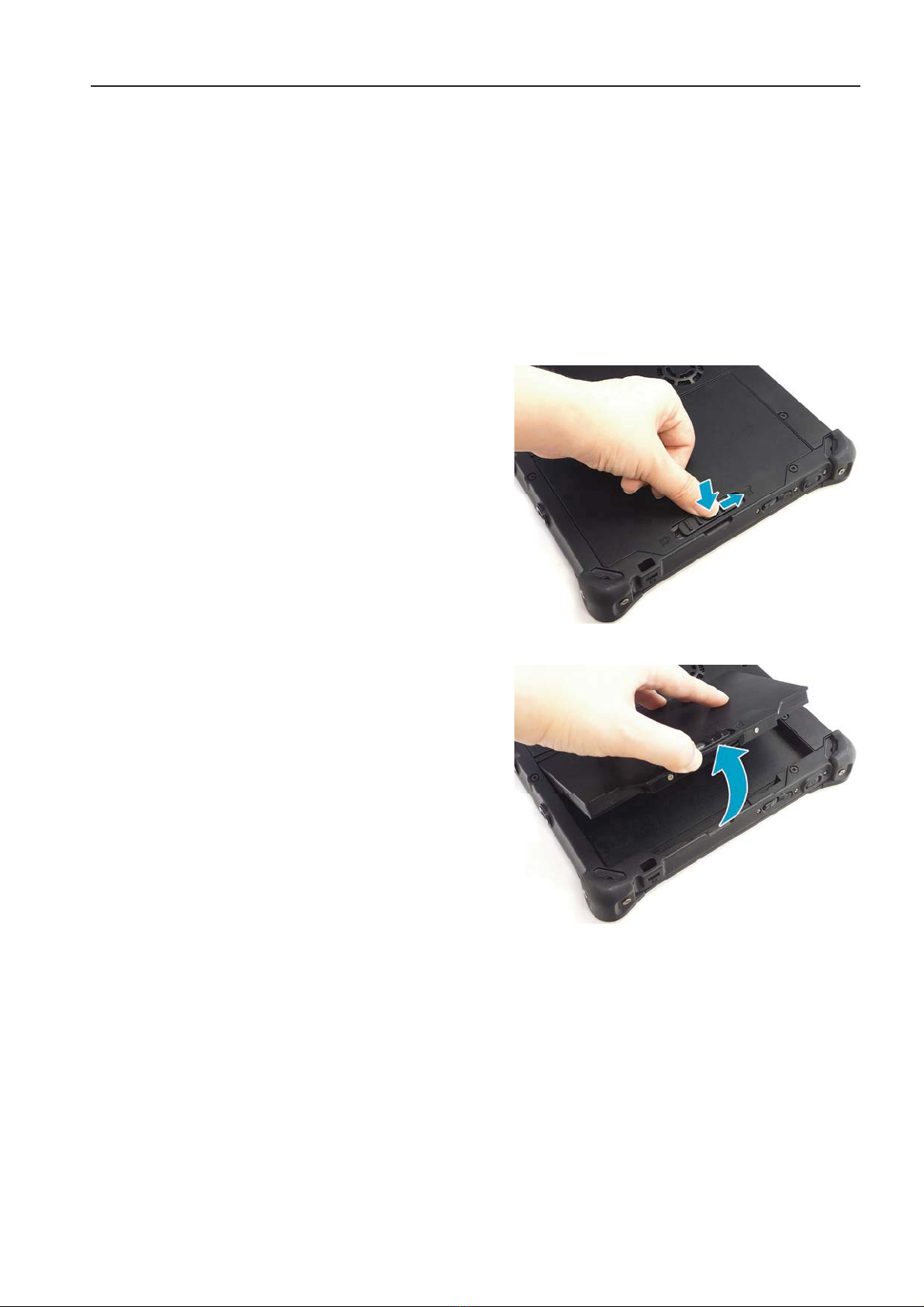

Removing the Battery

To remove the battery, follow the steps below:

1. Press and hold the battery latch release

button to slide the battery latch to the

unlock position.

2. Remove the battery out of the battery

compartment.
