GENERAL DESCRIPTION
The K-415A and K-410A-IEC are four outlet power strips in standard 19”, single height rack enclosures
that can be remotely controlled from one of Dataprobe’s many remote control systems or from any device
which can provide a simple dry contact closure or open collector control.
For the sake of clarity, both models will be referred to as K-415A in the following text.
REMOTE CONTROL CONNECTION
A 9 pin female D-subminiature connector on the K-415A connects to one of several remote control
products from Dataprobe. Each system is supplied with an interconnect cable suitable for the K-415A,
when both are purchased together. Connect this cable to the K-415A. If no cable was supplied, contact
Dataprobe for the correct cable specification.
The K-415A is factory wired to normally provide power to all the outlets. This is the default condition.
When the control cable removed, all outlets will be power On. The cable is designed to turn power OFF
when a contact closure is made by the relay in the controlling device on the appropriate pins of the control
cable.
Remote Control Power Strip
Models K-415A & K-410A-IEC
REF: PWR\K415_V980130X-081216.DOC
Model K-415A Page 2
CAUTION
Connect the K-415A to a suitable A/C source and each outlet on the K-415A to the devices to be
controlled.
The maximum current rating for all of the devices connected to the K-415A cannot add up to more than
15 amps in domestic NEMA applications, or 10 amps in International applications as determined by the
IEC connector and the line cord. See the specifications for each version on the following page.
The K-415A provides 5 indicator lamps.
POWER : Indicates that A/C power is applied to the K-415A
CIRCUIT: (CKT) Indicates which of the four outlets is ON
SPECIFICATIONS
K-415A
MAIN POWER INPUT: Standard NEMA 5-15 Plug on 6 foot 14/3 line cord -120VAC
OUTPUT CIRCUITS: Standard NEMA 5-15 Receptacle
CURRENT MAXIMUMS: 15 Amps per Receptacle
15 Amps combined total of all receptacles
K-41OA-IEC
MAIN POWER INPUT: IEC 320 Male Connector –220 -230 VAC
OUTPUT CIRCUITS: IEC 320 Receptacle
CURRENT MAXIMUMS: 10 Amps per Receptacle
10 Amps combined total of all receptacles
PHYSICAL: 1.75 H, 8.75 D 19.0 EIA Rack mount (inches)
Weight:

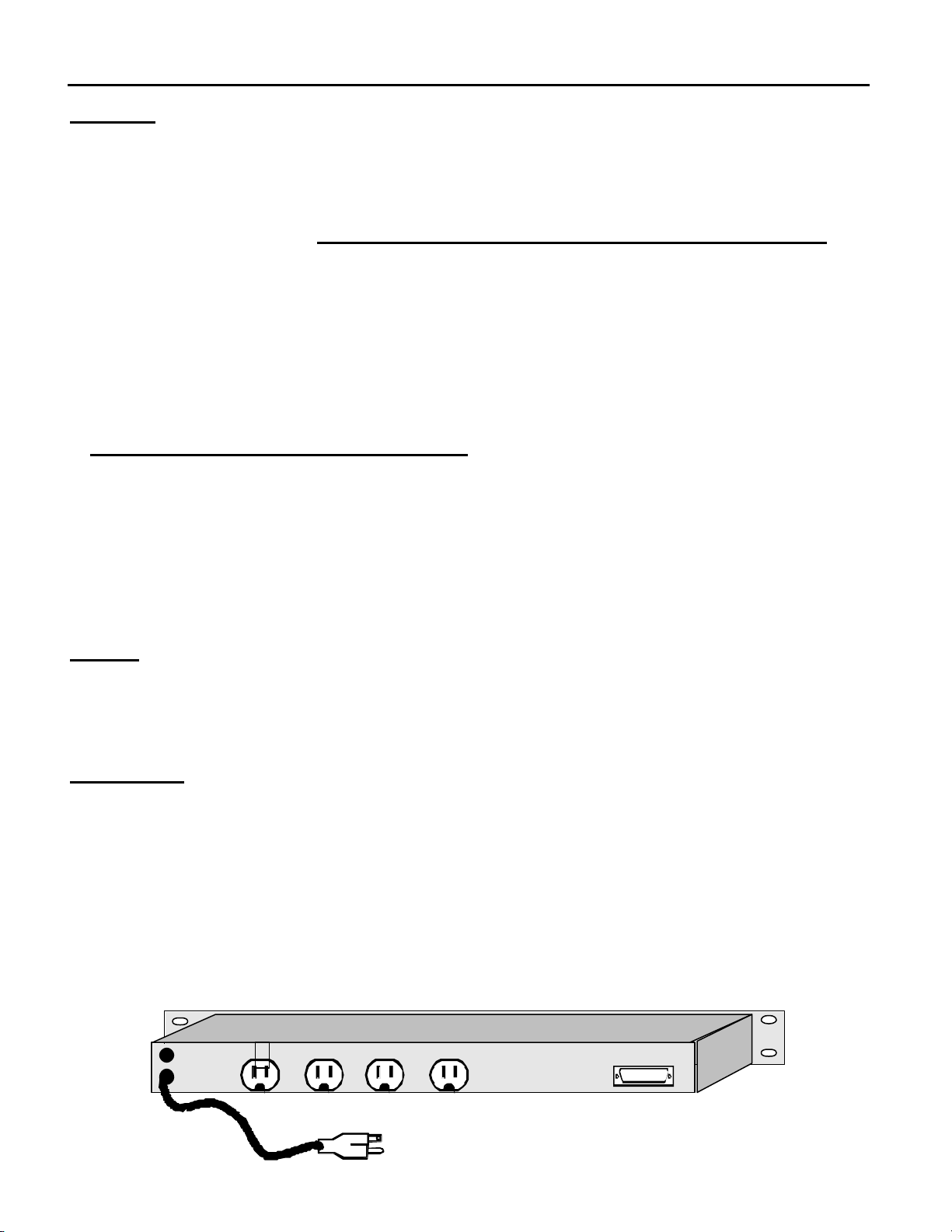

`K-415A Rear View -Standard NEMA Version
12 3 4 CONTROL
15A Fuse
CONTROL WIRING: 9 pin female d-subminiature
Contact Closure between Control to Com = Power OFF
CONTROL # PIN # FEEDBACK# PIN #
1 1 1 6
2 2 2 7
3 3 3 8
4 4 4 9
COM 5 COM 5
Model K-415A Page 3

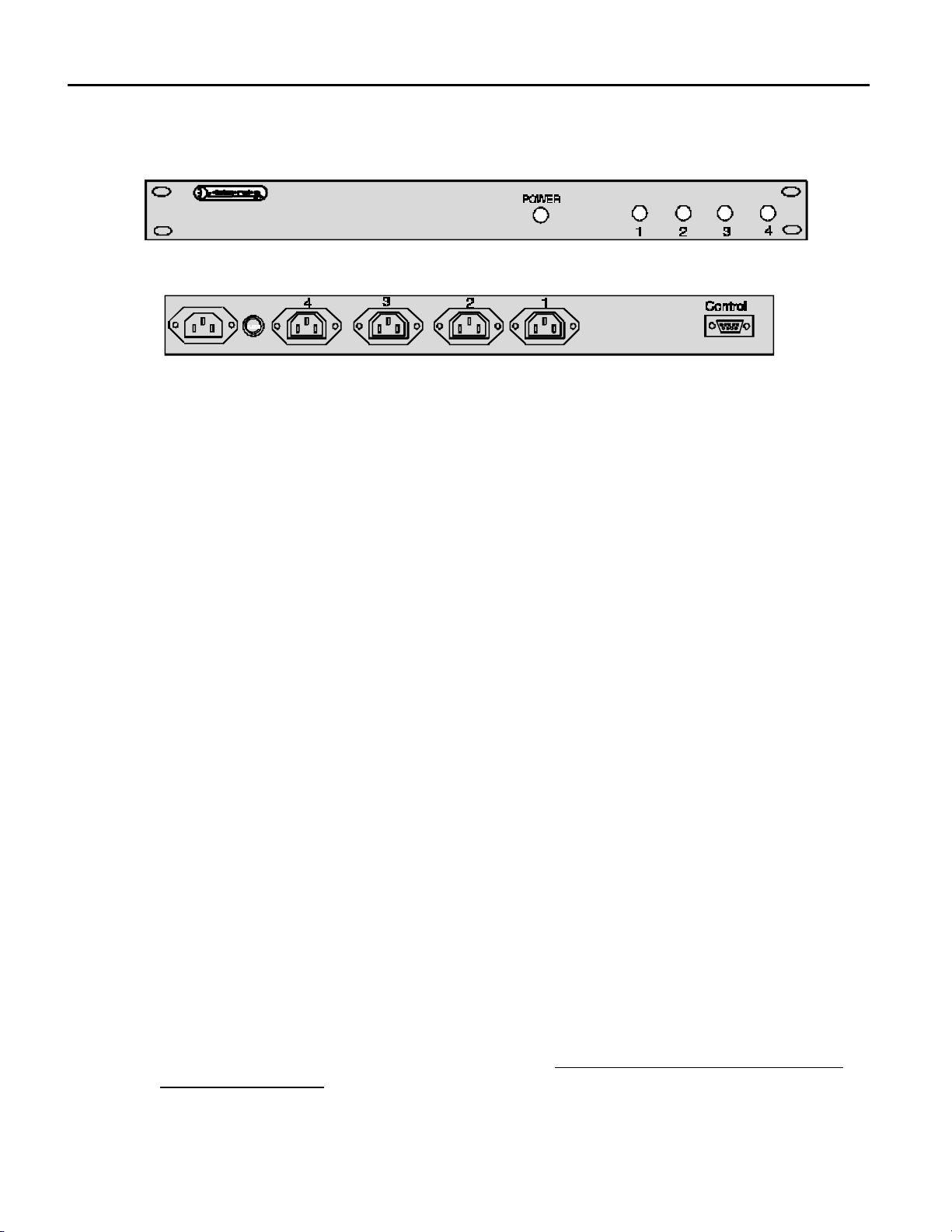

Front View
K-410A-IEC Rear View -(220V Euro version)
TECHNICAL SUPPORT, RETURNS and WARRANTY
Dataprobe Technical Support is available 8:30AM to 5:30PM ET to assist you in the installation and
operation of this product. To obtain Technical Support call our Tech Support Hotline at 201-934-5111, or
•Model of Product
•Serial Number
•Data of Purchase
Model K-415A Page 4
•Name of Seller (if other than Dataprobe)
If you purchased this product through an Authorized Dataprobe Reseller, you should contact them first,
as they may have information about the application that can more quickly answer your questions.
WARRANTY
Seller warrants this product, if used in accordance with all applicable instructions, to be free from original
defects in material and workmanship for a period of One Year from the date of initial purchase. If the
product should prove defective within that period, Seller will repair or replace the product, at its sole
discretion.
Service under this Warranty is obtained by shipping the product (with all charges prepaid) to the address
below. Seller will pay return shipping charges. Call Dataprobe Technical Service at (201) 934-5111 to
receive a Return Materials Authorization (RMA) Number prior to sending any equipment back for repair.
Include all cables, power supplies and proof of purchase with shipment.
THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM
ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTIES
OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT
PROHIBITED BY LAW, ALL IMPLIED WARRANTIES, INCLUDING ALL WARRANTIES OF
MERCHANT ABILITY OR FITNESS FOR ANY PURPOSE ARE LIMITED TO THE WARRANTY
PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCLUDES ALL INCIDENTAL
AND CONSEQUENTIAL DAMAGES.
Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow
the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions
may not apply to you. This warranty gives you specific legal rights, and you may have other rights which
vary from jurisdictions to jurisdiction.
WARNING: The individual user should take care to determine prior to use whether this device is suitable,
adequate or safe for the use intended. Since individual applications are subject to great variation, the
manufacturer makes no representation or warranty as to the suitability of fitness for any specific
application.
