DatoHome L-B201 Manuale utente
User manualL-B201
Contents
Product Functions .......................................................................................................................................................... 1
Include in the box ............................................................................................................................................................. 2
Preparing Door .................................................................................................................................................................. 3
Installing Latch and Strike .............................................................................................................................................. 4
Installing Exterior Handle ................................................................................................................................................ 5
Installing Interior Handle .................................................................................................................................................. 6
Lock Operation .................................................................................................................................................................. 7
Technical Parameters / stats ........................................................................................................................................ 9
Before installing， please scan the QR codes below to watch our easy step-by-step installation video.
If you have questions regarding the installation process please contact us by mail [email protected]
or by phone (929)336-6777.
1
Product Functions
Need Help? Contact Customer Support
Visit: https://www.datoaihome.com/pages/technical-support.
Email: [email protected].
LED Indicator
Setting button
Fingerprint identification
Mode switching button
MicroUSB Emergency
power interface Key Unlocking
2
Include in the box
User manual
LatchRear handle Rubber GasketStrike parts
Screws A x4 Keys & Key hole
cover pin
Screws B x4
Front handle
Need Help? Contact Customer Support
Visit: https://www.datoaihome.com/pages/technical-support.
Email: [email protected].
(60mm)
2"
38
/
(70mm)
2"
34
/
User manualL-B201
Preparing Door
Check the door﹂s dimensions
3
Step 1: Measure to confirm that the door is between (35mm~55mm) thick
Step 2: Measure to confirm that the hole in the door is 2﹄(55 mm)
Step 3: Measure to confirm that the backset is either - (60-70mm)
Step 4: Measure to confirm that the hole in the door edge is 1﹄ (25 mm)
Need Help? Contact Customer Support
Visit: https://www.datoaihome.com/pages/technical-support.
Email: [email protected].
（35~55mm）
(25mm)
118
＂２
＂
～
（70mm）
２
３
４
＂
（60mm）
２
３
８
＂
（55mm）
２
＂
or
1
＂
2"
38
/
2"
34
/
118
＂２
＂
～
Installing Latch and Strike Plate
1. Install latch on the door. Make sure the latch angle faces door jamb.
2.Install the strike on the door frame， ensuring you allow for the bolt to be centered in the strike.
Screws for strike plate
Angle faces jamb
Adjust the latch
basket lenght
60 OR 70mm
4
Need Help? Contact Customer Support
Visit: https://www.datoaihome.com/pages/technical-support.
Email: [email protected].
Installing Exterior Handle
Remember to attach rubber gasket to handle before insertion.
5
Need Help? Contact Customer Support
Visit: https://www.datoaihome.com/pages/technical-support.
Email: [email protected].
Cable
Spindle
Connecting screws
Rubber gasket
Installing Interior Handle
1. Connect the cable from inside spindle of exterior handle with interior handle.
2. Insert interior handle into door， secure it using screw B into the exterior handle.
6
Need Help? Contact Customer Support
Visit: https://www.datoaihome.com/pages/technical-support.
Email: [email protected].
7
Lock Operation
Use a microfiber cloth and wipe across the fingerprint reader surface.
NOTE: THE FIRST 2 FINGERPRINTS ADDED ARE ADMINISTRATOR. When 2 admin-user fingerprints have been
collected， adding new fingerprints will prompt normal-user fingerprint collection.
① Adding fingerprints
Method 1: Use pin to press the ﹃settings-button﹄ on the interior handle shortly. You﹂ll be asked to scan your
fingerprint. Scan your fingerprint 6 times in sequence. Upon completion， LED will light blue for 2 seconds
and lock will prompt ﹃Addition Success﹄
Method 2: Hold your fingerprint to scanner for about 10 seconds until you hear ﹃add administrator fingerprint﹄. Scan
new fingerprint 6 times. Upon completion， LED will light blue for 2 seconds and lock will prompt ﹃Addition
Success﹄.
* Please note the following factors may affect the fingerprint identification.
1. Fingers are too dry， wet， oily or dirty.
2.There is direct sunlight on the sensor.

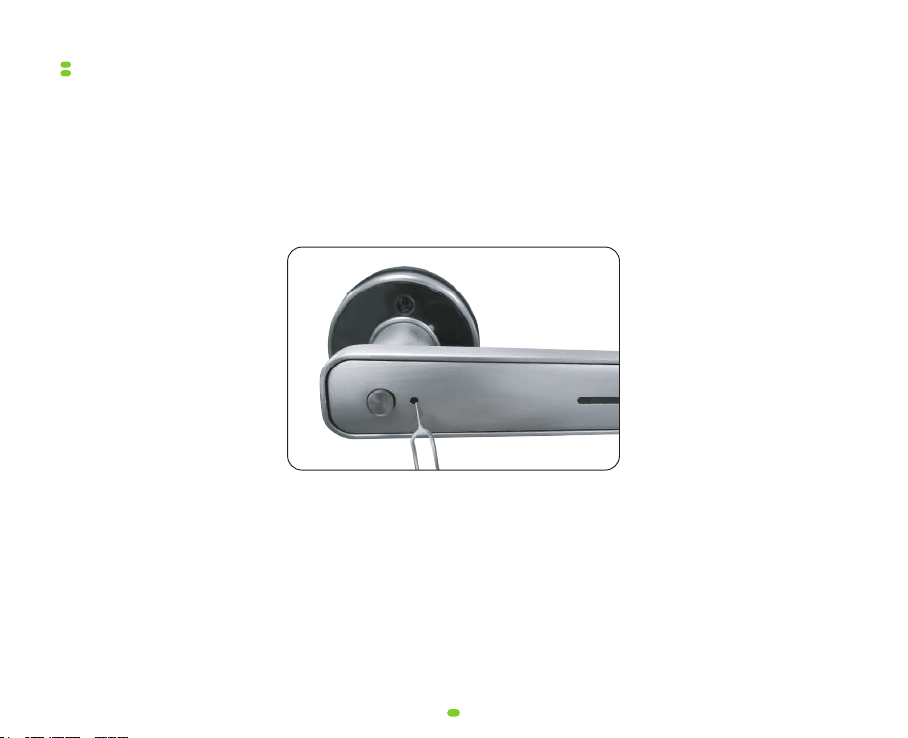

Pin pressing the setting button
8
Visit: https://www.datoaihome.com/pages/technical-support
Service line : (929)336-6777
Email: [email protected]
Please don﹂t return it to the store
let us help you first
② Passage mode
In passage mode the lock will will stay unlocked for convenient free passage.
Enable Passage Mode
Method 1: Press the mode-switching button on the interior handle to change between modes.
Method 2: Admin scans fingerprint for 17 seconds until you hear﹄set to normally open﹄. LED light flashes 3 times.
Lift finger.
Disable Passage Mode
Press the mode-switching button on the interior handle to change between modes.
③ Delete all fingerprints (Factory Reset)
Use pin to hold press the pin-button on the interior handle for 5-6 seconds. After prompting ﹃initialization
success﹄ the lock has been reset and ALL FINGERPRINTS (INCLUDING ADMINS).
④ Additional Information & notices
a. Upon failed fingerprint verification， LED flashes red for 4 seconds.
b. Upon timed out or abnormal operation， LED lights for 2 seconds.
c. Please take care of your keys and always have a method to open your door.
d. If the fingerprint scanner fails to recognize your fingerprints， try to wipe the scanner and your fingers.
