Davis Instruments DRIVERIGHT 600 Manuale utente

Product # 8156GD, 8156HD, 8156VSS & 8156VF

DR600B Cover D004.fm Page 1 Wednesday, March 26, 2003 9:52 AM

Product Numbers: 8156GD, 8156HD, 8156VSS & 8156VF

Davis Instruments Part Number: 7395.192

DriveRight 600 User’s Guide

Rev. B Manual (March 26, 2003)

This product complies with the essential protection requirements of the EC EMC Directive 89/336/

EC.

DriveRight is a registered trademark of Davis Instruments Corp. Windows is a trademark of Microsoft

Corporation.

One Year Limited Warranty

We warrant our products to be free of defects in material and workmanship for one year from date of origi-

nal purchase. We make every effort to carefully manufacture our products to the highest standards of qual-

ity. Occasionally, however, parts may be missing, defective, or damaged.

If you have a defective part, please call 1-510-732-7814 for authorization before returning the item for repair

or replacement. Upon receiving authorization, return the product to us, shipping charges prepaid. Include

proof of purchase and a written explanation of the problem. During the warranty period, we will, at our

option, either repair or replace the product free of charge.

This warranty does not cover damage due to improper installation or use, negligence, accident, unautho-

rized service, or the incidental or consequential damages beyond the Davis products themselves. Implied

warranties are limited in duration to the life of this limited warranty. Some states do not allow limitations on

how long an implied warranty lasts, or the exclusion or limitation of incidental and consequential damages,

so the above limitations may not apply to you. This warranty gives you specific legal rights. You may have

other rights, which vary from state to state.

FCC Part 15 Class B Registration Warning

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful inter-

ference in a residential installation. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may cause harmful interference to

radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by turning the

equipment on and off, the user is encouraged to try to correct the interference by one or more of the follow-

ing measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is con-

nected.

• Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved in writing by Davis Instruments may void the user's

authority to operate this equipment.

DR600B Cover D004.fm Page 2 Wednesday, March 26, 2003 9:52 AM

TABLE OF CONTENTS

INTRODUCTION TO THE DRIVERIGHT 600 .........................................................1

A Note About the Concept of “Trips“ ...........................................................................1

A Word About Safe Use ..............................................................................................1

DriveRight Vehicle Management Software .................................................................2

USING THE DRIVERIGHT 600 ...........................................................................3

Using the Four Buttons ...............................................................................................3

Changing Units of Measure ........................................................................................3

The Data Screens .......................................................................................................4

The Settings Screens .................................................................................................5

CALIBRATING THE DRIVERIGHT 600 ................................................................6

Calibrating from the Software (VSS & VF Only) .........................................................6

Calibration Using the Speedometer ............................................................................6

Calibration Using the Odometer .................................................................................8

DATA SCREENS ............................................................................................10

Current Readings Screen .........................................................................................10

Driver ID Code Entry & Digital Input Status Screen ..................................................11

Driver ID Code ..........................................................................................................12

Two Digital Inputs .....................................................................................................13

Activity Indicator ........................................................................................................13

Trip Start/End Log Screen ........................................................................................13

Trip Speed and Distance Log Screen .......................................................................14

Trip Acceleration/Deceleration Log Screen ..............................................................15

GPS Latitude and Longitude Position Screens .........................................................16

Odometer Screen .....................................................................................................17

Limits Screen ............................................................................................................17

SETTINGS SCREENS ......................................................................................18

Security Code Screen ...............................................................................................18

Clear Log Screen ......................................................................................................19

Alarm On/Off Screen ................................................................................................20

Calibration Screen ....................................................................................................21

Limit and Unit Settings Screen .................................................................................21

Time Entry ................................................................................................................22

Date Entry .................................................................................................................22

Year Entry .................................................................................................................23

MISCELLANEOUS INFORMATION .....................................................................23

Accident Log .............................................................................................................23

Tamper Log ..............................................................................................................24

Battery Operation ......................................................................................................24

Battery Life ...............................................................................................................26

Display Lamp ............................................................................................................26

Restarting the DriveRight 600 ...................................................................................26

TROUBLESHOOTING GUIDE ...........................................................................27

Contacting Davis Technical Support .........................................................................29

TECHNICAL SPECIFICATIONS .........................................................................30

INTRODUCTION TO THE DRIVERIGHT 600

The DriveRight 600, in conjunction with the DriveRight Vehicle Man-

agement Software, provides advanced vehicle safety and use monitor-

ing capabilities as well as comprehensive fleet management

capabilities. This manual explains how to use the DriveRight 600 dis-

play unit to view information.

NOTE: Altering the DriveRight 600’s limits, deleting trip information, and

calibrating the DriveRight 600 require entry of a security code

before changes may be made.

A Note About the Concept of “Trips“

Much of the data stored and displayed by the DriveRight 600 is stored

and displayed by “trip.” For example, you may view the maximum

speed or the time spent driving over the set speed limit during a single

trip. You may page back and forth through all of the trips stored in the

DriveRight 600’s memory.

Stored in the DriveRight 600 is a “trip stop time” which represents the

amount of time for which the vehicle must be stopped before the Driv-

eRight 600 ends the current trip. The default trip stop time is 5 minutes

(this setting may be altered using the DriveRight Vehicle Management

Software). Whenever the vehicle is not in motion for an amount of time

equal to the trip stop time, the DriveRight 600 saves the current trip

data to memory and begins a new trip (this new trip will remain blank

until the vehicle begins moving again).

NOTE: The DriveRight 600 also saves the current trip data whenever a

driver “logs out” (see “Driver ID Code Entry & Digital Input Status

Screen” on page 11).

A Word About Safe Use

It goes without saying that you should never attempt to change the

DriveRight 600 display while you are driving. Safe driving requires

extreme attentiveness. Changing the DriveRight 600 display while

driving may result in dangerous distraction. Only use the unit when

you are not operating your vehicle.

In addition, always warn drivers about the DriveRight 600’s alarms. If

an alarm sounds, a driver who has not been warned may be startled or

get distracted trying to trace the source of the noise. In either case, it

may create a safety concern, so warn drivers in advance.

DR600 UG Rev B D008.fm Page 1 Thursday, April 17, 2003 7:17 AM

DriveRight Vehicle Management Software

The DriveRight Vehicle Management Software enables more

detailed tracking of vehicle usage and access to some additional fea-

tures of the DriveRight 600. The following is a list of the DriveRight

600 features which may only be accessed using the software.

❏View information contained in the “accident log”

❏View tamper information

❏Enter or change the odometer reading or the odometer read-

ing’s unit of measure

❏Set login alarm

❏Set trip stop time

❏Download up to 100 authorized driver ID codes.

❏View trip type information

Although you may specify the type of trip using the Driv-

eRight 600 display unit, you must have the software to

view trip type information.

❏Configure GPS

Requires optional DriveRight 600 GPS module, #8157.

DR600 UG Rev B D008.fm Page 2 Thursday, April 17, 2003 7:17 AM

USING THE DRIVERIGHT 600

This section briefly describes the use of the DriveRight 600 display

unit. The use of the four buttons (PLUS, MINUS, MODE, SET/

CLEAR) and the sequence of data screens and settings screens is

explained. Descriptions of the information and options available from

each screen are explained separately in “Data Screens” starting on

page 10 and “Settings Screens” starting on page 18.

Using the Four Buttons

The DriveRight 600 has four buttons: PLUS, MINUS, MODE, and

SET/CLEAR. The general use of each button is explained briefly

below:

❏PLUS/MINUS

When a digit or segment (e.g., MPH or KPH) is flashing, use

the PLUS and MINUS keys to scroll forward or backward

(respectively) through the available options (usually 0 to 9).

When viewing any logged trip information screen, use the PLUS

and MINUS keys to page forward or backward (respectively)

through the stored trips.

❏SET/CLEAR

When entering codes or setting limits, the flashing digit/seg-

ment indicates what will change if PLUS or MINUS is

pressed. Pressing and releasing SET/CLEAR causes the next

digit/segment to begin flashing.

From the Driver ID Code screen, press and hold SET/CLEAR (for

at least 2 seconds) to “log out.” The driver ID code is reset to 0000.

❏MODE

Press and release MODE to move to the next data or informa-

tion screen.

Press and hold MODE to switch between the group of data screens

and the group of settings screens.

When the unit is in sleep mode, press MODE to “wake” the unit up.

Changing Units of Measure

To change units of measure, press and hold SET/CLEAR for at least 2

seconds while viewing the Current Readings screen. You may also

change units from the Limit and Units Settings screen by pressing

SET/CLEAR until either the km/h or MPH segment is flashing, and

then pressing PLUS to toggle between the two units of measure.

You may change the date display format from the Date Entry screen

and the time display format from the Time Entry screen.

DR600 UG Rev B D008.fm Page 3 Thursday, April 17, 2003 7:17 AM

The Data Screens

The data screens enable you to view most of the information stored

by the DriveRight 600. To cycle through the data screens (in the

order shown below), press and release MODE.

NOTE: To view the settings screens, press and hold MODE until the

Security Code Entry screen appears.

NOTE: The GPS Latitude and Longitude screens are not displayed if

the DriveRight console is not connected to a vehicle.

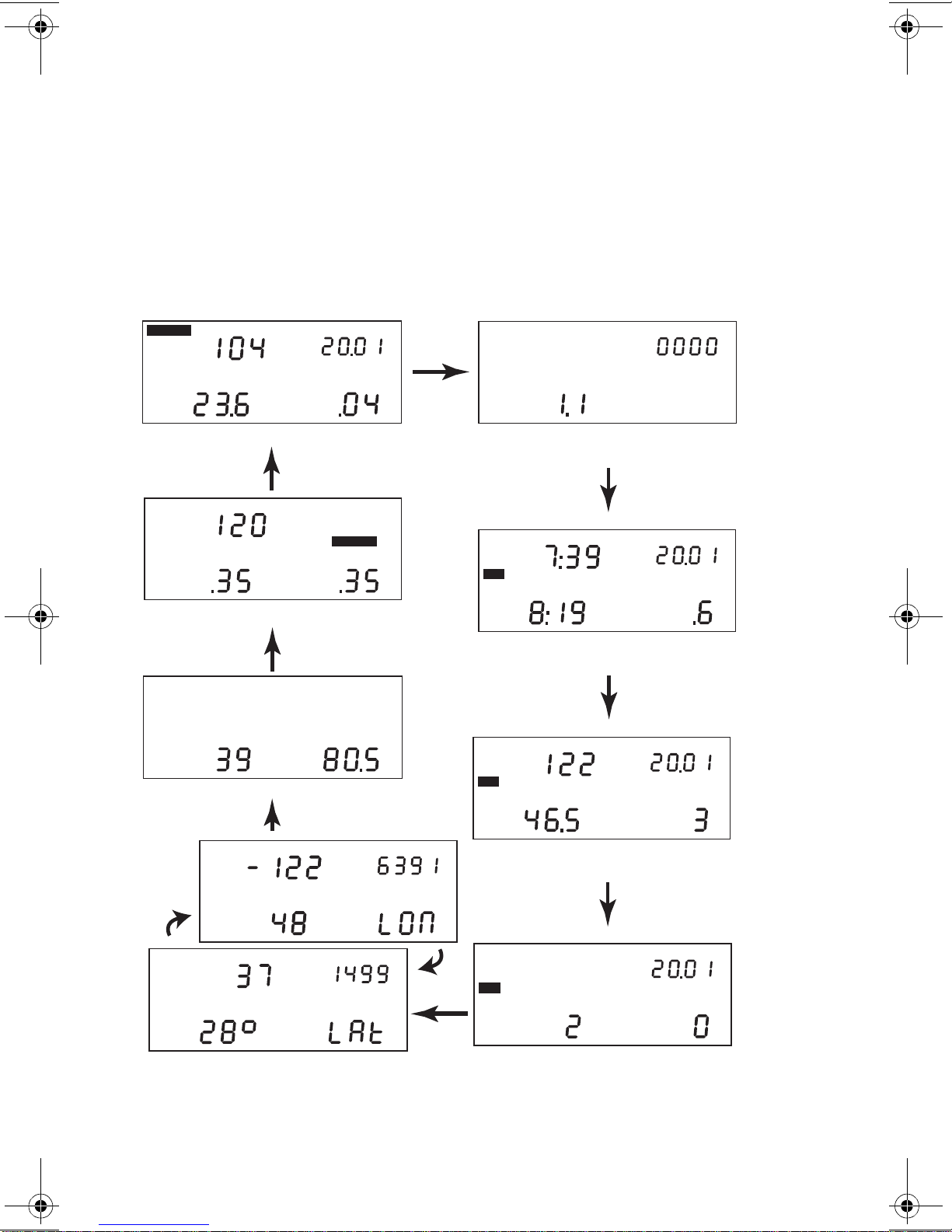

DriveRight 600 Data Screens

Current Readings

Odometer

Trip Speed and Distance Log

Trip Acceleration/Deceleration Log

Trip Start/End Log

Limits

GPS Latitude and Longitude

Driver ID Entry

DR600 UG Rev B D008.fm Page 4 Thursday, April 17, 2003 7:17 AM

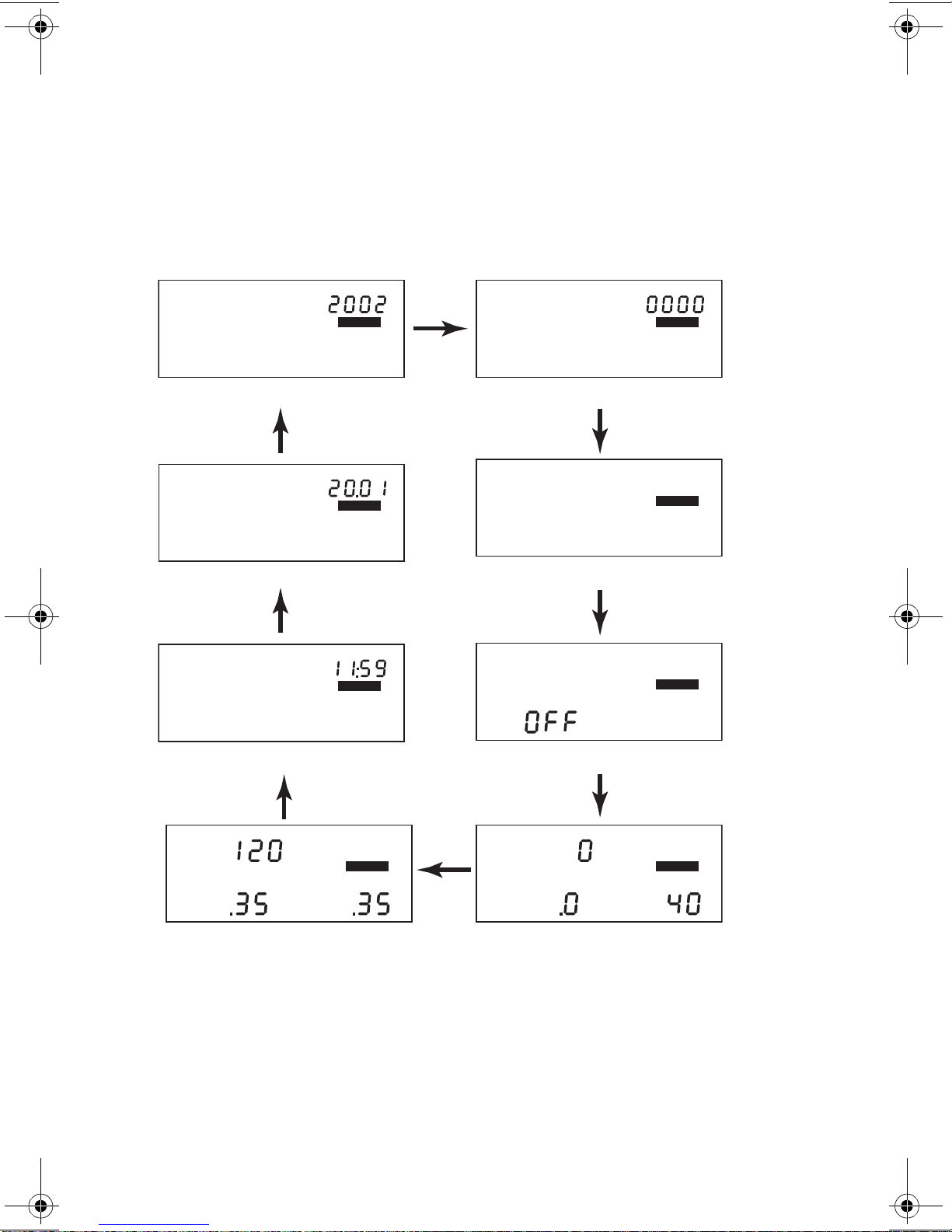

The Settings Screens

To access the settings screens, press and hold MODE while viewing any

of the data screens. After a few seconds, the Security Code screen will

appear. To cycle through the settings screens (in the order shown below),

press and release MODE.

NOTE: To view the data screens, press and hold MODE until the Current

Readings screen appears.

DriveRight 600 Settings Screens

Alarm On/Off

Security Code

Clear Log

Date Entry

Year Entry

Time Entry

Limit and Units Settings

Calibration

DR600 UG Rev B D008.fm Page 5 Thursday, April 17, 2003 7:17 AM

CALIBRATING THE DRIVERIGHT 600

You must calibrate the unit before it will report the correct speed,

distance, deceleration, and acceleration. Calibration adjusts the unit

to work properly with your vehicle’s VSS signal or with the vehi-

cle’s differential and tire size.

Calibrating from the Software (VSS & VF Only)

If you have the DriveRight Fleet Management Software or DriveRi-

ght Vehicle Management Software and a VSS or VF DriveRight 600,

you may quickly and accurately calibrate the unit using the soft-

ware, provided you know the pulses per mile used by your vehicle’s

VSS (vehicle speed sensor).

❏Contact your dealer’s service department for the pulses per

mile used by your vehicle’s VSS.

❏Instructions on calibrating the DriveRight 600 using the soft-

ware can be found in the software help.

Calibration Using the Speedometer

In order to calibrate using the speedometer, you must drive steadily

at 40 km/h (25 MPH) and press a button on the DriveRight 600. The

DriveRight 600 bases its calibration on the speed of the vehicle at the

moment of calibration which it assumes to be 40 km/h (25 MPH).

Because of the nature of this calibration procedure, we strongly rec-

ommend that it be performed by two people: one to drive the vehi-

cle and one to operate the DriveRight 600.

NOTE: If you have entered a security code, you will need to enter that

code before the DriveRight 600 will allow access to the calibra-

tion screen.

1. Press and hold MODE to access the settings screens.

2. Press and release MODE until the Calibration screen appears.

The calibration speed (40 or 25) appears at the bottom right of the dis-

play. The uncalibrated speed reading appears at the top of the display,

along with the unit of measure (km/h or MPH). Note that until you

calibrate the DriveRight 600 this speed reading will be inaccurate.

The distance, which appears in the lower left of the display, is not nec-

essary for this calibration procedure

DR600 UG Rev B D008.fm Page 6 Thursday, April 17, 2003 7:17 AM

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Davis Instruments Elettronica per automobili

Davis Instruments

Davis Instruments DriveRight 600E VSS Manuale utente

Manuali Elettronica per automobili popolari di altre marche

GoldCruise

GoldCruise GC90Ci Manuale utente

DRG

DRG LC 120 Manuale utente

Blue Ox

Blue Ox BX8848 Manuale utente

Dometic

Dometic MAGICWATCH MWE890K Manuale utente

Perfect Power

Perfect Power SMT8-T5 Manuale utente

Honeywell

Honeywell Thor VM3A Manuale utente

Waeco

Waeco MagicWatch MWE250 Manuale utente

Rydeen

Rydeen BKM091 Manuale utente

Skoda

Skoda 5E0 054 630 Manuale utente

VDO

VDO SENDER UNIT 2159-0 Manuale utente

iDataLink

iDataLink maestro Rr Manuale utente

Audiovox

Audiovox PRO-PDA15 Manuale utente

Movon

Movon MDAS-3LFFHD Manuale utente

Pioneer

Pioneer Comfort adapter CA-D-PI.150 Manuale utente

Dietz

Dietz 1110 Manuale utente

Crux

Crux RVCFD-79 Manuale utente

Nonda

Nonda ZUS Manuale utente

iDataLink

iDataLink Maestro Manuale utente
