DaytonAudio TABB-26 Manuale utente
Twin Pairing Bluetooth 5.0
2 x 6W Amp Board with
26650 Battery Holder/Charger
9 8 7
1
2 3 4 5
6
L-
L+
R+
R-
© Dayton Audio®
daytonaudio.com

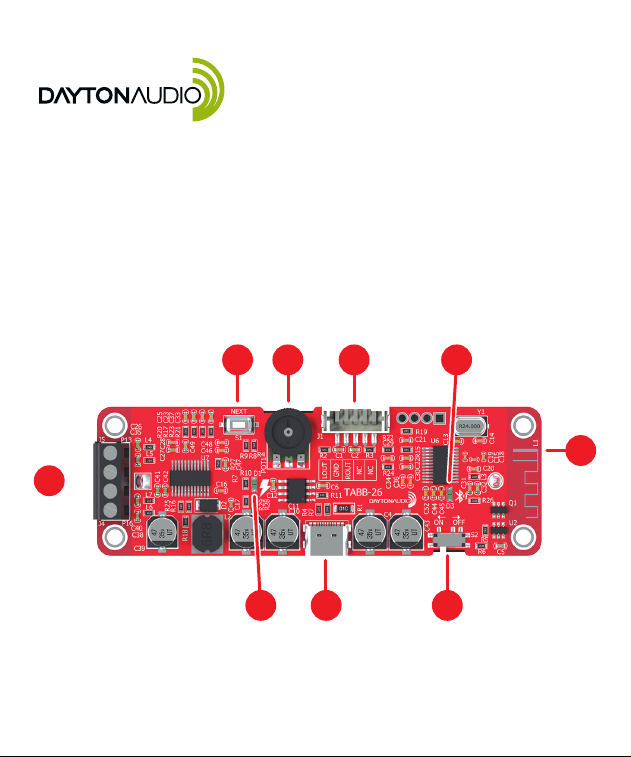

Quick Start Wiring Guide
Model: TABB-26
1. Speaker Output 5. Bluetooth LED
2. Twin Pairing Switch 6. Onboard Bluetooth Antenna
with Another Like Board 7. Power Switch
3. Volume Control 8. USB-C 5 VDC Power Input
4. Line Output Port 9. Charging LED
Pairing Instructions
1. Pair with your Bluetooth device
a. Turn on the TABB. The Blue light starts flashing.
Note: You must plug in a USB-C charging cable after installing or
reinstalling the battery.
b. Look for DATABB on your Bluetooth device and select it.
c. The Blue light will stop flashing when paired.
2. Pairing two TABBs together to get right and left channel separation.
a. Connect speaker wire to the left channel of the master board and
right channel of the slave board.
b. Play wireless music through the master board that you’ve already
paired to.
c. Turn the slave board on and the blue light starts flashing. Check
Note: 1. a. if not.
d. Hold the # 2 Twin Pairing Switch down on the master board until
it beeps.
e. Press the # 2 Twin Pairing Switch until you hear a chime sound.
f. Make sure the volume is up on both boards and enjoy stereo
separation up to 40 ft.
g. They’re permanently paired even after powering off.
h. To pair with the slave by itself turn the master off and wait for the
blue light on the slave to flash. Scan for the slave on your Bluetooth
device and select the new DATABB.
Note: With a speaker hooked up you’ll also hear a beep when pairing
starts and when pairing is successful to your device.
Twin Pairing Bluetooth 5.0
2 x 6W Amp Board with
26650 Battery Holder/Charger
© Dayton Audio®
daytonaudio.com
Quick Start Wiring Guide
Model: TABB-26
