DaytonAudio TT25-8 Manuale utente
PUCK™ TACTILE
TRANSDUCER MINI
BASS SHAKER
Model: TT25-8 / TT25-16
User Manual
Overview: The Dayton Audio PUCK™ is a small tactile transducer intended
to be used in Home Theater, Gaming, and Auto Sound applications. Its unique
ability to transfer low frequency sound waves directly to the listener is achieved
by mounting the PUCK™ to surface areas that a listener's body will come into
contact with. Because the listener "feels" the low frequency, the volume of the
overall sound can be kept to a minimum without sacrificing the audio quality.

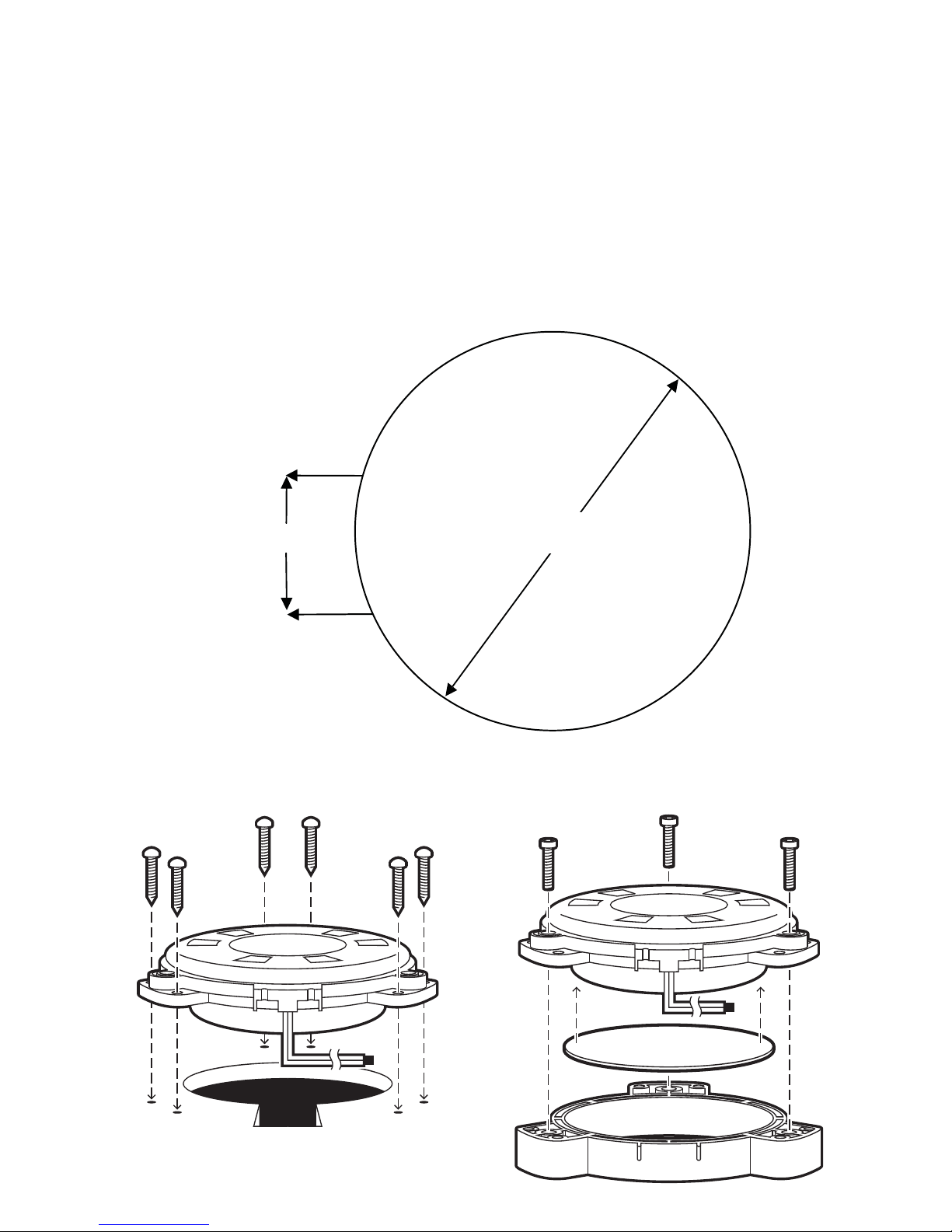

Mounting: The PUCK™ is designed to nest into a 70 mm hole (with notch area
for wiring). Please use the template below for a suggested hole cut.
Surface mounting ring: For applications where cutting a hole is not desired, an
optional surface mounting ring (SMRK) is available.
Use six #6 wood or sheet metal
Screws to mount on surface
Optional surface mounting ring
(SMRK)
Optional cut-out mounting
25 mm
12 mm
70 m
Hole Template
Notch
Area
m
70 mm

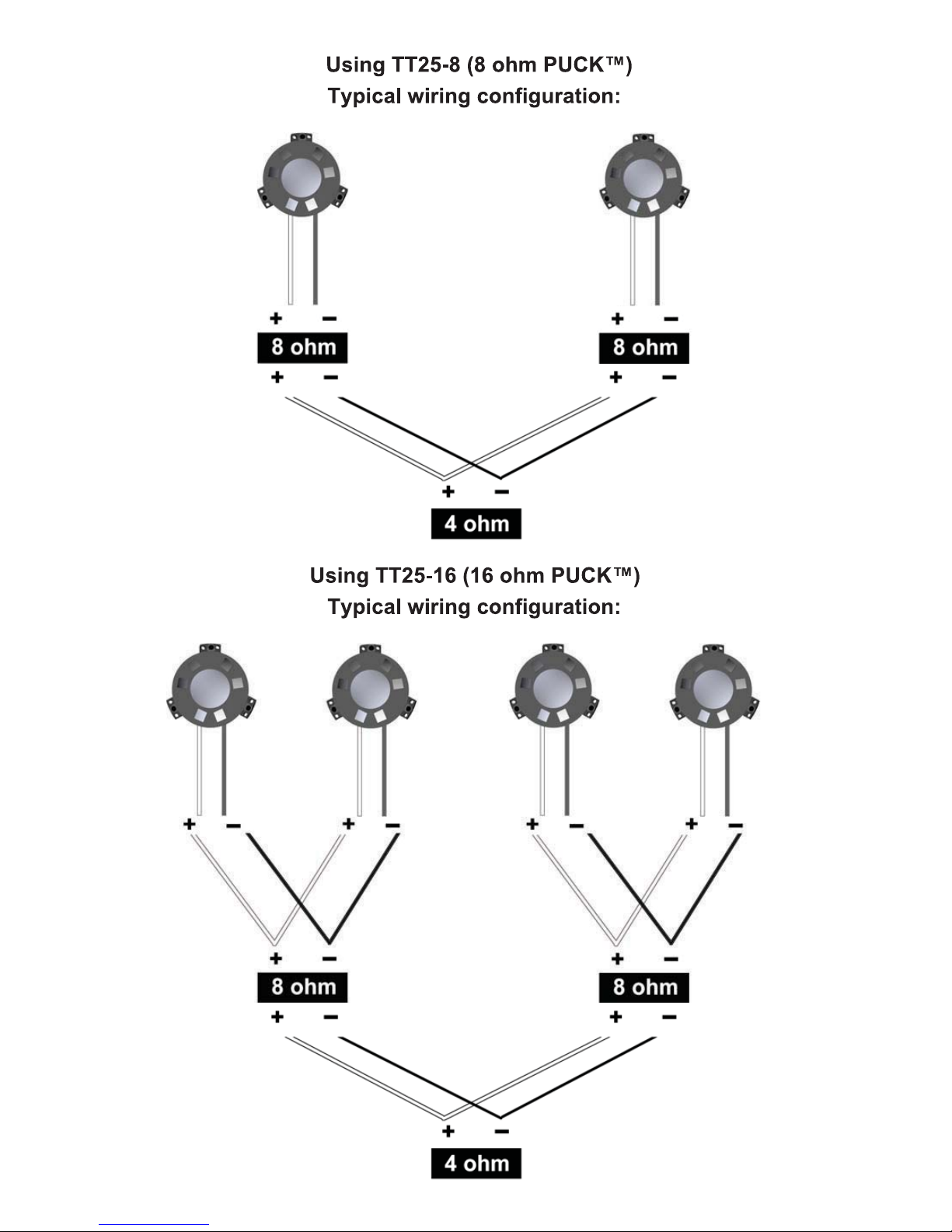

STEREO
8 ohm
Right / Left
2-Channel Wiring
STEREO
8 ohm
Right / Left
2-Channel Wiring
4 ohm
1-Channel Wiring
MONO
4 ohm
1-Channel Wiring
MONO
Dayton Audio®Last Revised: 8/5/2016
daytonaudio.com
tel + 937.743.8248
info@daytonaudio.com
705 Pleasant Valley Dr.
Springboro, OH 45066
USA
Specifications
Wiring:
• Use standard wire nuts to join wires
• If possible, always pre-wire prior to permanent mounting
• Verify and match the impedance of any receiver/amplifier shown in the
wiring configuration diagrams
• Should you have any questions regarding wiring or installation, contact
your place of purchase
Model number TT25-8 TT25-16
Power handling (RMS/Peak) 20/30 20/30
Impedance 8 ohm 16 ohm
Frequency response (Hz) 20-80 20-80
Fs (Hz) 40 40
Force Peak (lbs./ft.)* 30 30
Dimensions Diameter x H (in) 3-1/2" dia x 1" H 3-1/2" dia x 1" H
Cut-out size (in) 70 mm dia. with 25 mm slot 70 mm dia. with 25 mm slot
* When used in four PUCK configuration
Warranty Information
Dayton Audio products are warranted free from defects in material and workmanship for 5 years from date of
purchase (see exceptions below). In the rare case of a product failure, please contact your place of purchase
or call our Customer Support Department at (937) 743-8248.
Warranty Limitations
There are no other warranties, either express or implied, that extend the foregoing, and there are no warranties
of merchantability or fitness for any particular purpose. Dayton Audio is not responsible for any consequential
on inconsequential damage to any other unit or component or the cost for installation or extraction of any
component of the audio system, or for the improper use of products. This includes but is not limited to burnt
voice coils, overheating, bent frames, holes in the cone, or broken lead wires. Warranty does not apply to
misuse, abuse, neglect, accident, improper use, etc. Dayton Audio reserves the right to repair or replace the
products with either a new or factory refurbished unit.
Exception: Dayton Audio HDMI Cables -- No registration, no questions asked LIFETIME warranty.
Replacement of Dayton Audio HDMI cables is with equal or better quality HDMI cables. Unassembled Kits - A
45-day return policy applies to unassembled kits. Once assembly has been started or completed, kits are
deemed used and are nonreturnable for refund/exchange. This does not limit the manufacturers' warranty
policies on any kit component.
This warranty gives you specific legal rights and you may also have other rights that vary from state to state.
Non-Warranty Service: If non-warranty service is required, the product may be sent to the Company for
repair/replacement, transportation prepaid, by calling (937) 743-8248 for details, complete instructions, and
service fee charges.
