QDJ210WP

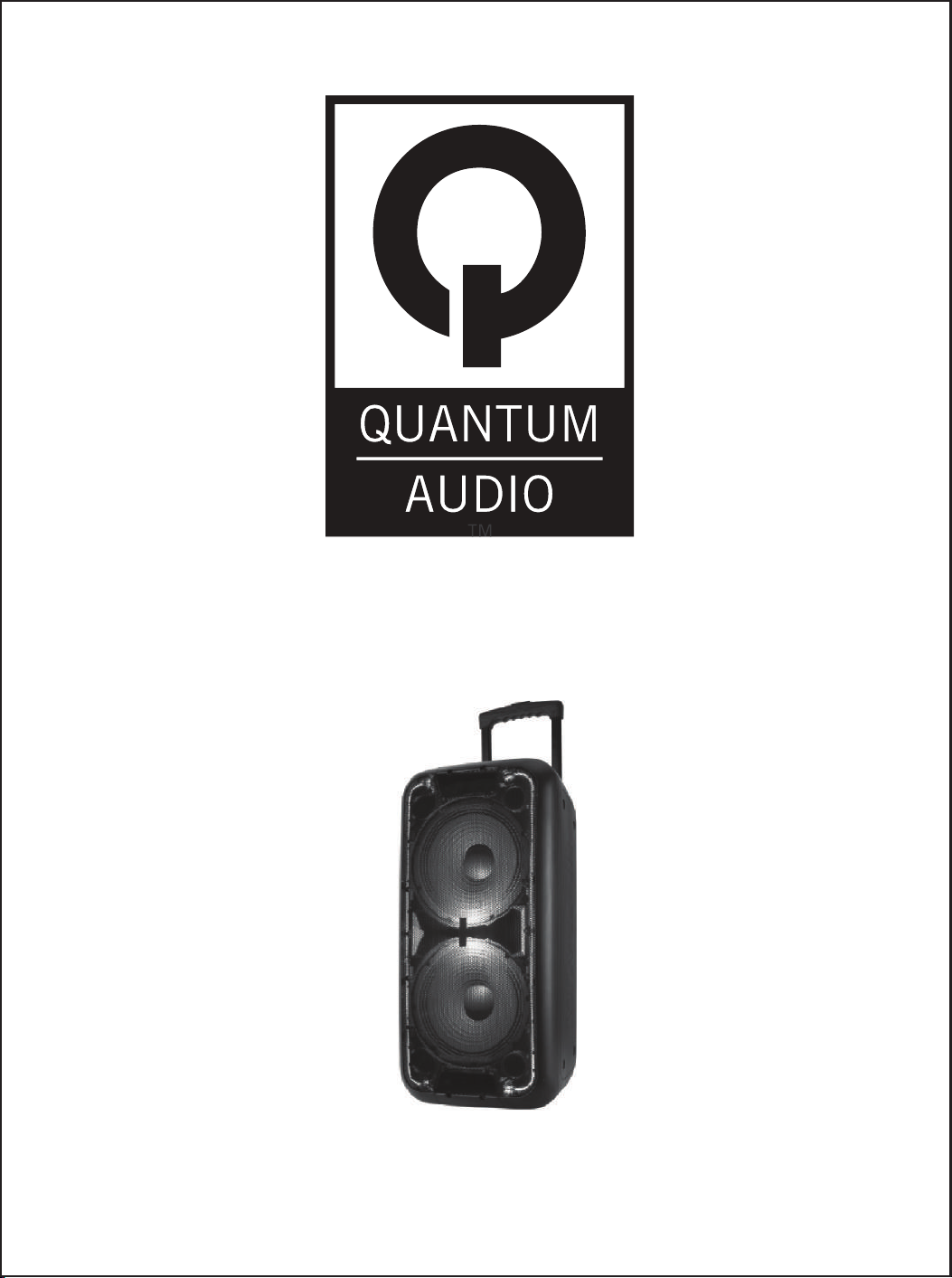

DUAL 10” PORTABLE SPEAKER SYSTEM
Instruction Manual
Please read this user manual carefully before system connection
KEEP YOUR SALES RECEIPT
1. Warning: Do not open the unit case, damage to the internal circuits could
result from doing so. There are no user serviceable parts inside. Failure to
comply with this warning will result in warranty being void.
2. Ventilation: for proper operation the unit must have at least 12 inches of
ventilation space around all sides. Do not enclose the unit with any type of
material as this could cause the power amplifier to overheat and could result
in failure.
3. When handling the power charging cord, use special care to handle the
plug firmly. Do not pull from any other location other than the plug ends.
4. If the unit is not operating properly, it may require service. For service,
please contact the establishment it was purchased from.
Take this time to attach your sales receipt to the manual and put in a safe
place. In case of and unforeseen reason this product may need warranty
service, your receipt will be necessary to establish a purchase date.
Congratulations on your purchase of a Quantum Audio DJ speaker.
Your selection of a Quantum Audio Product indicates a true appreciation of
music.
1
2
FEATURES
CONNECTING
BLUETOOTH INSTRUCTION
• Plays MP3 files stored in SD card / USB drive / External audio device.
• Bluetooth Function
• FM Radio
• Guitar Input
• Microphone Input
• Wireless Microphone Included
• Remote Control
• Built-In 12V/7A Rechargeable Battery
• Microphone Priority On/Off Switch
• Super Dynamic Sound Speaker
1. This set applies to AC 110V-240V, 50/60Hz
2. AC Power: Battery can be charged when connected to AC power. Red Light
on battery is charging, it will change to green once battery completely charges.
3. Internal Battery will be charged even when device is off.
4. Speaker battery can be charged using 12V external car battery as well
(12V charging cable not included) by “DC12V Input.” Please make
sure “+” and “-” in right connection.
5. Adjust function keys to your personal audio preference.
Change the mode into “BLUE,” the bluetooth sign light flashes and speaker
will give an audible beep alarm. Ensure you enable the Bluetooth function on
your Bluetooth device. Search for Bluetooth connection until you find device
model and pair.
STEP 1
STEP 3
Push the Mode Button on both speakers until speakers are in Bluetooth Mode.
Screen will display the word “BLUE”.
On your device, turn your Bluetooth settings “ON”, you will then select the unit and
pair. Enjoy TWS (True Wireless Stereo) sound from your phone via Bluetooth!
WIRELESS PAIRING (WP) CONNECTION
STEP 2 When both speakers are in Bluetooth mode, push and hold the WP/SCAN
button for 3 seconds. You will hear a beep & screen display “bt/btst”. Next time
you put both speakers in Bluetooth mode at the same time, speakers will
connect automatically.
3
BATTERY & CHARGING
REMOTE CONTROL
1. The unit takes approximately 8 hours to fully charge. It will automatically
begin charging once the power cord is connected.
2. Low battery level may result in distorted sound, for best acoustical
performance please monitor battery charge level.
3. To maximize the battery’s lifespan, please charging the battery immediately.
when the unit is not used for prolonged periods of time, the battery will
gradually lose its power. It is recommended to fully charge the battery at least
every 30 days.
Standby
USB / SD / LINE / BLUETOOTH (Audio input)
Prev / FM Ch-
Play / Pause / FM Tuner
Next / Fm Ch+
Repeat
Stop
Volume Up
Volume Down
Mute
Equalizer
Number
5
VOLUME: Master Volume Adjust
TREBLE: Treble Adjust
BASS: Bass Adjust
MIC PRIORITY: Microphone Priority On / Off switch
ECHO: Echo Adjust
MIC VOLUME: Microphone Volume Adjust
GUITAR VOLUME: Guitar Volume Adjust
MIC IN/GUITAR IN: Microphone Input / Guitar Input
TF/USB/SD/MMC CARD Input
USB PANEL FUNCTION:
Mode Select
Record - Insert the USB Memory /SD card and press this button
to start recording. Pressing the button again stops recording.
Repeat Select
Play/Pause; FM Station Auto Searching
Previous
Next
12v EXTERNAL INPUT
MP3 IN
EXTERNAL AUDIO JACK
WIRELESS MICROPHONE ANTENNA
FM ANTENNA
POWER SWITCH
AC POWER INPUT: Universal 110~240V/50-60Hz
LED LIGHT On / Off Switc
QDJ210WP
LIMITED WARRANTY
Quantum Audio warrants any products purchased in the U.S.A. from an
authorized Quantum Audio dealer. All products are warranted to be free from
defects in material and workmanship under normal use and service for a
period of one (1) year. This warranty applies to the original purchase only.
Quantum Audio will either repair or replace (as its option) any unit that has
been found to be defective and under warranty provided the defect occurs
within the one (1) year warranty period.
This limited warranty does not extend to units have been subjected to
misuse, abuse, neglect, or accident. In Quantum Audio’s judgment, products
that show evidence of having been altered, modified, or serviced without
Quantum Audio’s authorization, will be ineligible under this warranty.
To obtain warranty service please contact your retailer or visit our website at
www.quantumaudio.net for more details.
www.quantumaudio.net
DB Research L.L.P.
302 Hanmore Industrial Parkway // Harlingen, TX 78550
ph: 877.787.0101 // fx: 956.421.4513
