DCS BGS-1230 Manuale utente

BACKGUARD SYSTEM FOR RANGES

Installation Guide

MODELS:

BGS-3030

BGS-1230

BGS-3036

BGS-1236

BGS-3048

BGS-1248

WARNING!

Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death.

Read the installation, operating and maintenance instructions thoroughly before installing, using or servicing this

equipment.

WARNING!

If the information in this manual is not followed exactly, a fire or explosion may result causing property damage,

personal injuryor death.

Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

DANGER

If You Smell Gas:

1. Do not try to light any appliance.

2. Do not touch any electrical switch; do not use any phone in your building.

3. Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

4. If you cannot reach your gas supplier, call the fire department.

5. Installation and service must be performed by a qualified installer, service agency or the gas supplier.

WARNING!

To reduce the risk of injury to persons in the event of a cooktop grease fire, observe the following: Turn burner off

first.Smother flames with a close-fitting lid, cookie sheet, metal tray, baking soda or use a dry chemical or foam-

type fire extinguisher. Be careful to prevent burns. If the flames do not go out immediately evacuate and call the

fire department. Never pick up a flaming pan - You may be burned. DO NOT USE WATER ON GREASE FIRES,

including wet dishcloths or towels - a violent steam explosion will result. Use an extinguisher ONLY if:

1. You know you have a Class ABC extinguisher, and you already know how to operate it.

2. The fire is small and contained in the area where it started.

3. The fire department is being called.

4. You can fight the fire with your back to an exit.

WARNING!

Do not place items of interest to children on racks or appliance. Children could be seriously injured if they should

climb onto or into the appliance to reach these items.

WARNING!

Do not place combustible material (paper, cloth, plastic, etc.) on the rack.

PLEASE RETAIN THIS MANUAL FOR FUTURE REFERENCE.

AMESSAGE TO OUR CUSTOMERS

Thank you for selecting this Backguard System. Because of the unique features of this accessory we have

developed this Installation Guide. It contains valuable information on how to install your new Backguard System.

Keep this guide handy, as it will help answer questions that may arise as you use your new accessory.

For your convenience, product questions can be answered by a DCS Customer Care Representative by phone:

1-888-281-5698, email: [email protected], or by mail:

Fisher & Paykel Appliances, Inc.

Attention: DCS Customer Care

5900 Skylab Road

Huntington Beach, CA 92647

www.dcsappliances.com

TABLE OF CONTENTS

SPECIFICATIONS 3

WALL MOUNT LOW BACKGUARD INSTALLATION 3

WALL MOUNT FULL BACKGUARD INSTALLATION 4-5

SPECIFICATIONS

WALL MOUNT LOW BACKGUARD INSTALLATION

1. Locate and level range per installation instructions.

2. After unpacking all backguard system parts, locate the Back Section 1/8” above and centered over the Island Trim

attached to the range.* Secure Back Section to wall with the appropriate fasteners (not supplied)(fig. 01).

*After 1/8” is located, slots in back section may be used to adjust spacing between range island trim and

backguard for a flush fit.

3. Secure Front Section of backguard to Back Section with #8 self-tapping sheet metal screws supplied

(fig. 02).

Fig.01 Fig.02

8-3/4 "

12 "

1-5/16 "

MODEL

BGS-1230

BGS-3030

BGS-1236

BGS-3036

BGS-1248

BGS-3048

29-7/8"

RACK

(16-5/8")

QTY.

RACK

(13-5/8")

QTY.

29-7/8"

35-7/8"

47-7/8"

10-1/8"

28-1/8"

10-1/8"

28-1/8"

# 8

Self-tapping

sheet metal

screws

Back Section Back Section

Front Section

Island

Trim

Slots to choose desired spacing

between Range Island Trim and

Backguard.

16” for 30”

36” for 36/48”

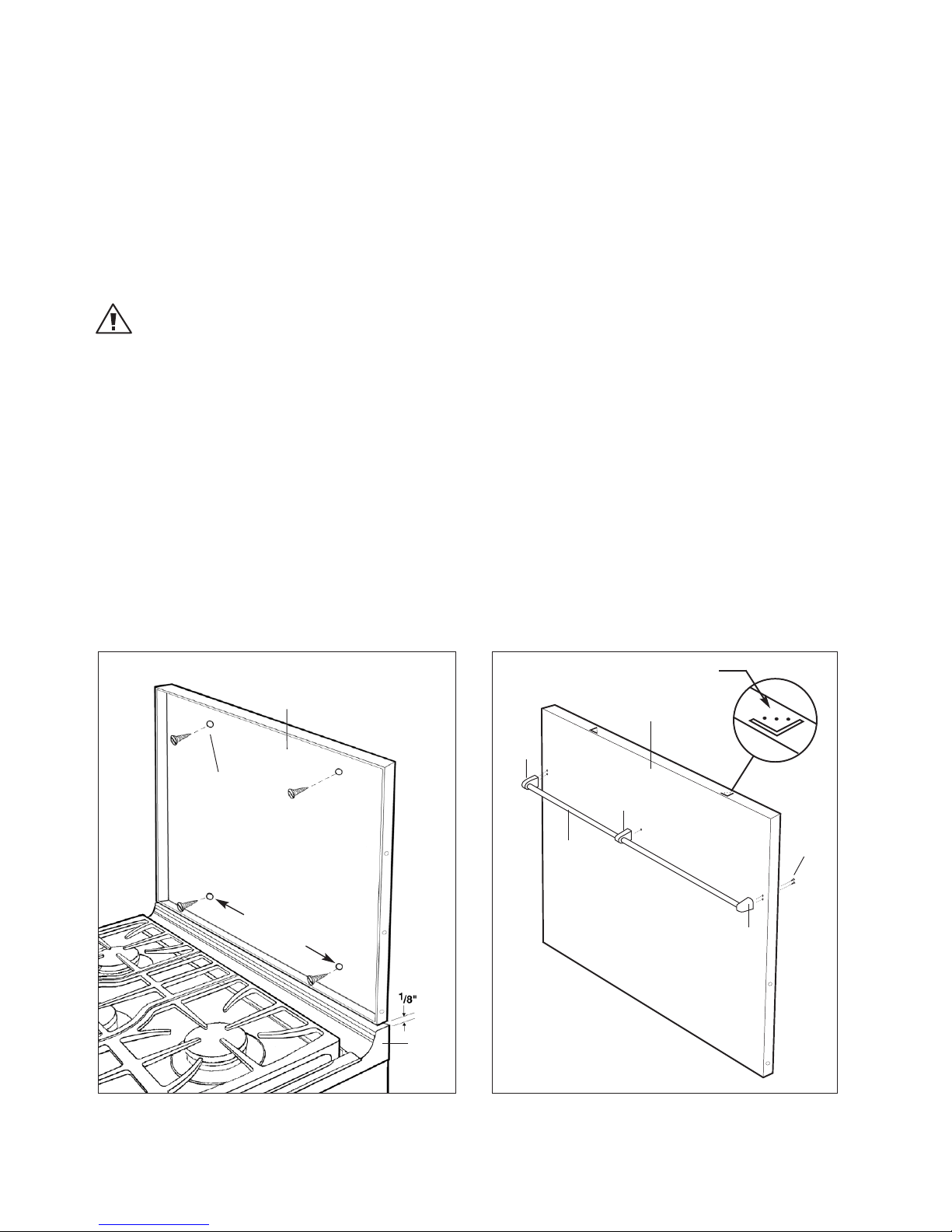

WALL MOUNT FULL BACKGUARD INSTALLATION

RECOMMENDED INSTALLATION ORDER:

1) VENT HOOD 2)BACKGUARD SYSTEM 3) RANGE

1. Locate and level range per installation instructions.

2. After unpacking all backguard system parts, locate the Back Section 1/8” (see fig. 03) above and centered over

the Island Trim attached to the range.* Secure Back Section to wall with the appropriate fasteners (not supplied)

to anchors or wood stud (fig. 03).

WARNING:

The Back Section must be securely fastened to the wall. Failure to do so could cause damage or personal injury if the

Backguard was to pull free from wall when racks are loaded. The maximum weight placed on each rack should be 10

lbs.

*After 1/8” is located, slots in back section may be used to adjust spacing between range island trim and

backguard for a flush fit.

3. Attach rod, end caps and center stanchion to Front Section of backguard with #10 machine screws supplied

(fig. 04).

4. Bend wedge-shaped tabs down on top of the front section approximately 3/16”. When mounting the front

section, insure that these tabs engage the mating holes in the top of the rear section (see fig. 05, page 4).

5. Secure Front Section of backguard to Back Section with #8 self-tapping sheet metal screws supplied

(fig. 05, page 4).

6. Attach racks to rod (fig. 06, page 4). The maximum weight placed on each rack should be 10 lbs.

Fig.03 Fig.04

#10

Machine

Screws

Back Section

Island

Trim

Front Section

End

Cap

End

Cap

Center

Stanchion

Rod

Slots to choose

desired spacing

between Range Island

Trim and Backguard.

Bend down approx. 3/16”

16” for 30”

36” for 36/48”

WALL MOUNT FULL BACKGUARD INSTALLATION

Fig.05 Fig.06

Self-tap-

ping sheet

metal

screws

Back Section

Front Section

Rack

Holes*

Tabs*

*Insure tabs and holes engage to secure top of backguard.

CARE AND MAINTENANCE

This is made of stainless steel. Use the mildest cleaning procedure first. Hot soapy water, rinse and dry. If the

panel has food soil remaining, try a general kitchen cleaner, such as Fantastik®, Simple Green® or Formula 409®.

Apply cleaner with a damp sponge, rinse thoroughly and dry. Always scrub lightly in the direction of the grain.

Do not use a steel wool pad, it will scratch the surface. To touch up noticeable scratches in the stainless steel,

sand very lightly with dry 100 grit emery paper, rubbing in the direction of the grain. After cleaning use a

stainless steel polish, such as Stainless Steel Magic®. If the rear top burners are used extensively on high it is

possible for the vertical stainless steel panel to discolor from the burner heat. This discoloration can be removed

by using Revere Ware Stainless Steel Cleaner.

NOTES

DOSSERET POUR CUISINIÈRES

Guide d'installation

MODÈLES :

BGS-3030

BGS-1230

BGS-3036

BGS-1236

BGS-3048

BGS-1248

AVERTISSEMENT!

Toute installation, ajustement, altération, maintenance ou entretien incorrect peut causer des dommages matériels,

des blessures ou la mort. Veuillez lire soigneusement ces instructions d'installation, d'utilisation et d'entretien avant

d'installer, utiliser ou effectuer l'entretien de cet appareil.

AVERTISSEMENT!

Si les informations de ce manuel ne sont pas suivies à la lettre, un incendie ou une explosion peuvent se produire et

causer des dommages matériels, des blessures ou la mort.

Évitez de stocker ou d'utiliser de l'essence ou tout autre liquide et vapeur inflammable à proximité de cet appareil

ou de tout autre.

POUR VOTRE SÉCURITÉ

Si vous sentez une odeur de gaz :

1. N'essayez pas d'allumer aucun appareil électroménager.

2. Ne touchez aucun interrupteur électrique; n'utilisez aucun téléphone dans l'édifice.

3. Appelez immédiatement votre fournisseur de gaz de chez un voisin. Suivez les instructions du fournisseur de gaz.

4. Si vous n'arrivez pas à joindre votre fournisseur de gaz, appelez les pompiers.

5. Toute installation ou service doit être confié à un installateur qualifié, un organisme de service ou le fournisseur de gaz.

AVERTISSEMENT!

Pour réduire les risques de blessures en cas de feu de graisse sur la table de cuisson, respectez les consignes suivantes: Éteignez

d'abord le brûleur. Étouffez les flammes à l'aide d'un couvercle hermétique, d'une plaque à biscuits, d'un plateau métallique,

avec du bicarbonate de soude ou à l'aide d'un extincteur à poudre ou à mousse. Attention à ne pas vous brûler. Si les flammes

ne s'éteignent pas immédiatement, évacuez les lieux et appelez les pompiers. Ne prenez jamais en main une poêle ou une

casserole qui a pris feu, vous pourriez vous brûler. N'UTILISEZ PAS D'EAU SUR LES FEUX DE GRAISSE, y compris des serviettes

mouillées; une explosion de vapeur violente pourrait en résulter. Utilisez un extincteur SEULEMENT si :

1. Vous êtes sûr qu'il s'agit d'un extincteur de classe ABC et savez comment le faire fonctionner.

2. Le feu est limité et restreint à la zone où il s'est déclenché.

3. Le service des pompiers a été appelé.

4. Vous pouvez combattre l'incendie le dos tourné vers une sortie.

AVERTISSEMENT!

Évitez de ranger sur les grilles ou l'appareil des objets pouvant attirer les enfants. Ceux-ci peuvent se blesser

sérieusement s'ils grimpent sur ou dans l'appareil pour atteindre les objets en question.

AVERTISSEMENT!

Évitez de placer des matériaux combustibles (papier, tissu, plastique, etc.) sur la grille.

ÀL'INTENTION DE NOS CLIENTS

Nous vous remercions d'avoir choisi ce dosseret. Nous avons conçu ce Manuel d'installation pour expliquer ses

fonctions uniques. Il contient des informations extrêmement utiles sur la façon d'installer correctement votre

nouveau dosseret. Gardez ce manuel à portée de main afin de rapidement trouver réponse à vos questions durant

l'utilisation de votre nouvel accessoire.

Si vous avez des questions au sujet de notre produit, communiquez avec un représentant du centre de service à

la clientèle DCS par téléphone : 1-888-281-5698, par courriel : [email protected], ou par courrier :

Fisher & Paykel Appliances, Inc.

Attention: DCS Customer Care

5900 Skylab Road

Huntington Beach, CA 92647

www.dcsappliances.com

VEUILLEZ CONSERVER CE MANUEL À TITRE DE RÉFÉRENCE.
