Decon wheel MED3136 Manuale utente

2020-04-24

Assembly instructions for PDG Eclipse

MED3136

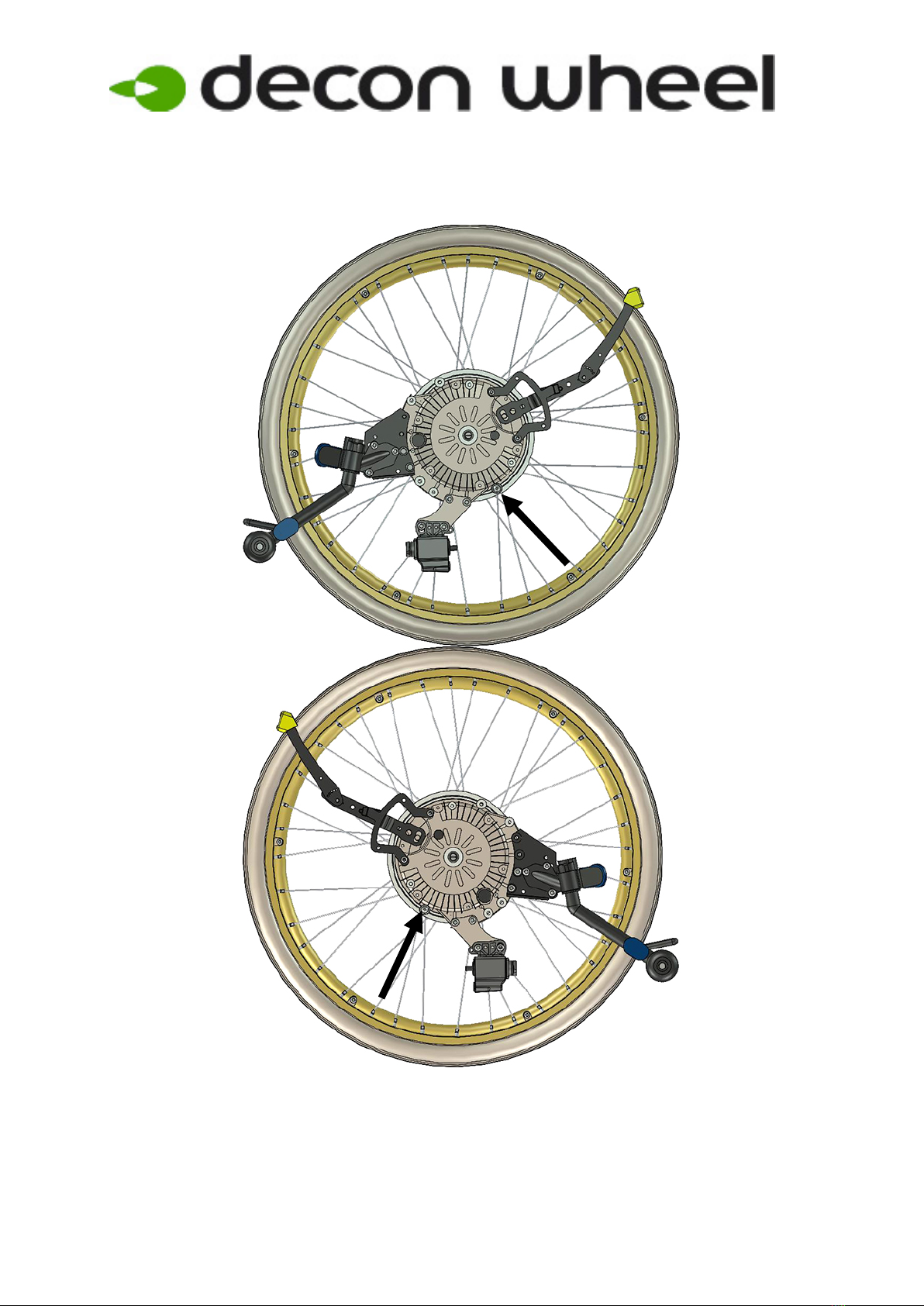

1. Remove wheel, sleeve and anti-tip devices on both sides.

2. Check the correct placement for the stop pin, and check that the battery box is

removed.

Note! Remember that it must be Heavy Duty on the eDrive units, and it

have a maximum user weight of 150 kg, do not over load this weight,

even if the wheelchair have a user weight of 270 kg.

2020-04-24

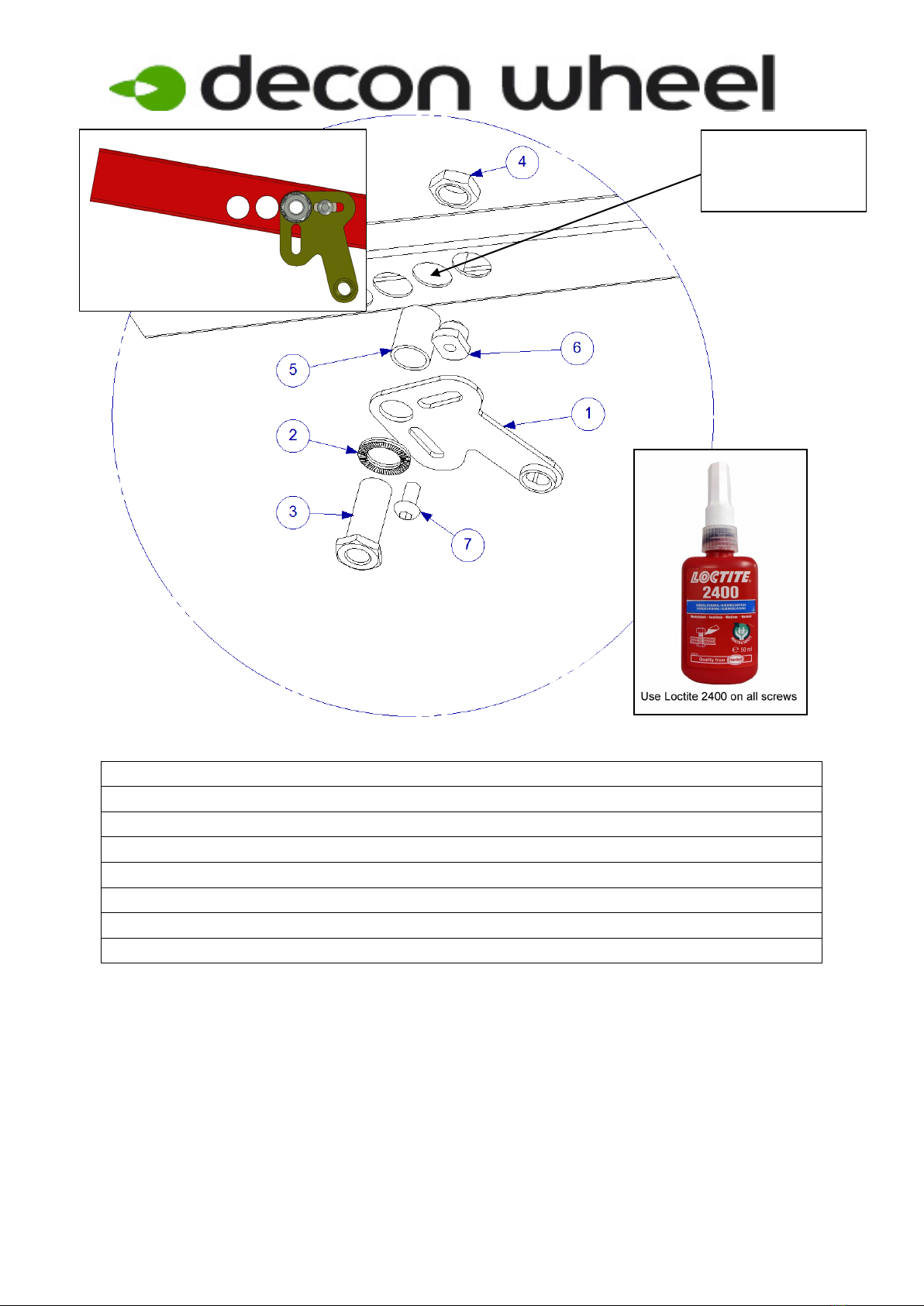

3. Assembly the plate (right side) according to pictures.

Parts pair mounting set for one side:

Item No. Part Number Qty Description

1 MED2000B 1 Bracket

2 405241 2 Nordlock Washer M18

3 HW084 1 Sleeve

4 XSM18M 1 Nut M18 x1

5 100 400 073 1 Spacer

6 100 400 072 1 Stop Spacer

7 XSM8X16 1 Screw Round M8 x 16

Do not forget the

spacer tube inside

the frame.

2020-04-24

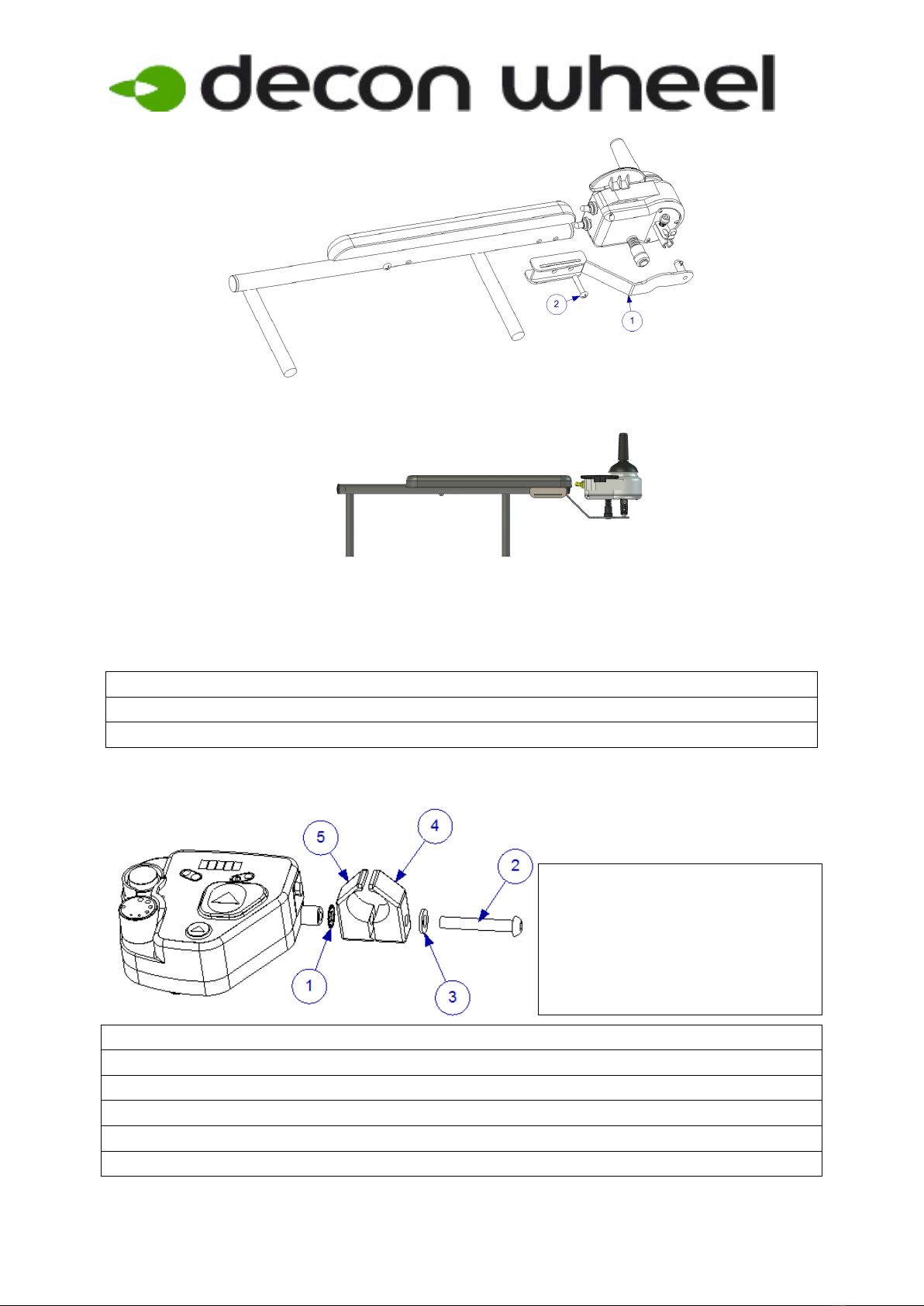

Assembly of the joystick

4. Assembly the joystick according to the picture above.

The parts you need for assemble the joystick

Item No. Part Number Qty Description

1 MED1368 1 Joystick Bracket

2 Original screw 1 Original screw

Assembly of the attendant control

Item No. Part Number Qty Description

1 XSM6TG 1 Washer External Teeth 6,4

2 XSM6X35 1 Screw M6 x 35

3 XSM6BR 1 Plain Washer 6,4

4 XA2-2612K-00 Drilled 6,2 1 Clamp with drilled hole 6,2 mm hål

5 XA2-2612E-00 1 Clamp with hole

Note! You need the extended

70 cm cable on the battery bag

with part number: X0C-88147-A0

if you use the attendant control.

This cable is not included in the

Mounting set.

2020-04-24

Brake adjustment

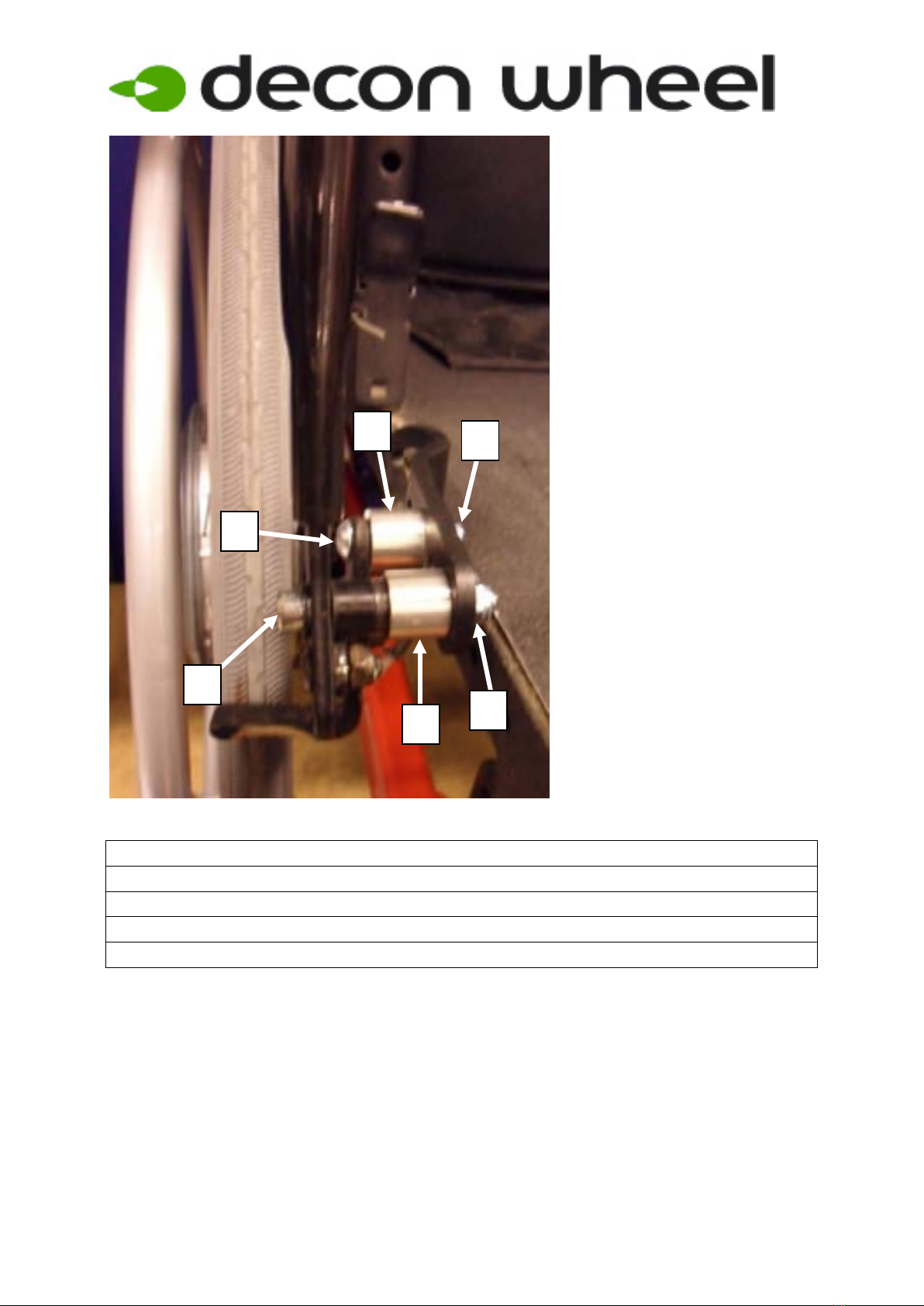

5. Brake adjustment needed, see picture above.

Parts for one side

Item No. Part Number Qty Description

1 XSM6X45 1 Screw M6 x 45

2 XSM6X30 1 Screw M6 x 30

3 XSM6ML 2 Lock Nut M6

4 100 400 044 2 Spacer

2020-04-24

Battery Placement

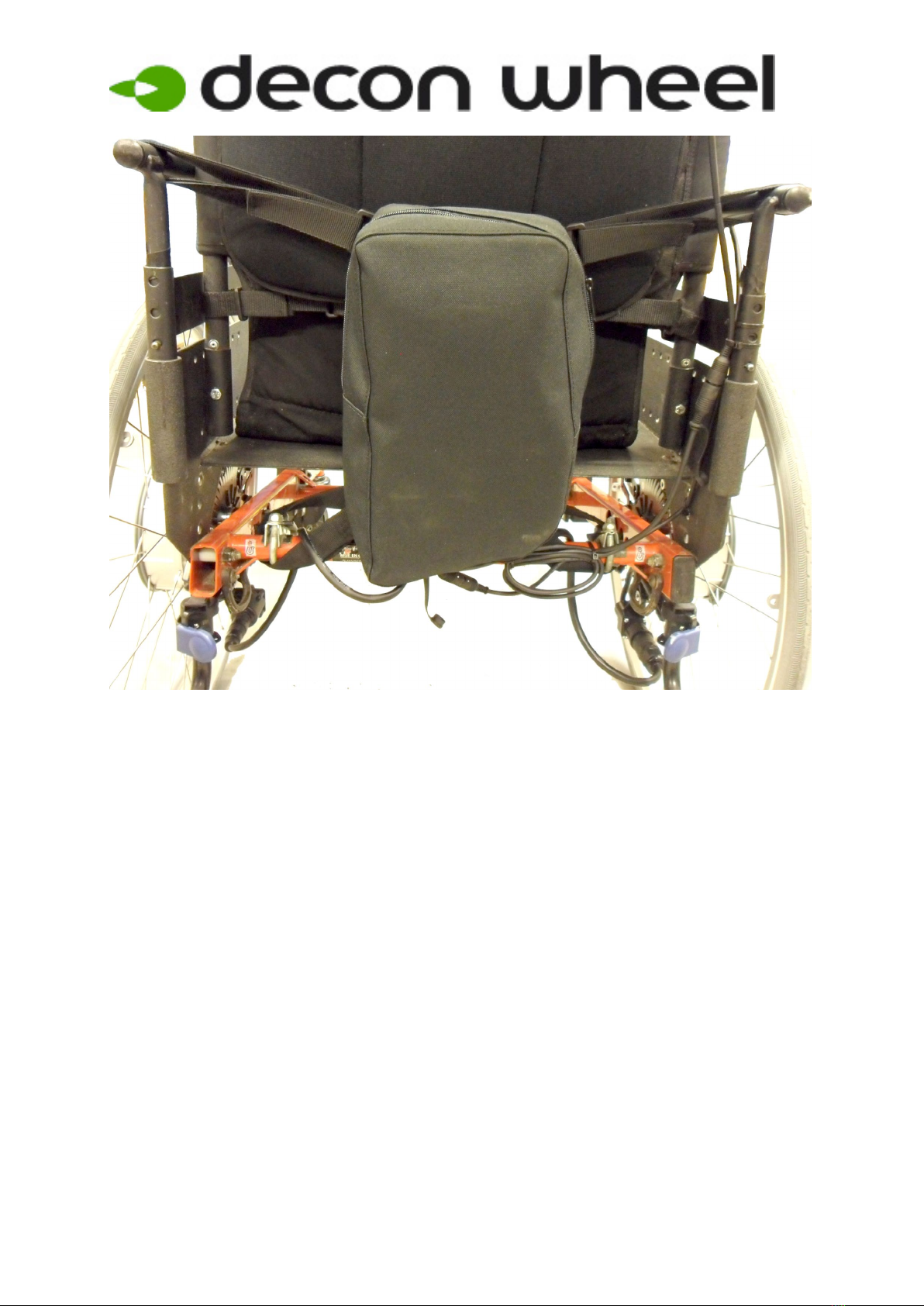

6. Assemble the back placed battery bag. See the picture above.

Note! You need the extended 70 cm cable on the battery bag with

part number: X0C-88147-A0 if you use the attendant control.

This cable is not included in the Mounting set.

2020-04-24

Åtdragningsmoment / Tightening torque

Metriska grovgängor, stål.

Metric coarse threads, steel.

Gänga / Thread

Åtdragningsmoment / Tightening torque

1,2 Nm

3 Nm

6 Nm

10 Nm

25 Nm

M10

50 Nm

M12

85 Nm

Navhylsor.

Sleeves.

Gänga / Thread

Åtdragningsmoment / Tightening torque

M16x1

30 Nm

M18x1

40 Nm
