2020-06-23 1(8)
Assembly Instruction IN0120 Simplex
Attachment IN0120 for mounting Simplex attendant control is designed to be as flexible as
possible. This makes it possible to achieve the desired position as the attachment can be
mounted in several different ways. Consider different options before deciding. The maximum
width between the pipe clamps to be mounted is 510mm.
The attachment also includes a hinge that allows the handle to be folded down when not in
use. This is to reduce the length of the chair in narrow spaces, for example in an elevator.
NOTE! Neither the handle nor the attachment is intended to withstand the entire chair
weight during manual driving. This means that the handle should be folded down and that
the regular handles of the wheelchair should be used in situations when the chair is to be
lifted or driven in demanding environments.

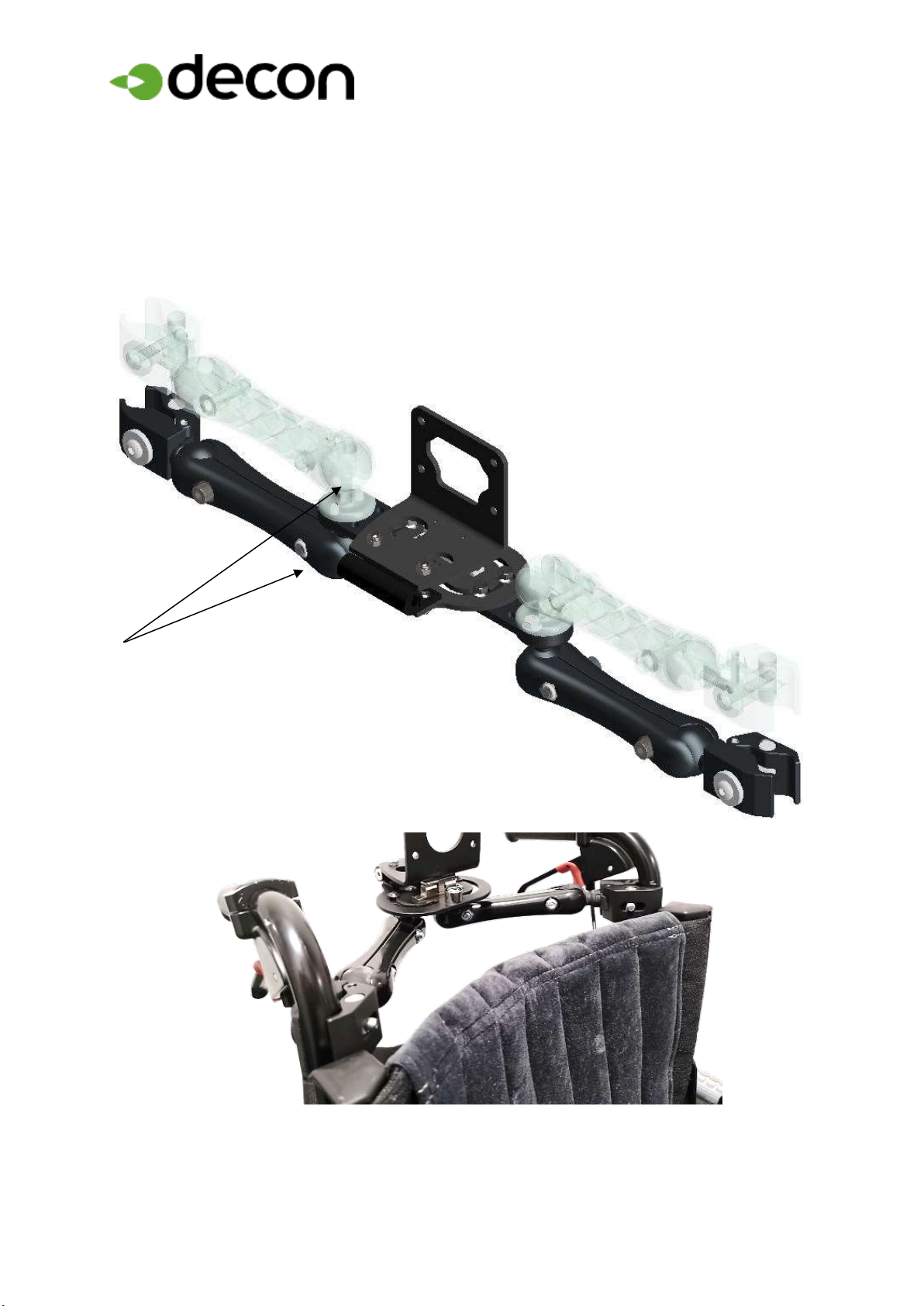

1. Start by getting acquainted with the attachment and go through the different sections
as below.
Max 510mm
1. Screw for locking clamp
2. Levels
3. Klick-lock
4. Screw for adjusting the ball's position, width and length
5. Frictionhinge
6. Screw for locking
7. Extension brackets and screws. Used for mounting on wide chairs.
