Assembly instructions Part No. GW3048K
___________________________________________________________________________
2 2020-02-13

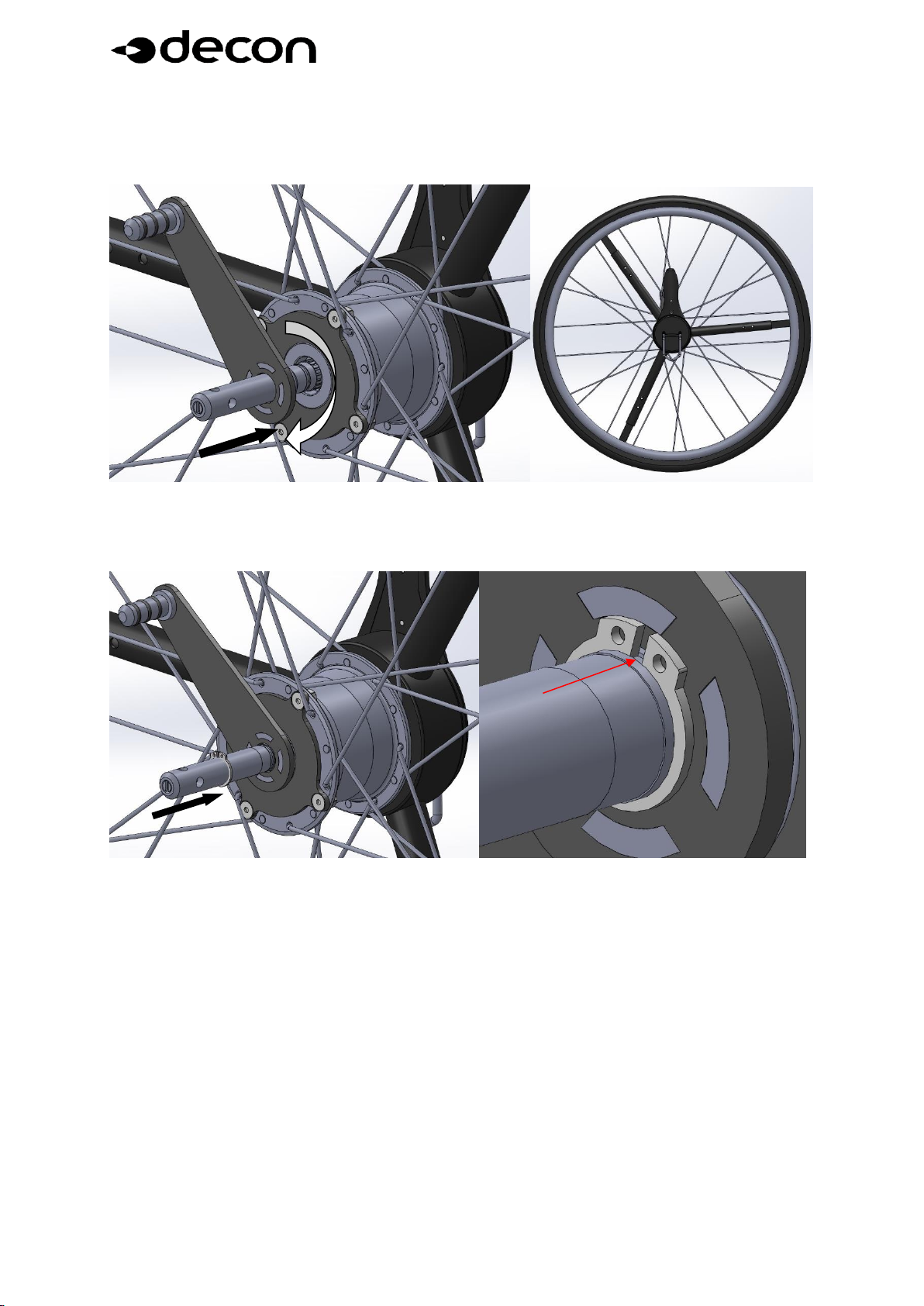

1. Remove wheels, brakes and hub sleeves from the wheelchair.

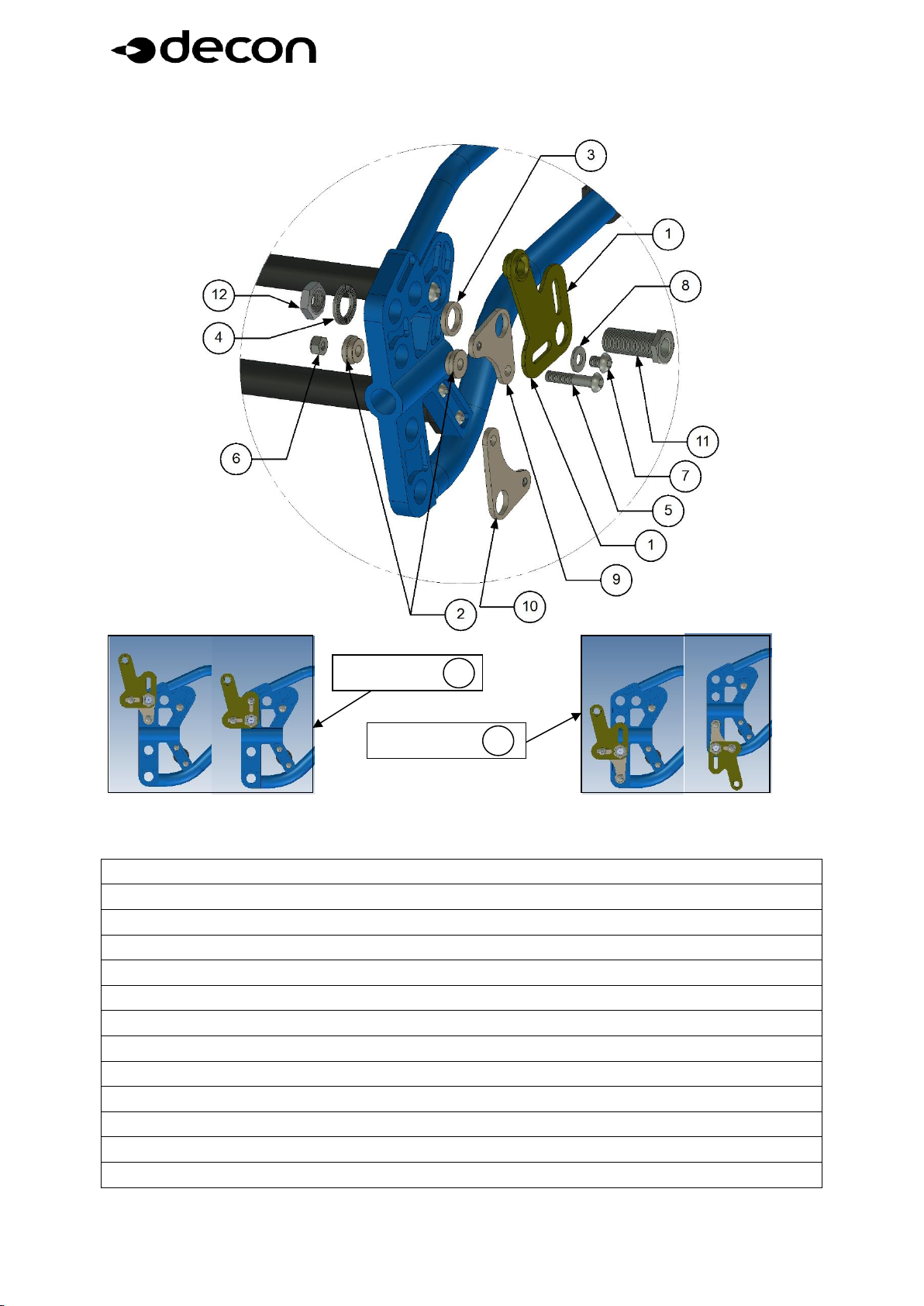

2. Assembly the plate (right side) according to picture.
3. Parts pair mountingset:
Item No. Part Number Qty Description
1 MED2000 1 Bracket
2 100 400 008 2 Spacer
3 100 400 014 1 Spacer
4 405241 1 Nordlock M18 Washer
5 XSM8X40 1 Screw Round M8 x 40
6 XSM8ML 1 Nut Self-Locking M8
7 XSM8X10 1 Screw Round M8 x 10
8 XSM8BR 1 Washer Plain M8
9 MED3112-01 1 Bracket
10 MED3112-02 1 Bracket
11 HW084 1 Hub Sleeve M18X1
12 XSM18M 1 Nut M18 x1
