Deep Sea Electronics Plc DSE701 MKII Guida all'installazione

The Model DSE701 MKII Engine Control Module is designed to control the engine via a key switch and pushbuttons

on the front panel. The module is used to start and stop the engine and indicate fault conditions, automatically shutting

down the engine and indicating the cause of failure by LED, giving true, first up fault annunciation.

The auxiliary input on the controller can be configured using the DSE Configuration Suite Lite PC Software. This gives

the user the option to have a remote start module or for an auxillary fault input when used in a manual only application.

In the position the DC supply is removed from the module and the run output is de-energised.

The module is powered up when is selected.

MODULE OPERATION

MANUAL START MODULE

AUTO START MODULE

1. Turn the key to the RUN position

2. The pre-heat will start automatically as soon as the

RUN mode is engaged and last for the duration of

the configured time.

3. Press START button to crank engine.

1. Turn the key to the RUN position

2. The pre-heat will operate automatically

prior to the starting of the engine.

3. Press START button or apply the

remote start input to crank engine.

The starter disengages automatically in both operation modes when the engine fires, the safety on delay timer is then

initiated.

Operation of any of the following alarms (which are close on fault) will cause the fuel output to de-energise:

•Low Oil Pressure

•High Coolant Temperature

•Auxiliary Shutdown

•Overspeed - (Nominal frequency selector switch accessible through slots in base of module).

This will remove the fuel supply from the engine and bring it to rest.

Each alarm has its own LED indicator and once activated no further alarm conditions will be accepted. The alarm

output and relevant LED will remain active until the unit is reset by turning the switch to the position.

DEEP SEA ELECTRONICS

DSE701 MKII INSTALLATION INSTRUCT ION

053-132

ISSUE 2

Deep Sea Electronics Plc.

Tel:+44 (0)1723 890099

Fax: +44 (0)1723 893303

Email: support@deepseaplc.com

Web: www.deepseaplc.com

Deep Sea Electronics I

nc.

Phone: +1 (815) 316-8706

Fax: +1 (815) 316-8708

TOLL FREE (USA only) : Tel: 1 866 636 9703

Email: support@deepseausa.com

Web: www.deepseausa.com

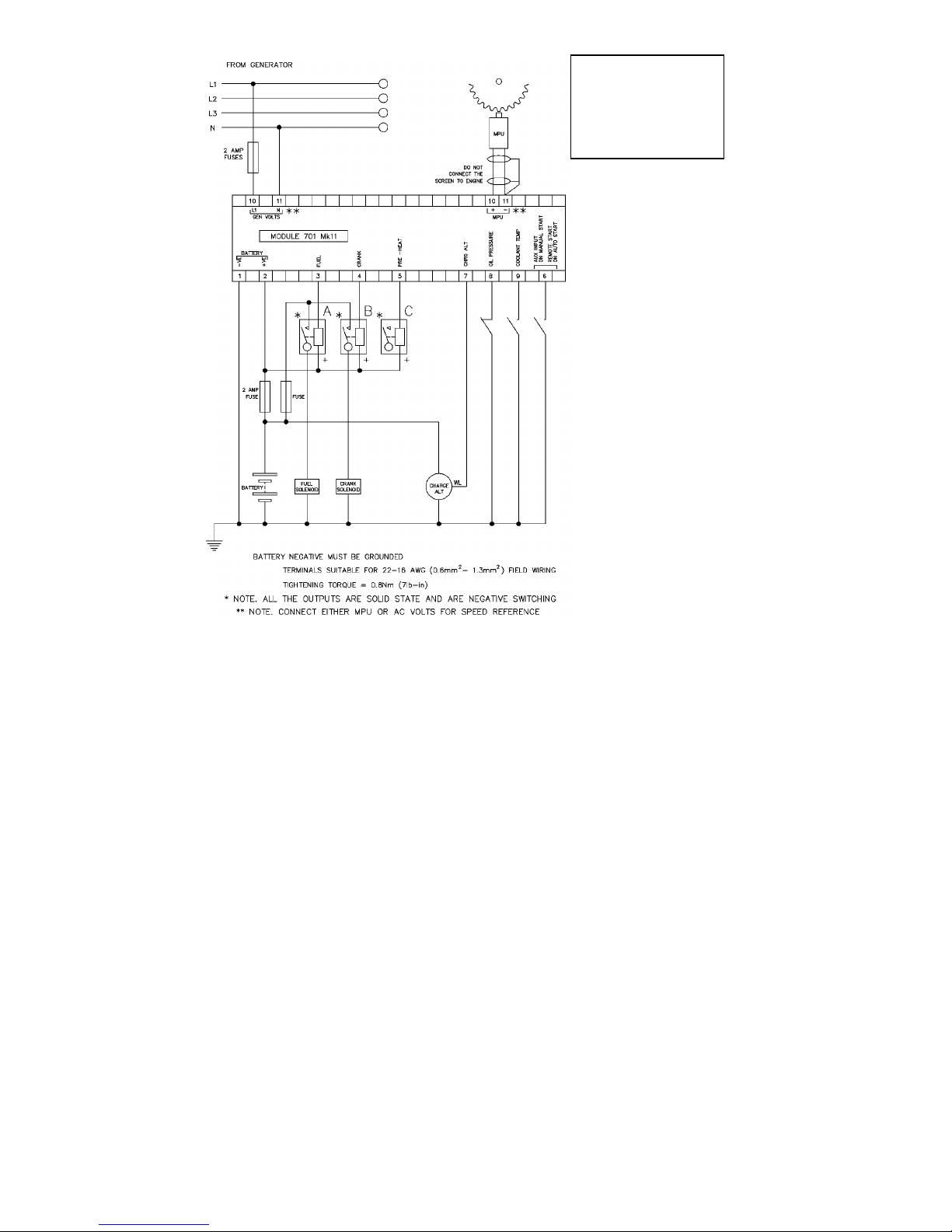

TYPICAL WIRING

DIMENSIONS

72 mm x 72 mm x 37.8 mm

(2.8” x 2.8” x 1.5”)

PANEL CUTOUT

68 mm x 68 mm

(2.7” x 2.7”)
