Delfield F13WR24 Manuale utente

Short Form Specifications

Top is constructed of one-piece 16-gauge stainless steel, with integral 2.12” (5.4

cm) square nosing on front and 4” (10.1 cm) high by 2” (5.0 cm) thick back-

splash on rear. Top to be insulated and have raised rim opening(s) provided with

cover. Cover(s) are insulated, folding and removable.

Interior is constructed of 22-gauge stainless steel. Liner is insulated with 2.5”

(6.4 cm) foamed-in-place polyurethane. Unit has a cold wall refrigeration sys-

tem provided with adjustable expansion valve located in the 6” (15.2 cm)

mechanical area at right end. Unit is designed to maintain 0°F (-18°C) to 5°F

(-15°C).

Exterior front has 22-gauge stainless steel front panel(s). Exterior ends are con-

structed of 18-gauge galvanized steel.

Electrical connections are 115 volt, 60 Hertz, single phase.

Unit must be hard wired.

Unit is mounted on 6.13” (15.6 cm) high adjustable stainless steel legs.

Refrigeration system components — HFC-404A.

Optional Accessories and modifications

505B Stainless steel back

906A Stainless steel end

505F Laminate facing

505A Laminate back

906E Laminate end

Built to NSF7 standards.

Model F13WR48

31.5”(80cm)DeepRemoteLowTemp,IceCreamCabinets

The Delfield Company, P.O. Box 470, Mt Pleasant, MI 48804-0470, U.S.A. • (800) 733-8821 • Fax (800) 669-0619 • www.delfield.com

PROJECT

ITEM #

QUANTITY DATE

APPROVAL

F13WR

Mechanical Data–Standard Unit

MODEL GALLON NUMBER OF VOLTS/HERTZ BTU DESIGN EVAP. CAP. SHIP

NUMBER CAPACITY COVERS H.P. PHASE AMPS LOAD BTU/°TD WEIGHT

F13WR24

12 2 1/3* 115/60/1 1.5 322 27 195 lbs/ 89 kg

F13WR36

24 4 1/3* 115/60/1 1.5 506 38 255 lbs/ 116 kg

F13WR48

36 6 1/3* 115/60/1 1.5 638 46 295 lbs/ 134 kg

F13WR60

48 8 1/3* 115/60/1 1.5 796 56 345 lbs/ 157 kg

*Recommended

18"

(45.7) 6"

(15.2)

24" (61) 36" (91.4)

30" (76.2)

48" (122)

42" (106.7)

60" (152.4)

54" (137.2)

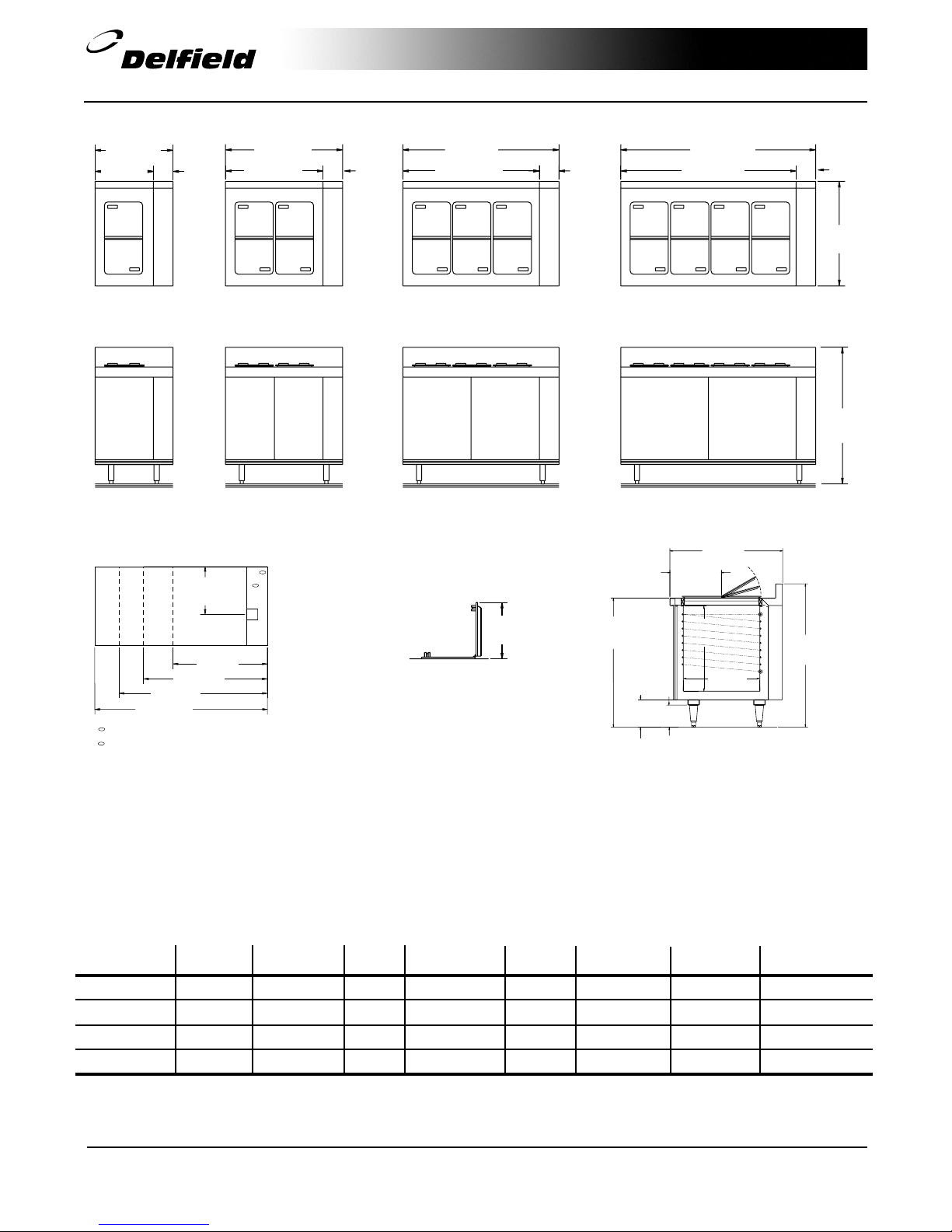

ELEVATION VIEW

F13WR24

ELEVATION VIEW

F13WR36

ELEVATION VIEW

F13WR48

ELEVATION VIEW

F13WR60

PLAN VIEW

F13WR24

PLAN VIEW

F13WR36

PLAN VIEW

F13WR48

PLAN VIEW

F13WR60

40"

(101.6)

31.5"

(80)

12.5"

(31.8)

LID DETAIL

ALL MODELS

SIDE VIEW

ALL MODELS

(15.2)

17"

(43.2)

24" (61)

36" (91.4)

48" (122)

60" (152.4)

Expansion valve 25" A.F.F.

J= Junction box 25" A.F.F.

6.12"

(15.6)

7.62"

(19.4)

21.31"

(54.1)

36"

(91.4) 23.75"

(60.3)

14.44"

(36.7cm)

31.5"

(80)

40"

(101.6)

Refrigeration lines 1/4" liquid, 3/8" suction

F13WR

The Delfield Company, P.O. Box 470, Mt Pleasant, MI 48804-0470, U.S.A. • (800) 733-8821 • Fax (800) 669-0619 • www.delfield.com

DS13WR 02/01
