Dell™ 1355cn/1355cnw Multifunction Color Printer

Quick Reference Guide

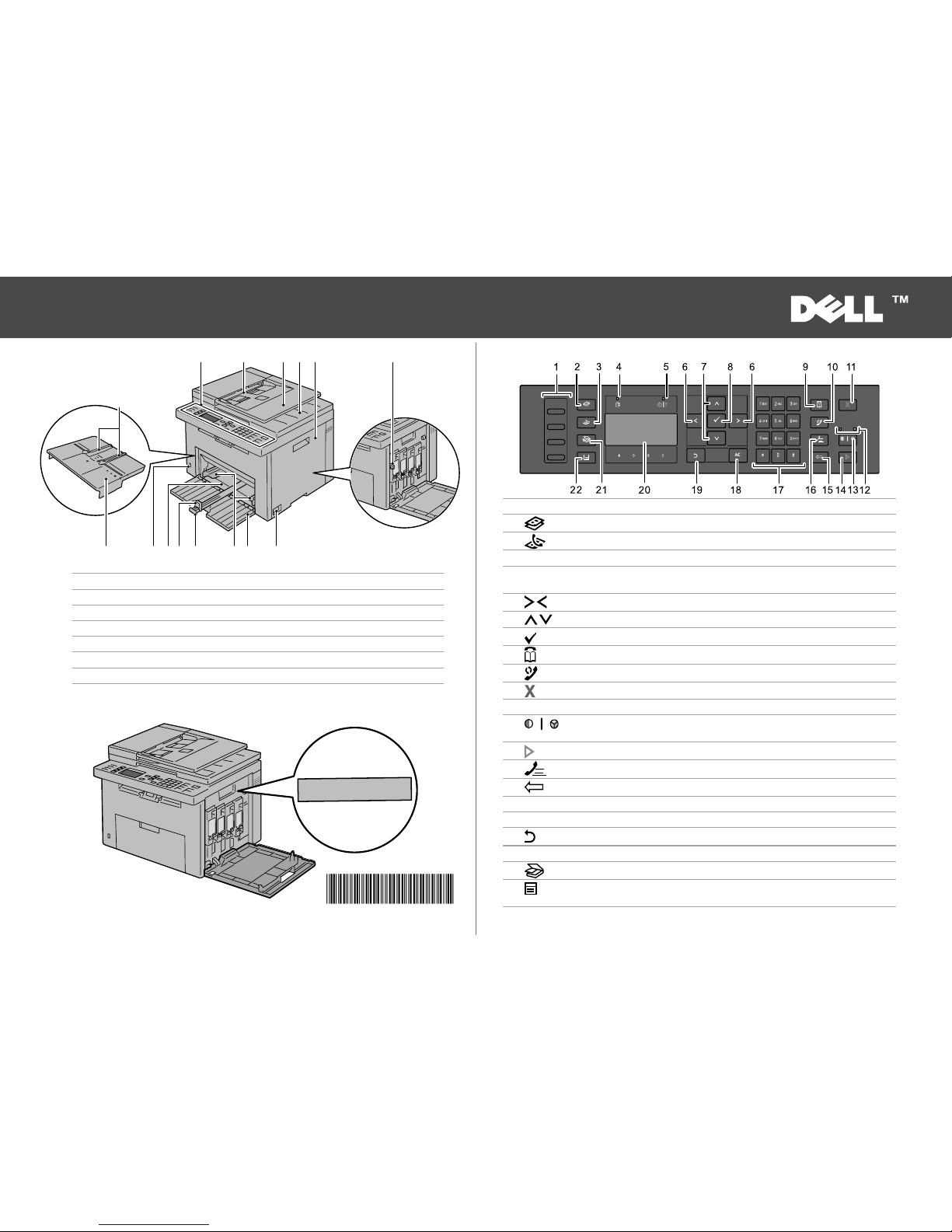

About Your Printer

Locating the Service Tag

November 2010 www.dell.com | support.dell.com

Service Tag

1 Operator Panel 2 Automatic Document Feeder (ADF)

3 Document Feeder Tray 4 Document Output Tray

5 Toner Access Cover 6 Cleaning Rod

7 Power Switch 8 Front Cover

9 Paper Width Guides 10 Length Guide

11 MPF Extension 12 Multipurpose Feeder (MPF)

13 Front USB Port 14 Priority Sheet Inserter (PSI)

1 One Touch Dial button Calls up the stored Fax number.

2(Copy) button Moves to the top menu for the Copy menu.

3(Fax) button Moves to the top menu for the Fax menu.

4 Data LED Lights up for incoming, outgoing, or pending Fax jobs.

5 Ready / Error LED • Lights up when the printer is ready. (Ready LED)

• Lights up when the prinetr has an error. (Error LED)

6button Moves a cursor or highlight to the selected position.

7button Moves a cursor or highlight to the selected position.

8(Set) button Confirms the entry of values.

9(Contacts) button Moves to the Address Book menu for the Fax and Scan services.

10 (Redial / Pause) button Redials a telephone number.

11 (Cancel) button Cancels the current processing or pending job.

12 B&W / Color LED Lights up to display which color mode is being selected.

(Color Mode) button

Switches the color mode.

14 (Start) button Starts a job.

15 (Speed Dial) button Calls up the stored telephone number.

16 (Backspace) buton Deletes characters and numbers.

17 Numeric keypad Enters characters and numbers.

18 AC (All Clear) button Resets the current setting, and returns to the top menu.

19 (Back) button Returns to a previous screen.

20 LCD Panel Displays various settings, instructions, and error messages.

21 (Scan) button Moves to the top menu for the Scan menu.

22 (Menu) button Moves to the top menu for the Print from USB Memory, Job Status,

and System menus.

604E46631/0Y6GYNA00

KB3148X03-2

79101114 8

65234

1213

Service TagExpress Service Code

xxxxxxx 000 000 000 00

Finding Information Troubleshooting Cleaning the Printer Replacing Toners

Loading Envelopes

Identifying the Location of Paper Jams

Printing the System Settings Page

1In the operator panel, press the (Menu) button.

2Press the button until System is highlighted, and then press the button.

3Press the button until Report/List is highlighted, and then press the button.

4Ensure that System Settings is highlighted, and then press the button.

The system settings page is printed.

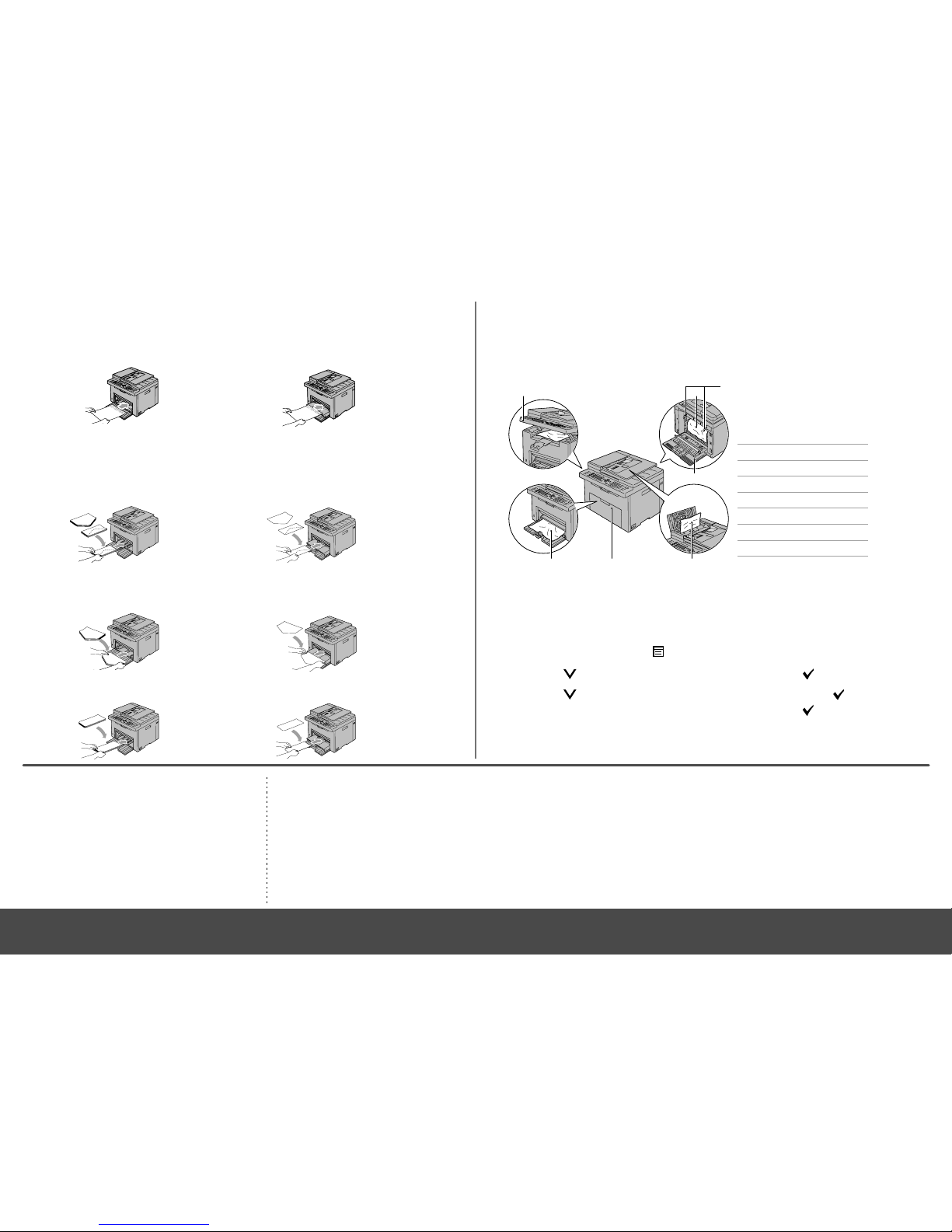

Load envelopes in the printer as shown below:

To prevent DL and Monarch from being wrinkled, they are recommended to be loaded with the

print-side facing up, flap opened, and facing you.

The paper jams may occur at any of the locations shown below:

CAUTION: Do not attempt to clear jams using tools or instruments. This may permanently

damage the printer.

CAUTION: To avoid permanent damage to your printer, do not attempt to clear paper

jams using any tools or instruments.

1 Scanner Unit

2 Fuser

3Fuser Release Lever

4 Rear Cover

5ADF Cover

6 Front Cover

7 Multipurpose Feeder (MPF)

For more information, see the following documents

available on the

Drivers and Utilities

disc.

•

Setup Guide

Setup instructions for printer hardware. Access to

software and drivers.

•

User’s Guide

Additional information about printer components,

paper jam clearance, and consumable replacement.

Vertical blanks in prints

ÆSee "Maintaining Your Printer"

in the

User's Guide

An alert for the CTD sensor appears

ÆSee "Maintaining Your Printer"

in the

User's Guide

Clearing jams

ÆSee "Clearing Jams"

in the

User's Guide

Print quality and other printing problems

ÆSee "Troubleshooting"

in the U

ser's Guide

Common error messages

ÆSee "Understanding Printer

Messages" in the

User's Guide

To replace toners

ÆSee "Maintaining Your Printer"

in the

User's Guide

support.dell.com

Loading Letterhead

Load the letterhead in the printer with the print-side facing up. Ensure that the title on the letter head

enters the printer first.

Multipurpose Feeder (MPF) Priority Sheet Inserter (PSI)

Envelope#10, DL, or Monarch

1 2 3

7 6 5
