Quick Reference Guide

October 2013

Front and Rear View

1Duplex Automatic Document Feeder (DADF) 13 Operator Panel

2Transfer Belt Unit 14 Top Cover

3Drum Cartridge 15 Ethernet Port

4Waste Toner Box 16 USB Port

5Power Switch 17 Wireless Adapter Socket

6Right Side Cover 18 Phone Connector

7Tray1 19 Wall Jack Connector

8Optional 550-Sheet Feeder (Tray2) 20 Left Side Cover

9Multipurpose Feeder (MPF) 21 2nd Belt Transfer Roller (2nd BTR)

10 Toner Cartridge 22 Fusing Unit

11 Front Cover 23 Power Connector

12 Front USB Port 24 Rear Cover

14 2

Service Tag

Service Tag Express Service Code

xxxxxxx 000 000 000 00

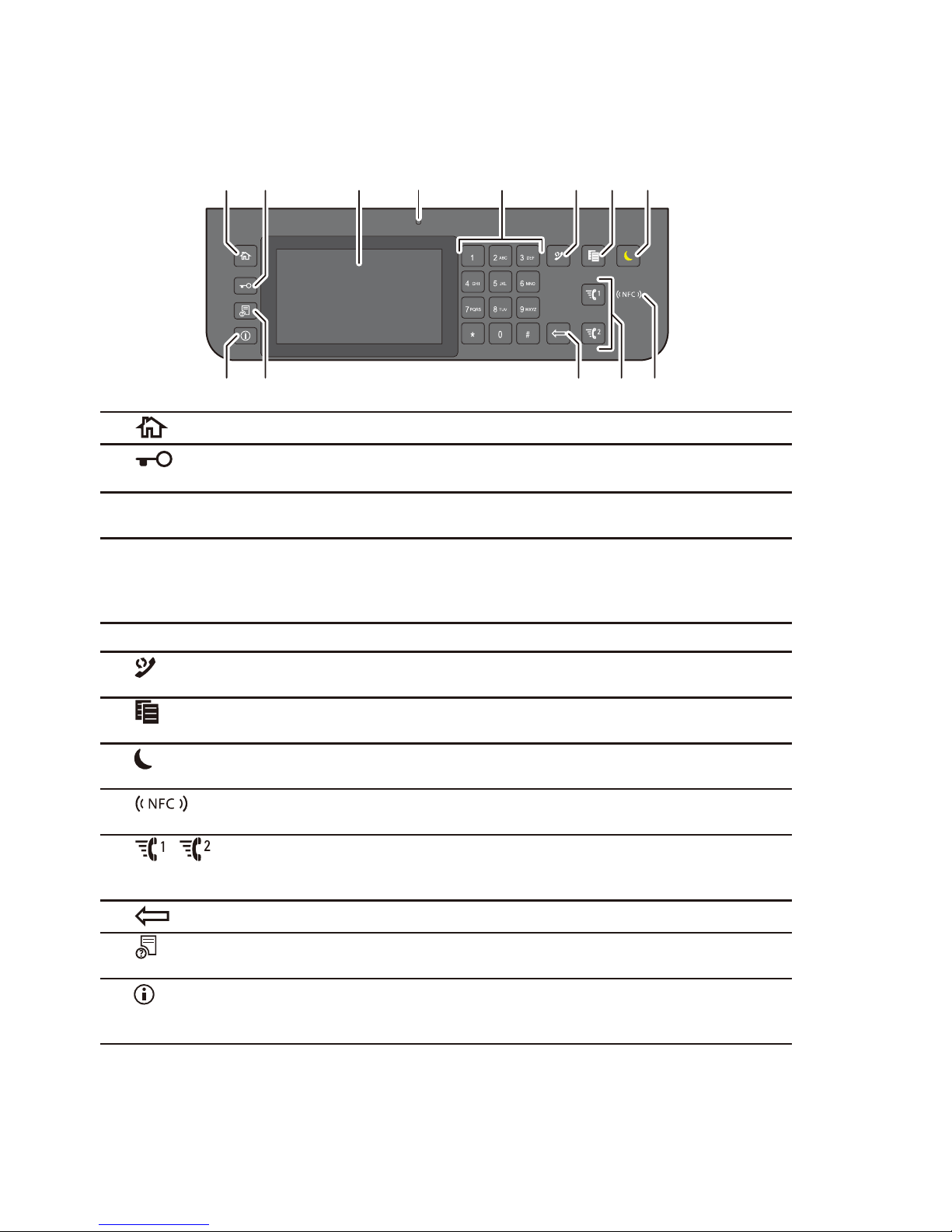

About the Operator Panel

The operator panel has a touch panel, a status LED, control buttons, and a number pad, which

allows you to control the printer.

1 3 4 5 762

11 91213

1(Home) button Moves to the Home screen.

2(Login/Logout)

button

Logs out if pressed while the user is logged in.

3Touch Panel Specifies the settings by directly tapping the screen.

Displays various settings, instructions, and error messages.

4Status LED (Ready/Error) Shows a green light when the printer is ready and a blinking green light

when data is being received.

Shows an amber light when an error occurs and a blinking amber light

when an unrecoverable print error occurs.

5Number Pad Enters numbers and characters.

6(Redial/Pause) button Re-dials a telephone number.

Inserts a pause into a telephone number.

7(Copy) button Starts copying the document. Effective only from the Home screen while

you are logged in to the printer.

8(Power Saver) button Enters or exits the Power Saver mode. When the printer is not used for a

while, it enters the Power Saver mode to reduce power consumption.

9(NFC) reader Starts communication between the card and the printer when an NFC

card is waved over the reader.

10 / (Quick Dial 1/

Quick Dial 2) button

Starts faxing the document to the number registered as “001” and “002”

respectively of the FAX Speed Dial. Effective only when the Home

screen is displayed.

11 (Delete) button Deletes numbers and characters.

12 (Job Status) button Moves to the Job Status screen. From this screen, you can check or

cancel active jobs.

13 (Information) button Moves to the Information screen. You can access various information

and settings menu, check consumable levels and network status, and

print various types of reports and lists.

NOTE: Moving to a different menu or returning to a previous screen cancels the current entry or setting. Make sure to

select OK to save the current entry or setting.

About the Home Screen

The Home screen is the default screen of the printer. See the table below for basic operations.

Copy

Fax

Scan to USB

ID Copy

Scan to E-

mail

Home Guest

Handle

Tiles

Notification Bar

To select a tile Tap the tile.

To scroll the screen Swipe the screen by dragging your finger on the screen.

To scroll faster, flick the screen.

To display the status of the printer Drag down the handle of the Notication Bar.

To move the tiles Tap and hold the tile you want to move, and drag the tile to the

desired place.

To add the tiles Tap the Add App tile.

To delete a tile Tap and hold the tile you want to delete until appears, and

then drag the tile to . Tap OK to delete the tile.

Loading Letterhead

The pre-printed paper such as letterhead and pre-punched paper must be inserted bottom edge first

with the print side facing down as shown below.

Print media source Print side Page orientation

Tray1 and optional 550-sheet feeder Face down

LETTERHEAD

Letterhead enters the printer last

MPF Face down

LETTERHEAD

Letterhead enters the printer last

NOTE: Set Letterhead 2-Sided or Letterhead Duplex Mode to Enable and Paper Type to Letterhead, Preprinted, or

Prepunched from the operator panel or the printer driver even when you print on a single side of letterhead, pre-

printed, or pre-punched paper.

Loading an Envelope in the MPF

Load envelopes in the MPF as shown in the illustrations below.

CAUTION: Never use envelopes with windows, coated linings, or self-stick adhesives. These lead to paper jams and

can cause damage to the printer.

NOTE: If you do not load envelopes in the MPF right after they have been removed from the packaging, they may bulge.

To avoid jams, press ﬁrmly across the whole envelopes to ﬂatten them before loading the envelopes in the MPF.

NOTE: The maximum height (quantity) of envelopes that can be loaded in the MPF is approximately 15 mm (0.59 inches)

(15 envelopes).

Envelope #10, Monarch, or DL size C5 size

Identifying the Location of Paper Jams

CAUTION: Do not attempt to clear any jams using tools or instruments. This may permanently damage the printer.

The following illustration shows where paper jams may occur along the print media path.

345

1DADF 4MPF

2Fusing Unit 5Optional 550-Sheet Feeder

3Tray1

Finding Information

For more information, access the Dell Printer Setup in the “

Software and Documentation

disc”.

• Installation Video

Setup instructions for printer hardware and

optional accessories.

• User’s Guide

Additional information about printer

components, consumable replacement,

available software, and troubleshooting.

Overview of the Dell Document Hub

The Dell Document Hub is a convenient one-stop gateway to a variety of cloud services to help you

manage your documents. With the Dell Document Hub, you can convert hard copy documents into

editable digital content and store them directly in your preferred cloud storage service. You can

search for files across multiple clouds simultaneously and then share and print content easily.

1. Go to www.dell.com/dochub to sign up for a free account.

2. Activate your account by following the instructions in the e-mail sent to you.

3. Connect your preferred cloud services from the Dell Document Hub portal.

4. Tap the Dell Document Hub tile from the printer.

5. Sign in to the Dell Document Hub with your e-mail address and password,

and automatically log in to connected cloud services.

6. Tap the Dell Document Hub feature tiles to begin use.

Dell Document Hub Features

6 5 4

1 2 3

1Search for Files Search for your files across multiple cloud services that are connected from

www.dell.com/dochub.

2Scan Scan your document in PDF* or JPG format and store it in the selected cloud

service.

3E-mail Me Conveniently e-mail the scanned document to your Dell Document Hub registered

e-mail address without any setup.

Supported file formats include PDF*, searchable PDF, Microsoft Word, Excel,

PowerPoint, secured PDF, and JPG.

4Business Card

Reader

E-mail the electronic business card (vCard) to your Dell Document Hub registered

e-mail address.

Add or save the vCard to your contacts list.

5Smart OCR

Scan

Scan your documents and convert them into editable and searchable files.

Supported file formats include searchable PDF*, Microsoft Word, Excel,

PowerPoint, and secured PDF.

6Browse for Files Navigate and locate your files from the supported cloud services.

* denotes default file format.

What Are These Icons?

45 6 7

1Indicates that the cloud service is correctly associated with the Dell Document Hub.

2Indicates that the cloud service is not associated, or not linked correctly.

Go to www.dell.com/dochub to link it again.

3Indicates that the cloud service link with the Dell Document Hub has expired.

Go to www.dell.com/dochub to link it again.

4Tap to search for files in the current folder and subfolders (if any) from the selected cloud

service.

5Tap to sort the results in ascending, descending, or by cloud services order.

6Tap to change print, scan or e-mail settings.

7Tap to preview the selected files, up to the first three pages of each file.

8Tap to save print, scan, e-mail settings or folder as Favorite.

How to Use "Search for

Files"

1. Tap the Search for Files tile in the

Dell Document Hub screen.

2. Enter the keywords, and tap Search.

3. Tap and select up to10 files to print from

the search results.

Tap to preview the file before printing.

4. Tap Print to start printing.

How to Use "Browse for

Files"

1. Tap the Browse for Files tile in the

Dell Document Hub screen.

2. Tap the cloud service you want to browse in.

To scroll the list, flick the screen up or

down.

3. Tap the location you want to browse in, and

tap the files you want to print.

4. Tap Print to start printing.

dell.com/support

How to Use "Smart OCR

Scan"

1. Tap the Smart OCR Scan tile in the Dell

Document Hub screen.

2. Tap the destination cloud service you want

to save the converted file to.

3. Tap the location you want to save the

converted file to.

Tap to search for your folder.

4. Tap Next if you want to save the file in the

selected location.

Tap Back to return to the previous screen.

5. Tap the File Name text box to enter the

file name, and tap the File Format box

to specify the file format to save the

converted file.

Tap the Tag text box to enter the file tags.

Use “,” when entering multiple tags.

NOTE: Tags are not available for some cloud

services.

6. Tap Scan to start scanning using the OCR.

How to Use "E-mail Me"

1. Tap the E-mail Me tile in the Dell

Document Hub screen.

2. Tap the File Format box to specify the

file format to save the scanned file, and tap

the Subject text box to change the e-mail

subject.

3. Tap Send to start scanning and sending the

scanned file as an attached file of an e-mail.
