Dell KM3322W Manuale utente

Regulatory model: KB3322Wt / WM118t / UD2203t

Dell Wireless

Keyboard and Mouse

KM3322W

User’s Guide

are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their

respective owners.

2021–10

Rev. A00

Notes, Cautions, and Warnings

NOTE: A NOTE indicates important information that helps you make better use

of your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss of data if

instructions are not followed.

WARNING: A WARNING indicates a potential for property damage, personal

injury, or death.

│3

Contents

What’s in the box ...............................5

Features ......................................6

Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Mouse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Setting up your wireless keyboard..................8

Setting up your wireless mouse ....................9

Connecting your wireless keyboard and mouse....... 11

Keyboard Specifications.........................13

General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Electrical . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Physical characteristics . . . . . . . . . . . . . . . . . . . . 13

Environmental . . . . . . . . . . . . . . . . . . . . . . . . . 14

Wireless . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Mouse Specifications...........................15

General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Electrical . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Physical characteristics . . . . . . . . . . . . . . . . . . . . 15

Environmental . . . . . . . . . . . . . . . . . . . . . . . . . 16

Wireless . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

4 │

Troubleshooting ...............................17

Statutory Information ..........................20

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Limited warranty and return policies . . . . . . . . . . . . . . . . . . 20

For U.S. customers: . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

For European, Middle Eastern and African customers: . . . . . . . . 20

For non-U.S. customers: . . . . . . . . . . . . . . . . . . . . . . . . 20

What’s in the box │5

What’s in the box

1. Keyboard 2. Mouse

3. USB receiver 4. AAA-type Batteries (for keyboard)

5. AA-type Battery (for mouse) 6. Documents

6 │Features

Features

Keyboard

Top view

Bottom view

2 23

1. Low battery status LED 2. Keyboard feet

3. Battery cover

NOTE:

1) Keyboard will enter into auto power save mode if not used.

2) Low battery status LED will blink in amber colour when battery capacity is

low.

PPID/Regulatory label location

Features │7

Mouse

Top view

Bottom view

1. Left button 2. Scroll wheel

3. Right button 4. Low battery status LED

5. Optical sensor 6. Power switch

NOTE:

1) Mouse will enter into auto power save mode if not used.

2) Low battery status LED will blink in amber colour when battery capacity is

low.

3) Turn off the power switch when the mouse is not used to improve battery

life.

8 │Setting up your wireless keyboard

Setting up your wireless

keyboard

1. Using your ngertip, pry open the battery cover.

2. Install the AAA batteries into the battery compartment. Then close the battery

cover.

Setting up your wireless mouse │9

Setting up your wireless mouse

1. Locate the slot on the side of the mouse cover. Using your ngertip, pry open the

cover.

2. Install the AA battery into the battery compartment.

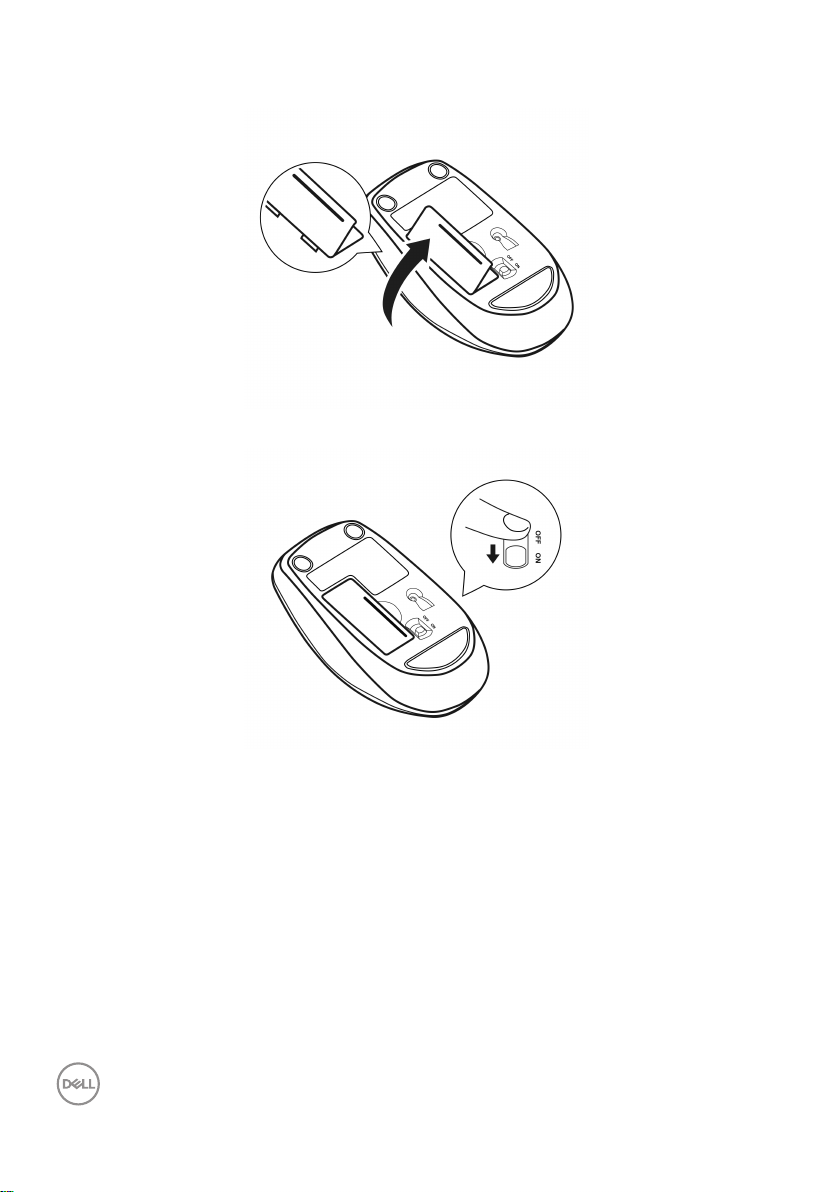

10 │Setting up your wireless mouse

3. Close the mouse cover.

4. Slide the power switch down to turn on the mouse.
