Dell Inspiron 3646 Manuale utente

Inspiron 3646

3000 Series

Owner's Manual

Computer Model: Inspiron 3646

Regulatory Model: D10S

Regulatory Type: D10S001

Notes, Cautions, and Warnings

NOTE: A NOTE indicates important information that helps you make better

use of your computer.

CAUTION: A CAUTION indicates either potential damage to hardware or loss

of data and tells you how to avoid the problem.

WARNING: A WARNING indicates a potential for property damage, personal

injury, or death.

international copyright and intellectual property laws. Dell™and the Dell logo are trademarks

of Dell Inc. in the United States and/or other jurisdictions. All other marks and names

mentioned herein may be trademarks of their respective companies.

2014 - 05

Rev. A00

Contents

Before Working Inside Your Computer.....................................7

Before You Begin .............................................................................................. 7

Safety Instructions..............................................................................................7

Recommended Tools........................................................................................ 8

After Working Inside Your Computer........................................9

Technical Overview......................................................................10

Inside View Of Your Computer....................................................................... 10

System-Board Components............................................................................ 11

Removing the Computer Cover ...............................................12

Procedure.........................................................................................................12

Replacing the Computer Cover ............................................... 13

Procedure.........................................................................................................13

Removing the Memory Module................................................ 14

Prerequisites.....................................................................................................14

Procedure.........................................................................................................14

Replacing the Memory Module.................................................16

Procedure......................................................................................................... 17

Post-requisites..................................................................................................17

Removing the Fan.........................................................................18

Prerequisites.....................................................................................................18

Procedure.........................................................................................................18

Replacing the Fan.........................................................................20

Procedure.........................................................................................................21

Post-requisites................................................................................................. 22

Removing the Front Bezel .........................................................23

Prerequisites.....................................................................................................23

Procedure........................................................................................................ 24

Replacing the Front Bezel..........................................................26

Procedure........................................................................................................ 26

Post-requisites.................................................................................................26

Removing the Drive Cage ..........................................................27

Prerequisites.....................................................................................................27

Procedure........................................................................................................ 28

Replacing the Drive Cage...........................................................30

Procedure........................................................................................................ 30

Post-requisites.................................................................................................30

Removing the Wireless Card......................................................31

Prerequisites..................................................................................................... 31

Procedure.........................................................................................................31

Replacing the Wireless Card......................................................33

Procedure.........................................................................................................33

Post-requisites................................................................................................. 33

Removing the Optical Drive...................................................... 34

Prerequisites.....................................................................................................34

Procedure........................................................................................................ 34

Replacing the Optical Drive.......................................................35

Procedure.........................................................................................................35

Post-requisites................................................................................................. 35

Removing the Hard Drive...........................................................36

Prerequisites.....................................................................................................36

Procedure.........................................................................................................37

Replacing the Hard Drive........................................................... 38

Procedure........................................................................................................ 38

Post-requisites.................................................................................................38

Removing the Front I/O-Panel................................................. 39

Prerequisites.....................................................................................................39

Procedure........................................................................................................ 39

Replacing the Front I/O-Panel.................................................. 41

Procedure.........................................................................................................41

Post-requisites................................................................................................. 41

Removing the Power-Button Module.....................................42

Prerequisites.....................................................................................................42

Procedure........................................................................................................ 42

Replacing the Power-Button Module.....................................44

Procedure........................................................................................................ 44

Post-requisites.................................................................................................44

Removing the Coin-Cell Battery.............................................. 45

Prerequisites.....................................................................................................45

Procedure........................................................................................................ 46

Replacing the Coin-Cell Battery...............................................47

Procedure.........................................................................................................47

Post-requisites................................................................................................. 47

Removing the System Board..................................................... 48

Prerequisites.................................................................................................... 48

Procedure........................................................................................................ 48

Replacing the System Board..................................................... 50

Procedure........................................................................................................ 50

Post-requisites.................................................................................................50

System Setup..................................................................................51

Overview ..........................................................................................................51

Entering System Setup ....................................................................................51

Clearing Forgotten Passwords........................................................................ 51

Prerequisites...............................................................................................52

Procedure...................................................................................................52

Post-requisites........................................................................................... 52

Clearing CMOS Settings.................................................................................. 53

Prerequisites...............................................................................................53

Procedure...................................................................................................53

Post-requisites........................................................................................... 54

Flashing the BIOS......................................................................... 55

Getting Help and Contacting Dell........................................... 56

Self-Help Resources........................................................................................56

Contacting Dell................................................................................................56

Before Working Inside Your

Computer

CAUTION: To avoid damaging the components and cards, handle

them by their edges and avoid touching pins and contacts.

Before You Begin

1 Save and close all open files and exit all open applications.

2 Shut down your computer.

– Windows 8/8.1: On the Start screen, click or tap the power icon →

Shut down.

– Windows 7: Click or tap Start → Shut down .

NOTE: If you are using a different operating system, see the

documentation of your operating system for shut-down

instructions.

3 Disconnect your computer and all attached devices from their electrical

outlets.

4 Disconnect all cables such as telephone cables, network cables and so

on, from your computer.

5 Disconnect all attached devices and peripherals, such as keyboard,

mouse, monitor, and so on, from your computer.

6 Remove any media card and optical disc from your computer, if

applicable.

7 After the computer is unplugged, press and hold the power button for 5

seconds to ground the system board.

Safety Instructions

Use the following safety guidelines to protect your computer from potential

damage and ensure your personal safety.

WARNING: Before working inside your computer, read the safety

information that shipped with your computer. For more safety best

practices, see the Regulatory Compliance home page at dell.com/

regulatory_compliance.

WARNING: Disconnect all power sources before opening the

computer cover or panels. After you finish working inside the

computer, replace all covers, panels, and screws before connecting to

the power source.

CAUTION: To avoid damaging the computer, make sure that the work

surface is flat and clean.

CAUTION: To avoid damaging the components and cards, handle

them by their edges and avoid touching pins and contacts.

CAUTION: Only a certified service technician is authorized to remove

the computer cover and access any of the components inside the

computer. See the safety instructions for complete information about

safety precautions, working inside your computer, and protecting

against electrostatic discharge.

CAUTION: Before touching anything inside your computer, ground

yourself by touching an unpainted metal surface, such as the metal at

the back of the computer. While you work, periodically touch an

unpainted metal surface to dissipate static electricity, which could

harm internal components.

CAUTION: When you disconnect a cable, pull on its connector or on

its pull-tab, not on the cable itself. Some cables have connectors with

locking tabs or thumb-screws that you must disengage before

disconnecting the cable. When disconnecting cables, keep them

evenly aligned to avoid bending any connector pins. When connecting

cables, make sure that the ports and connectors are correctly oriented

and aligned.

CAUTION: To disconnect a network cable, first unplug the cable from

your computer and then unplug the cable from the network device.

CAUTION: Press and eject any installed card from the media-card

reader.

Recommended Tools

The procedures in this document may require the following tools:

• Philips screwdriver

• Plastic scribe

After Working Inside Your

Computer

CAUTION: Leaving stray or loose screws inside your computer may

severely damage your computer.

1 Replace all screws and make sure that no stray screws remain inside your

computer.

2 Connect any external devices, peripherals, and cables you removed

before working on your computer.

3 Replace any media cards, discs, and any other part(s) that you removed

before working on your computer.

4 Connect your computer and all attached devices to their electrical

outlets.

5 Turn on your computer.

Technical Overview

WARNING: Before working inside your computer, read the safety

information that shipped with your computer and follow the steps in

Before Working Inside Your Computer. After working inside your

computer, follow the instructions in After Working Inside Your

Computer. For more safety best practices, see the Regulatory

Compliance home page at dell.com/regulatory_compliance.

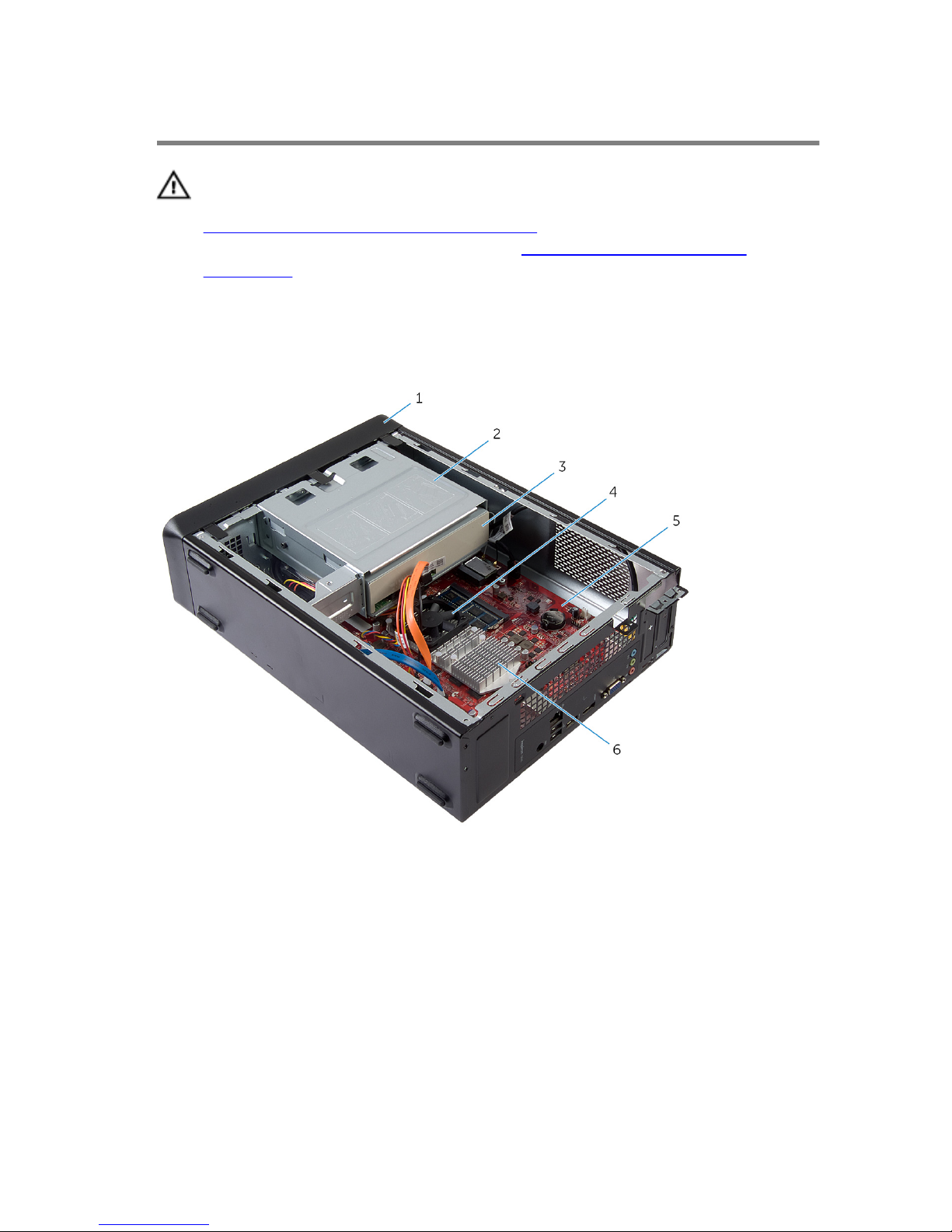

Inside View Of Your Computer

1 front bezel 2 drive cage

3 optical drive 4 fan

5 system board 6 heat-sink assembly

Altri manuali per Inspiron 3646

Indice

Altri manuali Dell Scrivania

Dell

Dell OptiPlex E1 Manuale utente

Dell

Dell Inspiron 23 Manuale utente

Dell

Dell Optiplex 7070 Small Form Factor Manuale operativo e di manutenzione

Dell

Dell PowerEdge 830 Manuale utente

Dell

Dell Precision 7560 Manuale di istruzioni

Dell

Dell Alienware Aurora R15 Manuale utente

Dell

Dell Chromebox 3010 Manuale utente

Dell

Dell OptiPlex 7000 Tower Manuale utente

Dell

Dell OptiPlex NX1 Manuale utente

Dell

Dell Inspiron 580 Manuale utente

Dell

Dell GX260 - Optiplex Pentium 4 2.0GHz 512MB 40GB... Manuale del proprietario

Dell

Dell OptiPlex 390 Manuale utente

Dell

Dell Dimension 2010 Manuale utente

Dell

Dell W19B001 Manuale utente

Dell

Dell Precision 3640 Tower Manuale operativo e di manutenzione

Dell

Dell Inspiron 0VM0DJA00 Manuale utente

Dell

Dell OptiPlex XE2 Small Form Factor Manuale utente

Dell

Dell OptiPlex 7080 Micro Manuale utente

Dell

Dell Precision T5600 Manuale utente

Dell

Dell OptiPlex 5250 Manuale utente

Dell

Dell OptiPlex 960 Manuale del proprietario

Dell

Dell Precision T1600 Manuale del proprietario

Dell

Dell Inspiron 23 Manuale utente

Dell

Dell Precision WorkStation Vostro 220 System Manuale utente

Manuali Scrivania popolari di altre marche

HP m9060n - Pavilion - Elite Scheda tecnica

Asus

Asus E210 Series Manuale utente

TotalFlow

TotalFlow uFLO Manuale utente

HP Presario SV7000 - Desktop PC Manuale utente

HP ProDesk 400 G5 Manuale

Logitech

Logitech MK320 Manuale utente

Sony

Sony Vaio Series Manuale utente

Sony

Sony VGC-LT32E - Vaio All-in-one Desktop Computer Manuale utente

Alto

Alto MD 250 Manuale utente

Lenovo

Lenovo ThinkCentre Edge 72 Manuale

Lenovo

Lenovo ThinkStation D20 Manuale

Arbor Technology

Arbor Technology FPC-7800 Series Manuale utente

Sony

Sony VAIO VGX-TP1 Series Manuale utente

Asus

Asus Eee Box B204 Manuale utente

HP Z1 Manuale utente

Everex

Everex eXplora Manuale utente

Lenovo

Lenovo ThinkCentre M75e Manuale utente

Compaq

Compaq iPAQ Internet Device Manuale utente
