Dell Vostro 330
Setup And Features Information
About Warnings
WARNING: A WARNING indicates a potential for property damage, personal injury,
or death.
Front And Back View
Figure 1. Front View
1. camera
2. camera activity light
3. microphone
4. display
5. volume increase button
6. volume decrease button
7. 7-in-1 media card reader
8. USB 2.0 connectors (2)
9. headphone connector
10. microphone connector
11. drive activity light
12. power button
13. stand
Regulatory Model: W02C
Regulatory Type: W02C001
January 2011

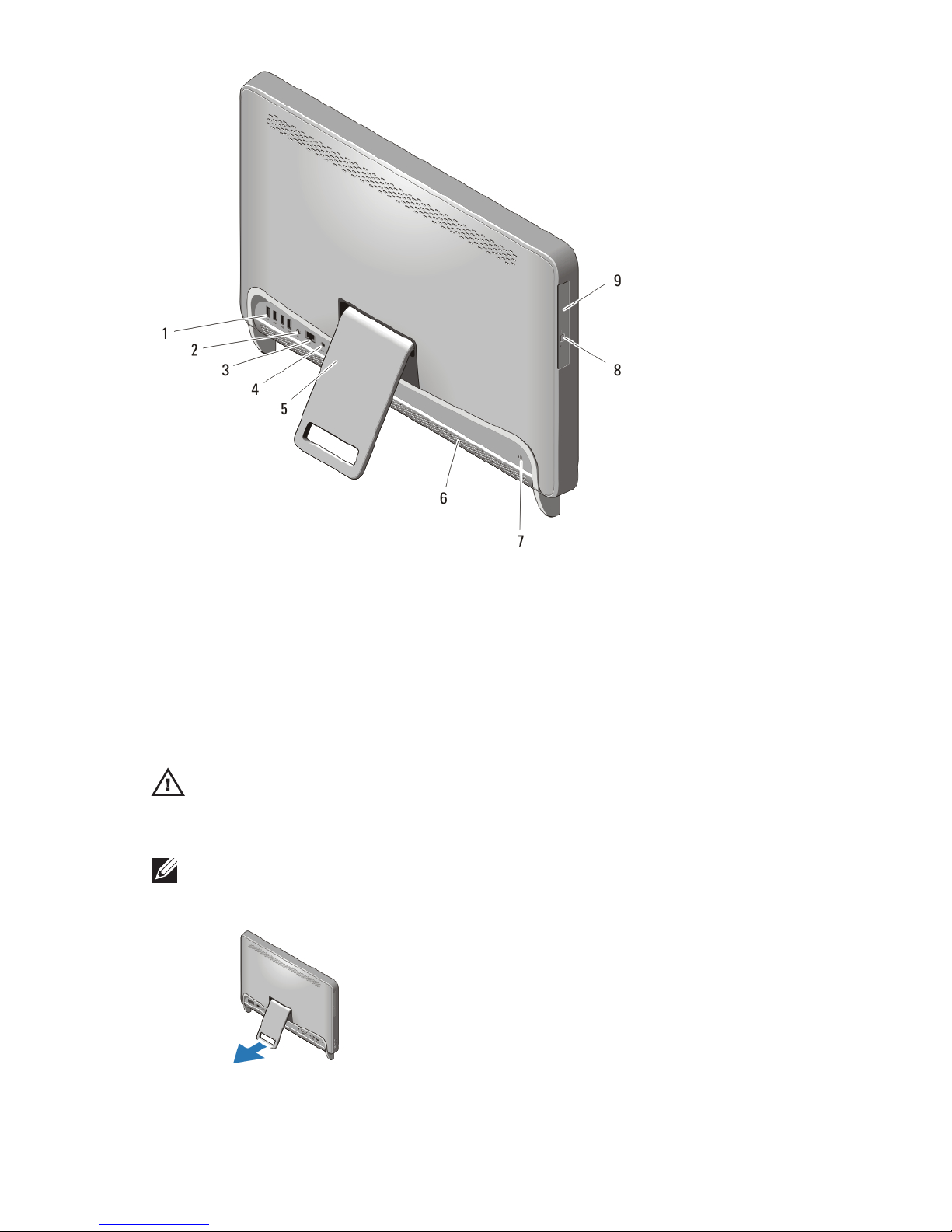

Figure 2. Back View
1. USB 2.0 connectors (4)
2. line-out connector
3. network connector
4. power connector
5. rear stand
6. cooling vents
7. security cable slot
8. optical-drive eject button
9. optical drive
Quick Setup
WARNING: Before you begin any of the procedures in this section, read the safety
information that shipped with your computer. For additional best practices
information, see www.dell.com/regulatory_compliance.
NOTE: Some devices may not be included if you did not order them.
1. Set up the rear stand.
Figure 3. Rear Stand setup
2
2. Connect the USB keyboard or mouse. To connect a wireless keyboard
and mouse, see Setting Up Your Dell Cordless Mouse, Keyboard, and
USB Receiver tech sheet that shipped with your wireless keyboard and
mouse.
Figure 4. USB Connection
3. Connect the network cable (optional).
Figure 5. Network Connection
4. Connect the power cable.
WARNING: Connect the power adapter to the nearest power outlet.
WARNING: Extension cords or power strips should never be used as a substitute
for permanent electrical wiring.
Figure 6. Connecting Power
5. Press the power button on the computer.
Figure 7. Turning On Power
3
Specifications
NOTE: The following specifications are only those required by law to ship with your
computer. For a complete and current listing of the specifications for your
computer, go to support.dell.com.
System Information
Chipset Intel HM57
Processor
Processor • Intel Core i3
• Intel Core i5
• Intel Core i7
• Intel Pentium Dual Core
Video
Video Type:
Integrated Intel HD Graphics
Discrete ATI Mobility Radeon HD 5470
Video Memory:
Integrated Up to 384 MB of shared video memory
Discrete 1 GB DDR3
Memory
Memory module connector two DIMM slots
Memory module capacity 1 GB, 2 GB, and 4 GB
Type 1333 MHz DDR3 (Non-ECC only)
Minimum memory 2 GB
Maximum memory 8 GB
Drives
Externally accessible:
5.1–inch drive bays one
4
Drives
Internally accessible:
3.5–inch SATA drive bays one
Control Lights And Diagnostic Lights
Power light White light — Solid white light indicates
power-on state.
Amber light — The computer is in sleep/
standby mode or there might be an issue
with the system board or the power
supply. Blinking amber light indicates that
the computer has detected an error during
the Power-on self-test (POST).
Drive activity light White light — Blinking white light
indicates that the computer is reading
data from or writing data to the hard drive.
Network connectivity light Green light — A good connection exists
between the network and the computer.
Off (no light) — The computer is not
detecting a physical connection to the
network.
Physical
Height 420 mm (16.5 inches)
Width 570 mm (22.4 inches)
Depth 90 mm (3.5 inches)
Weight
Touchscreen 8.95 kg (19.73 lb)
Non-touchscreen 8.15 kg (17.97 lb)
Environmental
Temperature:
Operating 10 °C to 35 °C (50 °F to 95 °F)
5
Environmental
Storage –40 °C to 65 °C (–40 °F to 149 °F)
Relative humidity 20 % to 80 % (noncondensing)
Altitude:
Operating –15.2 m to 3048 m (–50 ft to 10,000 ft)
Storage –15.2 m to 10,668 m (–50 ft to 35,000 ft)
Airborne contaminant level G1 as defined by ISA–71.04–1985
AC Adapter
Input voltage 100 VAC to 240 VAC
Input current 1.5A/1.6A/2.3A/2.5A
Input frequency 50 Hz to 60 Hz
Output power 90 W/130 W
Output current:
90 W 4.62 A
130 W 6.70 A
Rated output voltage 19.5 +/- 1 VDC
Dimensions: 90 W 130 W
Height 32 mm (1.26 inches) 25.40 mm (1 inch)
Width 128 mm (5.04 inches) 154 mm (6.06 inches)
Depth 52 mm (2.05 inches) 76.20 mm (3.00 inches)
Temperature range:
Operating 0 °C to 40 °C (32 °F to 104 °F)
Storage –40 °C to 70 °C (–40 °F to 158 °F)
6
Finding More Information and Resources
See the safety and regulatory documents that shipped with your computer
and the regulatory compliance website at www.dell.com/
regulatory_compliance for more information on:
• Safety best practices
• Regulatory certification
• Ergonomics
See www.dell.com for additional information on:
• Warranty
• Terms and Conditions (U.S. only)
• End User License Agreement
Information in this publication is subject to change without notice.
© 2010 Dell Inc. All rights reserved.
Reproduction of these materials in any manner whatsoever without the written permission of
Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell™, the DELL logo, Dell Precision™, Precision ON™,
ExpressCharge™, Latitude™, Latitude ON™, OptiPlex™, Vostro™, and Wi-Fi Catcher™ are
trademarks of Dell Inc. Intel®, Pentium®, Xeon®, Core™, Atom™, Centrino®, and Celeron® are
registered trademarks or trademarks of Intel Corporation in the U.S. and other countries. AMD®
is a registered trademark and AMD Opteron™, AMD Phenom™, AMD Sempron™,
AMD Athlon™, ATI Radeon™, and ATI FirePro™ are trademarks of Advanced Micro Devices,
Inc. Microsoft®, Windows®, MS-DOS®, Windows Vista®, the Windows Vista start button, and
Office Outlook® are either trademarks or registered trademarks of Microsoft Corporation in the
United States and/or other countries. Blu-ray Disc™ is a trademark owned by the Blu-ray Disc
Association (BDA) and licensed for use on discs and players. The Bluetooth® word mark is a
registered trademark and owned by the Bluetooth® SIG, Inc. and any use of such mark by Dell
Inc. is under license. Wi-Fi® is a registered trademark of Wireless Ethernet Compatibility
Alliance, Inc.
Other trademarks and trade names may be used in this publication to refer to either the entities
claiming the marks and names or their products, Dell Inc. disclaims any proprietary interest in
trademarks and trade names other than its own.
