DELL™

OPTIPLEX XE

TECHNICAL GUIDEBOOK

INSIDE THE OPTIPLEX XE

OptiPlex XE Technical Guidebook Page 2

OVERVIEW

Desktop Computer (DT) View 3

Desktop Back Panel Connectors 4

Desktop System Board 5

Small Form Factor Computer (SFF) View 6

Small Form Factor Back Panel Connectors 7

Small Form Factor System Board 8

MARKETING SYSTEM CONFIGURATIONS

Operating System, Chipset 9

Processor, Advanced System Manageability Modes, System Monitoring Options 10

Memory 11

Drives and Removable Storage 12-13

System Board Connectors, Graphics/Video Controller 13

External Ports/Connectors 14

Communications—Integrated LAN, Wireless, Audio and Speakers, Keyboard and Mouse, Security 15

Security, Service and Support, Software, System Accessories 16

DETAILED ENGINEERING SPECIFICATIONS

System Dimensions (Physical) 17

System Board Connector Maximum Allowable Dimensions 18

System Level Environmental and Operating Conditions 19

Power, Compliance 20

Audio 21

Communications 22-24

Graphics/Video Controller 24-26

Hard Drives 26-32

Optical Drive 33-34

BIOS Defaults 35

Chassis Enclosure and Ventilation Requirements 36

Acoustic Noise Emission Information 37-38

OptiPlex XE Technical Guidebook Page 3

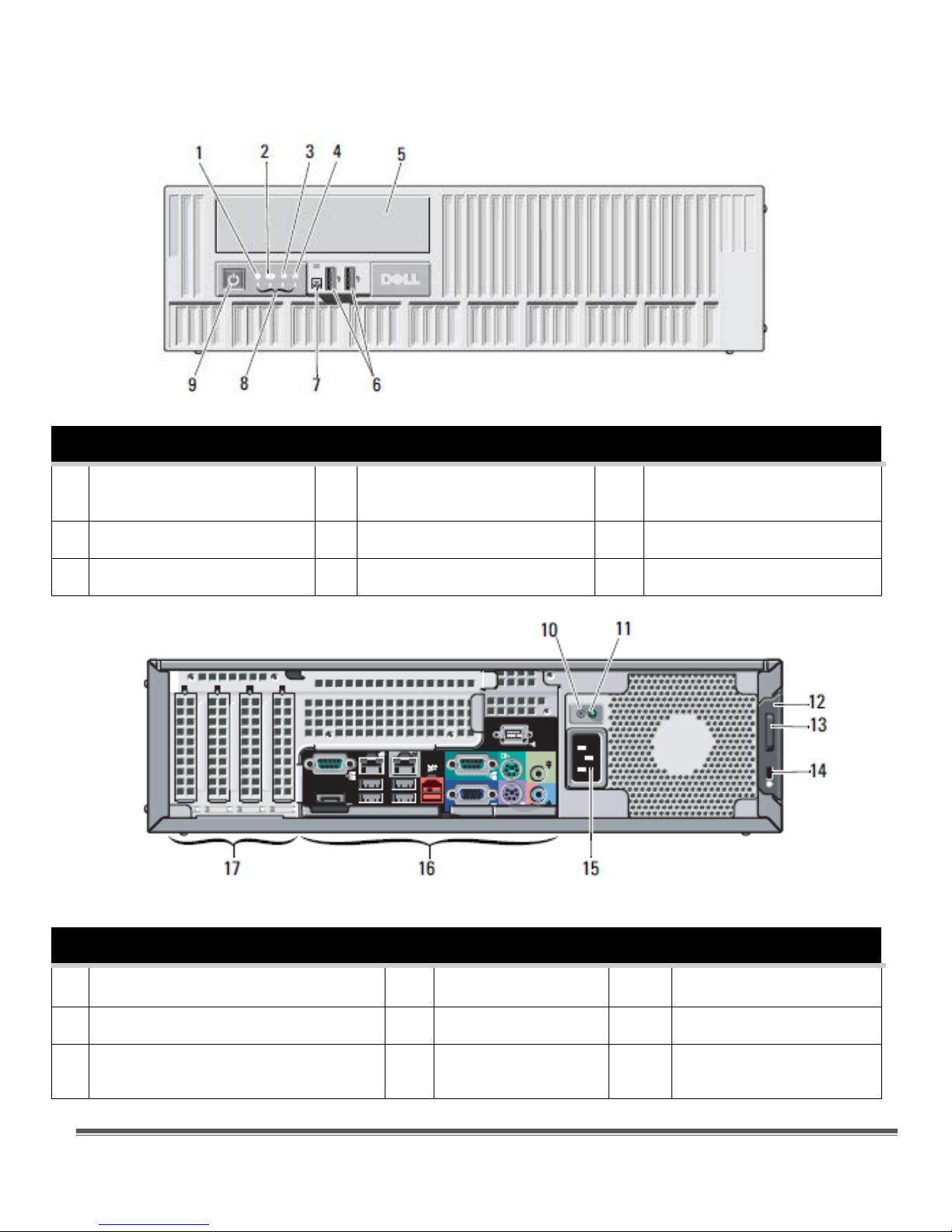

DESKTOP COMPUTER (DT) VIEW

Front and Back View

FRONT VIEW

1 Drive activity light 4 Network activity light 2 7 External power button

connector

2 Wi-Fi activity light 5 DVD drive bay 8 Diagnostic Lights (4)

3 Network activity light 1 6 USB 2.0 connectors (2) 9 Power button, power light

BACK VIEW

10 Power supply diagnostic button 13 Padlock ring 16 Back panel connectors

11 Power supply diagnostic light 14 Security cable slot 17 Expansion card slots (4)

12 Cover release latch 15 Power cable

connector

OptiPlex XE Technical Guidebook Page 4

DT Back Panel Connectors

BACK PANEL CONNECTORS

1 Serial Connector 1 10 PS/2 Mouse Connector

2 Link Integrity Light 2 11 Line-Out Connector

3 Network Adapter Connector 2 12 Line-In/Mic Connector

4 Network Activity Light 2 13 PS/2 Keyboard Connector

5 Link Integrity Light 1 14 VGA Connector

6 Network Adapter Connector 1

(TruManage Capability)

15 24V Powered USB Connector

7 Network Activity Light 1 16 USB 2.0 Connectors (4)

8 Serial Connector 2 17 DisplayPort

9 Wi-Fi Connector

OptiPlex XE Technical Guidebook Page 5

DT System Board

1 Processor power connector (12VPOWER) 17 Serial Port Jumper (J3 & J4)

2 Processor connector (CPU) 18 Power connector (24V POWER)

3 Memory module connectors (DIMM_4) 19 Serial Port Jumper (J1 & J2)

4 Memory module connectors (DIMM_2) 20 PCI Express x16 card connector(SLOT1)

5 Memory module connectors (DIMM_3) 21 PCI card connectors (SLOT2)

6 Memory module connectors (DIMM_1) 22 PCI card connectors ( SLOT3)

7 Battery socket (BATTERY) 23 PCI Express x1 card connector(SLOT4)

8 Password jumper (PSWD) 24 Intruder connector (INTRUDER)

9 SATA drive connectors (SATA0) 25 RTC reset jumper (RTCRST)

10 SATA drive connectors (SATA1) 26 Internal buzzer (SPKR)

11 SATA drive connectors (SATA2) 27 Speaker connector (INT_SPKR)

12 Thermal sensor connector (rear) 28 Thermal Sensor connector (front)

13 Front-panel connector (FRONTPANEL) 29 Fan connector (FAN_HDD)

14 External Power USB connector 30 Connector for optional wireless card

15 Internal USB connector 31 Fan connector (FAN_CPU)

16 Power connector (POWER)

OptiPlex XE Technical Guidebook Page 6

Small Form Factor (SFF) Computer View

Front and Back View

FRONT VIEW

1 Drive activity light 4 Network activity light 2 7 External power button connector

2 Wi-Fi activity light 5 DVD drive bay 8 Diagnostic Lights (4)

3 Network activity light

6 USB 2.0 connectors (2) 9 Power button, power light

BACK VIEW

10 Power supply diagnostic button 13

Padlock ring 16 Back panel connectors

11 Power supply diagnostic light 14

Security cable slot 17 Expansion card slots (2)

12 Cover release latch 15 Power cable

connector

OptiPlex XE Technical Guidebook Page 7

SFF Back Panel Connectors

BACK PANEL CONNECTORS

1 Serial Connector 1 10 PS/2 Mouse Connector

2 Link Integrity Light 2 11 Line-Out Connector

3 Network Adapter Connector 2 12 Line-In/Mic Connector

4 Network Activity Light 2 13 PS/2 Keyboard Connector

5 Link Integrity Light 1 14 VGA Connector

6 Network Adapter Connector 1

(TruManage Capability)

15 24V Powered USB Connector

7 Network Activity Light 1 16 USB 2.0 Connectors (4)

8 Serial Connector 2 17 DisplayPort

9 Wi-Fi Connector

OptiPlex XE Technical Guidebook Page 8

SFF System Board

1 Processor power connector (12VPOWER) 16 Power connector (POWER)

2 Processor connector (CPU) 17 Serial Port Jumper (J3 & J4)

3 Memory module connectors (DIMM_4) 18 Power connector (24V POWER)

4 Memory module connectors (DIMM_2) 19 Serial Port Jumper (J1 & J2)

5 Memory module connectors (DIMM_3) 20 PCI Express x16 card connector(SLOT1)

6 Memory module connectors (DIMM_1) 21 PCI card connectors (SLOT2) - half height

7 Battery socket (BATTERY) 22 Intruder connector (INTRUDER)

8 Password jumper (PSWD) 23 RTC reset jumper (RTCRST)

9 SATA drive connectors (SATA0) 24 Internal buzzer (SPKR)

10 SATA drive connectors (SATA1) 25 Fan connector (FAN_HDD)

11 SATA drive connectors (SATA2) 26 Speaker connector (INT_SPKR)

12 Thermal sensor connector (rear) 27 Thermal Sensor connector (front)

13 Front-panel connector (FRONTPANEL) 28 Fan connector (FAN_CPU)

14 External Power USB connector 29 Connector for optional wireless card

15 Internal USB connector

OptiPlex XE Technical Guidebook Page 9

Marketing System Configurations

NOTE: Offerings may vary by region. For more information regarding the configuration of your computer, click Start Help and

Support and select the option to view information about your computer.

Operating System

NOTE: One of the following Operating Systems will be preinstalled.

DT SFF

Windows 7® operating system Microsoft® Windows 7® Ultimate (32/64

bit)

Windows® 7 Professional (32/64 bit)

Microsoft® Windows® 7 Home Premium

(32-bit)

Microsoft® Windows® 7 Home

Basic(select countries)

Windows Vista® operating system Microsoft® Windows Vista® Business

(32/64 bit) Microsoft® Windows Vista®

Home Basic

Microsoft® Windows Vista® Business

Downgrade via Windows® 7 Professional

Windows XP® operating system Microsoft® Windows® XP Professional

Downgrade via Windows® 7 Ultimate or

Professional

Microsoft® Windows XP® Professional

Downgrade via Windows Vista® Business

Microsoft® Windows® XP Home (China

only)

Other Microsoft® Windows® Embedded

POSReady 2009

Ubuntu® Linux® (China only)

FreeDOS for N-series

OS Media Support X X

Chipset

NOTE: The OptiPlex XE uses a Chipset from Intel’s long lifecycle Embedded Roadmap

DT SFF

Chipset Intel Q45 Express Chipset w/ICH10DO

Non-volatile memory on chipset

BIOS Configuration SPI (Serial Peripheral Interface) 16Mbit (2MB) located at SPI_FLASH on

chipset

NIC EEPROM 5761—8Mbit, 57780—OTP

OptiPlex XE Technical Guidebook Page 10

Processor

NOTES:

•The OptiPlex XE uses CPUs from Intel’s long lifecycle Embedded Roadmap

•Processor numbers are not a measure of performance.

•Processor availability subject to change and may vary by region/country

DT SFF

Intel® Core™ 2 Duo and Pentium® Dual Core Processors

Intel® Core™ 2 Duo E7400/2.83GHz, 3M, 1066FSB X X

Intel® Pentium® Dual-Core E5300/2.60GHz, 2M, 800FSB X X

Intel® Celeron® Processors

Intel® Celeron® 440/2.0GHz, 512K, 800FSB X X

Advanced System Manageability Modes

NOTE: Hardware management mode options allow you to select the right systems management feature

support for your enterprise. Dell’s innovative approach to scalable remote client management offers you a

choice of built-in hardware management capabilities across platform offerings.

The latest generation of Broadcom® TruManage™ technology provides the capability to manage your install

base of systems regardless of the power or O/S state of the system.

This functionality allows IT to address many issues remotely rather than having to physically visit systems.

The OptiPlex™ XE supports Broadcom® TruManage™ technology which supports the following features:

BIOS Management, asset reporting, remote troubleshooting and repair, power on for remote

patching/updating.

DT SFF

Broadcom TruManage Systems Management Ready X X

System Monitoring Options

NOTES:

•The Dell Watchdog Timer is hardware based with a software user interface

•The Dell Watchdog Timer must be enabled through the Dell factory; cannot be installed after purchase.

•Once enabled, the end user has the ability to configure the desired system response taken in the event

a system hangs during boot or O/S load, or if an application does not respond in the specified amount of

time.

DT SFF

Dell Watchdog Timer Optional via factory installation only
