Dell Studio Desktop Manuale utente

DellStudio™540ServiceManual

Notes, Notices, and Cautions

Information in this document is subject to change without notice.

©2008DellInc.Allrightsreserved.

Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell, the DELL logo, and Dell Studio are trademarks of Dell Inc.; Microsoft and Windows are either trademarks or registered trademarks of Microsoft

Corporation in the United States and/or other countries.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any

proprietary interest in trademarks and trade names other than its own.

Model: DCMA

July2008Rev.A00

Technical Overview

Before You Begin

Replacing the Computer Cover

Replacing the Front Panel

Replacing Memory Module(s)

Replacing a PCI/PCI Express Card

Replacing Drives

Replacing Fans

Replacing the Front I/O Panel

Replacing the Processor

Replacing the System Board

Replacing the Power Supply

Replacing the Battery

Replacing the Rubber Foot

System Setup



NOTE: A NOTE indicates important information that helps you make better use of your computer.

NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.

Back to Contents Page

Before You Begin

DellStudio™540ServiceManual

Technical Specifications

Recommended Tools

Turning Off Your Computer

Safety Instructions

This chapter provides procedures for removing and installing the components in your computer. Unless otherwise noted, each procedure assumes that the

following conditions exist:

lYou have performed the steps in Turning Off Your Computer and Safety Instructions.

lYou have read the safety information that shipped with your computer.

lA component can be replaced or—if purchased separately—installed by performing the removal procedure in reverse order.

Technical Specifications

For information on technical specifications of your computer, see the Setup Guide that shipped with your computer or see the Dell Support website at

support.dell.com.

Recommended Tools

The procedures in this document may require the use of a small Phillips screwdriver size #2.

Turning Off Your Computer



1. Shut down the operating system.



2. Ensure that the computer and all attached devices are turned off. If your computer and attached devices did not automatically turn off when you shut

down your operating system, press and hold the power button for about 4 seconds to turn them off.

Safety Instructions

Use the following safety guidelines to help protect your computer from potential damage and to help to ensure your own personal safety.



1. Ensure that the work surface is flat and clean to prevent the computer cover from being scratched.



2. Turn off your computer (see Turning Off Your Computer).



3. Disconnect all telephone or network cables from the computer.



4. Disconnect your computer and all attached devices from their electrical outlets.



5. Press and hold the power button while the system is unplugged to ground the system board.

NOTICE: To avoid losing data, save and close all open files and exit all open programs before you turn off your computer.

CAUTION: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best

practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

NOTICE: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™isnot

covered by your warranty.

NOTICE: When you disconnect a cable, pull on its connector or on its pull-tab, not on the cable itself. Some cables have connectors with locking tabs; if

you are disconnecting this type of cable, press in on the locking tabs before you disconnect the cable. As you pull connectors apart, keep them evenly

aligned to avoid bending any connector pins. Also, before you connect a cable, ensure that both connectors are correctly oriented and aligned.

NOTICE: To avoid damaging the computer, perform the following steps before you begin working inside the computer.

NOTICE: To disconnect a network cable, first unplug the cable from your computer and then unplug the cable from the network device.

Back to Contents Page



NOTICE: Before touching anything inside your computer, ground yourself by touching an unpainted metal surface, such as the metal at the back of the

computer. While you work, periodically touch an unpainted metal surface to dissipate static electricity, which could harm internal components.

Back to Contents Page

Replacing a PCI/PCI Express Card

DellStudio™540ServiceManual

Removing a PCI/PCI Express Card

Installing a PCI/PCI Express Card

Replacing the Card Retention Bracket

Configuring Your Computer After Removing or Installing a PCI/PCI Express Card



Removing a PCI/PCI Express Card



1. Uninstall the card's driver and software from the operating system. For more information, see the Setup Guide.



2. Follow the procedures in Before You Begin.



3. Remove the computer cover (see Replacing the Computer Cover).



4. Remove the screw holding the card retention bracket.



5. Lift the card retention bracket and set it aside in a secure place.



6. If necessary, disconnect any cables connected to the card.

lFor a PCI card, grasp the card by its top corners, and ease it out of its connector.

lFor a PCI Express card, pull the securing tab, grasp the card by its top corners, and then ease it out of its connector.



7. If you are replacing an existing card, go to step 6 of Installing a PCI/PCI Express Card.



8. Install a filler bracket in the empty card-slot opening.



9. Replace the card retention bracket. See Replacing the Card Retention Bracket.



10. Replace the computer cover, reconnect the computer and devices to electrical outlets, and then turn them on.



11. To complete the removal procedure, see Configuring Your Computer After Removing or Installing a PCI/PCI Express Card.

Installing a PCI/PCI Express Card



1. Follow the procedures in Before You Begin.



2. Remove the computer cover. See Replacing the Computer Cover.



CAUTION: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best

practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

card retention bracket

filler bracket

NOTICE: Installing filler brackets over empty card-slot openings is necessary to maintain FCC certification of the computer. The brackets also keep dust

and dirt out of your computer.



3. Remove the screw holding the card retention bracket.



4. Lift the card retention bracket and set it aside in a secure place.



5. Remove the filler bracket to create a card-slot opening.



6. Prepare the card for installation.

See the documentation that came with the card for information on configuring, customizing and making internal connections on the card.



7. Align the card with the connector.



8. Place the card in the connector and press down firmly. Ensure that the card is fully seated in the slot.



9. Replace the card retention bracket. See Replacing the Card Retention Bracket.



10. Connect any cables that should be attached to the card.

See the documentation for the card for information about the card's cable connections.



11. Replace the computer cover, reconnect the computer and devices to electrical outlets, and then turn them on.



12. To complete the installation, see Configuring Your Computer After Removing or Installing a PCI/PCI Express Card.

Replacing the Card Retention Bracket

NOTE: If you are installing a PCI Express card into the x16 connector, ensure that the securing slot is aligned with the securing tab.

PCI Express x16 card

securing tab

PCI Express x1 card

PCI Express x1 card slot

PCI Express x16 card slot



alignment bar

fully-seated card

not fully-seated card

alignment guide

bracket within slot

bracket caught outside of slot

NOTICE: Do not route card cables over or behind the cards. Cables routed over the cards can prevent the computer cover from closing properly or

cause damage to the equipment.

Replace the card retention bracket ensuring that:

lThe guide clamp is aligned with the guide notch.

lThe tops of all cards and filler brackets are flush with the alignment bar.

lThe notch in the top of the card or filler bracket fits around the alignment guide.

Configuring Your Computer After Removing or Installing a PCI/PCI Express Card

Back to Contents Page



alignment guide

filler bracket

alignment bar

card retention bracket

guide clamps (2)

guide notchs (2)

NOTE: For information on location of connectors, see the Setup Guide. For information on installing drivers and software for your card, see the

documentation that shipped with the card.



Installed

Removed

Sound Card

1. Enter system setup (see System Setup).

2. Go to Integrated Peripherals and select Onboard Audio Controller, and then

change the setting to Disabled.

3. Connect the external audio devices to the sound card's connectors.

1. Enter system setup (see System Setup).

2. Go to Integrated Peripherals and select

Onboard Audio Controller

change the setting to Enabled.

3. 

Connect the external audio devices to the computer's back panel connectors.

Network

Card

1. Enter system setup (see System Setup).

2. Go to Integrated Peripherals and select Onboard LAN Controller, and then

change the setting to Disabled.

3. Connect the network cable to the network card's connector.

1. Enter system setup (see System Setup).

2. Go to Integrated Peripherals and select

Onboard LAN Controller

change the setting to Enabled.

3. 

Connect the network cable to the integrated network connector.

Back to Contents Page

Replacing the Battery

DellStudio™540ServiceManual



1. Record all the screens in system setup (see System Setup) so that you can restore the correct settings in step 10.



2. Follow the procedures in Before You Begin.



3. Remove the computer cover (see Replacing the Computer Cover).



4. Locate the battery socket (see System Board Components).



5. Carefully press the battery release lever away from the battery and the battery will pop out.



6. Remove the battery from the system and properly dispose of the battery.



7. Insert the new battery into the socket with the side labeled "+" facing up, then snap the battery into place.



8. Replace the computer cover (see Replacing the Computer Cover).



9. Connect your computer and devices to electrical outlets, and then turn them on.



10. Enter system setup (see System Setup) and restore the settings you recorded in step 1.

Back to Contents Page



CAUTION: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best

practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

CAUTION: A new battery can explode if it is incorrectly installed. Replace the battery only with the same or equivalent type recommended by the

manufacturer. Discard used batteries according to the manufacturer's instructions.

NOTICE: If you pry the battery out of its socket with a blunt object, be careful not to touch the system board with the object. Ensure that the object is

inserted between the battery and the socket before you attempt to pry out the battery. Otherwise, you may damage the system board by prying off

the socket or by breaking circuit traces on the system board.

battery (positive side)

battery release lever

battery (positive side)

battery release lever

Back to Contents Page

Replacing the Computer Cover

DellStudio™540ServiceManual



1. Follow the procedures in Before You Begin.



2. Lay your computer on its side with the computer cover facing up.



3. Open the padlock, if applicable.



4. Remove the two thumbscrews.



5. Pull the cover grip towards the back of the computer lift it away from the computer.



6. Set the cover aside in a secure location.



7. To replace the computer cover, perform the removal procedure in reverse order.

Back to Contents Page



CAUTION: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best

practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

CAUTION: To guard against likelihood of electric shock, laceration by moving fan blades or other unexpected injuries, always unplug your

computer from the electrical outlet before removing the cover.

NOTICE: Ensure that sufficient space exists to support the system with the cover removed—at least 30 cm (1 ft.) of desk top space.

computer cover

front of computer

thumbscrews (2)

cover grip

Back to Contents Page

Replacing the Processor

DellStudio™540ServiceManual



1. Follow the procedures in Before You Begin.



2. Remove the computer cover (see Replacing the Computer Cover).



3. Disconnect the power cables from the ATX POWER and ATX_CPU connectors (see System Board Components) on the system board.



4. Remove the processor fan and heat sink assembly from the computer (see Replacing the Processor Fan and Heat Sink Assembly).



5. Press and push the release lever down and out to release it from the tab that secures it.



6. Open the processor cover.



7. Lift up the processor to remove it from the socket, place it aside in a safe and secure place.

Leave the release lever extended in the release position so that the socket is ready for the new processor.



8. Unpackthenewprocessor,becarefulnottotouchtheundersideoftheprocessor.

CAUTION: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best

practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

NOTICE: Do not perform the following steps unless you are familiar with hardware removal and replacement. Performing these steps incorrectly could

damage your system board. For technical service, see the Setup Guide.

CAUTION: Despite having a plastic shield, the heat sink assembly may be very hot during normal operation. Be sure that it has had sufficient time

to cool before you touch it.

NOTE: Unless a new heat sink is required for the new processor, reuse the original heat sink assembly when you replace the processor.

processor cover

processor

socket

release lever

NOTICE: When removing or replacing the processor, do not touch any of the pins inside the socket or allow any objects to fall on the pins in the socket.

NOTICE: Ground yourself by touching an unpainted metal surface on the back of the computer.



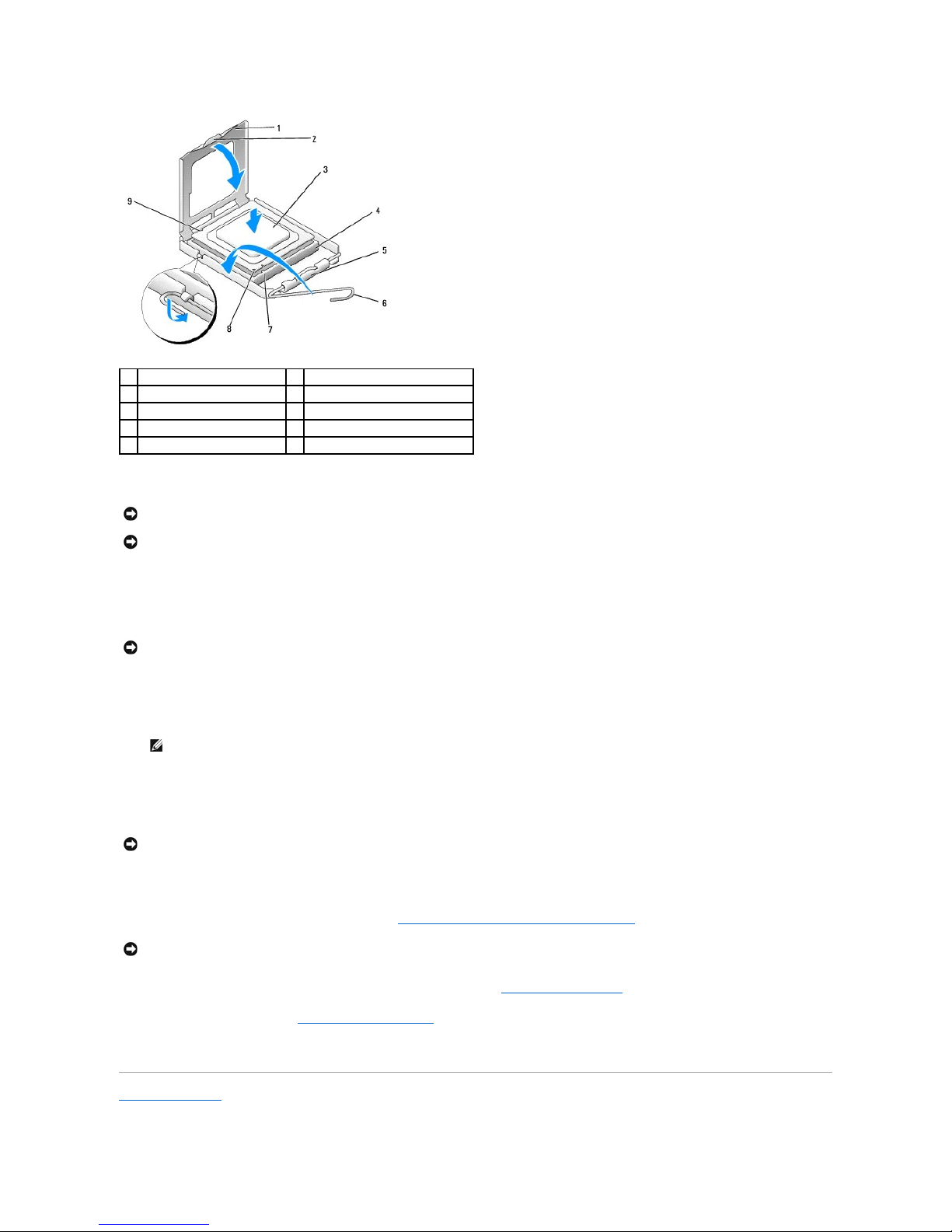

9. If the release lever on the socket is not fully extended, move it to that position.



10. Orient the front and back alignment-notches on the processor with the front and back alignment-notches on the socket.



11. Align the pin-1 corners of the processor and socket.



12. Set the processor lightly in the socket and ensure that the processor is positioned correctly.



13. When the processor is fully seated in the socket, close the processor cover.



14. Pivot the socket release lever back towards the socket, and snap it into place to secure the processor.



15. Clean the thermal grease from the bottom of the heat sink.



16. Apply the new thermal grease to the top of the processor.



17. Replace the processor fan and heat sink assembly (see Replacing the Processor Fan and Heat Sink Assembly).



18. Connect the power cables from the ATX POWER and ATX_CPU connectors (see System Board Components) on the system board.



19. Replace the computer cover (see Replacing the Computer Cover).



20. Connect your computer and devices to electrical outlets, and then turn them on.

Back to Contents Page



processor cover

tab

processor

socket

center cover latch

release lever

front alignment-notch

processor pin-1 indicator

back alignment notch



NOTICE: You must position the processor correctly in the socket to avoid permanent damage to the processor and the computer when you turn on the

computer.

NOTICE: Socket pins are delicate. To avoid damage, ensure that the processor is aligned properly with the socket, and do not use excessive force

when you replace the processor. Be careful not to touch or bend the pins on the system board.

NOTICE: To avoid damage, ensure that the processor aligns properly with the socket, and do not use excessive force when you install the processor.

NOTE: Ensure that the tab on the processor cover is positioned underneath the center cover latch on the socket.

NOTICE: Ensure that you apply new thermal grease. New thermal grease is critical for ensuring adequate thermal bonding, which is a requirement for

optimal processor operation.

NOTICE: Ensure that the processor fan and heat sink assembly is correctly seated and secure.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Dell Scrivania

Dell

Dell OptiPlex 3011 AIO Manuale del proprietario

Dell

Dell PE R720XD Manuale utente

Dell

Dell PowerEdge 4200 Series Manuale utente

Dell

Dell Inspiron 5720 Manuale utente

Dell

Dell OptiPlex FX170 Manuale utente

Dell

Dell Dimension 2200 Manuale utente

Dell

Dell OptiPlex 3011 AIO Manuale utente

Dell

Dell Inspiron One 2330 Manuale utente

Dell

Dell GX260 - Optiplex Pentium 4 2.0GHz 512MB 40GB... Manuale del proprietario

Dell

Dell XPS 720 Manuale utente

Dell

Dell OptiPlex 5000 Small Form Factor Manuale operativo e di manutenzione

Dell

Dell Inspiron 20 3000 Series Manuale utente

Dell

Dell Inspiron 20 3043 Manuale utente

Dell

Dell OptiPlex SX280 Istruzioni operative e di sicurezza

Dell

Dell Inspiron 620 Manuale utente

Dell

Dell OptiPlex Small Form Factor 7010 Manuale utente

Dell

Dell D29M001 Guida utente

Dell

Dell Precision 7920 Rack Manuale utente

Dell

Dell E521 - Dimension Motherboard UW457 0UW457 Manuale utente

Dell

Dell OptiPlex 7440 Manuale utente

Dell

Dell ChengMing 3991 Manuale utente

Dell

Dell OptiPlex 390 Manuale utente

Dell

Dell Precision 3640 Tower Manuale utente

Dell

Dell Wyse 5012 Manuale utente

Manuali Scrivania popolari di altre marche

HP m9060n - Pavilion - Elite Scheda tecnica

Asus

Asus E210 Series Manuale utente

TotalFlow

TotalFlow uFLO Manuale utente

HP Presario SV7000 - Desktop PC Manuale utente

HP ProDesk 400 G5 Manuale

Logitech

Logitech MK320 Manuale utente

Sony

Sony Vaio Series Manuale utente

Sony

Sony VGC-LT32E - Vaio All-in-one Desktop Computer Manuale utente

Alto

Alto MD 250 Manuale utente

Lenovo

Lenovo ThinkCentre Edge 72 Manuale

Lenovo

Lenovo ThinkStation D20 Manuale

Arbor Technology

Arbor Technology FPC-7800 Series Manuale utente

Sony

Sony VAIO VGX-TP1 Series Manuale utente

Asus

Asus Eee Box B204 Manuale utente

HP Z1 Manuale utente

Everex

Everex eXplora Manuale utente

Lenovo

Lenovo ThinkCentre M75e Manuale utente

Compaq

Compaq iPAQ Internet Device Manuale utente
