Dell Vostro 270 Manuale del proprietario

Dell Vostro 270

Setup And Features Information

About Warnings

WARNING: A WARNING indicates a potential for property damage, personal injury,

or death.

Front and Back View

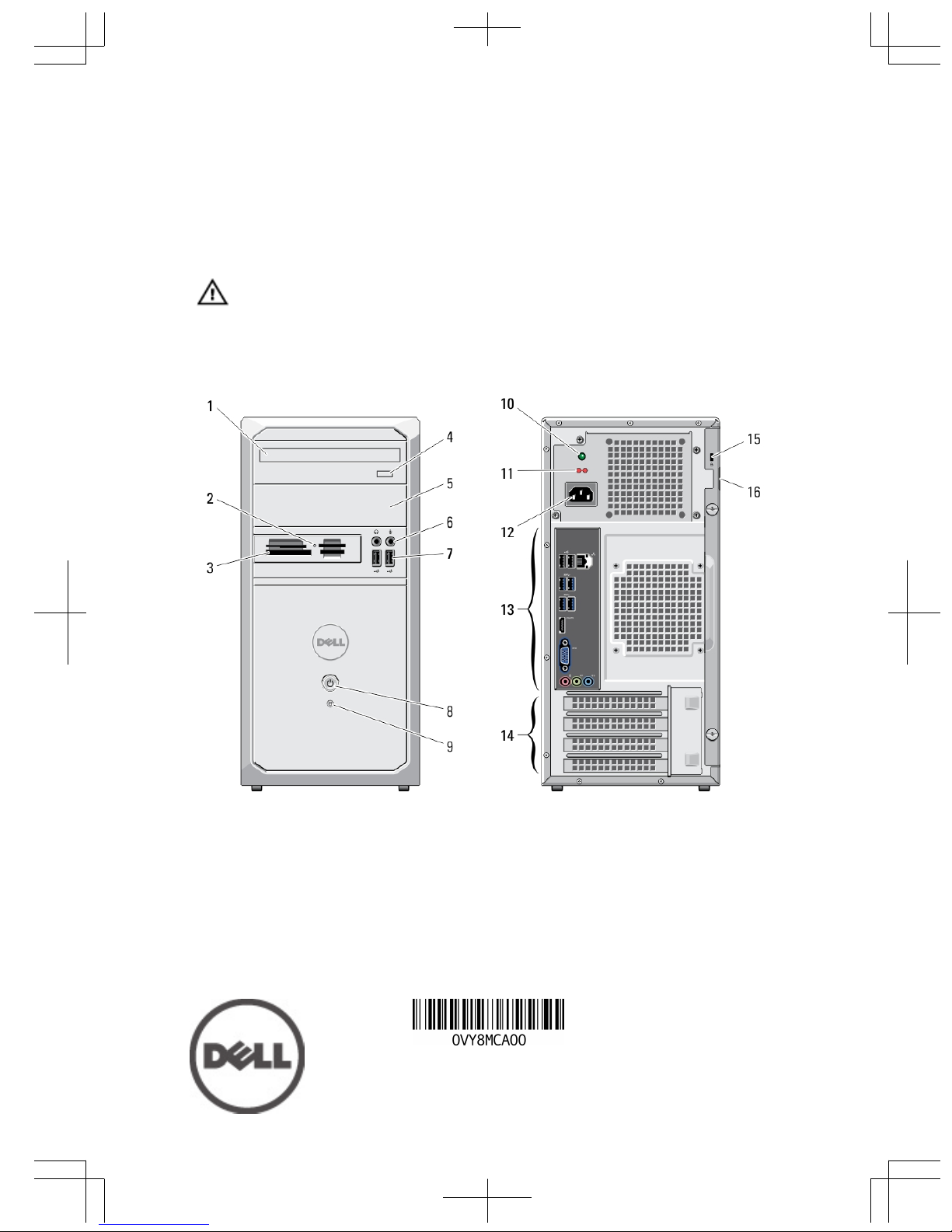

Figure 1. Front And Back View

1. optical drive

2. media-card reader status light

3. 19-in-1 media-card reader (optional)

4. optical drive eject button

5. optical drive bay

6. microphone and headphone

connectors

7. USB 2.0 connectors (2)

8. power button

9. hard-drive activity light

Regulatory Model: D11M

Regulatory Type: D11M002

2012 – 04

10. power-supply diagnostic light

11. voltage selector switch

12. power cable connector

13. back panel connectors

14. expansion card slots (4)

15. security cable slot

16. padlock ring

Back Panel

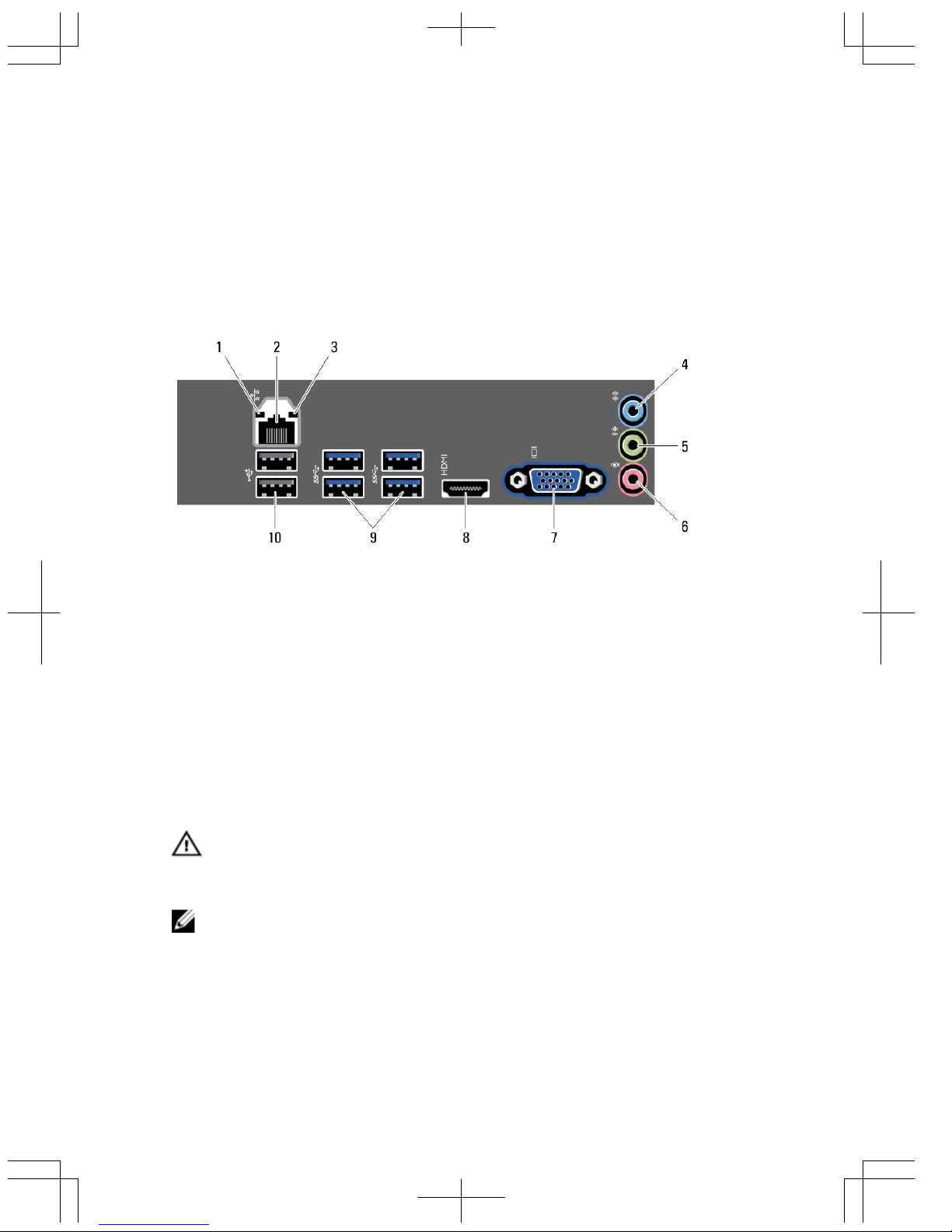

Figure 2. Back Panel View

1. link-integrity light

2. network adapter connector

3. network-activity light

4. line-in connector

5. line-out connector

6. microphone connector

7. VGA connector

8. HDMI connector

9. USB 3.0 connectors (4)

10. USB 2.0 connectors (2)

Quick Setup

WARNING: Before you begin any of the procedures in this section, read the safety

information that shipped with your computer. For additional best practices

information, see www.dell.com/regulatory_compliance

NOTE: Some devices may not be included if you did not order them.

1. Connect the monitor using only one of the following cables:

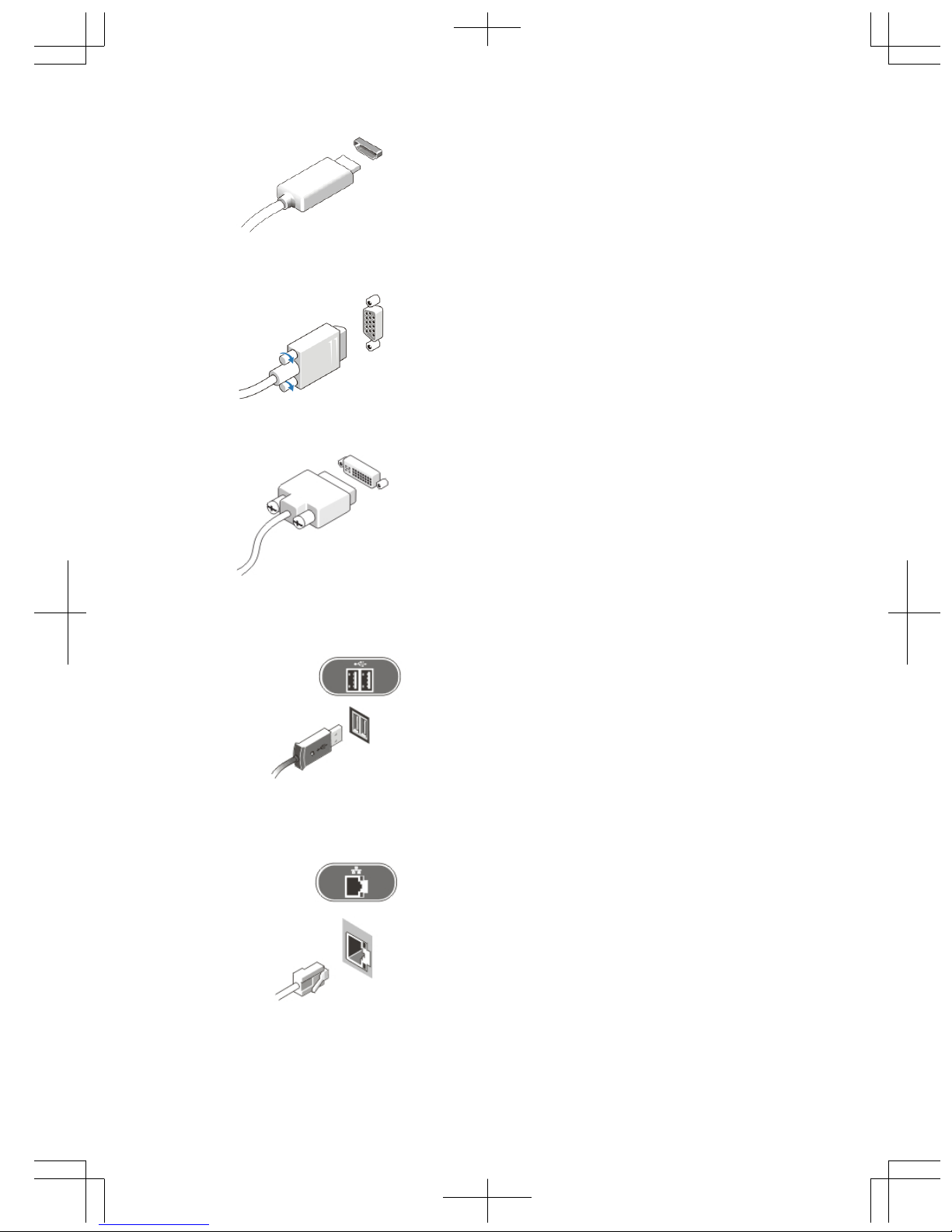

Figure 3. HDMI Connector

Figure 4. VGA Connector

Figure 5. DVI Connector (optional)

2. Connect the USB keyboard or mouse (optional).

Figure 6. USB Connection

3. Connect the network cable (optional).

Figure 7. Network Connection

4. Connect the power cable(s).

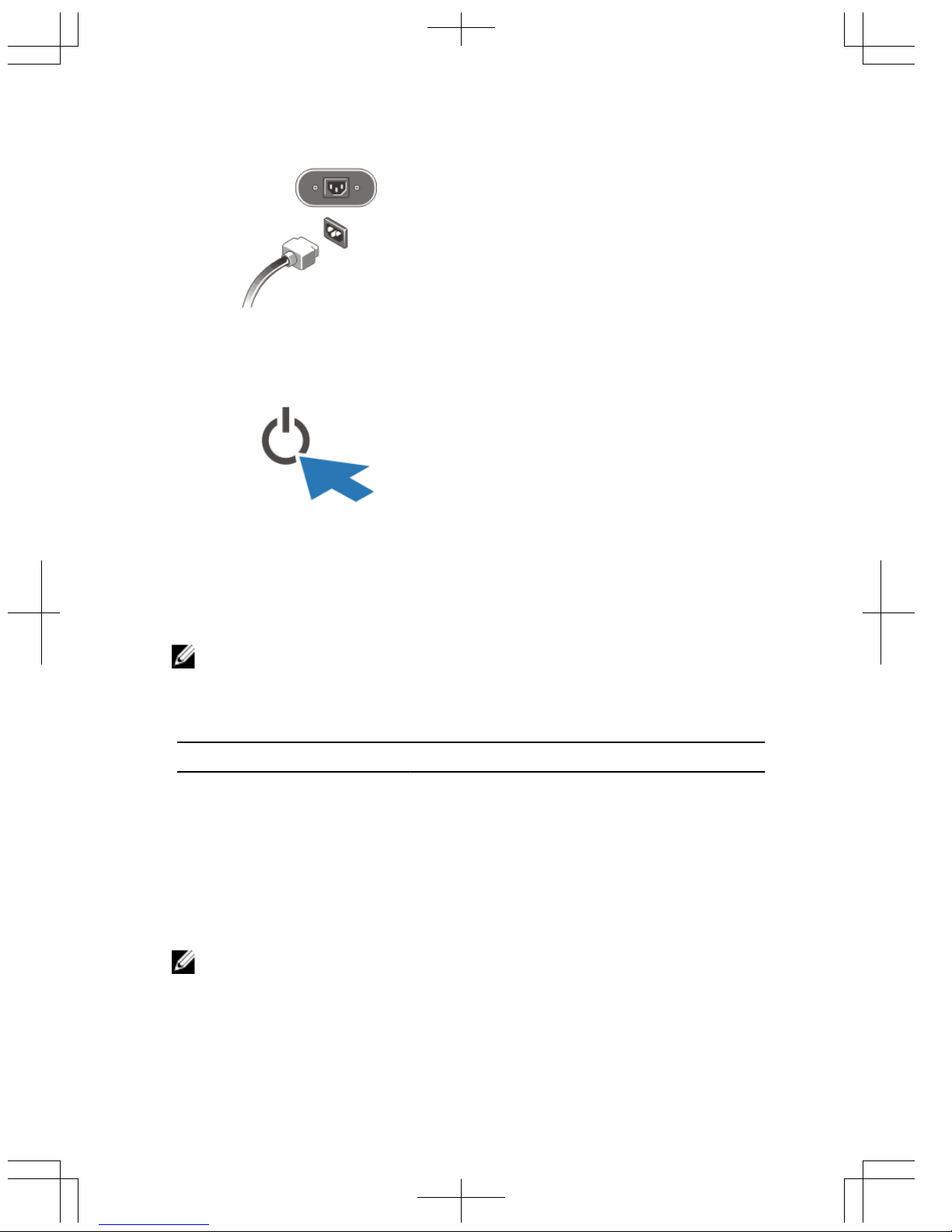

Figure 8. Connecting Power

5. Press the power buttons on the monitor and the computer.

Figure 9. Turning On Power

Specifications

NOTE: Offerings may vary by region. The following specifications are only those

required by law to ship with your computer. For more information regarding the

configuration of your computer, click Start → Help and Support and select the

option to view information about your computer.

Power

Wattage 300 W

Voltage (see the safety

information that shipped with

your computer for important

voltage–setting information)

100 V to 127 V / 200 V to 240 V

Coin-cell battery 3 V, CR2032 lithium coin cell

NOTE: Heat dissipation is calculated by using the power supply wattage rating.

Physical

Height 36.60 cm (14.41 inches)

Width 17.50 cm (6.89 inches)

Depth 43.40 cm (17.09 inches)

Weight (minimum) 7.90 Kg (17.40 lb)

Environmental

Operating Temperature: 10 °C to 35 °C (50 °F to 95 °F)

Finding More Information and Resources

See the safety and regulatory documents that shipped with your computer and the

regulatory compliance website at www.dell.com/regulatory_compliance for more

information on:

• Safety best practices

• Regulatory certification

• Ergonomics

See www.dell.com for additional information on:

• Warranty

• Terms and Conditions (U.S. only)

• End User License Agreement

Additional information on your product is available at support.dell.com/manuals.

Information para NOM (únicamente para México)

The following information is provided on the device described in this document in

compliance with the requirements of the official Mexican standards (NOM).

Voltaje de alimentación 115 V CA /230 V CA

Frecuencia 50 Hz — 60 Hz

Consumo eléctrico 7,40/4,00 A or 6,00/2,10 A
