Dell PowerVault MD1000 Manuale tecnico

Dell PowerVault MD1000

Storage Enclosure

Information Update

Notes, Cautions, and Warnings

NOTE: A NOTE indicates important information that helps you make better use of

your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss of data if

instructions are not followed.

WARNING: A WARNING indicates a potential for property damage, personal

injury, or death.

____________________

Information in this document is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc.

is strictly forbidden.

Trademarks used in this text: Dell™, the DELL™ logo, PowerEdge™, and PowerVault™ are

trademarks of Dell Inc.

Other trademarks and trade names may be used in this document to refer to either the entities claiming

the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and

trade names other than its own.

June 2010 Rev. A01

Information Update 3

RAID Configuration Update

Host-based RAID configuration is supported using Dell PowerEdge RAID

Controller (PERC) 5/E and PERC 6/E.

Supported Hardware Configurations Using a

PERC 6/E Adapter

PERC 6/E adapters can detect and use redundant paths to drives in a Dell

PowerVault MD1000 enclosure. With redundant paths, if one path fails,

another path can be used to communicate between the controller and the

hard drive.

NOTE: Redundant path connectivity is not supported on PERC 5/E adapters.

Figure 1 Redundant Path With One Enclosure

Server

PowerVault

MD1000 storage

enclosure

4Information Update

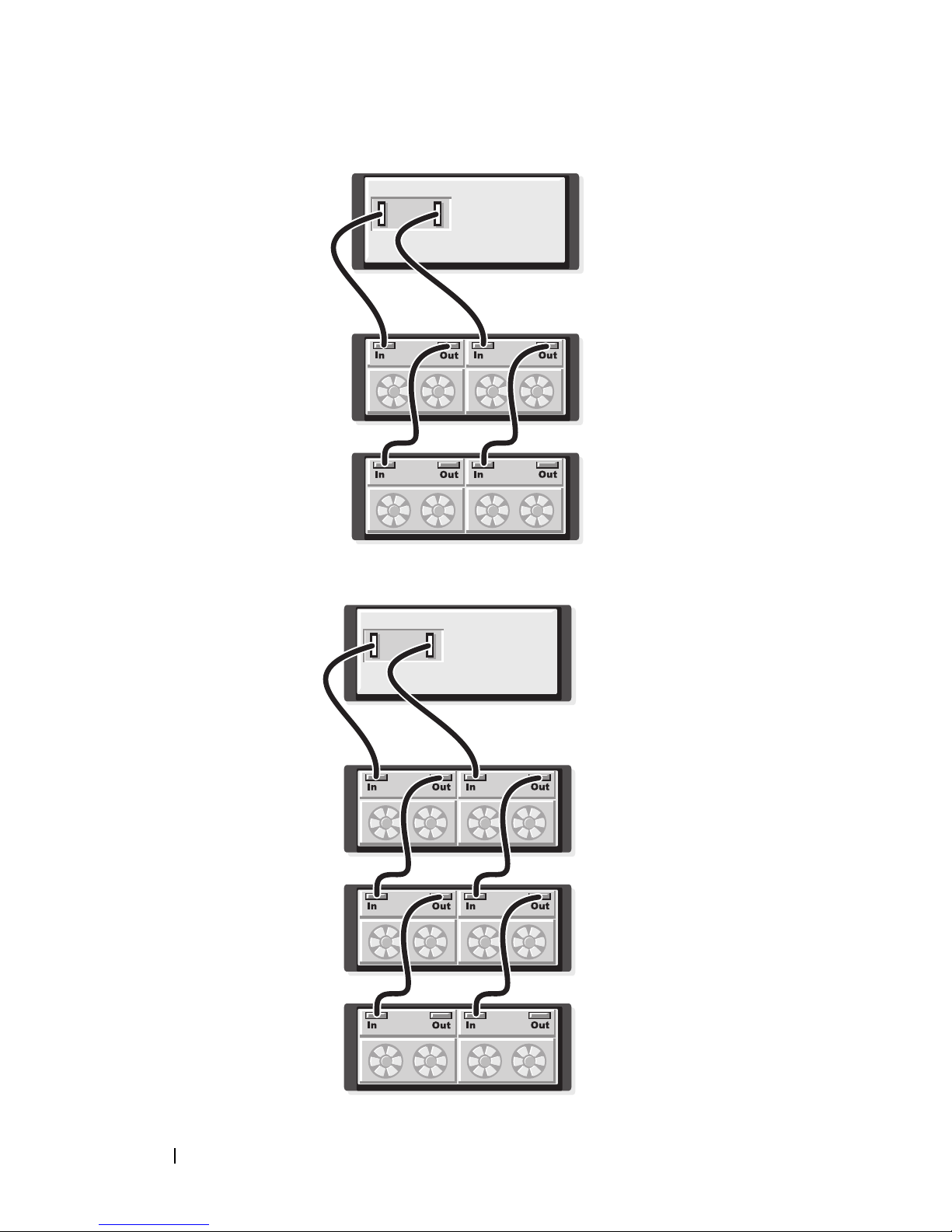

Figure 2. Redundant Path With Two Enclosures

Figure 3. Redundant Path With Three Enclosures

Server

PowerVault

MD1000 storage

enclosure

PowerVault

MD1000 storage

enclosure

Server

PowerVault

MD1000 storage

enclosure

PowerVault

MD1000 storage

enclosure

PowerVault

MD1000 storage

enclosure

Information Update 5

Additional Information for Troubleshooting a

SAS/SATA drive

Reseating a drive during initial set up is a valid step. If an enclosure is in

production and if there are no problems other than non-detection of a drive,

replace the drive that is not detected rather than reseating the drive.

It is recommended not to reseat a SMART tripped or failed drive. You cannot

reset a SMART tripped drive back to normal state. If a drive fails due to the

controller, check if a new firmware is available to fix the issue. If a firmware

update does not fix the issue, replace the drive.

NOTE: If an amber blink sequence represents a SMART trip, the drive must be

replaced. It cannot be fixed by a firmware update.

For more information about troubleshooting a SAS/SATA drive, see the Dell

PowerVault MD1000 Storage Enclosure Hardware Owner’s Manual at

support.dell.com/manuals.

Troubleshooting Enclosure Problems

Problem

One of the temperature probes displays an abnormal temperature reading.

Action

The system management software displays four temperature probes (0-3).

Probe 0 represents the temperature sensor on

enclosure management module

(

EMM) 0. Probe 1 represents the temperature sensor on EMM1. Probe 2 and

3 are temperature sensors on the midplane.

To resolve this issue:

• Check for airflow obstruction.

• Replace the component with the abnormal temperature sensor.

NOTE: The power supplies do not have a temperature sensor that reports to the

system management software.

6Information Update

Dell PowerVault MD1000

存储柜

信息更新

注、小心和警告

注：“注”表示帮助您更好地使用计算机的重要信息。

小心：“注意”表示如果不遵循说明，就有可能损坏硬件或导致数据丢失。

警告：“ 告”表示可能会造成财产损失、人身伤害甚至死亡。

____________________

本说明文件中的信息如有更改，恕不另行通知。

未经 Dell Inc. 书面许可，严禁以任何形式复制这些材料。

本文中使用的商标：Dell™ DELL™ 徽标 PowerEdge™ 和PowerVault™ 是Dell Inc.

的商标。

本说明文件中可能使用其他商标和商品名称来指拥有相应商标和商品名称的公司或其产品。

Dell Inc. 对其它公司的商标和产品名称不拥有任何所有权。

2010 年6 月Rev. A01

信息更新 9

RAID 配置更新

使用 Dell PowerEdge RAID 控制器 (PERC) 5/E 和PERC 6/E 支持基于主机

的RAID 配置。

使用 PERC 6/E 适配器支持的硬件配置

PERC 6/E 适配器可检测和使用指向 Dell PowerVault MD1000 机柜中的驱

动器的冗余路径。借冗余路径，如果一条路径发生故障，则可使用另一

条路径来保持控制器与硬盘驱动器之间的通信。

注：PERC 5/E 适配器中不支持余路径连接。

图1。具有一个机柜的冗余路径

服务器

PowerVault

MD1000 存储柜

10 信息更新

图2。具有两个机柜的冗余路径

图3。具有三个机柜的冗余路径

服务器

PowerVault

MD1000 存储柜

PowerVault

MD1000 存储柜

服务器

PowerVault

MD1000 存储柜

PowerVault

MD1000 存储柜

PowerVault

MD1000 存储柜
