Dell Latitude 3330

Setup And Features Information

About Warnings

WARNING: A WARNING indicates a potential for property damage, personal injury,

or death.

Front View

Figure 1. Front View

1. microphone

2. camera

3. camera status light

4. display

5. network connector

6. VGA connector

Regulatory Model: P18S

Regulatory Type: P18S002

2013 - 02

7. USB 3.0 connectors (2)

8. headphone and microphone

connector

9. speaker

10. touchpad

11. touchpad buttons (2)

12. device status lights

13. speaker

14. keyboard

15. power button

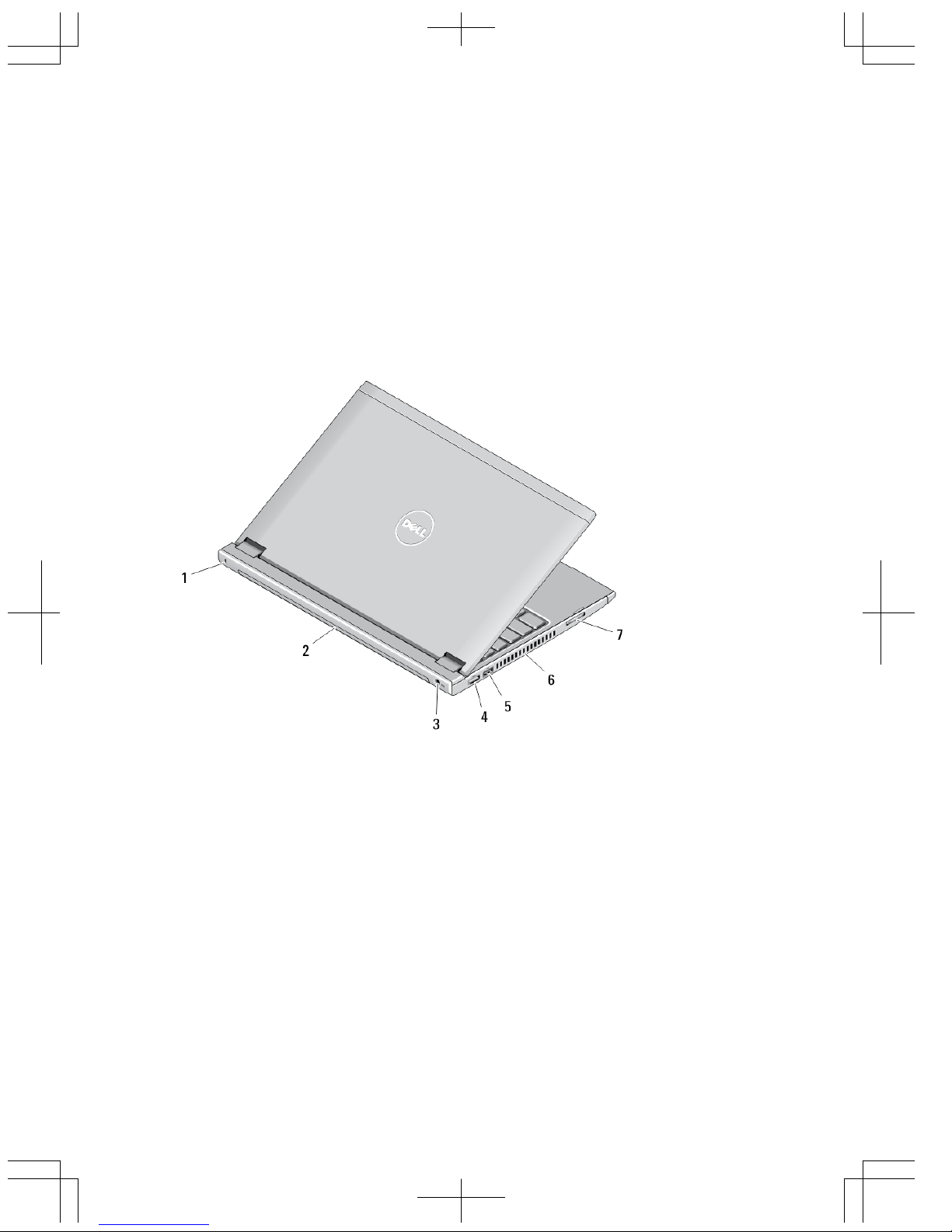

Back View

Figure 2. Back View

1. security lock slot

2. battery

3. power connector

4. HDMI connector

5. USB 2.0 connector with USB

PowerShare

6. cooling vents

7. memory card reader

WARNING: Do not block, push objects into, or allow dust to accumulate in the air

vents. Do not store your Dell computer in a low-airflow environment, such as a

closed briefcase, while it is running. Restricting the airflow can damage the

computer or cause a fire. The computer turns on the fan when the computer gets

hot. Fan noise is normal and does not indicate a problem with the fan or the

computer.

Quick Setup

WARNING: Before you begin any of the procedures in this section, read the safety

information that shipped with your computer. For additional best practices

information, see www.dell.com/regulatory_compliance

WARNING: The AC adapter works with electrical outlets worldwide. However,

power connectors and power strips vary among countries. Using an incompatible

cable or improperly connecting the cable to the power strip or electrical outlet may

cause fire or equipment damage.

CAUTION: When you disconnect the AC adapter cable from the computer, grasp

the connector, not the cable itself, and pull firmly but gently to avoid damaging the

cable. When you wrap the AC adapter cable, ensure that you follow the angle of the

connector on the AC adapter to avoid damaging the cable.

NOTE: Some devices may not be included if you did not order them.

1. Connect the AC adapter to the AC adapter connector on the computer and to the

electrical outlet.

Figure 3. AC Adapter

2. Connect the network cable (optional).

Figure 4. Network Connector

3. Connect USB devices, such as a mouse or keyboard (optional).

Figure 5. USB Connector

4. Open the computer display and press the power button to turn on the computer.

Figure 6. Power Button

NOTE: It is recommended that you turn on and shut down your computer at least

once before you install any cards or connect the computer to a docking device or

other external device, such as a printer.

Specifications

NOTE: Offerings may vary by region. The following specifications are only those

required by law to ship with your computer. For more information regarding the

configuration of your computer, click Start → Help and Support and select the

option to view information about your computer.

Power

AC Adapter 65 W and 90 W

Power

NOTE: 90 W AC Adapter is shipped only to

selected countries

Input voltage 100 VAC to 240 VAC

Coin-cell battery 3 V CR2032 lithium ion

Physical

Height

with 4–cell battery 21.00 mm (0.83 inch)

with 6–cell battery 32.00 mm (1.25 inches)

Width 329.30 mm (12.96 inches)

Depth 237.65 mm (9.35 inches)

Weight

with 4–cell battery 1.55 kg (3.43 lb)

with 6–cell battery 1.76 kg (3.90 lb)

Environmental

Operating Temperature 0 °C to 35 °C (32 °F to 95 °F)

Information para NOM (únicamente para México)

The following information is provided on the device described in this document in

compliance with the requirements of the official Mexican standards (NOM).

Voltaje de alimentación 100 V CA – 240 V CA

Frecuencia 50 Hz – 60 Hz

Consumo eléctrico 1,50 A /1,60 A /1,70 A

Voltaje de salida 19,50 V de CC

Intensidad de salida 3,34 A /4,62 A

Finding More Information and Resources

See the safety and regulatory documents that shipped with your computer and the

regulatory compliance website at www.dell.com/regulatory_compliance for more

information on:

• Safety best practices

• Regulatory certification

• Ergonomics

See www.dell.com for additional information on:

• Warranty

• Terms and Conditions (U.S. only)

• End User License Agreement

Additional information on your product is available at www.dell.com/support/manuals.

Trademarks used in this text: Dell™, the DELL logo, Dell Precision™, Precision ON™,

ExpressCharge™, Latitude™, Latitude ON™, OptiPlex™, Vostro™, and Wi-Fi Catcher™are

trademarks of Dell Inc. Intel®, Pentium®, Xeon®, Core™, Atom™, Centrino®, and Celeron®are

registered trademarks or trademarks of Intel Corporation in the U.S. and other countries. AMD®is a

registered trademark and AMD Opteron™, AMD Phenom™, AMD Sempron™, AMD Athlon™,

ATI Radeon™, and ATI FirePro™are trademarks of Advanced Micro Devices, Inc. Microsoft®,

Windows®, MS-DOS®, Windows Vista®, the Windows Vista start button, and Office Outlook®are

either trademarks or registered trademarks of Microsoft Corporation in the United States and/or

other countries. Blu-ray Disc™is a trademark owned by the Blu-ray Disc Association (BDA) and

licensed for use on discs and players. The Bluetooth®word mark is a registered trademark and

owned by the Bluetooth®SIG, Inc. and any use of such mark by Dell Inc. is under license. Wi-Fi®is

a registered trademark of Wireless Ethernet Compatibility Alliance, Inc.
