Before You Begin

Dell™Latitude™D410ServiceManual

Preparing to Work Inside the Computer

Recommended Tools

Computer Orientation

Screw Identification

Preparing to Work Inside the Computer



1. Ensure that the work surface is flat and clean to prevent scratching the computer cover.



2. Save any work in progress and exit all open programs.



3. Turn off the computer and all attached devices.



4. If the computer is connected to a Media Base or other docking device, undock it.



5. Disconnect the computer from the electrical outlet.



6. To avoid possible damage to the system board, wait 10 to 20 seconds and then disconnect any attached devices.



7. Disconnect all other external cables from the computer.



8. Remove any installed PC Cards from the PC Card slot.



9. Close the display and turn the computer upside down on a flat work surface.



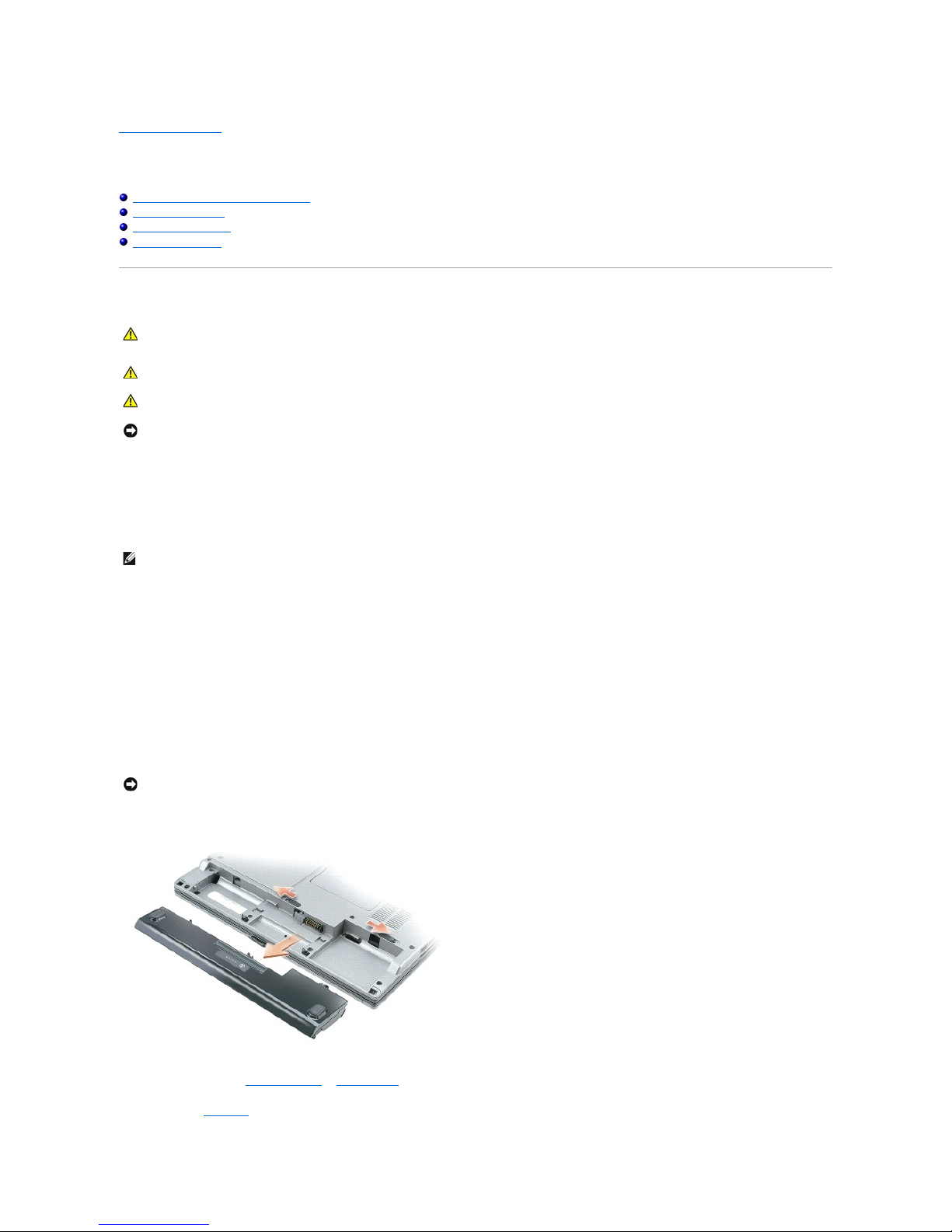

10. Slide the two battery-bay latch releases on the bottom of the computer, and then remove the battery from the battery bay.



11. Remove any installed memory modules or Mini PCI cards.



12. Remove the hard drive.

CAUTION: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell is

not covered by your warranty. Read and follow applicable instructions in the safety instructions in the Product Information Guide that came with

the computer.

CAUTION: To prevent static damage to components inside your computer, discharge static electricity from your body before you touch any of

your computer's electronic components. You can do so by touching an unpainted metal surface.

CAUTION: Handle components and cards with care. Do not touch the components or contacts on a card. Hold a card by its edges or by its metal

mounting bracket. Hold a component such as a microprocessor by its edges, not by its pins.

NOTICE: To avoid damaging the computer, perform the following steps before you begin working inside the computer.

NOTE: Ensure that the computer is turned off and not in a power management mode. If you cannot shut down the computer using the computer

operating system, press and hold the power button for 4 seconds.

NOTICE: To avoid damaging the system board, you must remove the main battery before you service the computer.

Recommended Tools

The procedures in this manual require the following tools:

l#1 Phillips screwdriver

l¼-inch flat-blade screwdriver

lSmall plastic scribe

lFlash BIOS update program CD or USB memory key with the flash BIOS update program.

Computer Orientation

Screw Identification

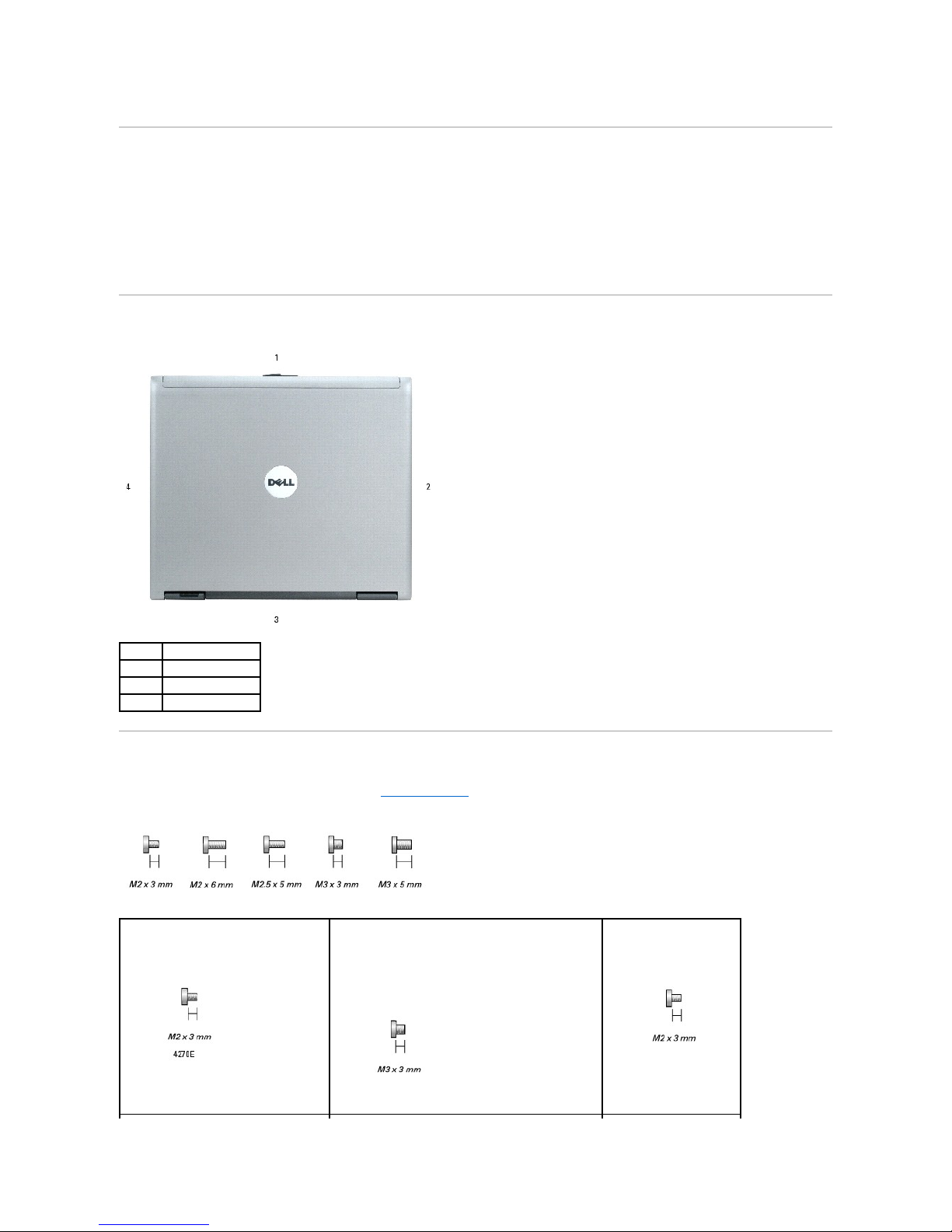

When you are removing and replacing components, print "Screw Identification" as a tool to lay out and keep track of the screws. The placemat provides the

number of screws and their sizes.

front

left

back

right

Modem:

(1 each)

Hard Drive:

(2 each —hard drive)

(2 each —hard drive carrier)

Keyboard:

(2 each)

Back to Contents Page



Display Assembly (top —hinges):

(2 each —M2 x 6 mm)

Palm Rest (top):

(5 each —M2.5 x 5 mm)

(1 each —M2 x 3 mm)

Fan:

(3 each)

Display Assembly (bottom —computer base):

(2 each —M3 x 5 mm)

Computer Base:

(12 each —M2.5 x 5 mm)

door for internal card with Bluetooth®Wireless Technology

(1 each —M2 x 3 mm)

System Board:

(3 each)

Back to Contents Page

Flashing the BIOS



1. Ensure that the AC adapter is plugged in and that the main battery is installed properly.



2. Insert the BIOS update program CD, and turn on the computer.

Follow the instructions that appear on the screen. The computer continues to boot and updates the new BIOS. When the flash update is complete, the

computer will automatically reboot.



3. Press <F2> during POST to enter the system setup program.



4. Press <Alt><F> to reset the computer defaults.



5. Press <Esc>, select Save changes and reboot, and press <Enter> to save configuration changes.



6. Remove the flash BIOS update program CD from the drive and restart the computer.

Back to Contents Page



NOTE: If you use a BIOS update program CD to flash the BIOS, set up the computer to boot from a CD before inserting the CD.

Back to Contents Page

Internal Card With Bluetooth®Wireless Technology

Dell™Latitude™D410ServiceManual

Removing the Internal Card With Bluetooth®Wireless Technology

Replacing the Internal Card With Bluetooth®Wireless Technology

Removing the Internal Card With Bluetooth®Wireless Technology



1. Follow the instructions in "Preparing to Work Inside the Computer."



2. Remove the battery.



3. Remove the door for the internal card with Bluetooth®wireless technology:

a. Loosen the captive screw on the card door.

b. Lift out the card door.



4. Remove the M2 x 3-mm card screw.



5. Using a plastic scribe or screwdriver, gently pry the card from its compartment and lift out the card from underneath the captive-screw hole.



6. Holding the card with one hand, use your other hand to gently disconnect the card from the card connector, and remove the card from the computer.

Replacing the Internal Card With Bluetooth®Wireless Technology



1. Holding the internal card with Bluetooth®wireless technology with one hand, use your other hand to gently connect the card connector to the card, and

insert it into the computer.



2. Replace the card door.



CAUTION: Before performing the following procedures, read the safety instructions in your Product Information Guide.

NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such

as the back panel) on the computer.

door for internal card with Bluetooth®wireless technology

captive screw on card door

card connector

internal card with Bluetooth®wireless technology

M2 x 3-mm screw

3. Replace the battery.

Back to Contents Page



Back to Contents Page

Coin-Cell Battery

Dell™Latitude™D410ServiceManual

Removing the Coin-Cell Battery

Replacing the Coin-Cell Battery

Removing the Coin-Cell Battery



1. Follow the instructions in "Preparing to Work Inside the Computer."



2. Turn over the computer, loosen the two captive screws from the coin-cell battery cover, and lift the cover away from the computer.



3. Gently pull the coin-cell battery from the system board, and disconnect the cable connector from the system board.



4. Remove the double-sided tape from the battery.



5. Place the double-sided tape on the replacement coin-cell battery.

CAUTION: Before you begin any of the procedures in this section, follow the safety instructions located in the Product Information Guide.

CAUTION: To prevent static damage to components inside your computer, discharge static electricity from your body before you touch any of

your computer's electronic components. You can do so by touching an unpainted metal surface.

captive screws (2)

coin-cell battery

battery cable connector

battery cable



Replacing the Coin-Cell Battery



1. Affix the replacement battery with the double-sided tape on the system board.



2. Replace the coin-cell battery cover.

Back to Contents Page



Back to Contents Page

Center Control Cover

Dell™Latitude™D410ServiceManual

Removing the Center Control Cover

Replacing the Center Control Cover

Removing the Center Control Cover



1. Follow the instructions in "Preparing to Work Inside the Computer."



2. Open the display all the way (180 degrees) so that it lies flat against your work surface.



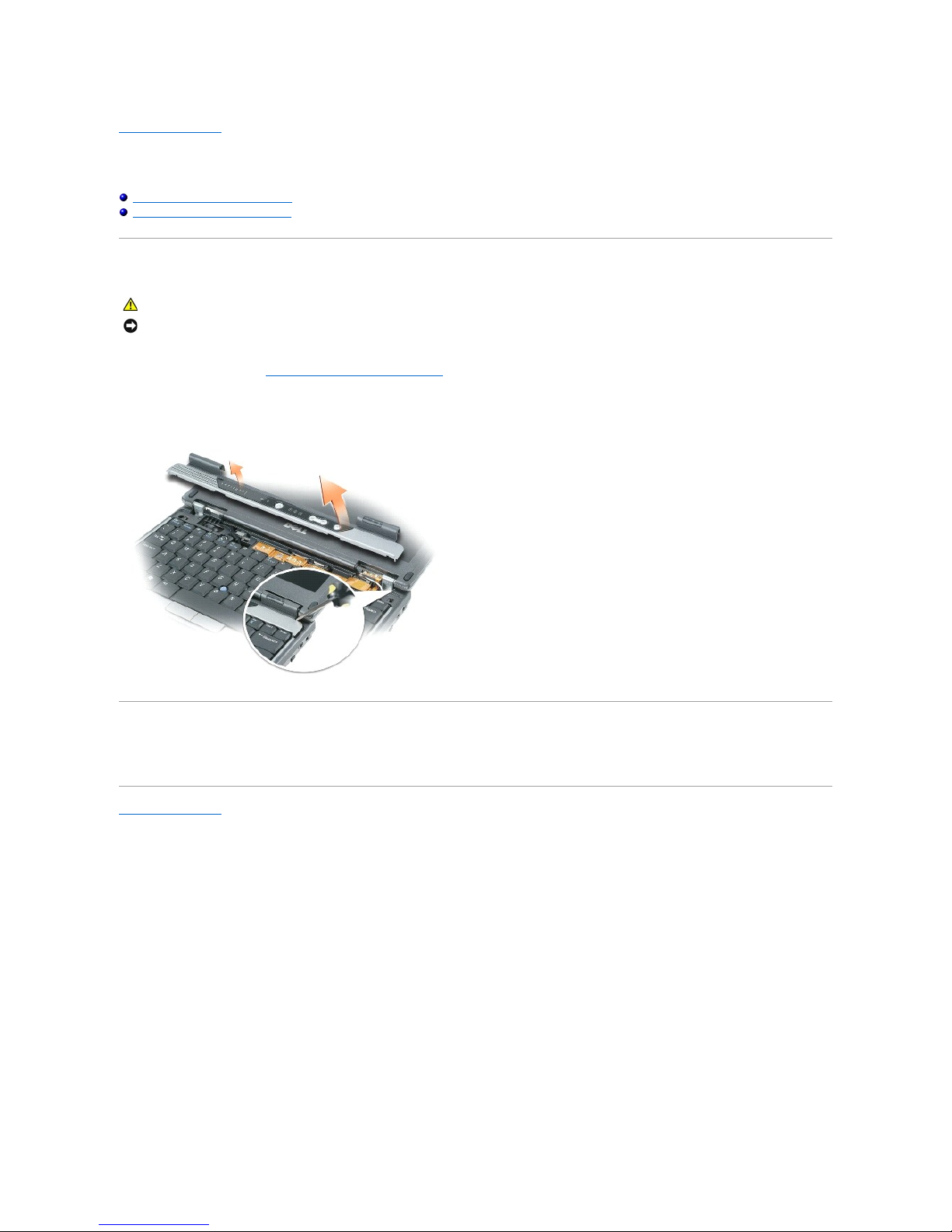

3. Starting on the right side of the computer, use a plastic scribe to gently pry up the center control cover. Unsnap from right to left.

Replacing the Center Control Cover

Gently snap the cover back in place starting from left to right.

Back to Contents Page



CAUTION: Before you begin any of the procedures in this section, follow the safety instructions located in the Product Information Guide.

NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such

as the back panel) on the computer.
