Dell Latitude E4200 Manuale utente

About Warnings

WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

Dell™ Latitude™ E4200

Setup and Features Information Tech Sheet

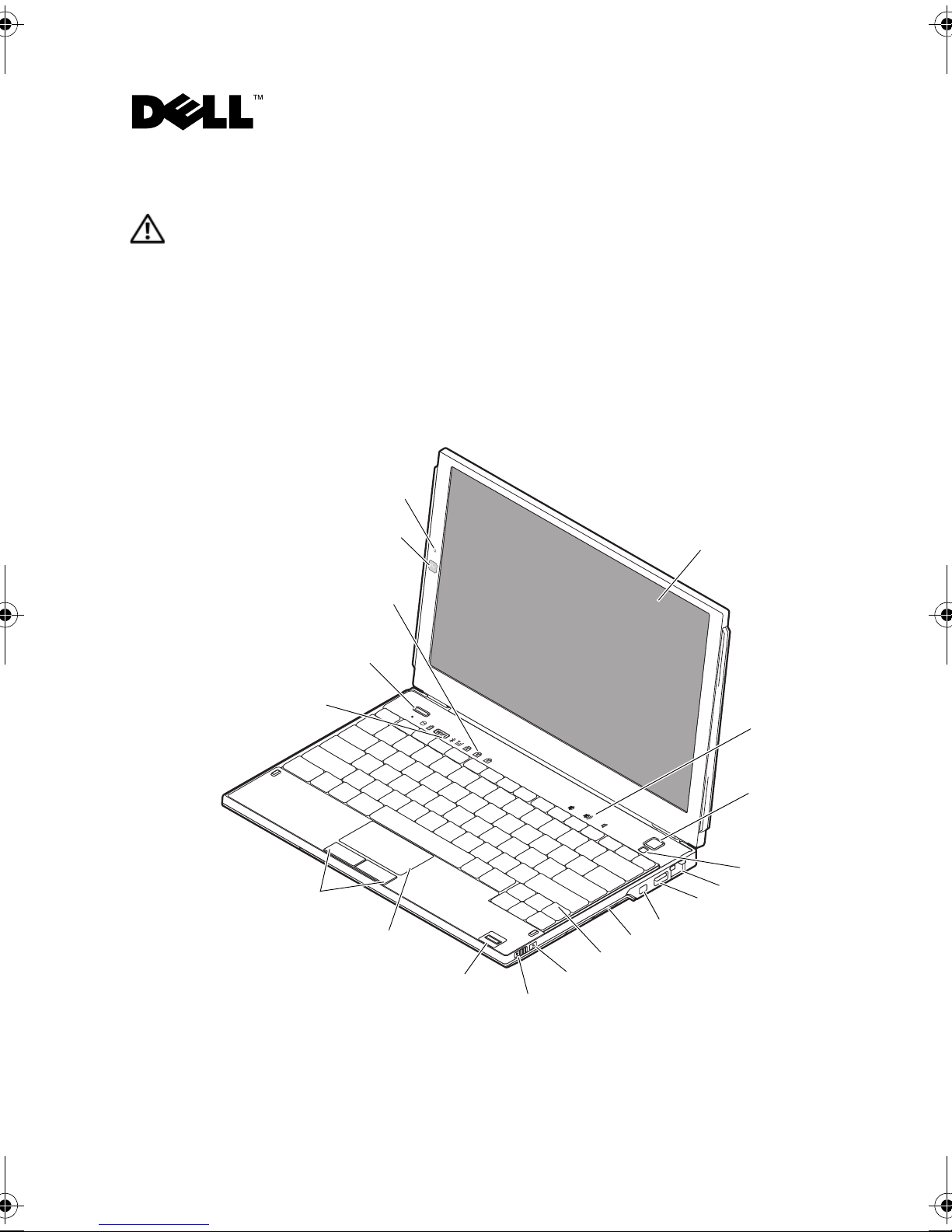

Front View

August 2009 Model: PP15S

16PXGam0.fm Page 1 Tuesday, October 13, 2009 2:48 PM

Back View

1display 2volume controls

3power button 4ambient light sensor

5network connector 6USB connector

7IEEE 1394 connector 8memory card reader

9keyboard 10 Wi-Fi Catcher™ Network Locator

11 wireless switch 12 fingerprint reader (optional)

13 touchpad 14 touchpad buttons (2)

15 device status lights 16 Dell Latitude ON™ button (optional)

17 keyboard status lights 18 camera (optional)

19 microphone (optional)

1ExpressCard slot 2smart card slot

3cooling vents 4audio connectors (2)

5USB/eSATA connector 6video connector

7AC adapter connector 8power light/battery light

9battery 10 security cable slot

16PXGam0.fm Page 2 Tuesday, October 13, 2009 2:48 PM

Quick Setup

WARNING: Before you begin any of the procedures in this section, read the safety

information that shipped with your computer. For additional best practices information,

see www.dell.com/regulatory_compliance.

WARNING: The AC adapter works with electrical outlets worldwide. However,

power connectors and power strips vary among countries. Using an incompatible cable or

improperly connecting the cable to the power strip or electrical outlet may cause fire or

equipment damage.

CAUTION: When you disconnect the AC adapter cable from the computer, grasp the connector,

not the cable itself, and pull firmly but gently to avoid damaging the cable. When you wrap the

AC adapter cable, ensure that you follow the angle of the connector on the AC adapter to avoid

damaging the cable.

NOTE: Some devices may not be included if you did not order them.

Connect the AC adapter to the AC adapter

connector on the computer and to the

electrical outlet.

Connect the network cable (optional).

Connect USB devices, such as a mouse or

keyboard (optional).

Connect IEEE 1394 devices, such as a

DVD player (optional).

16PXGam0.fm Page 3 Tuesday, October 13, 2009 2:48 PM

NOTE: It is recommended that you turn on and shut down your computer at least once before

you install any cards or connect the computer to a docking device or other external device,

such as a printer.

Specifications

NOTE: Offerings may vary by region. The following specifications are only those required by law

to ship with your computer. For more information regarding the configuration of your computer,

click Start →Help and Support and select the option to view information about your computer.

Open the computer display and press the power button to turn on the computer.

System Information

Chipset Intel®SFF chipset

Processor

Processor Intel Core™2 Duo ULV processor

Video

Video type integrated on the system board, hardware accelerated

Data bus integrated video

Video controller Intel Extreme Graphics

Video memory up to 256 MB (shared)

16PXGam0.fm Page 4 Tuesday, October 13, 2009 2:48 PM

Memory

Memory module connector one user-accessible SODIMM socket

Memory module capacity 1 GB, 2 GB, and 4 GB

NOTE: 4 GB memory modules may not be available

Memory type DDR3 SODIMM

Minimum memory 1 GB (onboard memory)

Maximum memory 5 GB capable (requires 64-bit Windows Vista®operating system)

Battery

Type 4-cell 'smart' lithium ion (28 W/hr)

6-cell 'smart' lithium ion (58 W/hr)

Slice (48 W/hr)

Dimensions

Depth

4-cell

210 mm (8.27 inches)

6-cell

210 mm (8.27 inches)

Slice

9.5 mm (0.38 inch)

Height

cell 18 mm (0.71 inch)

6-cell 23.2 mm (0.91 inch)

Slice

186 mm (7.32 inches)

Width

cell

46.5 mm (1.83 inches)

6-cell

68.5 mm (2.7 inches)

Slice

279 mm (10.98 inches)

Voltage

4-cell

14.8 VDC

6-cell and Slice

11.1 VDC

16PXGam0.fm Page 5 Tuesday, October 13, 2009 2:48 PM

Temperature range

Operating

0° to 35°C (32° to 95°F)

Storage

-40° to 60°C (-40° to 140°F)

Coin-cell battery CR2032

AC Adapter

Type 45 W or higher

Input voltage 90–264 VAC

Input current (maximum) 1.1 A

Input frequency 47–63 Hz

Output current 3.3 A (maximum at 10 ms pulse); 2.3 A (continuous)

Rated output voltage 19.5 +/–1.0 VDC

Temperature range

Operating

0° to 35°C (32° to 95°F)

Storage

-40° to 65°C (-40° to 149°F)

Physical

Height

19.95–26.82 mm (0.79–1.06 inches)

Width

290.60 mm–296.60 mm (11.44–11.68 inches)

Depth

204.00 mm–226.00 mm (8.03–8.90 inches)

Weight 1 kg (2.2 lbs)

Environmental

Temperature range

Operating

0° to 35°C (32° to 95°F)

Storage

–40° to 65°C (–40° to 149°F)

Relative humidity (maximum)

Operating

10% to 90% (noncondensing)

Storage

5% to 95% (noncondensing)

Battery (continued)

16PXGam0.fm Page 6 Tuesday, October 13, 2009 2:48 PM

Finding More Information and Resources

__________________

Information in this document is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc.

is strictly forbidden.

Trademarksusedinthistext:Dell,theDELLlogo,Latitude,LatitudeON,andWi-FiCatcheraretrademarks

of Dell Inc.; Intel is a registered trademark and Core is a trademark of Intel Corporation in the U.S. and

other countries. Microsoft and Windows Vista are either registered trademarks or trademarks of Microsoft

Corporation in the United States and/or other countries.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the

marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and trade

names other than its own.

If you need to: See:

Find safety best practices information for your

computer, review

Warranty information, Terms and

Conditions(U.S only), Safety instructions,

Regulatory information, Ergonomics

information, and End User License Agreement.

The safety and regulatory documents that

shipped with your computer and the Regulatory

Compliance Homepage at

www.dell.com/regulatory_compliance.

16PXGam0.fm Page 7 Tuesday, October 13, 2009 2:48 PM

16PXGam0.fm Page 8 Tuesday, October 13, 2009 2:48 PM
