Dell Latitude E5410 Manuale del proprietario

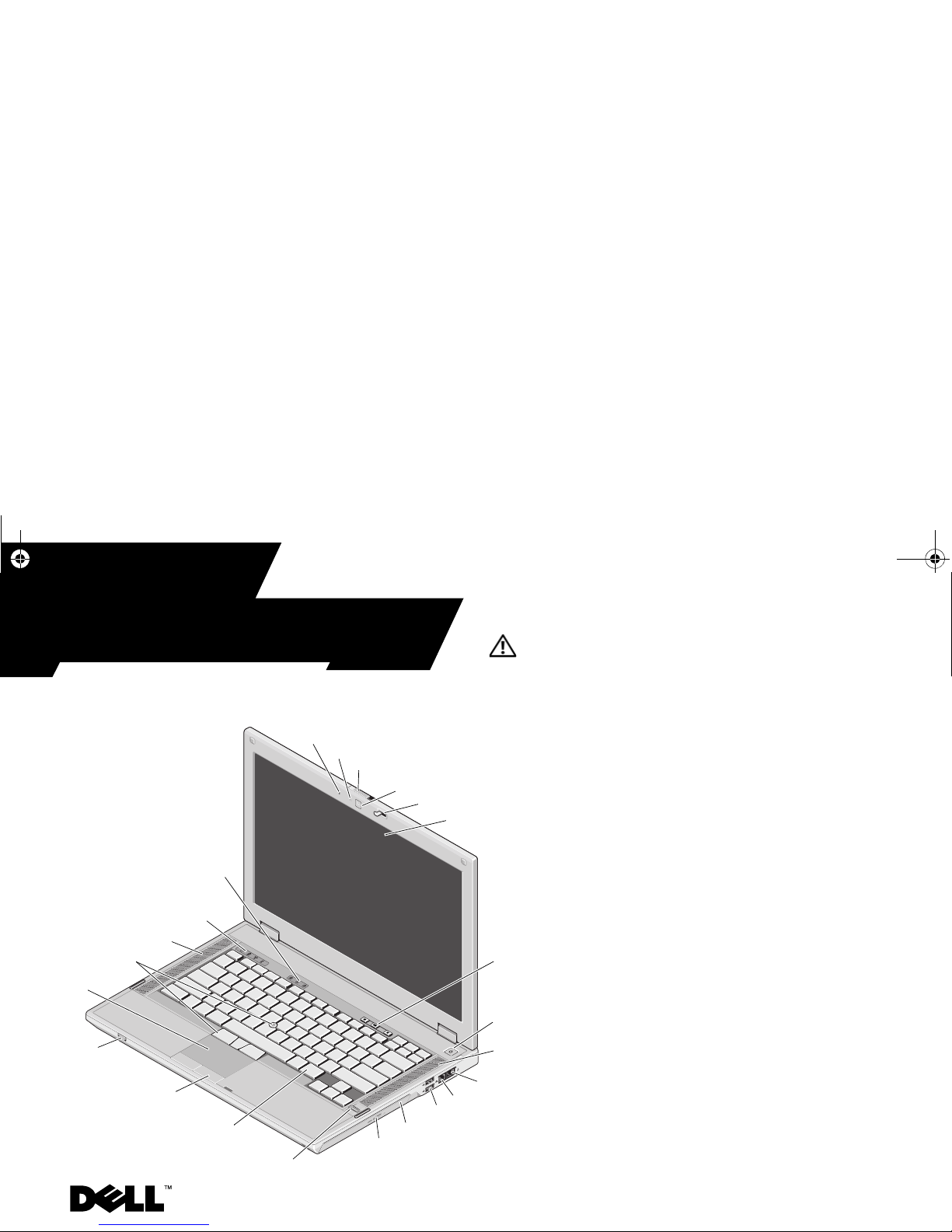

Latitude E5410 — Front View

1built-in microphone

2camera status LED (optional)

3display latch release switch

4camera (optional)

5display latch

6display

7volume control buttons

8power button

9right speaker

10 modem connector (optional)

11 network connector

12 USB 2.0 connectors (2)

13 optical drive

14 optical drive eject button

15 fingerprint reader (optional)

16 keyboard

17 touchpad buttons

18 wireless switch

19 touchpad

20 trackstick and trackstick buttons (optional)

21 left speaker

22 device status lights

23 keyboard status lights

Setup and Features Information

Regulatory Models: P06G and P05F Regulatory Types: P06G001 and P05F001

Dell™Latitude™ E5410/E5510

About Warnings

WARNING: A WARNING indicates a potential for

property damage, personal injury, or death.

May 2010

R6TYXA01MR.fm Page 1 Friday, May 7, 2010 1:34 PM

Latitude E5410 — Back View

WARNING: Do not block, push objects into, or allow dust to accumulate in the air vents. Do not store your Dell computer in a low-airflow

environment, such as a closed briefcase, while it is running. Restricting the airflow can damage the computer or cause a fire. The computer

turns on the fan when the computer gets hot. Fan noise is normal and does not indicate a problem with the fan or the computer.

1docking alignment mark

2power and battery status indicators

3cooling vent

4security cable slot

5AC adapter connector

6USB 2.0 connectors (2)

7video connector (VGA)

8IEEE 1394a connector

9audio connectors

10 media-card slot

11 PC card/smart card/ExpressCard slot

R6TYXA01MR.fm Page 2 Friday, May 7, 2010 1:34 PM

Latitude E5510 — Front View

1display latch

2built-in microphone

3camera status LED (optional)

4display latch release switch

5camera (optional)

6display

7display latch

8volume control buttons

9power button

10 right speaker

11 serial connector

12 USB 2.0 connectors (2)

13 network connector

14 optical drive

15 optical drive eject button

16 fingerprint reader (optional)

17 keyboard

18 touchpad buttons

19 wireless switch

20 touchpad

21 trackstick and trackstick buttons (optional)

22 left speaker

23 device status lights

24 keyboard status lights

R6TYXA01MR.fm Page 3 Friday, May 7, 2010 1:34 PM

Latitude E5510 — Back View

WARNING: Do not block, push objects into, or allow dust to accumulate in the air vents. Do not store your Dell computer in a low-airflow

environment, such as a closed briefcase, while it is running. Restricting the airflow can damage the computer or cause a fire. The computer

turns on the fan when the computer gets hot. Fan noise is normal and does not indicate a problem with the fan or the computer.

1modem connector (optional)

2docking alignment mark

3power and battery status indicators

4cooling vent

5security cable slot

6AC adapter connector

7USB 2.0 connectors (2)

8video connector (VGA)

9IEEE 1394a connector

10 audio connectors

11 media-card slot

12 PC card/smart card/ExpressCard slot

R6TYXA01MR.fm Page 4 Friday, May 7, 2010 1:34 PM

1Connect the AC adapter to the

AC adapter connector on the portable

computer and to the electrical outlet.

2Connect the network cable

(optional).

3Connect USB devices, such as a

mouse or a keyboard (optional).

4Connect IEEE 1394a devices, such as

a DVD player (optional).

5Open the computer display and

press the power button to turn on

the computer.

NOTE: It is recommended that you

turn on and shut down your computer

at least once before you install any

cards or connect the computer to a

docking device or other external

device, such as a printer.

Quick Setup

WARNING: Before you begin any of

the procedures in this section, read the

safety information that shipped with

your computer. For additional best

practices information, see

www.dell.com/regulatory_compliance.

WARNING: The AC adapter works with

electrical outlets worldwide. However,

power connectors and power strips vary

among countries. Using an incompatible

cable or improperly connecting the cable

to the power strip or electrical outlet may

cause fire or equipment damage.

CAUTION: When you disconnect the

AC adapter cable from the computer,

grasp the connector, not the cable

itself, and pull firmly but gently to avoid

damaging the cable. When you wrap the

AC adapter cable, ensure that you

follow the angle of the connector on the

AC adapter to avoid damaging the cable.

NOTE: Some devices may not be

included if you did not order them.

R6TYXA01MR.fm Page 5 Friday, May 7, 2010 1:34 PM

Specifications

NOTE: Offerings may vary by region. For more information regarding

the configuration of your computer, click Start→Help and Support

and select the option to view information about your computer.

System Information

Processor type Intel®Core™ i3, i5, and i7 series

Intel Celeron™

Chipset Intel HM55 Express Chipset

Video

Video type Intel UMA video

Data bus integrated video

Video controller Intel Graphics Media Accelerator HD

Memory

Memory module connectors two SODIMM slots

Memory module capacity 1 GB, 2 GB, 4 GB, 8 GB

Memory type DDR3 1333 MHz SDRAM

(operating at 1066 MHz)

Minimum memory 1 GB

Maximum memory 8 GB

NOTE: Only 64-bit operating systems

support more than 4 GB memory

Battery

Type 4-, 6-, or 9-cell "smart" lithium ion

Dimensions

Height

4- and 6-cell

19.80 mm (0.78 inch)

9-cell

21.10 mm (0.83 inch)

Width

4- and 6-cell

206.00 mm (8.11 inches)

9-cell

224.00 mm (8.82 inches)

Depth

4- and 6-cell

54.00 mm (2.12 inches)

9-cell

76.00 mm (2.99 inches)

Weight

4-cell

252 g (0.55 lb)

6-cell

326 g (0.72 lb)

9-cell

487 g (1.07 lb)

Voltage

4-cell

14.8 VDC

6- and 9-cell

11.1 VDC

Temperature range

Operating

0 °C to 35 °C (32 °F to 95 °F)

Storage

–40 °C to 65 °C (–40 °F to 149 °F)

Coin-cell battery 3 V CR2032 lithium coin cell

R6TYXA01MR.fm Page 6 Friday, May 7, 2010 1:34 PM

AC Adapter

Input voltage 100 VAC–240 VAC

Input current (maximum) 1.5 A

Input frequency 50 Hz–60 Hz

Output power 65 W or 90 W

Output current

65 W

3.34 A (continuous)

90 W

4.62 A (continuous)

Rated output voltage 19.5 +/– 1.0 VDC

Dimensions

65 W

Height

16 mm (0.62 inch)

Width

66 mm (2.59 inches)

Length

127 mm (4.99 inches)

90 W

Height

16 mm (0.62 inch)

Width

70 mm (2.75 inches)

Length

147 mm (5.78 inches)

Temperature range

Operating

0 °C to 35 °C (32 °F to 95 °F)

Storage

–40 °C to 65 °C (–40 °F to 149 °F)

Physical

Height

E5410

33.2 mm (1.31 inches)

E5510

33.8 mm (1.33 inches)

Width

E5410

338 mm (13.31 inches)

E5510

371 mm (14.61 inches)

Depth

E5410

244 mm (9.61 inches)

E5510

250 mm (9.84 inches)

Weight

E5410

2.39 kg (5.27 lb)

E5510

2.59 kg (5.70 lb)

Environmental

Temperature range

Operating

0 °C to 35 °C (32 °F to 95 °F)

Storage

–40 °C to 65 °C (–40 °F to 149 °F)

Relative humidity (maximum)

Operating

10% to 90% (noncondensing)

Storage

5% to 95% (noncondensing)

Altitude (maximum)

Operating

–15.2 m to 3048 m (–50 ft to 10,000 ft)

Storage

–15.2 m to 10,668 m (–50 ft to 35,000 ft)

R6TYXA01MR.fm Page 7 Friday, May 7, 2010 1:34 PM

Finding More Information and Resources

See the safety and regulatory documents that shipped with your computer

and the regulatory compliance website at

www.dell.com/regulatory_compliance for more information on:

• Safety best practices

• Warranty

• Terms and Conditions

• Regulatory certification

• Ergonomics

• End User License Agreement

________________

Information in this document is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written

permission of Dell Inc. is strictly forbidden.

Trademarks usedinthistext:Dell, the DELL logo, and Latitudeare trademarks

ofDellInc.;IntelisaregisteredtrademarkandCeleronandCorearetrademarks

of Intel Corporation in the U.S. and other countries.

Other trademarks and trade names may be used in this document to refer to

either the entities claiming the marks and names or their products.

DellInc.disclaimsanyproprietaryinterest intrademarksandtrade namesother

than its own.

R6TYXA01MR.fm Page 8 Friday, May 7, 2010 1:34 PM
