Dell Latitude E6220 Manuale del proprietario
Dell Latitude E6220
Setup And Features Information
About Warnings
WARNING: A WARNING indicates a potential for property damage, personal injury,
or death.
Front And Back View

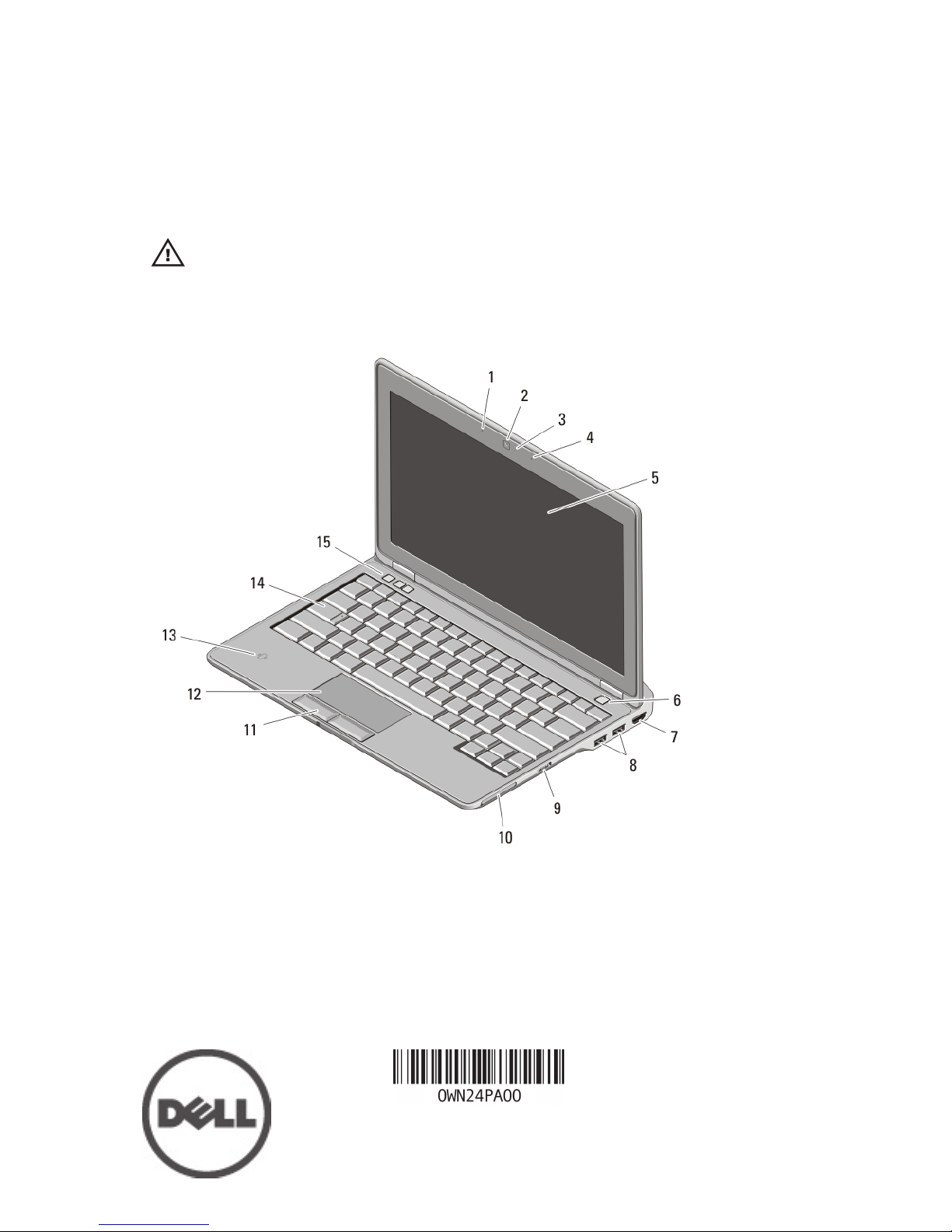

Figure 1. Front View
1. microphone
2. camera (optional)
3. camera status light (optional)
4. microphone (optional)
5. display
6. power button
7. HDMI connector
8. USB 2.0 connectors (2)
9. wireless switch
10. ExpressCard slot
Regulatory Model Regulatory Model: P15S
2011 – 03
11. touchpad buttons (2)
12. touchpad
13. contactless smart-card reader
14. keyboard
15. volume control buttons (3)

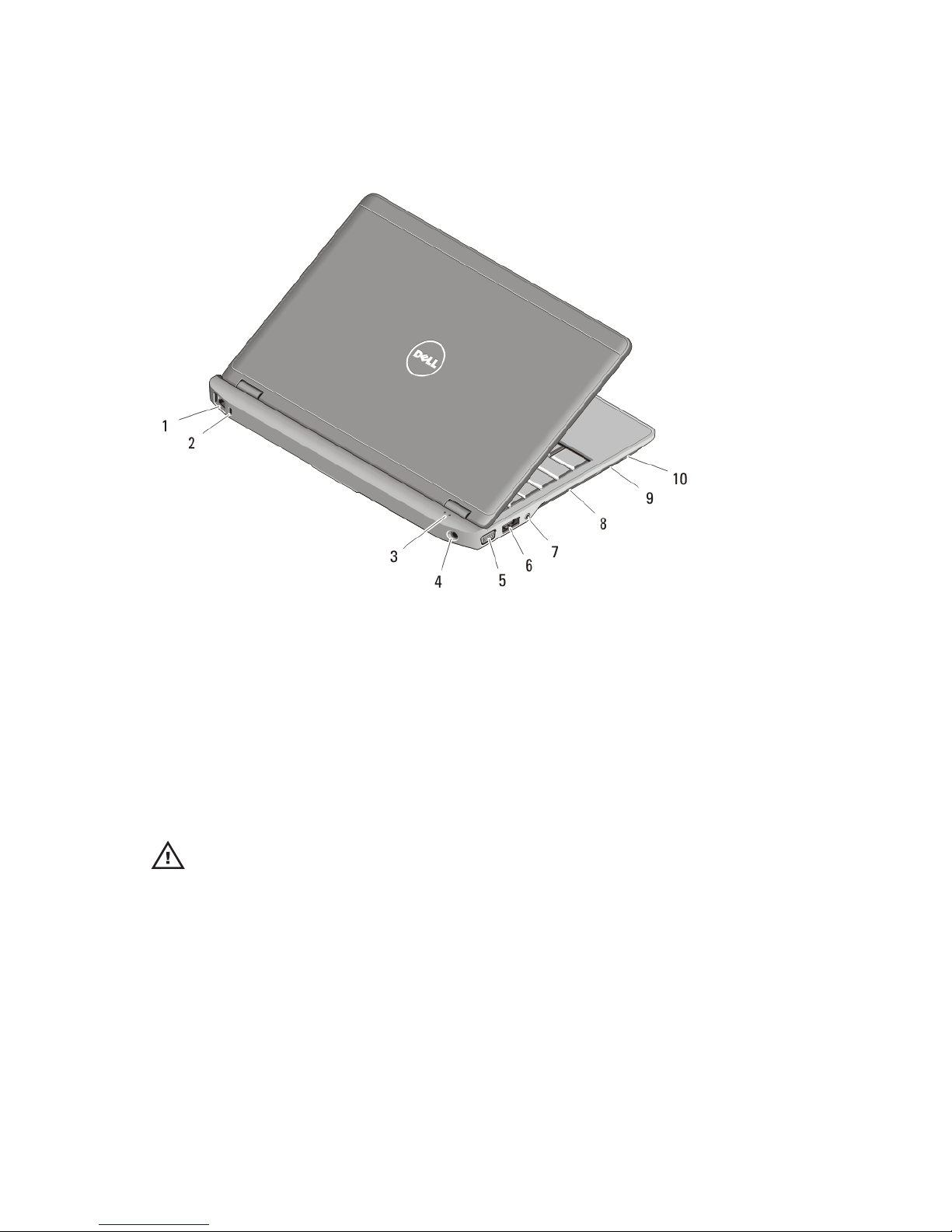

Figure 2. Back View
1. network connector
2. security cable slot
3. device status lights
4. power connector
5. VGA connector
6. eSATA/USB 2.0 connector
7. audio connector
8. cooling vents
9. Secure Digital (SD) memory-card
reader
10. smart card reader
WARNING: Do not block, push objects into, or allow dust to accumulate in the air
vents. Do not store your Dell computer in a low-airflow environment, such as a
closed briefcase, while it is running. Restricting the airflow can damage the
computer or cause a fire. The computer turns on the fan when the computer gets
hot. Fan noise is normal and does not indicate a problem with the fan or the
computer.
2
Quick Setup
WARNING: Before you begin any of the procedures in this section, read the safety
information that shipped with your computer. For additional best practices
information, see www.dell.com/regulatory_compliance.
WARNING: The AC adapter works with electrical outlets worldwide. However,
power connectors and power strips vary among countries. Using an incompatible
cable or improperly connecting the cable to the power strip or electrical outlet may
cause fire or equipment damage.
CAUTION: When you disconnect the AC adapter cable from the computer, grasp
the connector, not the cable itself, and pull firmly but gently to avoid damaging the
cable. When you wrap the AC adapter cable, ensure that you follow the angle of the
connector on the AC adapter to avoid damaging the cable.
NOTE: Some devices may not be included if you did not order them.

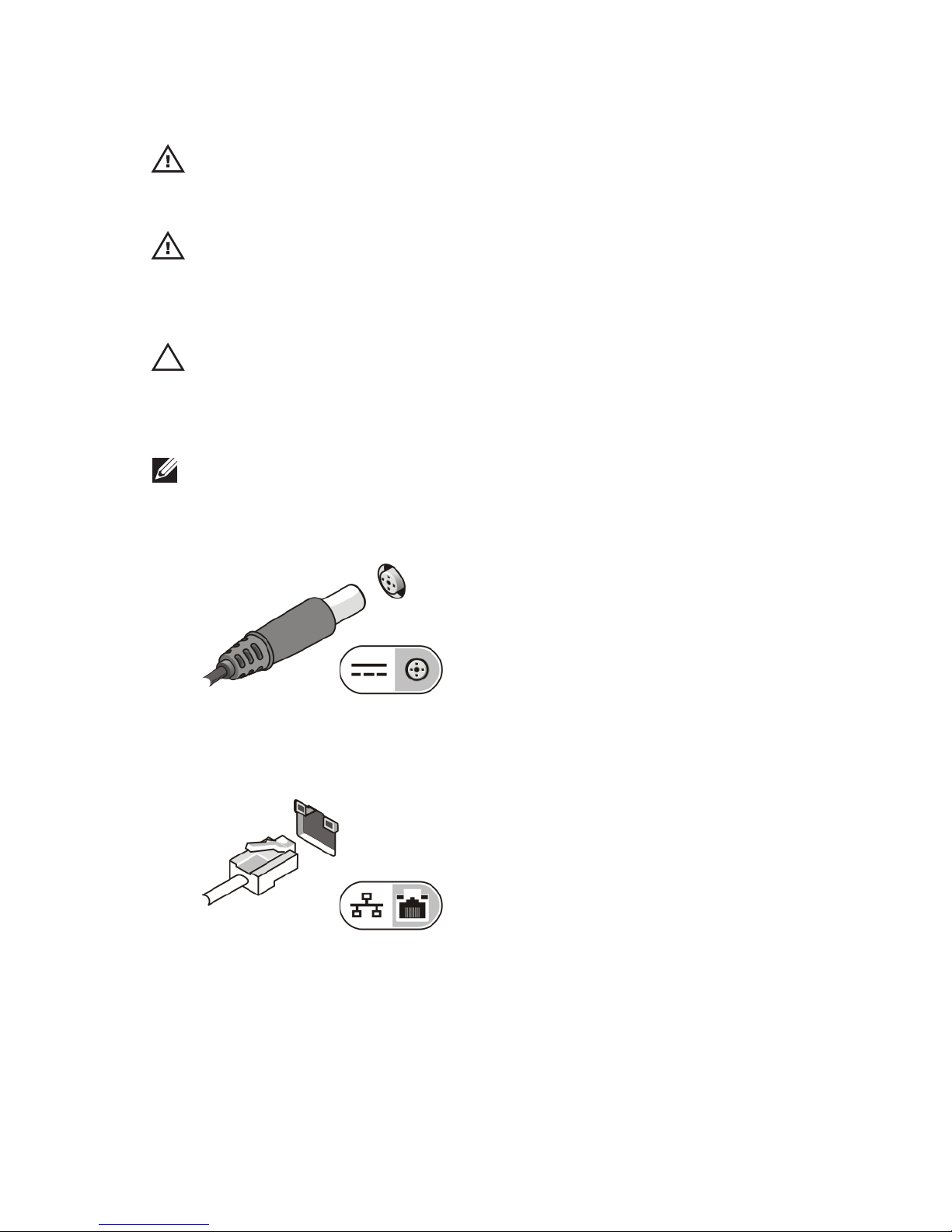

1. Connect the AC adapter to the AC adapter connector on the computer
and to the electrical outlet.
Figure 3. AC Adapter
2. Connect the network cable (optional).
Figure 4. Network Connector

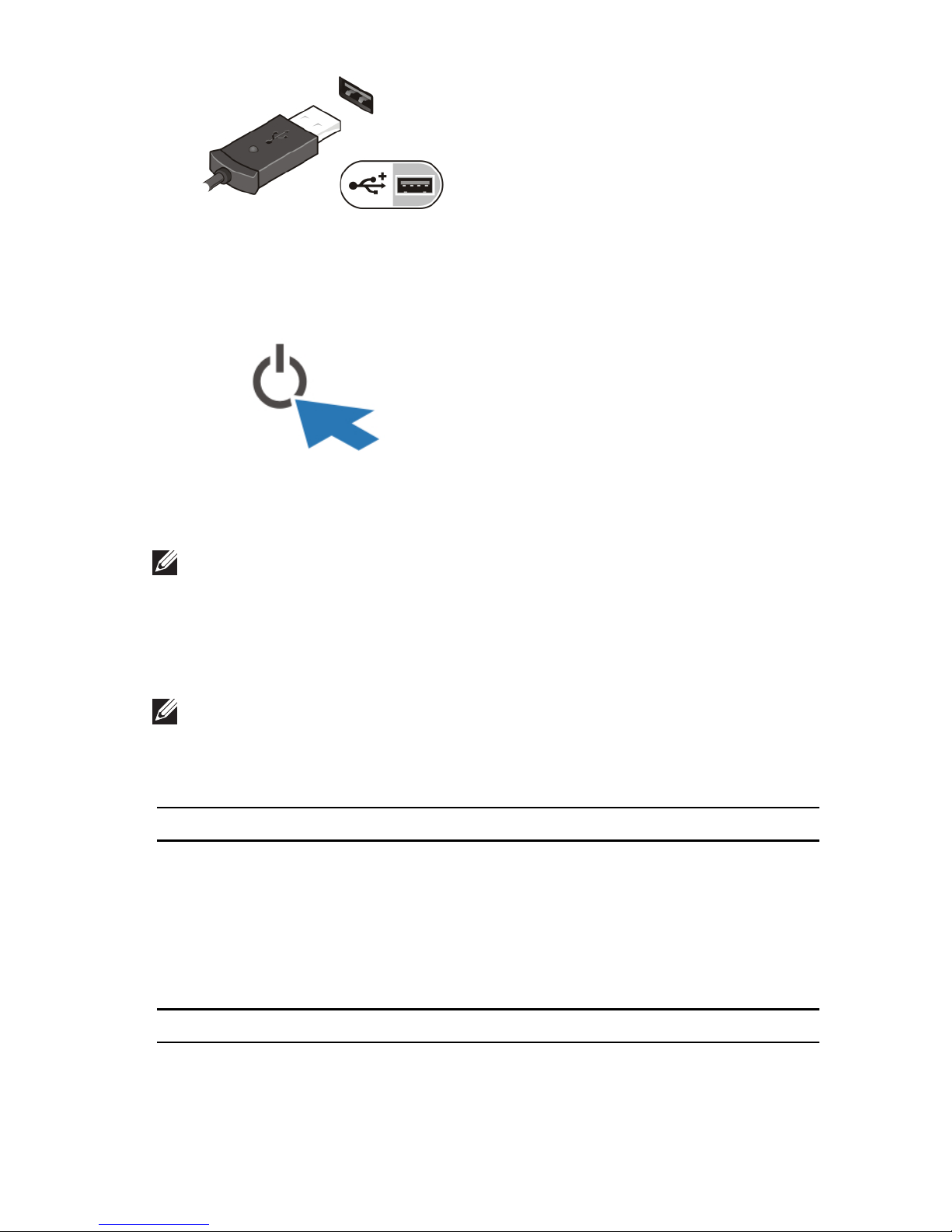

3. Connect USB devices, such as a mouse or keyboard (optional).
3
Figure 5. USB Connector
4. Open the computer display and press the power button to turn on the
computer.
Figure 6. Power Button
NOTE: It is recommended that you turn on and shut down your computer at least
once before you install any cards or connect the computer to a docking device or
other external device, such as a printer.
Specifications
NOTE: Offerings may vary by region. The following specifications are only those
required by law to ship with your computer. For more information regarding the
configuration of your computer, click Start → Help and Support and select the
option to view information about your computer.
System Information
Chipset Intel Mobile QM67 Enhanced Chipset
Processor • Intel Core i3 series
• Intel Core i5 series
• Intel Core i7 series
Video
Video type integrated
4
Video
Video controller GT2 Intel HD Graphics 3000
Data bus integrated video
Video memory 512 MB
Memory
Memory connector two SODIMM slots
Memory capacity 1 GB, 2 GB, 4 GB, or 8 GB
Memory type DDR3 SDRAM (1333 MHz)
Minimum memory 1 GB
Maximum memory 8 GB
Battery
Type • 3-cell "smart" Lithium ion
• 6-cell "smart" Lithium ion
Dimensions
3–cell
Depth 29.97 mm (1.18 inches)
Height 19.80 mm (0.78 inches)
Width 208.00 mm (8.19 inches)
6–cell
Depth 54.10 mm (2.13 inches)
Height 20.85 mm (0.82 inches)
Width 214.00 mm (8.43 inches)
Weight
3-cell 177.00 g (0.39 lb)
6-cell 349.00 g (0.77 lb)
Voltage 11.10 VDC
5
Battery
Temperature range:
Operating 0 °C to 35 °C (32 °F to 95 °F)
Non-Operating –40 °C to 65 °C (–40 °F to 149 °F)
Coin-cell battery 3 V CR2032 lithium coin cell
AC Adapter
Type 65 W and 90 W
Input voltage 100 VAC to 240 VAC
Input current (maximum) 1.50 A
Input frequency 50 Hz to 60 Hz
Output power 65 W / 90 W
Output current
65 W 3.34 A (continuous)
90 W 4.62 A (continuous)
Rated output voltage 19.5 +/– 1.0 VDC
Temperature range:
Operating 0 °C to 40 °C (32 °F to 104 °F)
Non-Operating –40 °C to 70 °C (–40 °F to 158 °F)
Physical
Height 24.65 mm (0.97 inches)
Width 309.00 mm (12.16 inches)
Depth 226.00 mm (8.89 inches)
Weight (minimum) 1.43 kg (3.15 lb)
Environmental
Temperature:
Operating 10 °C to 35 °C (50 °F to 95 °F)
6
Environmental
Storage –40 °C to 65 °C (–40 °F to 149 °F)
Relative humidity (maximum):
Operating 10 % to 90 % (noncondensing)
Storage 5 % to 95 % (noncondensing)
Altitude (maximum):
Operating –15.20 m to 3048 m (–50 ft to 10,000 ft)
Non-Operating –15.20 m to 10,668 m (–50 ft to 35,000 ft)
Airborne contaminant level G1 or lower as defined by ISA- S71.04–1985
Finding More Information and Resources
See the safety and regulatory documents that shipped with your computer
and the regulatory compliance website at www.dell.com/
regulatory_compliance for more information on:
• Safety best practices
• Regulatory certification
• Ergonomics
See www.dell.com for additional information on:
• Warranty
• Terms and Conditions (U.S. only)
• End User License Agreement
Information in this publication is subject to change without notice.
© 2011 Dell Inc. All rights reserved.
Reproduction of these materials in any manner whatsoever without the written permission of
Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell™, the DELL logo, Dell Precision™, Precision ON™,
ExpressCharge™, Latitude™, Latitude ON™, OptiPlex™, Vostro™, and Wi-Fi Catcher™ are
trademarks of Dell Inc. Intel®, Pentium®, Xeon®, Core™, Atom™, Centrino®, and Celeron® are
registered trademarks or trademarks of Intel Corporation in the U.S. and other countries. AMD®
is a registered trademark and AMD Opteron™, AMD Phenom™, AMD Sempron™,
AMD Athlon™, ATI Radeon™, and ATI FirePro™ are trademarks of Advanced Micro Devices,
Inc. Microsoft®, Windows®, MS-DOS®, Windows Vista®, the Windows Vista start button, and
Office Outlook® are either trademarks or registered trademarks of Microsoft Corporation in the
7
United States and/or other countries. Blu-ray Disc™ is a trademark owned by the Blu-ray Disc
Association (BDA) and licensed for use on discs and players. The Bluetooth® word mark is a
registered trademark and owned by the Bluetooth® SIG, Inc. and any use of such mark by Dell
Inc. is under license. Wi-Fi® is a registered trademark of Wireless Ethernet Compatibility
Alliance, Inc.
Other trademarks and trade names may be used in this publication to refer to either the entities
claiming the marks and names or their products, Dell Inc. disclaims any proprietary interest in
trademarks and trade names other than its own.
8
