Dell Latitude E6230/E6330

Setup and Features Information

About Warnings

WARNING: A WARNING indicates a potential for property damage, personal injury,

or death.

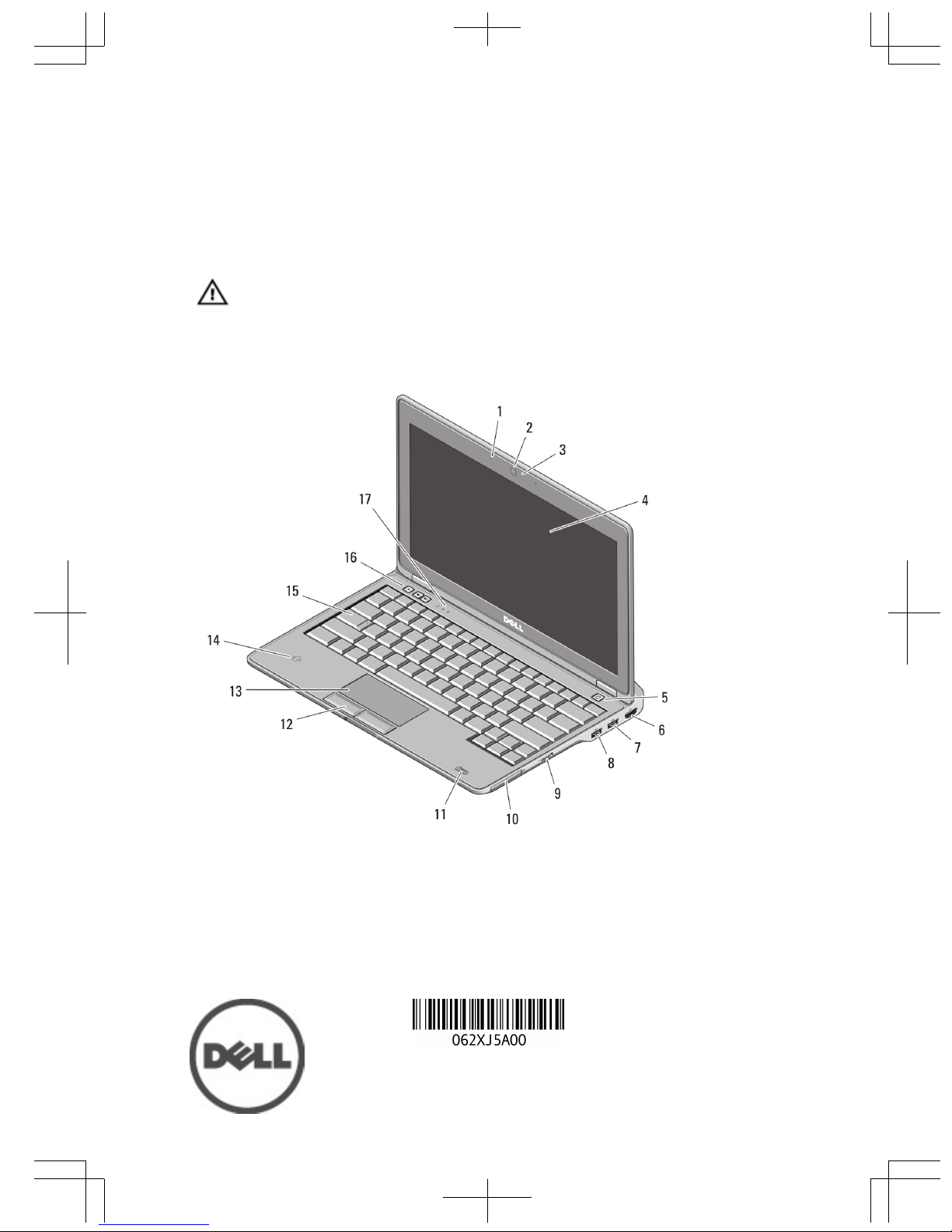

Latitude E6230 Front and Back View

Figure 1. Front View

1. microphone

2. camera (optional)

3. camera status light (optional)

4. display

5. power button

6. HDMI connector

Regulatory Model: : P14T, P19S

Regulatory Type: : P14T001, P19S001

2012- 02

7. USB 3.0 connector

8. powered USB 3.0 connector

9. wireless switch

10. ExpressCard slot

11. fingerprint reader (optional)

12. touchpad buttons (2)

13. touchpad

14. contactless smart-card reader

(optional)

15. keyboard

16. volume control buttons (3)

17. device status lights

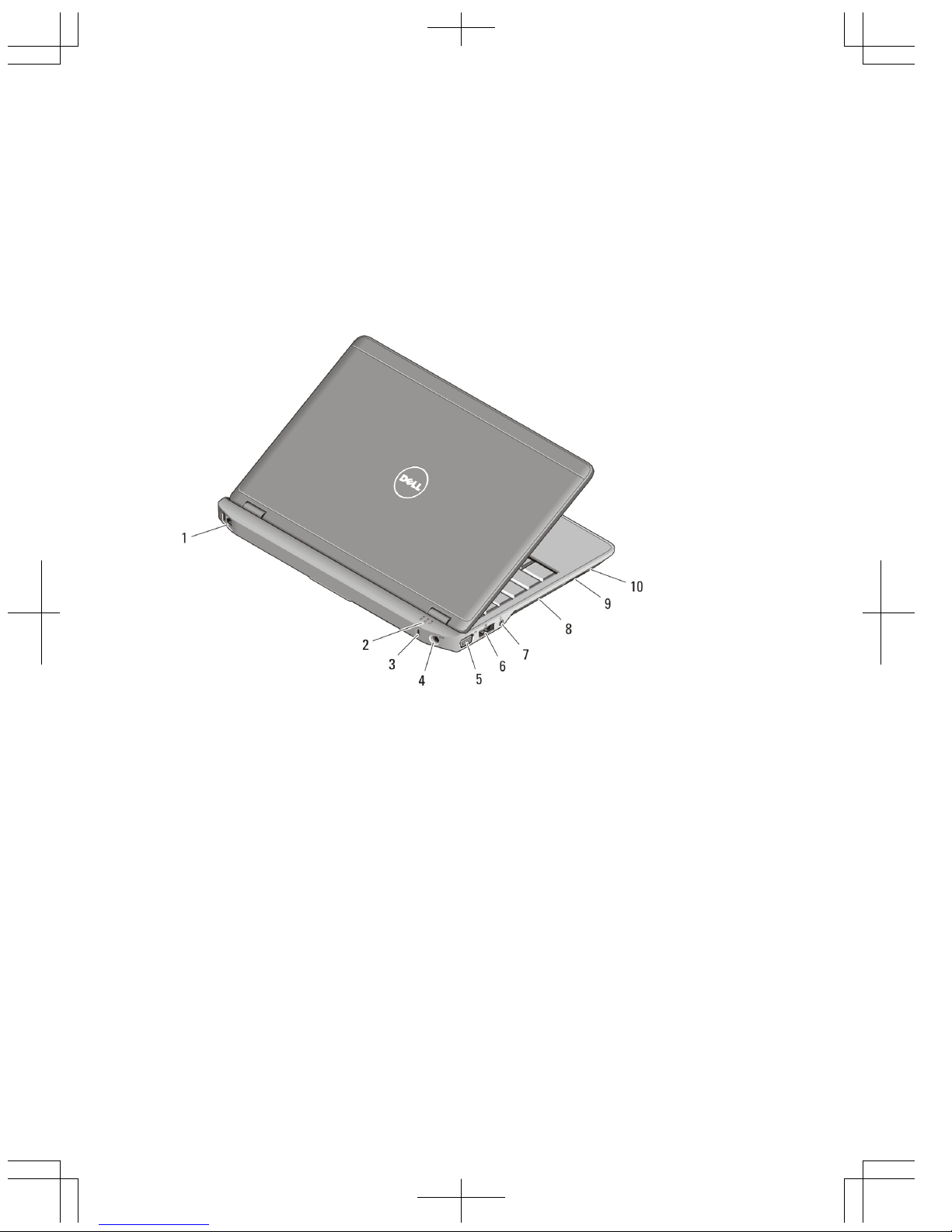

Figure 2. Back View

1. network connector

2. device status lights

3. security cable slot

4. power connector

5. VGA connector

6. eSATA/USB 2.0 connector

7. audio/microphone combo

connector

8. cooling vents

9. Secure Digital (SD) memory-card

reader

10. smart card reader

WARNING: Do not block, push objects into, or allow dust to accumulate in the air

vents. Do not store your Dell computer in a low-airflow environment, such as a

closed briefcase, while it is running. Restricting the airflow can damage the

computer or cause a fire. The computer turns on the fan when the computer gets

hot. Fan noise is normal and does not indicate a problem with the fan or the

computer.

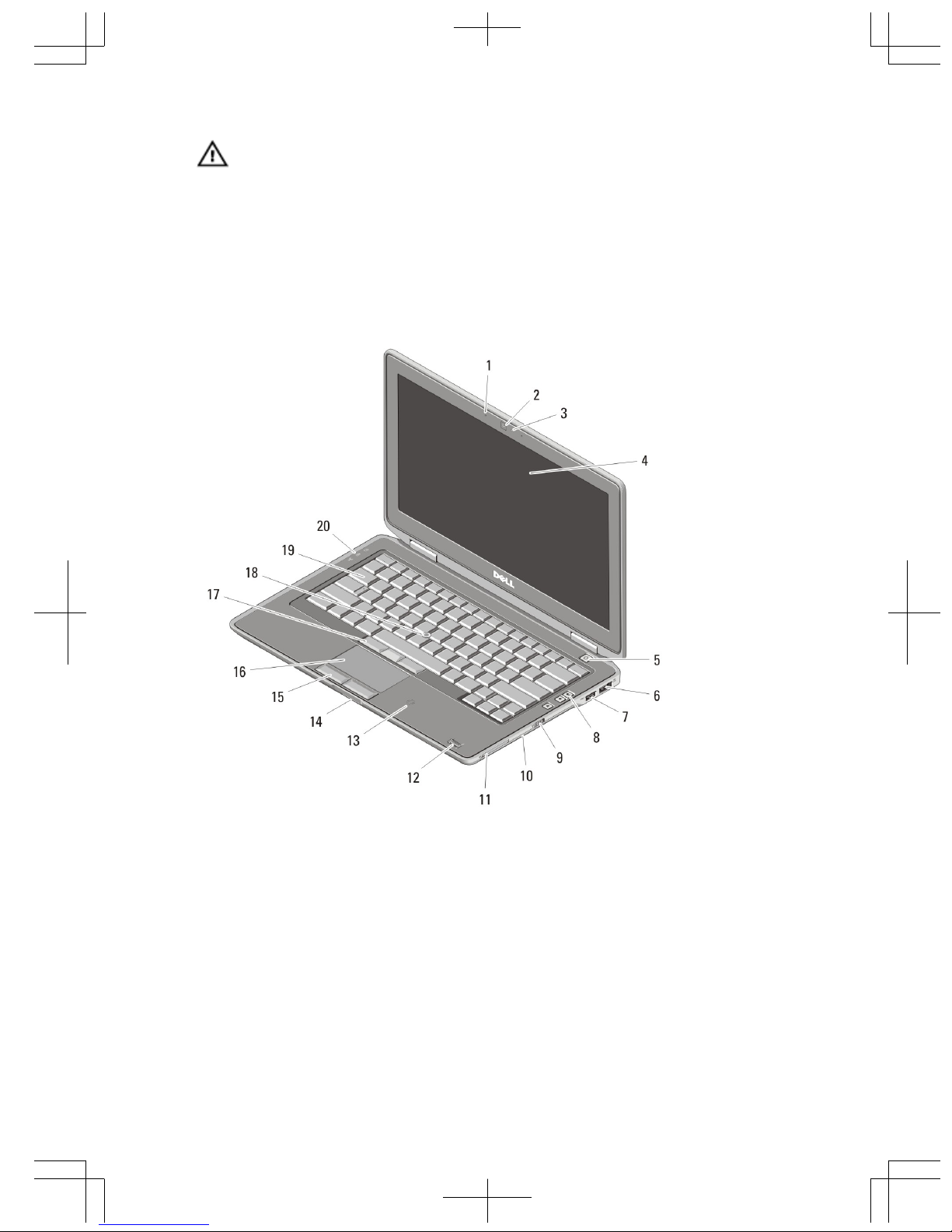

Latitude E6330 Front and Back View

Figure 3. Front view

1. microphone

2. camera

3. camera status light

4. display

5. power button

6. eSATA/USB 2.0 connector

7. powered USB 3.0 connector

8. volume control buttons

9. wireless switch

10. optical drive

11. ExpressCard slot

12. fingerprint reader (optional)

13. contactless smart card reader

(optional)

14. Secure Digital (SD) memory-card

reader

15. touchpad buttons (2)

16. touchpad

17. trackstick buttons (3)

18. trackstick

19. keyboard

20. device status lights

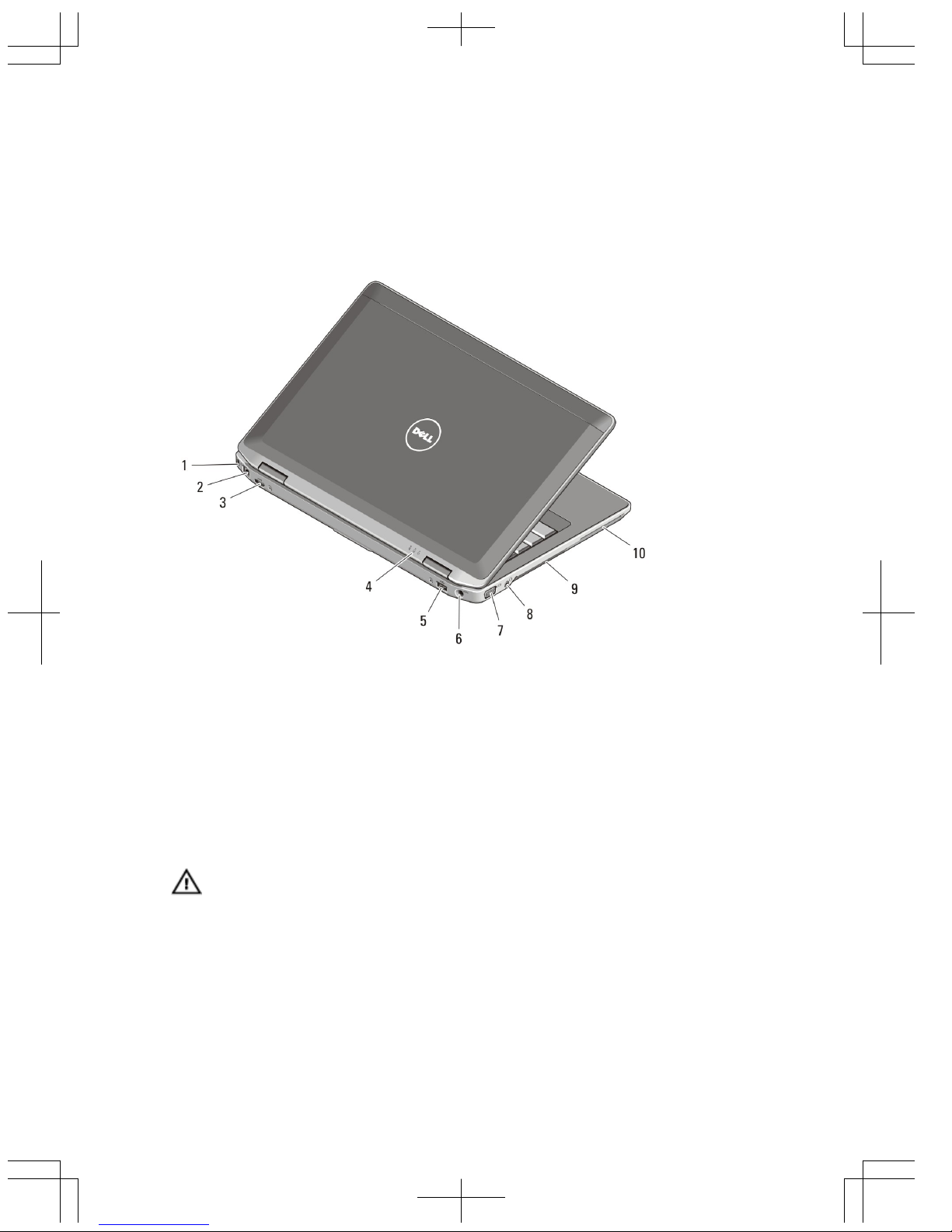

Figure 4. Back view

1. security cable slot

2. network connector

3. mini HDMI connector

4. device status lights

5. USB 3.0 connector

6. power connector

7. VGA connector

8. audio/microphone combo

connector

9. cooling vents

10. smart card slot (optional)

WARNING: Do not block, push objects into, or allow dust to accumulate in the air

vents. Do not store your Dell computer in a low-airflow environment, such as a

closed briefcase, while it is running. Restricting the airflow can damage the

computer or cause a fire. The computer turns on the fan when the computer gets

hot. Fan noise is normal and does not indicate a problem with the fan or the

computer.

Quick Setup

WARNING: Before you begin any of the procedures in this section, read the safety

information that shipped with your computer. For additional best practices

information, see www.dell.com/regulatory_compliance

WARNING: The AC adapter works with electrical outlets worldwide. However,

power connectors and power strips vary among countries. Using an incompatible

cable or improperly connecting the cable to the power strip or electrical outlet may

cause fire or equipment damage.

CAUTION: When you disconnect the AC adapter cable from the computer, grasp

the connector, not the cable itself, and pull firmly but gently to avoid damaging the

cable. When you wrap the AC adapter cable, ensure that you follow the angle of the

connector on the AC adapter to avoid damaging the cable.

NOTE: Some devices may not be included if you did not order them.

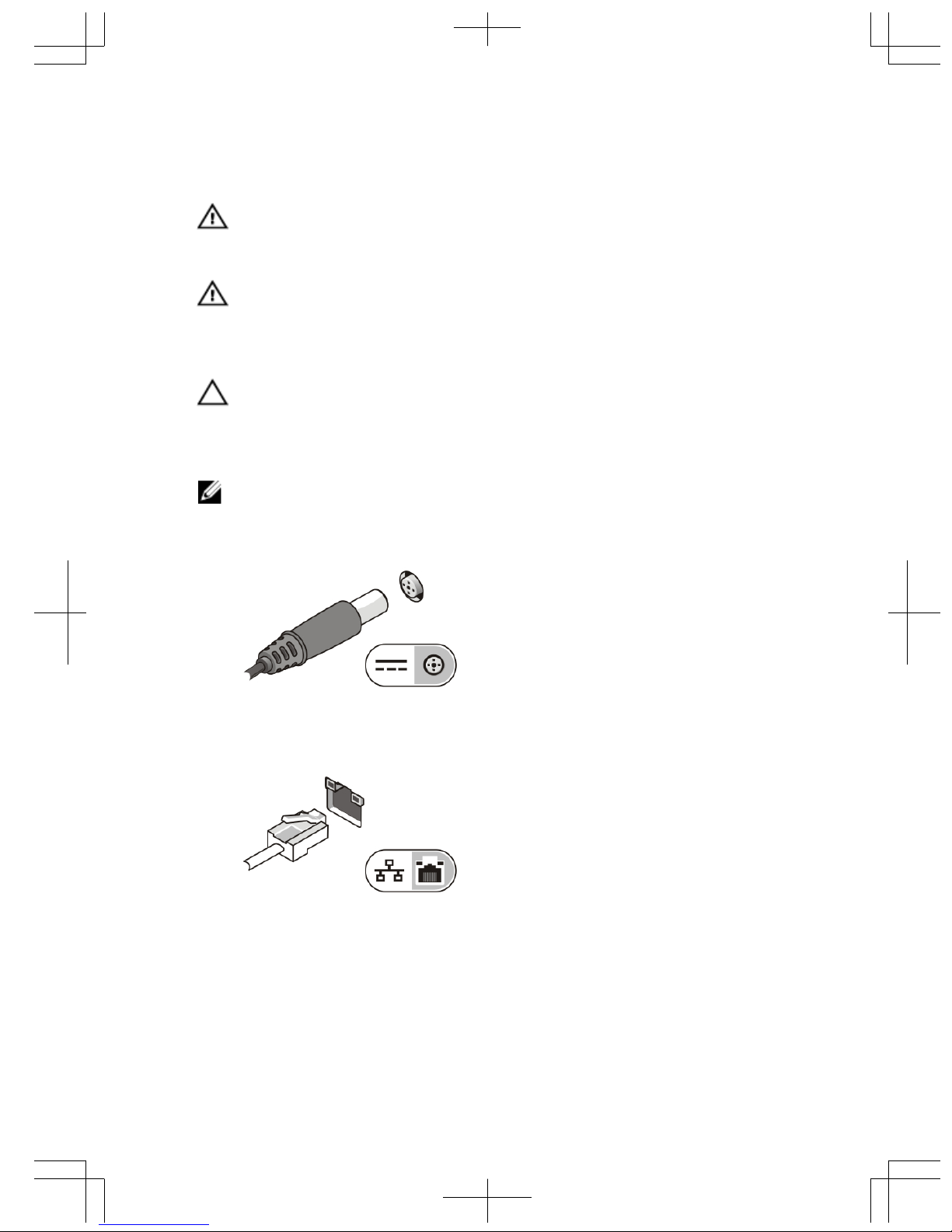

1. Connect the AC adapter to the AC adapter connector on the computer and to the

electrical outlet.

Figure 5. AC Adapter

2. Connect the network cable (optional).

Figure 6. Network Connector

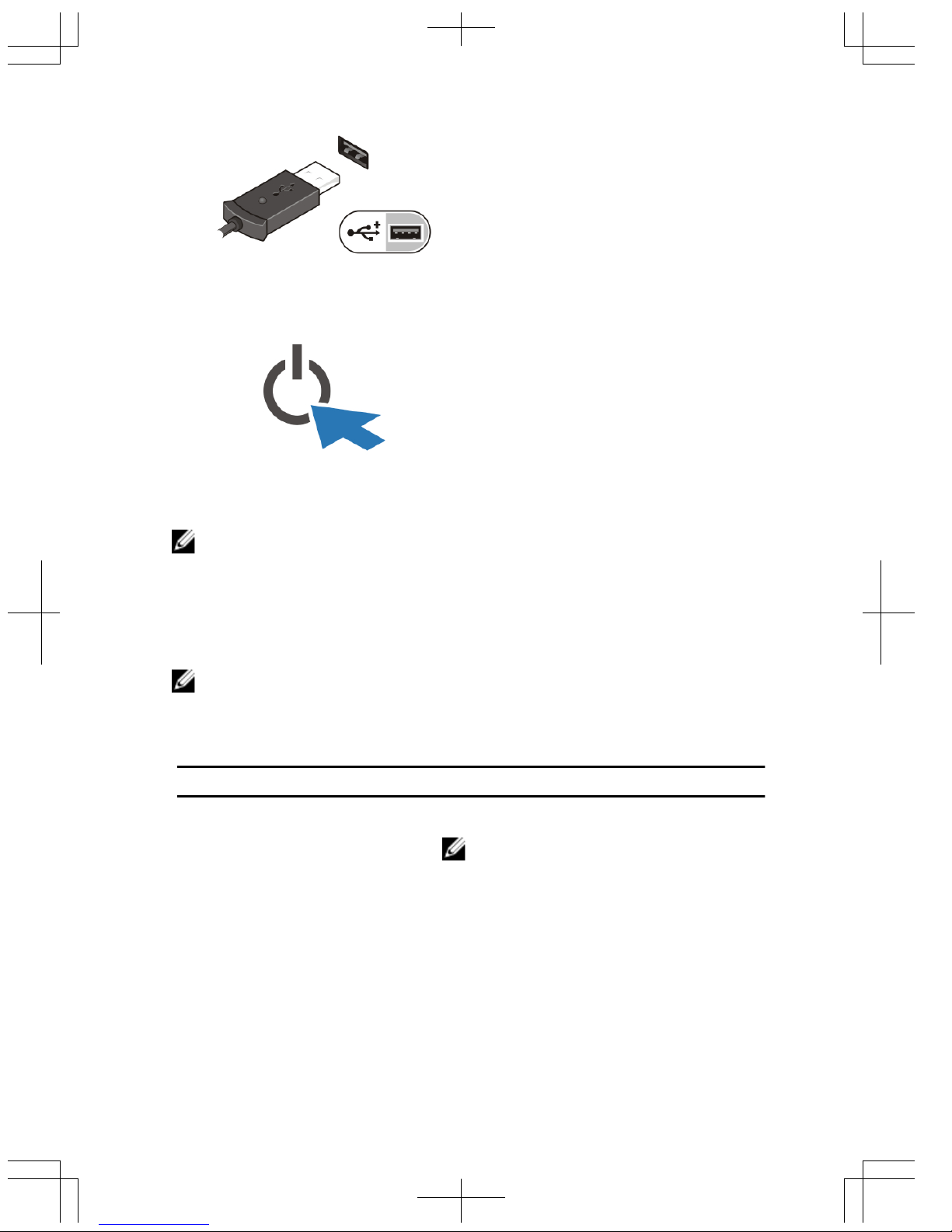

3. Connect USB devices, such as a mouse or keyboard (optional).

Figure 7. USB Connector

4. Open the computer display and press the power button to turn on the computer.

Figure 8. Power Button

NOTE: It is recommended that you turn on and shut down your computer at least

once before you install any cards or connect the computer to a docking device or

other external device, such as a printer.

Specifications

NOTE: Offerings may vary by region. The following specifications are only those

required by law to ship with your computer. For more information regarding the

configuration of your computer, click Start → Help and Support and select the

option to view information about your computer.

Power

AC Adapter 65 W and 90 W

NOTE: 65 W AC adapter is available only

for computers with integrated video card.

Input voltage 100 VAC to 240 VAC

Coin-cell battery 3 V CR2032 lithium coin cell

Physical

Latitude E6230

Height 22.40 mm to 24.70 mm (0.88 inch to 0.97 inch)

Width 309.00 mm (12.16 inches)

Depth 226.00 mm (8.89 inches)

Weight 1.42 kg (3.14 lb)

Latitude E6330

Height 25.40 mm to 30.10 mm (1.00 inch to 1.19 inches)

Width 335.00 mm (13.19 inches)

Depth 223.30 mm (8.79 inches)

Weight 1.65 kg (3.64 lb)

Environmental

Operating Temperature:

Latitude E6230 10 °C to 35 °C (50 °F to 95 °F)

Latitude E6330 0 °C to 35 °C (32 °F to 95 °F)

Information para NOM (únicamente para México)

The following information is provided on the device described in this document in

compliance with the requirements of the official Mexican standards (NOM).

Voltaje de alimentación 100 V CA – 240 V CA

Frecuencia 50 Hz – 60 Hz

Consumo eléctrico 1,50 A~2,50 A

Voltaje de salida 19,50 V de CC

Intensidad de salida 3,34 A/4,62 A

Finding More Information and Resources

See the safety and regulatory documents that shipped with your computer and the

regulatory compliance website at www.dell.com/regulatory_compliance for more

information on:

• Safety best practices

• Regulatory certification

• Ergonomics

See www.dell.com for additional information on:

• Warranty

• Terms and Conditions (U.S. only)

• End User License Agreement

Additional information on your product is available at support.dell.com/manuals.

Information in this publication is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written permission of Dell

Inc. is strictly forbidden.

Trademarks used in this text: Dell™, the DELL logo, Dell Precision™, Precision ON™,

ExpressCharge™, Latitude™, Latitude ON™, OptiPlex™, Vostro™, and Wi-Fi Catcher™are

trademarks of Dell Inc. Intel®, Pentium®, Xeon®, Core™, Atom™, Centrino®, and Celeron®are

registered trademarks or trademarks of Intel Corporation in the U.S. and other countries. AMD®is a

registered trademark and AMD Opteron™, AMD Phenom™, AMD Sempron™, AMD Athlon™,

ATI Radeon™, and ATI FirePro™are trademarks of Advanced Micro Devices, Inc. Microsoft®,

Windows®, MS-DOS®, Windows Vista®, the Windows Vista start button, and Office Outlook®are

either trademarks or registered trademarks of Microsoft Corporation in the United States and/or

other countries. Blu-ray Disc™is a trademark owned by the Blu-ray Disc Association (BDA) and

licensed for use on discs and players. The Bluetooth®word mark is a registered trademark and

owned by the Bluetooth®SIG, Inc. and any use of such mark by Dell Inc. is under license. Wi-Fi®is

a registered trademark of Wireless Ethernet Compatibility Alliance, Inc.

Other trademarks and trade names may be used in this publication to refer to either the entities

claiming the marks and names or their products, Dell Inc. disclaims any proprietary interest in

trademarks and trade names other than its own.
