Dell Latitude E6410 Manuale del proprietario

Setup and Features Information

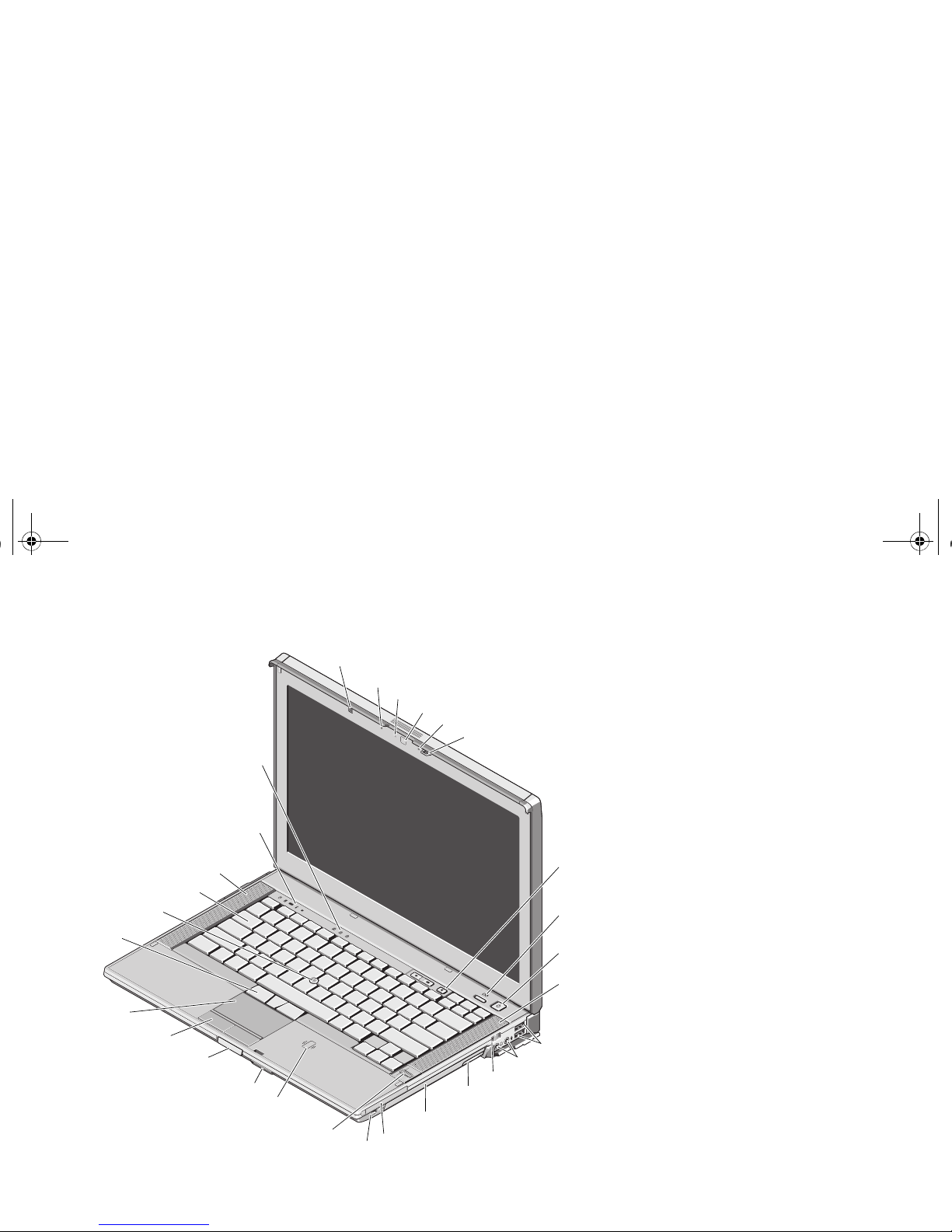

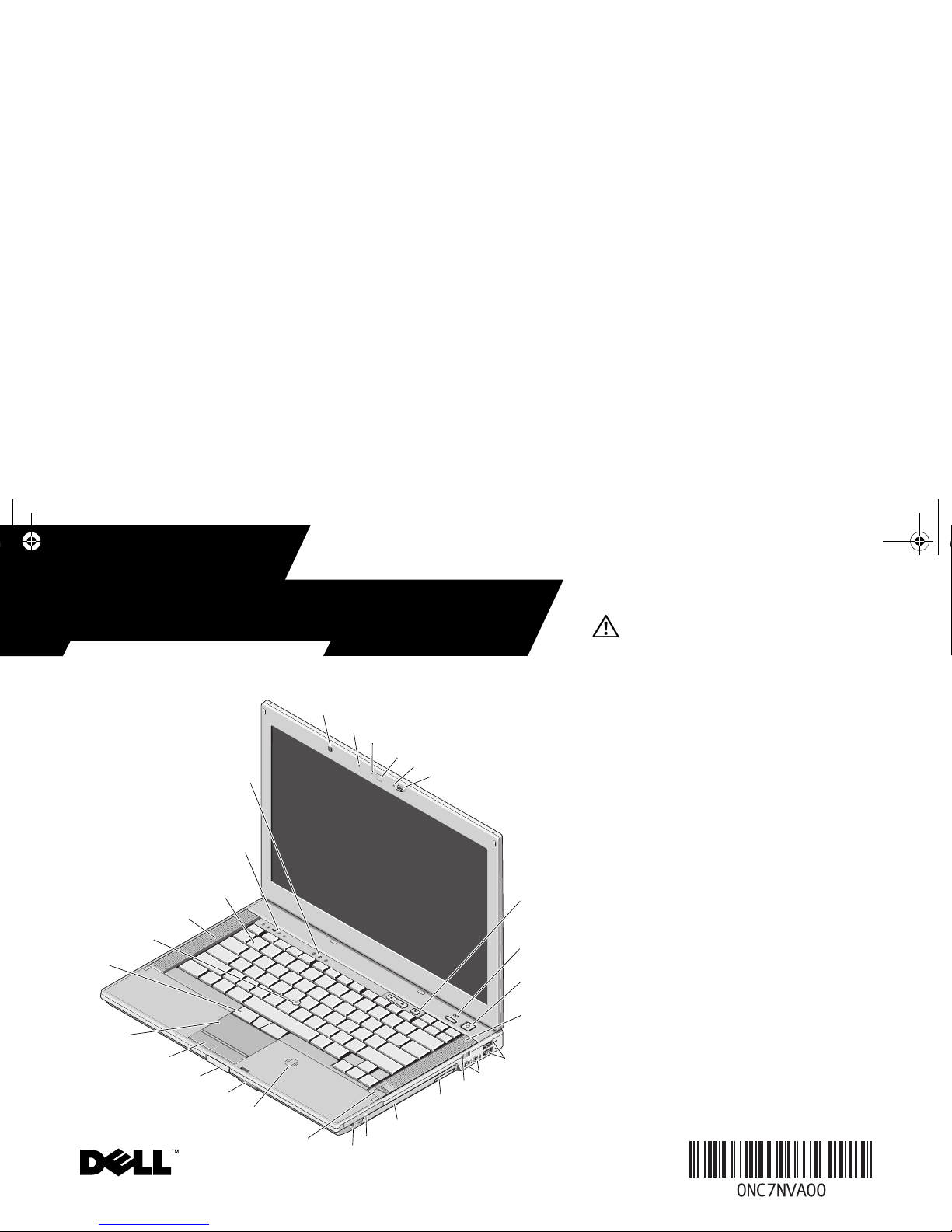

Latitude E6410 — Front View

1ambient light sensor 2microphone

3camera LED

(optional)

4camera (optional)

5microphone 6display latch

7volume control

buttons

8Latitude ON™ button

9power button 10 right speaker

11 USB 2.0

connectors (2)

12 audio connectors

13 wireless switch 14 optical drive removal

button

15 optical drive 16 PC card or Express

card slot

17 IEEE 1394 connector 18 fingerprint reader

(optional)

19 contactless smart

card reader (optional)

20 Secure Digital (SD)

and MMC card slot

21 display latch release

button

22 touchpad buttons

23 touchpad 24 trackstick buttons

25 trackstick 26 left speaker

27 keyboard 28 device status lights

29 keyboard status light

Regulatory Model: PP27LA Regulatory Type: PP27LA001

Dell™Latitude™E6410/E6410 ATG

About Warnings

WARNING: A WARNING indicates a potential

for property damage, personal injury, or death.

February 2010

NC7NVam0.fm Page 1 Tuesday, February 16, 2010 4:39 PM

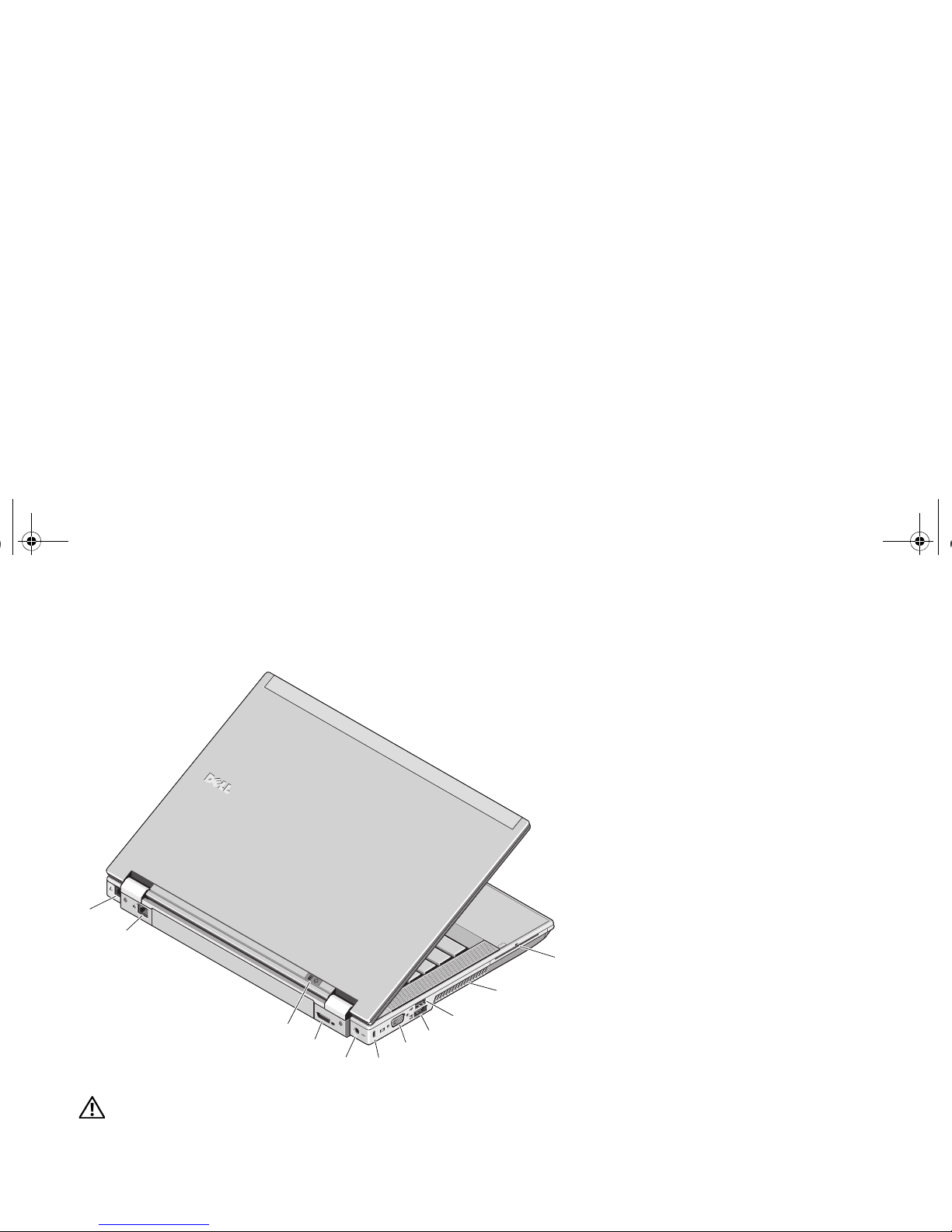

Latitude E6410 — Back View

WARNING: Do not block, push objects into, or allow dust to accumulate in the air vents. Do not store your Dell computer in a low-airflow

environment, such as a closed briefcase, while it is running. Restricting the airflow can damage the computer or cause a fire. The computer turns on the

fan when the computer gets hot. Fan noise is normal and does not indicate a problem with the fan or the computer.

1modem connector (optional)

2network connector

3power and battery status lights

4multimode DisplayPort connector

5AC adapter connector

6security cable slot

7video connector (VGA)

8e-SATA/USB 2.0 connector

9powered USB 2.0 connector

10 cooling vent

11 smart card slot

NC7NVam0.fm Page 2 Tuesday, February 16, 2010 4:39 PM

Latitude E6410 ATG — Front View

1ambient light sensor 2microphone

3camera LED (optional) 4camera (optional)

5microphone 6display latch

7volume control buttons 8Latitude ON button

9power button 10 right speaker

11 USB 2.0 connectors (2) 12 audio connectors

13 wireless switch 14 optical drive remov

button

15 optical drive 16 PC card or Express

card slot

17 IEEE 1394 connector 18 fingerprint reader

(optional)

19 contactless smart card

reader (optional)

20 Secure Digital (SD)

and MMC card slot

21 display latch release

button

22 touchpad buttons

23 touchpad 24 trackstick buttons

25 trackstick 26 keyboard

27 left speakers 28 device status light

29 keyboard status lights

NC7NVam0.fm Page 3 Tuesday, February 16, 2010 4:39 PM

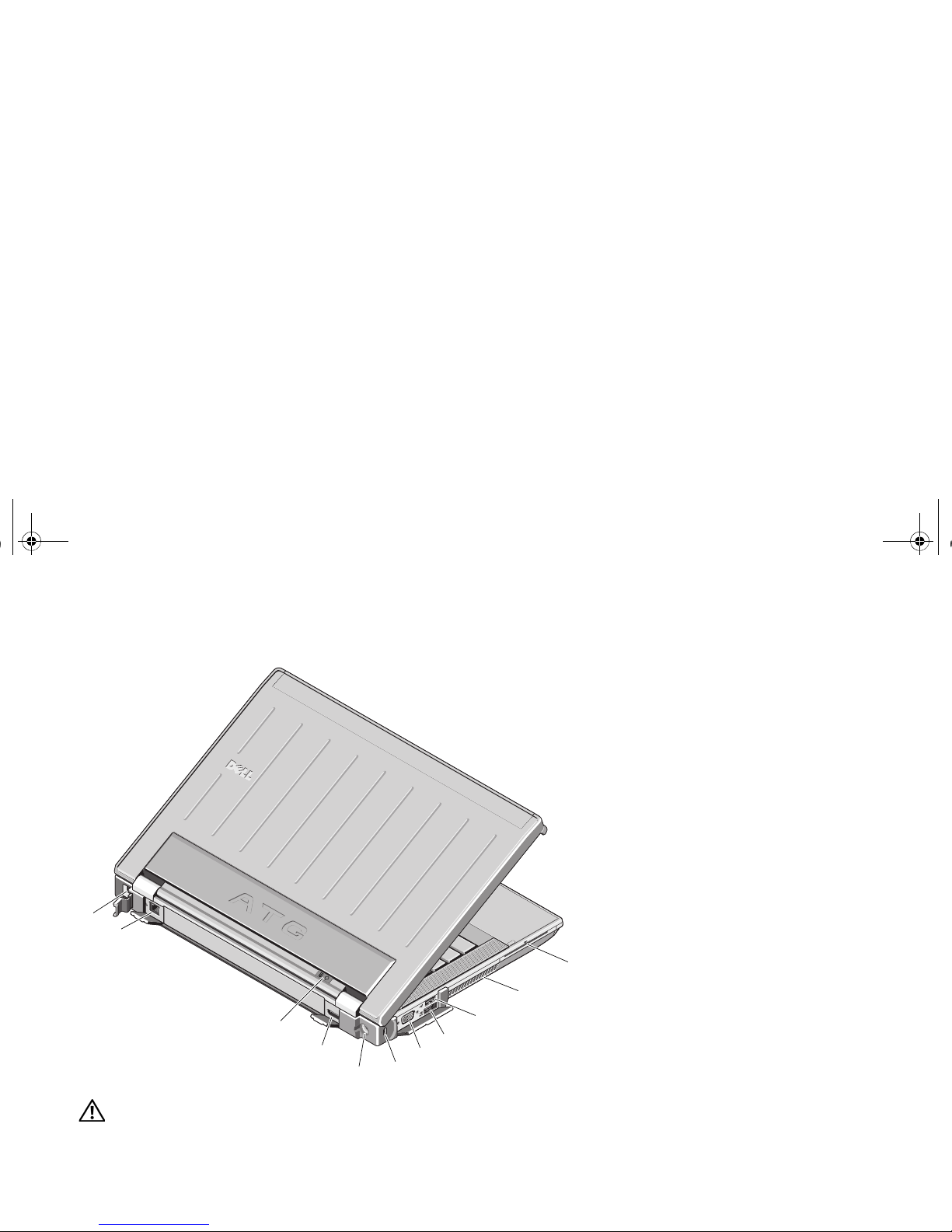

Latitude E6410 ATG — Back View

WARNING: Do not block, push objects into, or allow dust to accumulate in the air vents. Do not store your Dell computer in a low-airflow

environment, such as a closed briefcase, while it is running. Restricting the airflow can damage the computer or cause a fire. The computer

turns on the fan when the computer gets hot. Fan noise is normal and does not indicate a problem with the fan or the computer.

1modem connector (optional)

2network connector

3power and battery status lights

4multimode DisplayPort connector

5AC adapter connector

6security cable slot

7video connector (VGA)

8eSATA/USB 2.0 connector

9powered USB 2.0 connector

10 cooling vent

11 smart card slot

NC7NVam0.fm Page 4 Tuesday, February 16, 2010 4:39 PM

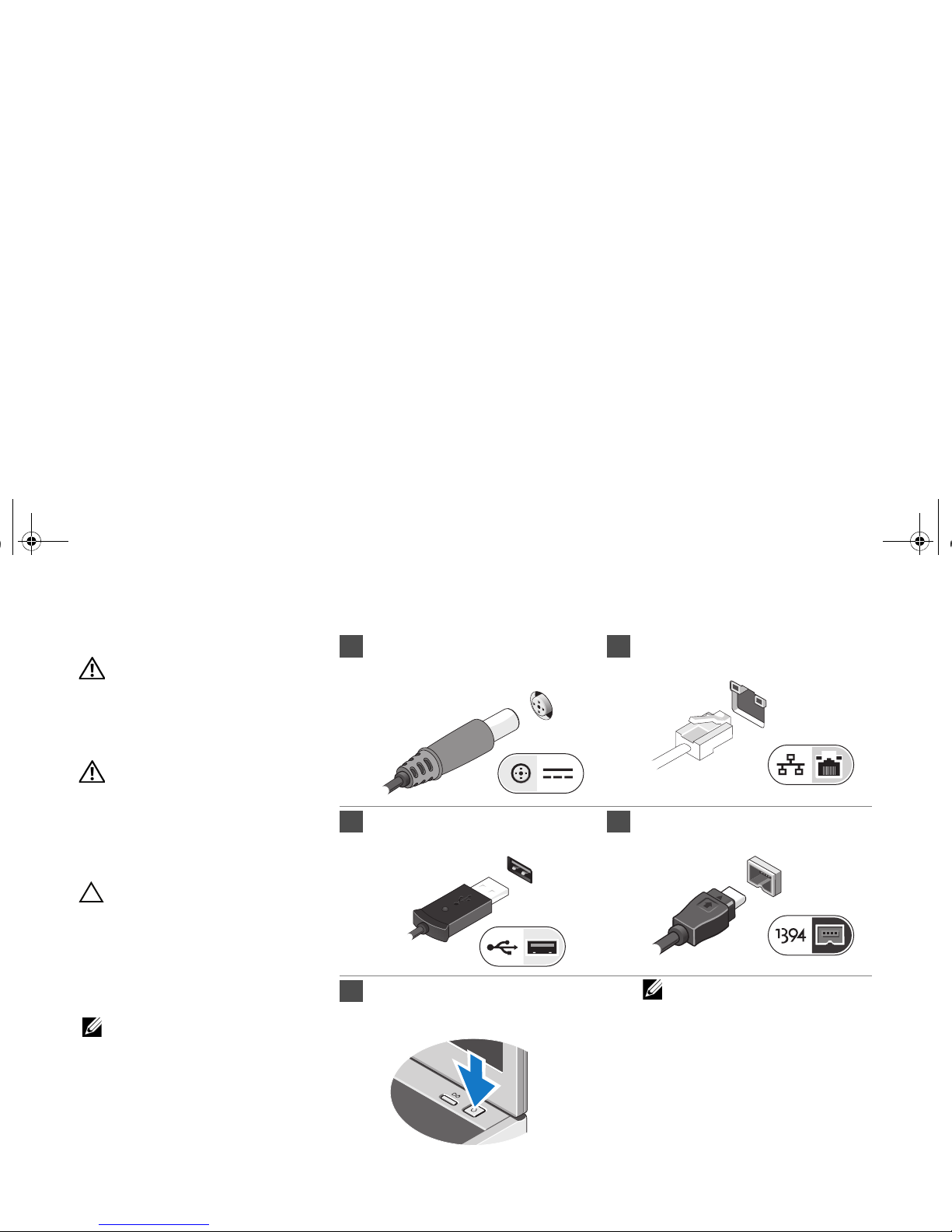

1Connect the AC adapter to the

AC adapter connector on the portable

computer and to the electrical outlet.

2Connect the network cable

(optional).

3Connect USB devices, such as a

mouse or a keyboard (optional).

4Connect IEEE 1394 devices, such as

a DVD player (optional).

5Open the computer display and

press the power button to turn on

the computer.

NOTE: It is recommended that you

turn on and shut down your computer

at least once before you install any

cards or connect the computer to a

docking device or other external

device, such as a printer.

Quick Setup

WARNING: Before you begin any of

the procedures in this section, read the

safety information that shipped with

your computer. For additional best

practices information, see

www.dell.com/regulatory_compliance.

WARNING: The AC adapter works with

electrical outlets worldwide. However,

power connectors and power strips vary

among countries. Using an incompatible

cable or improperly connecting the cable

to the power strip or electrical outlet may

cause fire or equipment damage.

CAUTION: When you disconnect the

AC adapter cable from the computer,

grasp the connector, not the cable

itself, and pull firmly but gently to avoid

damaging the cable. When you wrap the

AC adapter cable, ensure that you

follow the angle of the connector on the

AC adapter to avoid damaging the cable.

NOTE: Some devices may not be

included if you did not order them.

NC7NVam0.fm Page 5 Tuesday, February 16, 2010 4:39 PM

Specifications

NOTE: Offerings may vary by region. For more information regarding

the configuration of your computer, click Start→Help and Support

and select the option to view information about your computer.

System Information

Processor type Intel®Core™ i5

Intel Core i7

Chipset Mobile Intel 5 series (QM57)

Video

Video type UMA Discrete (E6410 only)

Data bus

PCI-E x16 Gen1

Video controller

UMA

Intel Graphics

Discrete

NVIDIA Quadro NVS 3100M

Memory

Type DDR3, 1066 MHz

Memory module connector two SODIMM slots

Memory module capacity 1 GB, 2 GB, or 4 GB

Minimum memory 1 GB

Maximum memory 8 GB

Contactless Smart Card

Supported Smart Cards

and Technologies

ISO14443A — 106 kbps, 212 kbps, 424 kbps,

and 848 kbps

ISO14443B — 106 kbps, 212 kbps, 424 kbps,

and 848 kbps

ISO15693

HID iClass

FIPS201

NXP Desfire

Battery

Type 4-cell "smart" lithium ion (37 WHr)

6-cell "smart" lithium ion (60 WHr)

3-year life-time 9-cell "smart" lithium ion

(81 WHr)

9-cell "smart" lithium ion (90 WHr)

12-cell "smart" lithium ion slice (88 WHr)

Dimensions

4-cell/6- cell

Depth

206.11 mm (8.11 inches)

Height

19.81 mm (0.78 inch)

Width

47.00 mm (1.85 inches)

9-cell

Depth

207.77 mm (8.18 inches)

Height

22.10 mm (0.87 inch)

Width

68.83 mm (2.71 inches)

NC7NVam0.fm Page 6 Tuesday, February 16, 2010 4:39 PM

12-cell

Depth

14.48 mm (0.57 inch)

Height 217.17 mm (8.55 inches)

Width

322.07 mm (12.68 inches)

Weight

4-cell

235.87 g (0.52 lb)

6-cell

326.59 g (0.72 lb)

9-cell

480.81 g (1.06 lb)

12-cell

848.22 g (1.87 lb)

Voltage 11.10 V

Temperature range

Operating

0 °C to 35 °C (32 °F to 95 °F)

Storage

–40 °C to 60 °C (–40 °F to 140 °F)

Coin-cell battery 3 V CR2032 lithium coin cell

AC Adapter

Input voltage 100 V–240 V ~

Input current (maximum) 1.50 A

Input frequency 50–60 Hz

Output power 65 W / 90 W

Output current

65 W (E6410 with

UMA video only)

3.34 A continuous

90 W

4.62 A

Battery (continued)

Rated output voltage 19.50 VDC

Dimensions

65 W

Depth

127.00 mm (4.99 inches)

Height

16.00 mm (0.63 inch)

Width

66.04 mm (2.60 inches)

90 W

Depth

147.00 mm (5.78 inches)

Height

16.00 mm (0.63 inch)

Width

70.00 mm (2.75 inches)

Temperature range

Operating

0 °C to 40 °C (32 °F to 104 °F)

Storage

–40 °C to 70 °C (–40 °F to 158 °F)

Physical

Latitude 6410

Depth 238.30 mm (9.38 inches)

Height 25.40 mm–30.99 mm

(1.00 inch–1.22 inches)

Width 334.77 mm (13.18 inches)

Weight (minimum)

1.95 kg (4.30 lb)

AC Adapter (continued)

NC7NVam0.fm Page 7 Tuesday, February 16, 2010 4:39 PM

Finding More Information and Resources

See the safety and regulatory documents that shipped with your computer

and the regulatory compliance website at

www.dell.com/regulatory_compliance for more information on:

• Safety best practices

• Warranty

• Terms and Conditions

• Regulatory certification

• Ergonomics

• End User License Agreement

________________

Information in this document is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written

permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell, the DELL logo, Latitude, and Latitude ON

are trademarks of Dell Inc.; Intel is a registered trademark and Core is a

trademark of Intel Corporation in the U.S. and other countries.

Other trademarks and trade names may be used in this document to refer to

either the entities claiming the marks and names or their products.

Dell Inc. disclaims any proprietary interest in trademarks and trade names other

than its own.

Latitude 6410 ATG

Depth

245.62 mm (9.67 inches)

Height

31.24 mm (1.23 inches)

with port cover — 1.55 inches (39.37 mm)

Width

340.87 mm (13.42 inches)

Weight (minimum)

2.68 kg (5.90 lb)

Docking Connector

E-Family dock 144–pin docking connector

Environmental

Temperature range

Operating

0 °C to 35 °C (32 °F to 95 °F)

Storage

–40 °C to 65 °C (–40 °F to 149 °F)

Relative humidity

(maximum)

Operating

10% to 90% (noncondensing)

Storage

5% to 95% (noncondensing)

Altitude (maximum)

Operating

–15.2 m to 3048 m (–50 ft to 10,000 ft)

Storage

–15.2 m to 10,668 m (–50 ft to 35,000 ft)

Physical (continued)

NC7NVam0.fm Page 8 Tuesday, February 16, 2010 4:39 PM
