Dell™Latitude™D600ServiceManual

Before You Begin

System Components

Memory Module, Mini PCI Card, and Modules

Reserve Battery

Hard Drive

Keyboard

Display Assembly and Display Latch

Palm Rest

Docking Doors

Fan

Bluetooth™Card

Microprocessor Thermal-Cooling Assembly

Microprocessor Module

Flashing the BIOS

Speakers

Base Latch

Modem

System Board

Pin Assignments for I/O Connectors

Mini Recommended Spares List

Notes, Notices, and Cautions

Information in this document is subject to change without notice.

©2003DellInc.Allrightsreserved.

ReproductioninanymannerwhatsoeverwithoutthewrittenpermissionofDellInc.isstrictlyforbidden.

Trademarks used in this text: Dell, the DELL logo, and Latitude are trademarks of DellInc.; Intel is a registered trademark of Intel Corporation; Bluetooth is a trademark owned by

Bluetooth SIG, Inc. and is used by Dell Inc. under license.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any

proprietary interest in trademarks and trade names other than its own.

Model PP05L

September 2009 Rev. A03

NOTE: A NOTE indicates important information that helps you make better use of your computer.

NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.

Back to Contents Page



Before You Begin

Dell™Latitude™D600ServiceManual

Preparing to Work Inside the Computer

Recommended Tools

Computer Orientation

Screw Identification



Preparing to Work Inside the Computer



1. Ensure that the work surface is flat and clean to prevent scratching the computer cover.

2. Save any work in progress and exit all open programs.

3. Turn off the computer and all attached devices.



4. If the computer is connected to a docking station, undock it.

5. Disconnect the computer from the electrical outlet.

6. To avoid possible damage to the system board, wait 10 to 20 seconds and then disconnect any attached devices.

7. Disconnect all other external cables from the computer.

8. Remove any installed PC Cards from the PC Card slot.

9. Close the display and turn the computer upside down on a flat work surface.



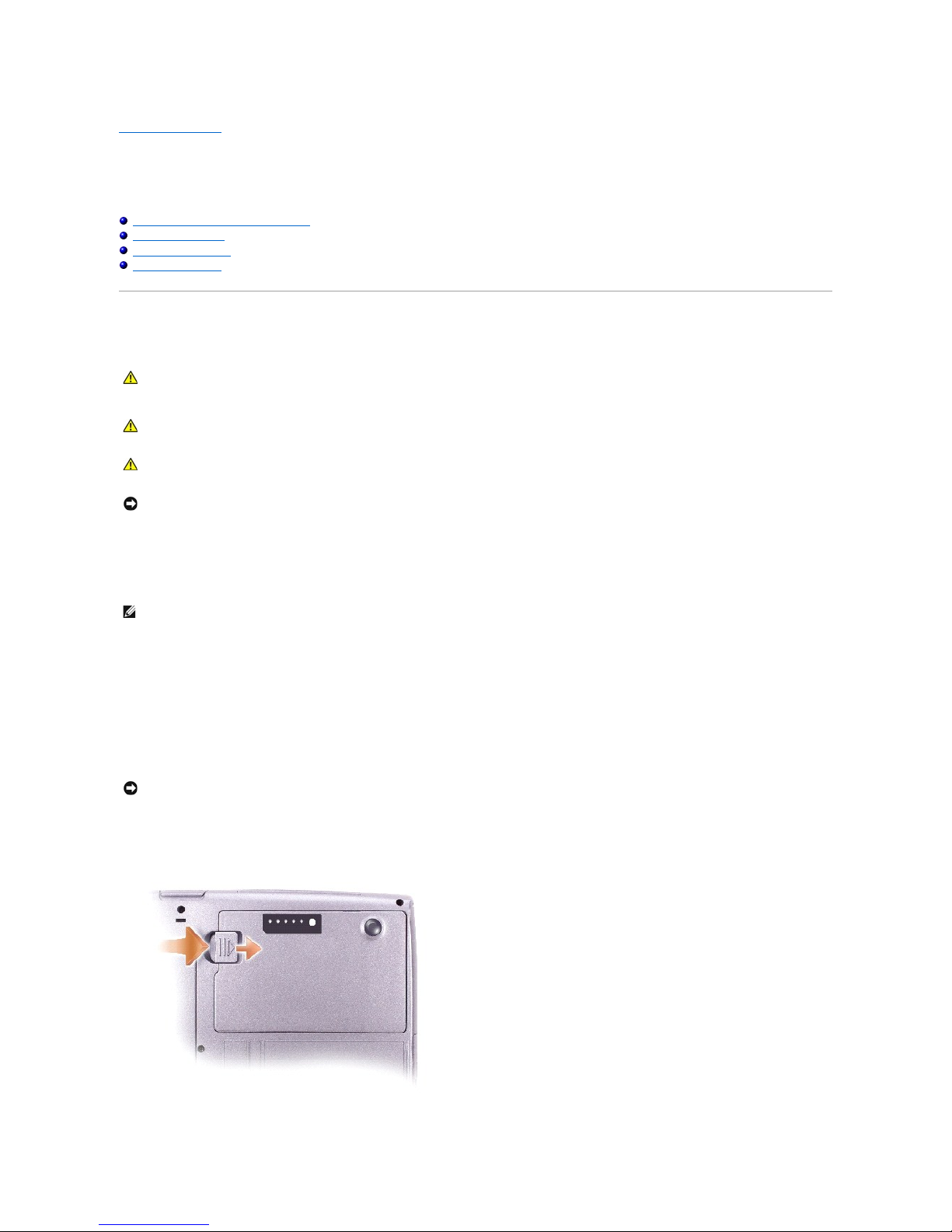

10. Slide and hold the battery-bay latch release on the bottom of the computer, and then remove the battery from the bay.



CAUTION: Many repairs may only be done by a certified service technician. You should only perform troubleshooting and simple repairs as

authorized in your product documentation, or as directed by the online or telephone service and support team. Damage due to servicing that is not

authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came with the product.

CAUTION: To prevent static damage to components inside your computer, discharge static electricity from your body before you touch any of

your computer's electronic components. You can do so by touching an unpainted metal surface.

CAUTION: Handle components and cards with care. Do not touch the components or contacts on a card. Hold a card by its edges or by its metal

mounting bracket. Hold a component such as a microprocessor by its edges, not by its pins.

NOTICE: To avoid damaging the computer, perform the following steps before you begin working inside the computer.

NOTE: Ensure that the computer is off and not in a power management mode. If you cannot shut down the computer using the computer operating

system, press and hold the power button for 4 seconds.

NOTICE: To avoid damaging the system board, you must remove the main battery before you service the computer.

11. Remove any installed memory modules, Mini PCI cards, and modules, including a second battery if one is installed.

12. Remove the hard drive.



Recommended Tools



The procedures in this manual require the following tools:

l#1 Phillips screwdriver

l¼-inch flat-blade screwdriver

lSmall plastic scribe

lFlash BIOS update program floppy disk or CD



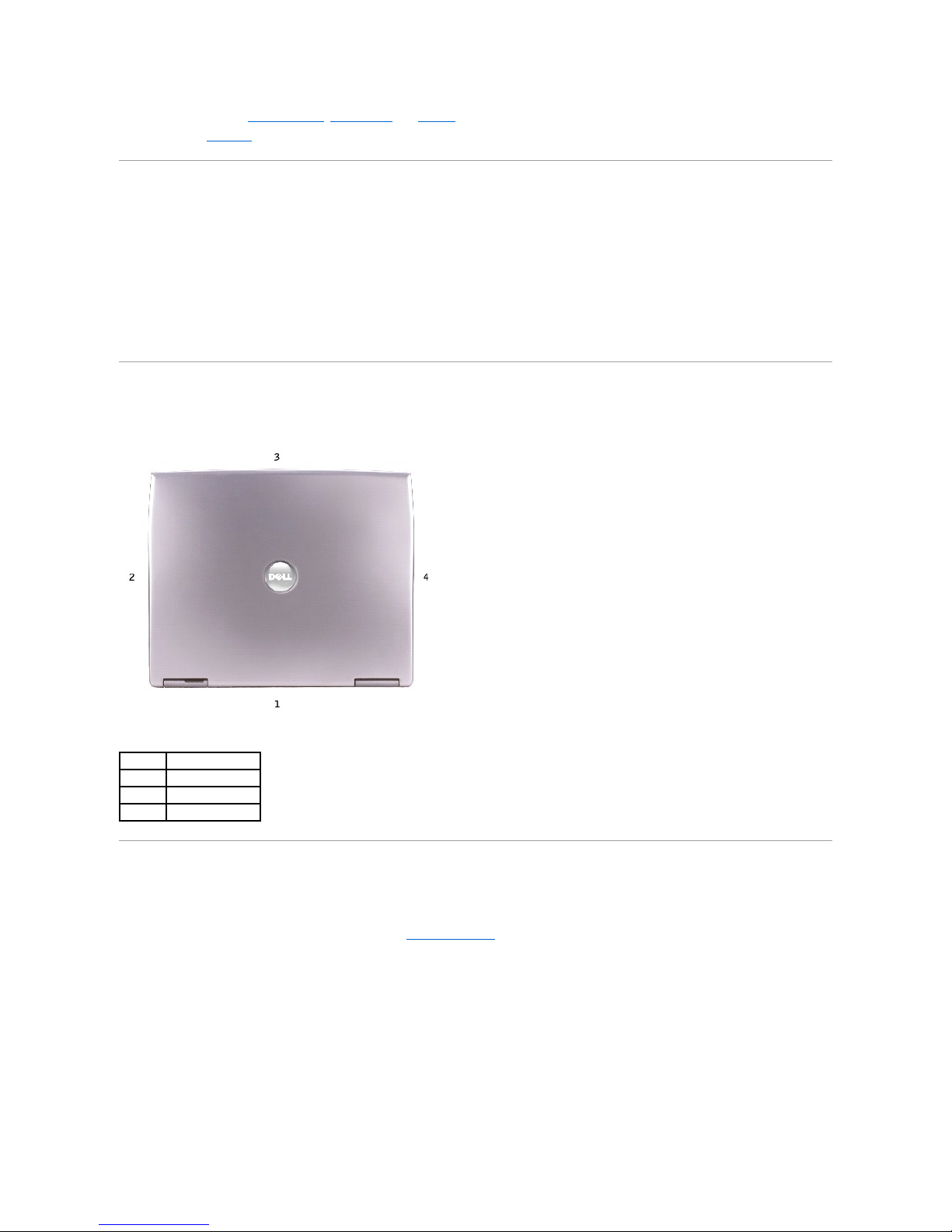

Computer Orientation



Screw Identification



When you are removing and replacing components, photocopy "Screw Identification" as a tool to lay out and keep track of the screws. The placemat provides

the number of screws and their sizes.



1

back

2

right

3

front

4

left



Optional Module:

(1 each)



Hard Drive:

(1 each)



Keyboard:

(2 each)



Display Assembly:

(3 each)



Display Bezel:

(6 each)



Display Panel:

(4 each)



Display Latch:

(2 each)



Palm Rest:

(3 each)



(9 each)



Fan:

(2 each)



Back to Contents Page



Speakers:

(1 each)



(1 each)



Modem:

(1 each)



System Board:

(1 each)



(1 each)



(4 each)



Back to Contents Page



Flashing the BIOS

Dell™Latitude™D600ServiceManual

1. Ensure that the AC adapter is plugged in and that the main battery is installed properly.



2. Insert the BIOS update program floppy disk or CD, and turn on the computer.



Follow the instructions that appear on the screen. The computer continues to boot and updates the new BIOS. When the flash update is complete, the

computer will automatically reboot.

3. Press during POST to enter the system setup program.

4. Press and to reset the computer defaults.

5. Press , select Save changes and reboot, and press to save configuration changes.

6. Remove the flash BIOS update program floppy disk or CD from the drive and restart the computer.



Back to Contents Page



NOTE: If you use a BIOS update program CD to flash the BIOS, set up the computer to boot from a CD before inserting the CD.

Back to Contents Page



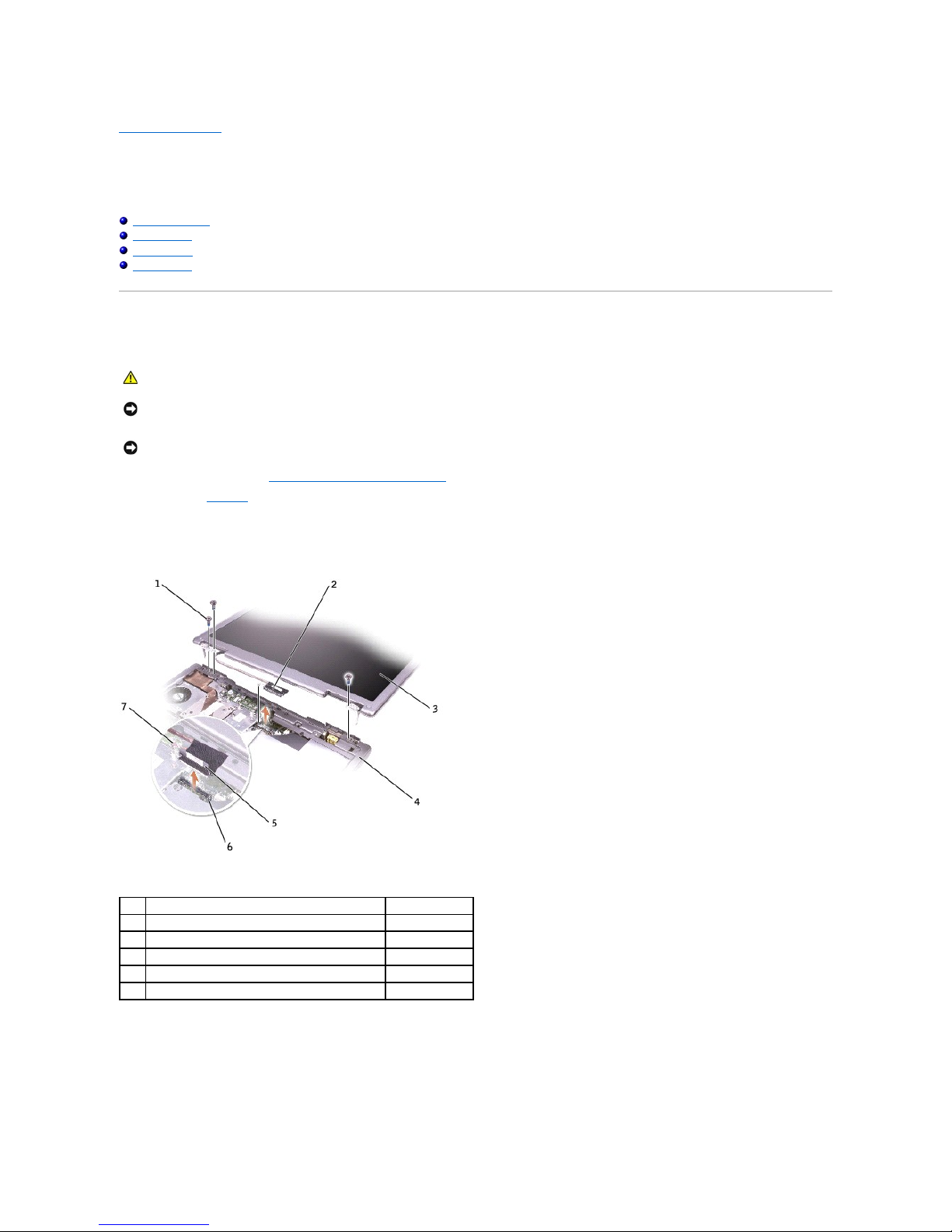

Bluetooth™Card

Dell™Latitude™D600ServiceManual



1. Follow the instructions in "Preparing to Work Inside the Computer."

2. Remove the keyboard.

3. Remove the display assembly.

4. Remove the palm rest.

5. Remove the Bluetooth card by pulling it straight up from the system board connector.



Back to Contents Page



CAUTION: Before performing the following procedures, read the safety instructions in your System Information Guide.

NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such

as the back panel) on the computer.

Bluetooth card

1U746

system board connector



Back to Contents Page



Microprocessor Module

Dell™Latitude™D600ServiceManual



Removing the Microprocessor Module



1. Follow the instructions in "Preparing to Work Inside the Computer."

2. Remove the keyboard.



3. Remove the microprocessor thermal-cooling assembly.



4. To loosen the ZIF socket, use a small, flat-blade screwdriver and rotate the ZIF-socket cam screw counterclockwise until it comes to the cam stop.



CAUTION: Before performing the following procedures, read the safety instructions in your System Information Guide.

NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such

as the back panel) on the computer.

NOTICE: Do not touch the processor die. Press and hold the microprocessor down on the substrate on which the die is mounted while turning the cam

screw to prevent intermittent contact between the cam screw and microprocessor.

NOTICE: To avoid damage to the microprocessor, hold the screwdriver so that it is perpendicular to the microprocessor when turning the cam screw.

NOTICE: To ensure maximum cooling for the microprocessor, do not touch the heat transfer areas on the microprocessor thermal-cooling assembly. The

oils in your skin reduce the heat transfer capability of the thermal pads.

NOTICE: When removing the microprocessor module, pull the module straight up. Be careful not to bend the pins on the microprocessor module.

screwdriver

(perpendicular to

microprocessor)

ZIF-socket cam screw

ZIF socket

pin-1 corner

NOTE: The ZIF-socket cam screw secures the microprocessor to the system board. Take note of the arrow on the ZIF-socket cam screw.

5. Lift out the microprocessor module.



Installing the Microprocessor Module



1. Align the pin-1 corner of the microprocessor module with the pin-1 corner of the ZIF socket, and insert the microprocessor module.



When the microprocessor module is correctly seated, all four corners are aligned at the same height. If one or more corners of the module are higher

than the others, the module is not seated correctly.

2. Tighten the ZIF socket by turning the cam screw clockwise to secure the microprocessor module to the system board.

3. Replace the other computer parts you removed earlier in this procedure.

4. Update the BIOS using a flash BIOS update program floppy disk or CD. For instructions on how to flash the BIOS, see "Flashing the BIOS."

Back to Contents Page



NOTE: See Mini RSL for microprocessor part numbers.

NOTICE: Ensure that the cam lock is in the fully open position before seating the microprocessor module. Seating the microprocessor module properly in

the ZIF socket does not require force.

NOTICE: A microprocessor module that is not properly seated can result in an intermittent connection or permanent damage to the microprocessor and

ZIF socket.

NOTE: The pin-1 corner of the microprocessor module has a triangle that aligns with the triangle on the pin-1 corner of the ZIF socket.

NOTICE: You must position the microprocessor module correctly in the ZIF socket to avoid permanent damage to the module and the socket.

Back to Contents Page



Display Assembly and Display Latch

Dell™Latitude™D600ServiceManual

Display Assembly

Display Bezel

Display Panel

Display Latch



Display Assembly



1. Follow the instructions in "Preparing to Work Inside the Computer."

2. Remove the keyboard.

3. Open the display assembly approximately 180 degrees, and support the display assembly so that it does not open past this position.

4. Loosen the captive screw that secures the display cable to the system board, and release the cable from the four cable-routing clips.



CAUTION: Before performing the following procedures, read the safety instructions in your System Information Guide.

NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such

as the back panel) on the computer.

NOTICE: You must remove the display assembly before you remove the palm rest.

M2.5 x 6-mm screws (3)

057HW

display cable connector



display



computer base



pull-tab



connector


